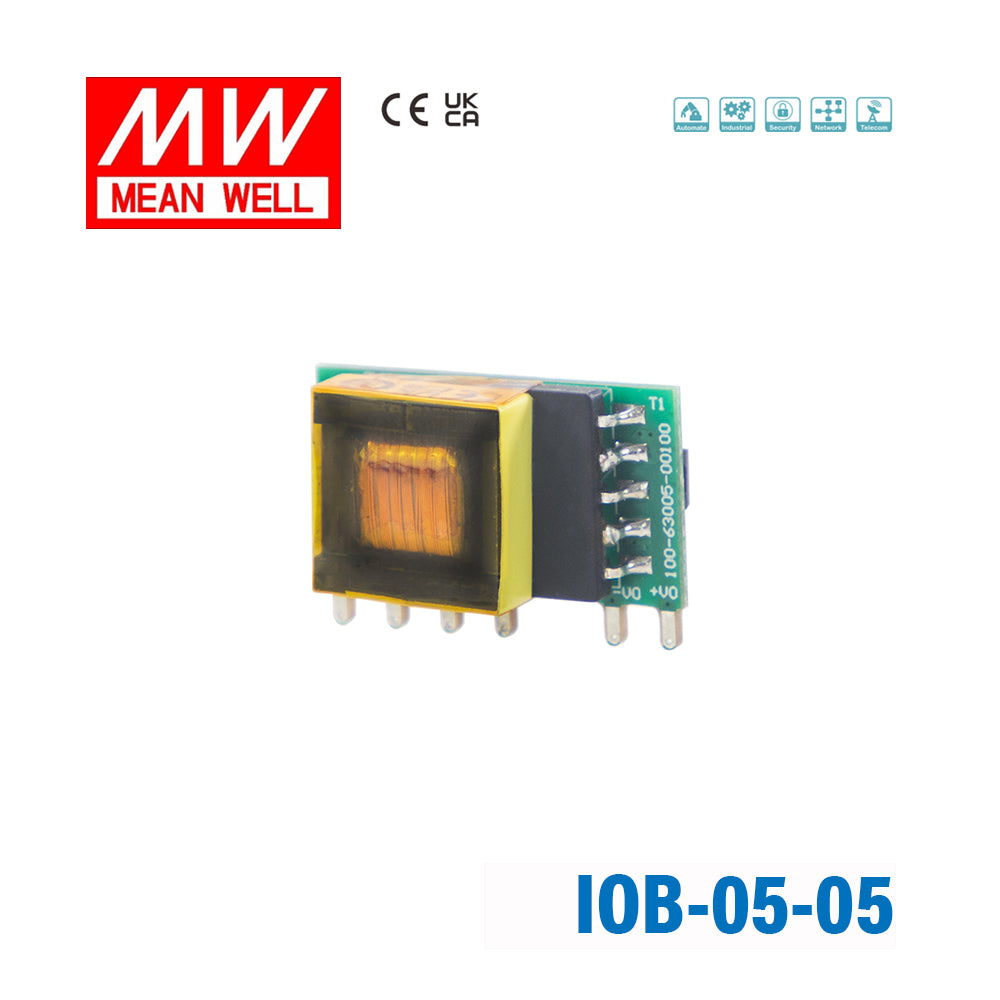

Mean Well IOB-05-05 AC-DC On Board Type Power Module 5W 5V 1A

The Mean Well IOB-05-05 is a 5W AC-DC on-board power module designed to be assembled directly on a system's main PCB. It provides a regulated 5V output at up to 1A in a compact module format for embedded and space-constrained equipment.

This model is rated for 5W total output power and delivers 5V DC at 1A. It accepts a wide 85 to 305Vac input range, and also supports 100 to 430Vdc input according to the provided specification.

Yes, the IOB-05-05 is specified for operation from -40C to +85C. That wide operating range makes it relevant for industrial and enclosed equipment designs where ambient conditions can vary significantly.

The module includes short circuit, overload, and over voltage protection. Short circuit and overload protection use automatic recovery behavior, while over voltage protection is implemented with an output voltage clamp.

The IOB-05-05 is much smaller than typical enclosed or chassis-style power supplies, with dimensions of 26.4 x 14.73 x 11mm. Its 1 x 0.6 inch class footprint is intended for applications where board space is limited and a low-profile embedded power solution is preferred.

The IOB-05-05 is listed as Safety Class II and approved to IEC62368-1 under LVD. It also has no-load power consumption below 0.15W and uses free air convection cooling, which can be relevant when selecting modules for efficient compact equipment.
