Can I use the MHB150-48S05 to power 5V industrial controllers from a nominal 48V DC bus?

This model is designed for systems with a 36-75V input range and provides a constant 5V output. It can supply up to 20A with a 150W power rating, which fits 5V control electronics that need regulated low-voltage output from a 48V-class source.

Is this DC-DC converter suitable for 5V embedded computing or edge devices in automation cabinets?

It is a fit for embedded or industrial computing loads that require constant 5V power within a 150W budget. The unit delivers up to 20A at 5V and uses a compact 61.0 × 57.9 × 12.7 mm form factor for space-constrained equipment.

Can this converter support 5V I/O modules or sensor hubs in a wide-temperature industrial system?

The operating temperature range is -55°C to +105°C, which supports use in equipment exposed to very low or very high ambient temperatures. Electrically, it provides constant 5V output up to 20A and accepts 36-75V input.

Is the MHB150-48S05 appropriate for telecom or embedded platforms built around a 36-75V power architecture?

Yes, its stated input range is 36-75V, so it aligns with equipment that distributes power in that range and needs a constant 5V rail. The converter is rated for 150W and 20A output, which suits higher-current 5V subsystems.

Can I use this converter outdoors or in exposed environments?

The listed specs confirm an operating temperature range of -55°C to +105°C, but no IP rating is provided. That means the temperature range is defined, while weather or water exposure suitability is not specified in the provided data.

1 5

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

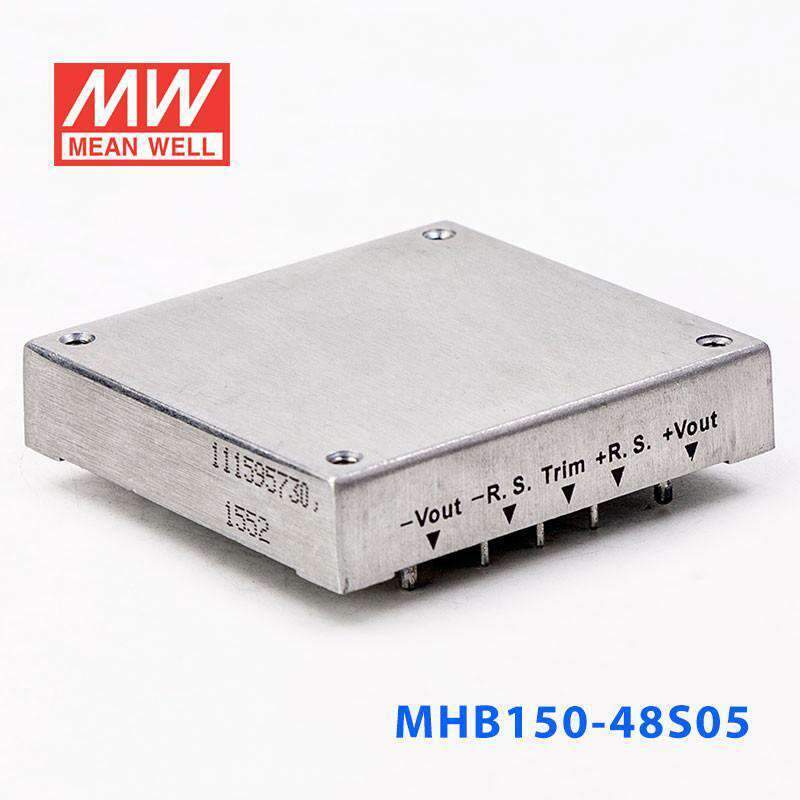

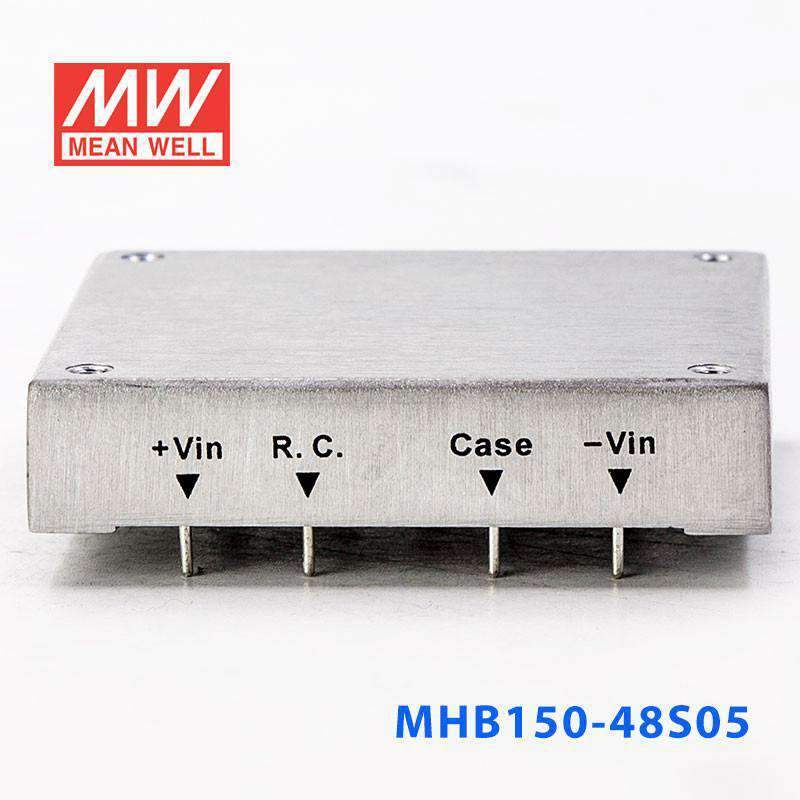

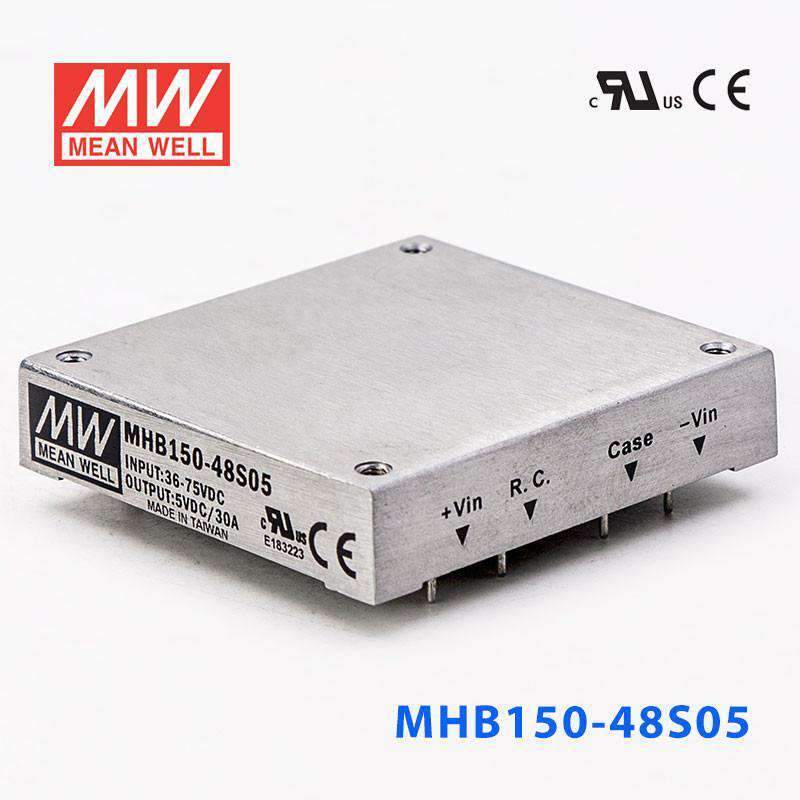

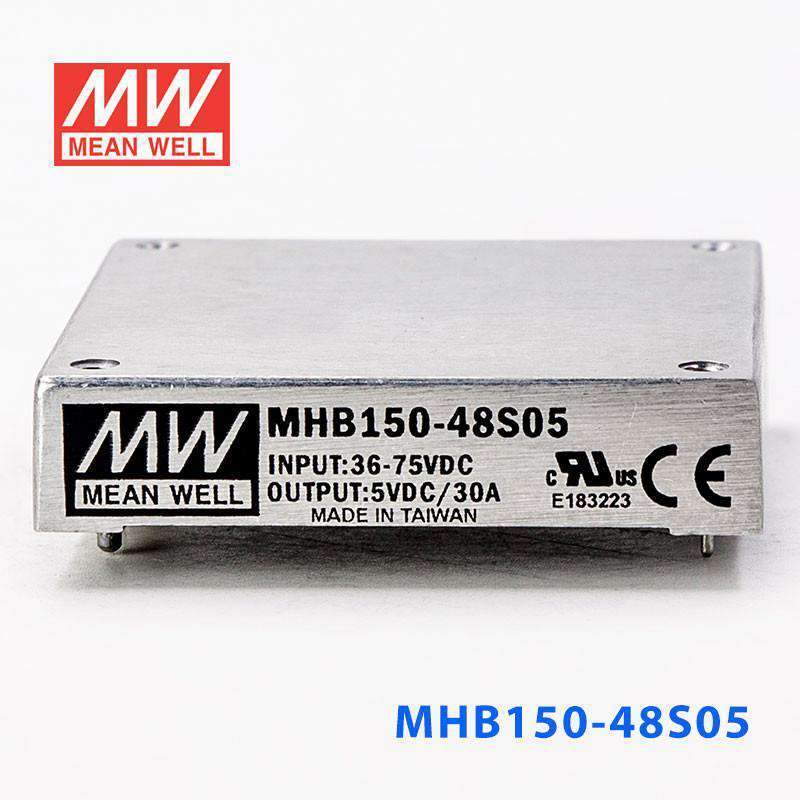

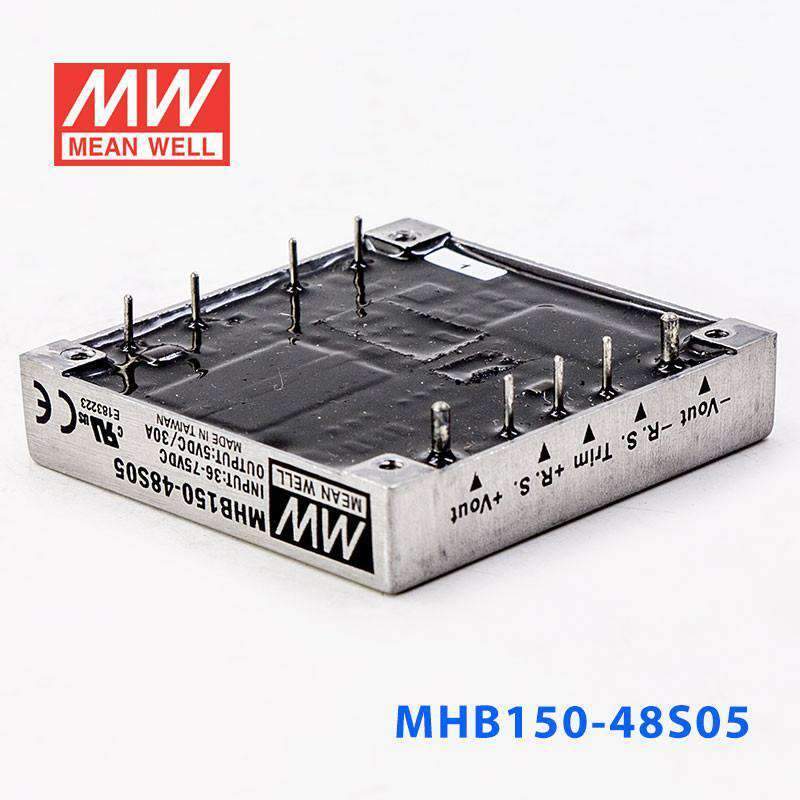

Mean Well MHB150-48S05 DC-DC Converter - 150W - 36~75V in 5V out 20A

SKU:

MHB150-48S05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The MHB150 is a 150W Mean Well power converter (input range: 36~75VDC).

Key Features

✓ Input voltage range: 36~75VDC
✓ Protections: Short circuit / Over voltage / Over temperature / Under voltage
✓ Remote ON/OFF control
✓ Safety approvals: UL60950-1 EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well MHB150-48S24 DC-DC Converter - 150W - 36~75V in 24V out 4.17A	150W	24V	4.17A	Indoor	View
Mean Well MHB150-48S12 DC-DC Converter - 150W - 36~75V in 12V out 8.3A	150W	12V	8.3A	Indoor	View
