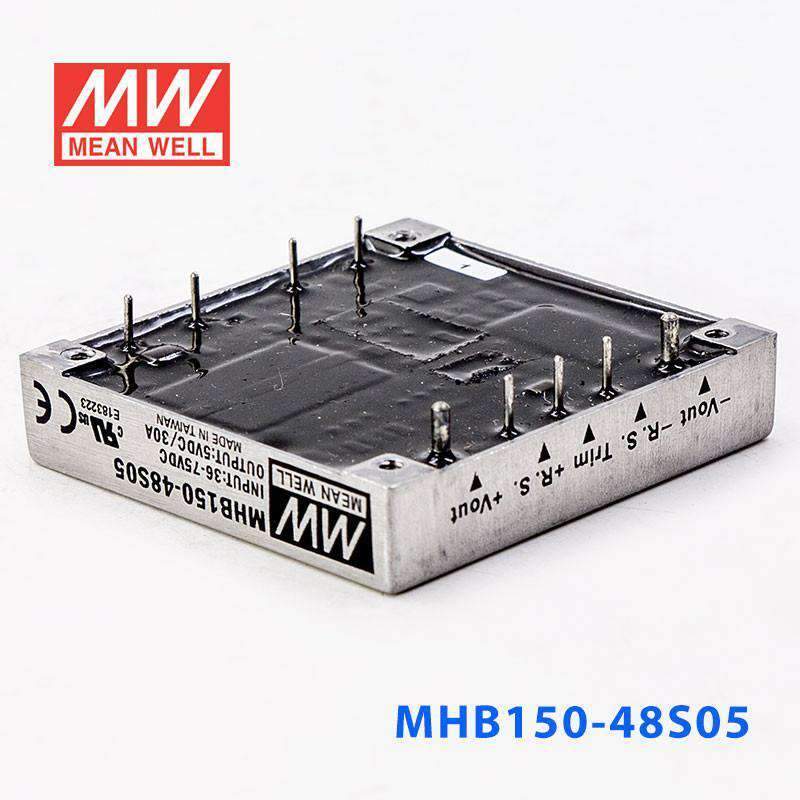

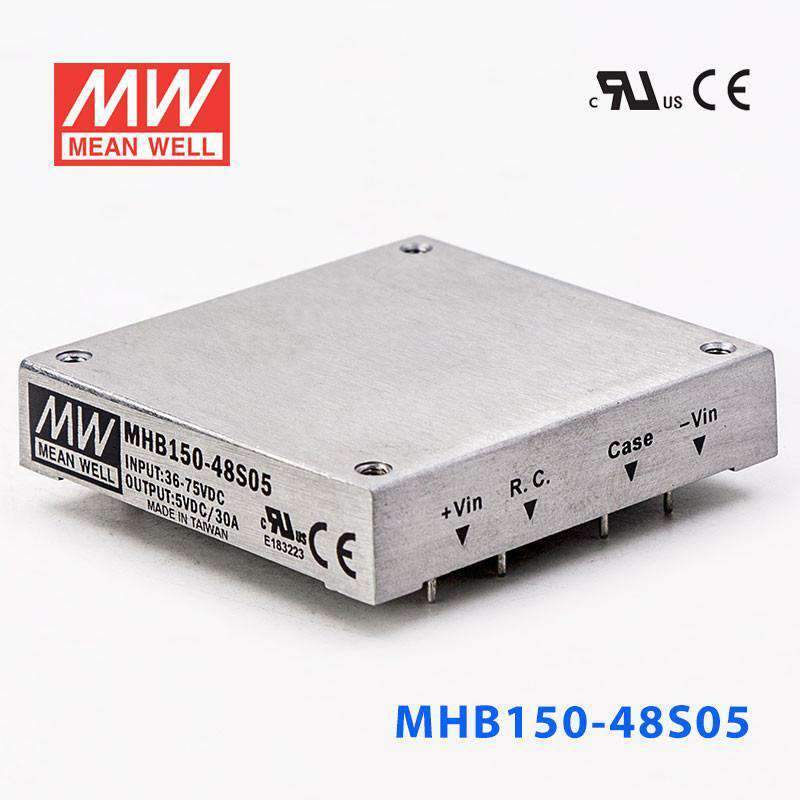

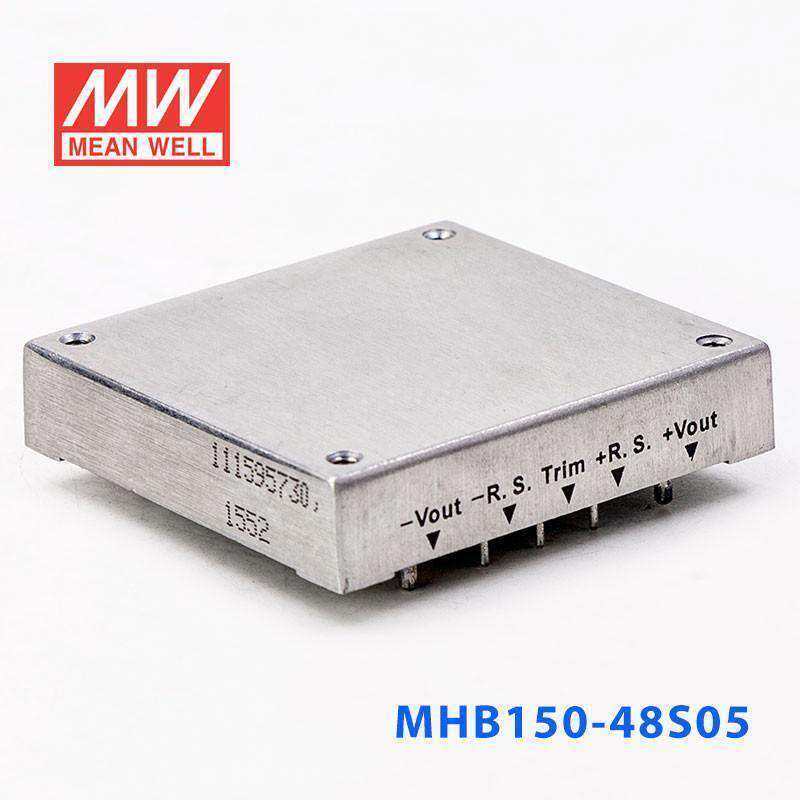

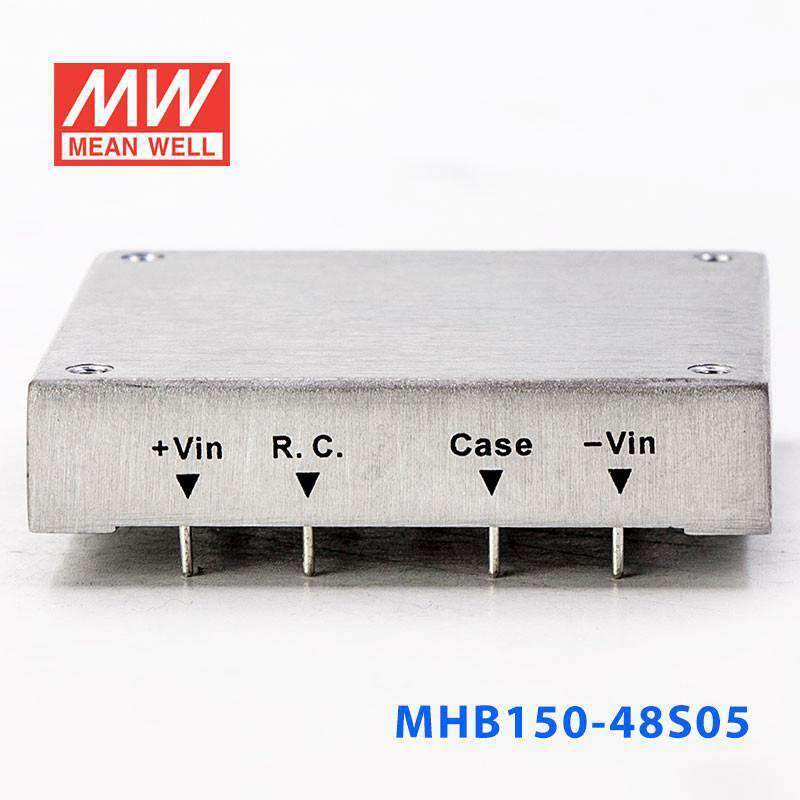

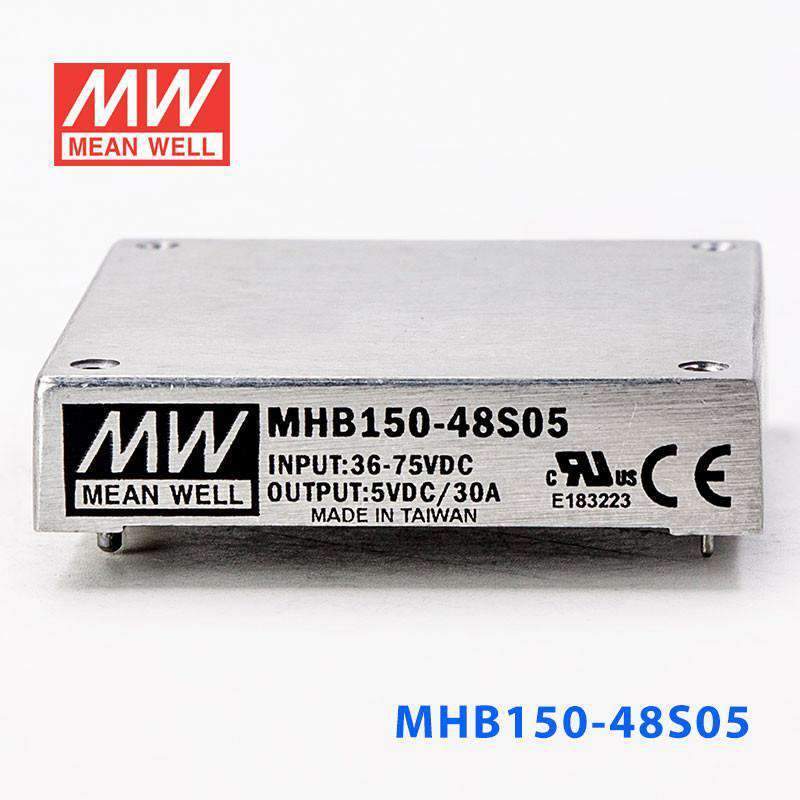

Mean Well MHB150-48S05 DC-DC Converter - 150W - 36~75V in 5V out 20A
Log in to see priceOverview
MHB150-48S05 is the 5V output model of this series: rated power 150W, typical efficiency 86%.
Features
- Half-brick size (2.28"×2.4"×0.5") with industry standard pin out
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- High efficiency up to 89%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in remote sense function
- Trimming output ±10%
- Five-sided shield metal case
- Optional heat sinks for extended operating temperature
- Output 3.3V/15V available
- Approvals: UL / CUL / EAC / CE / UKCA
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 5V
- CURRENT RANGE
- 0 ~ 30A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ACCURACYNote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.2%
- SWITCHING FREQUENCY (Typ.)
- 500KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10%
- EXTERNAL CAPACITIVE LOAD (max.)
- 30000uF
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGE
- 36 ~ 75VDC
- SURGE VOLTAGE (100ms max.)
- 100VDC
- UNDER VOLTAGE LOCKOUT
- Power up: 34VDC, Power down: 32.5VDC
- EFFICIENCY (Typ.)
- 86%
- DC CURRENT FULL LOAD
- 3.7A
- DC CURRENT NO LOAD
- 25mA
- FILTER
- Pi-network
PROTECTION
- OUTPUT OVER CURRENT
- 110 ~ 140% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
- OUTPUT OVER VOLTAGE (Typ.)
- 115 ~ 140% rated output voltage Protection type : Output voltage clamp
- OUTPUT SHORT CIRCUIT
- Protection type : Can be continuous, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- 100℃±5℃of case temperature
FUNCTION OPERATING
- REMOTE CONTROL
- Please refer to "Remote ON/OFF Control" for details
- OUTPUT TRIMMING
- ±10%, Please refer to "External Output Trimming" for details
ENVIRONMENT
- WORKING TEMPERATURE (Typ.)
- -40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -55 ~ +105℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 004 approved
- ISOLATION VOLTAGE
- I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- CASE MATERIAL
- Aluminum
- MTBF
- 900K hrs typ. MIL-HDBK-217F (25℃)
- DIMENSION
- 57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)
- PACKING
- 95g ; 12pcs/EPE, 60pcs/5 per carton
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uf ceramic & 10uf tantalum capacitor across output.
- 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
Technical drawings
Downloads
FAQ
Can I use the MHB150-48S05 to power 5V industrial controllers from a nominal 48V DC bus?
This model is designed for systems with a 36-75V input range and provides a constant 5V output. It can supply up to 30A with a 150W power rating, which fits 5V control electronics that need regulated low-voltage output from a 48V-class source.
Is this DC-DC converter suitable for 5V embedded computing or edge devices in automation cabinets?
It is a fit for embedded or industrial computing loads that require constant 5V power within a 150W budget. The unit delivers up to 30A at 5V and uses a compact 61.0 × 57.9 × 12.7 mm form factor for space-constrained equipment.
Can this converter support 5V I/O modules or sensor hubs in a wide-temperature industrial system?
The operating case temperature range is -40°C to +100°C, with thermal shutdown at 100°C ±5°C case temperature, so proper derating or cooling is needed. Electrically, it provides constant 5V output up to 30A and accepts 36-75V input.
Is the MHB150-48S05 appropriate for telecom or embedded platforms built around a 36-75V power architecture?
Yes, its stated input range is 36-75V, so it aligns with equipment that distributes power in that range and needs a constant 5V rail. The converter is rated for 150W and 30A output, which suits higher-current 5V subsystems.
Can I use this converter outdoors or in exposed environments?
The listed specs confirm an operating case temperature range of -40°C to +100°C, but no IP rating is provided. That means the temperature range is defined, while weather or water exposure suitability is not specified in the provided data.
