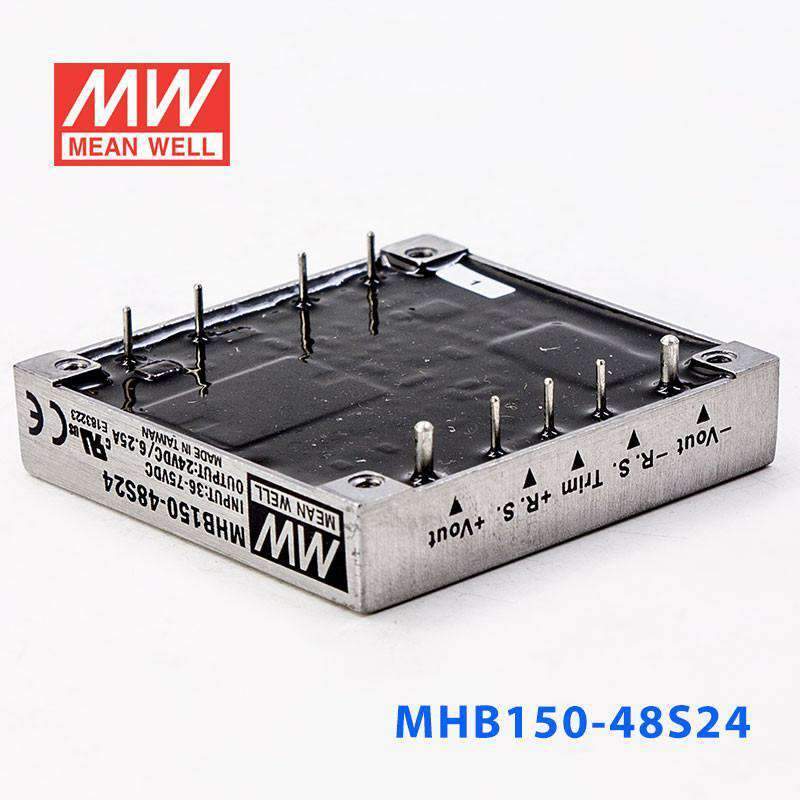

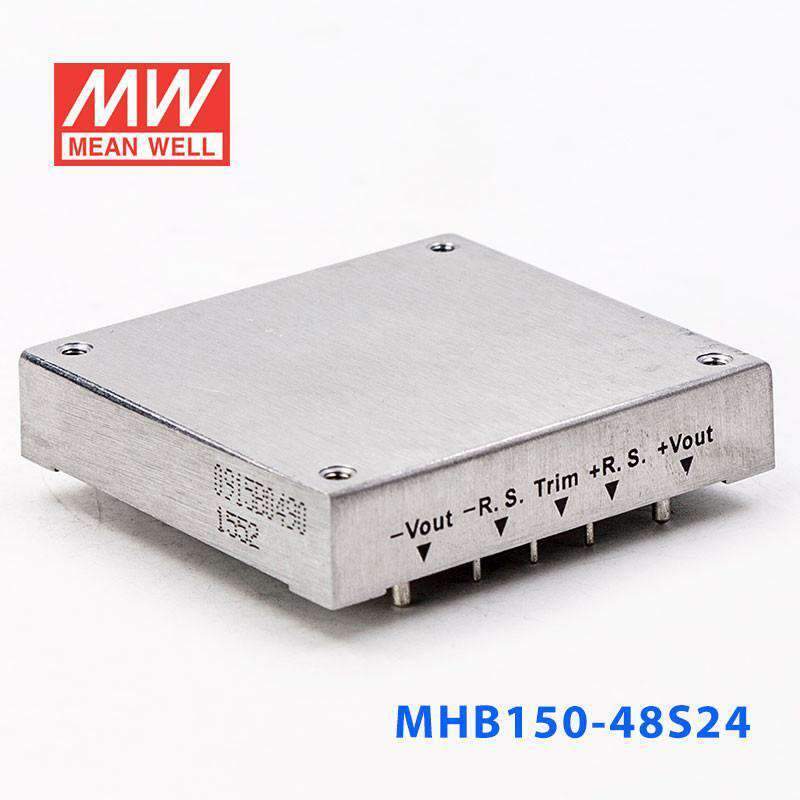

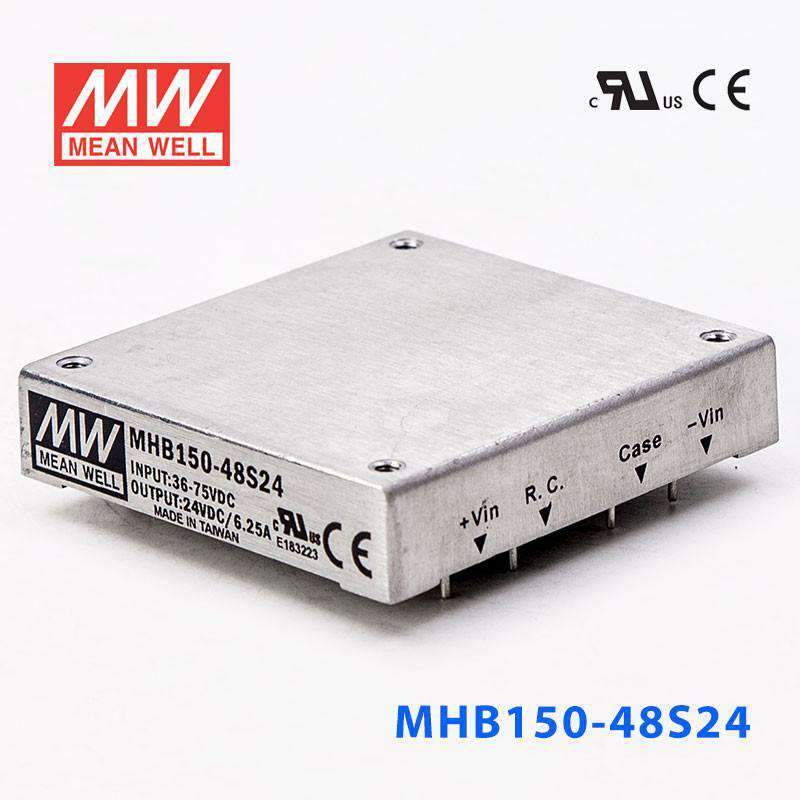

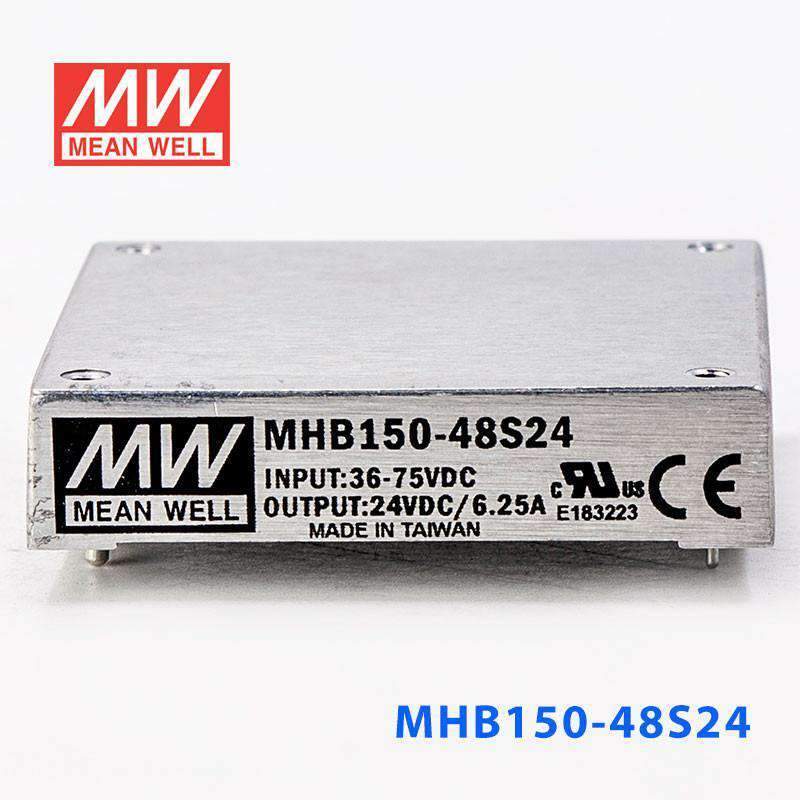

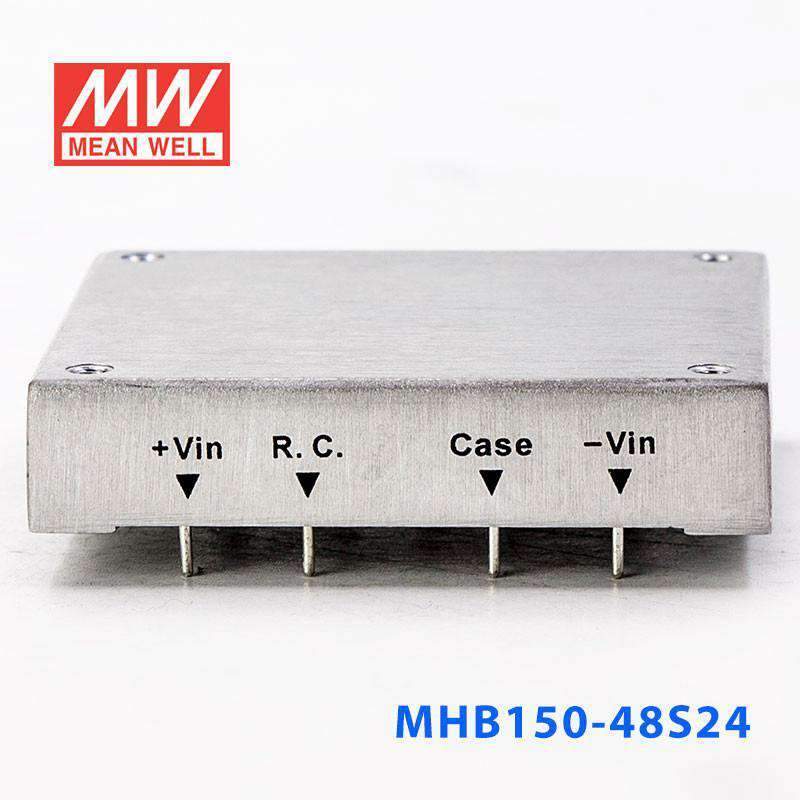

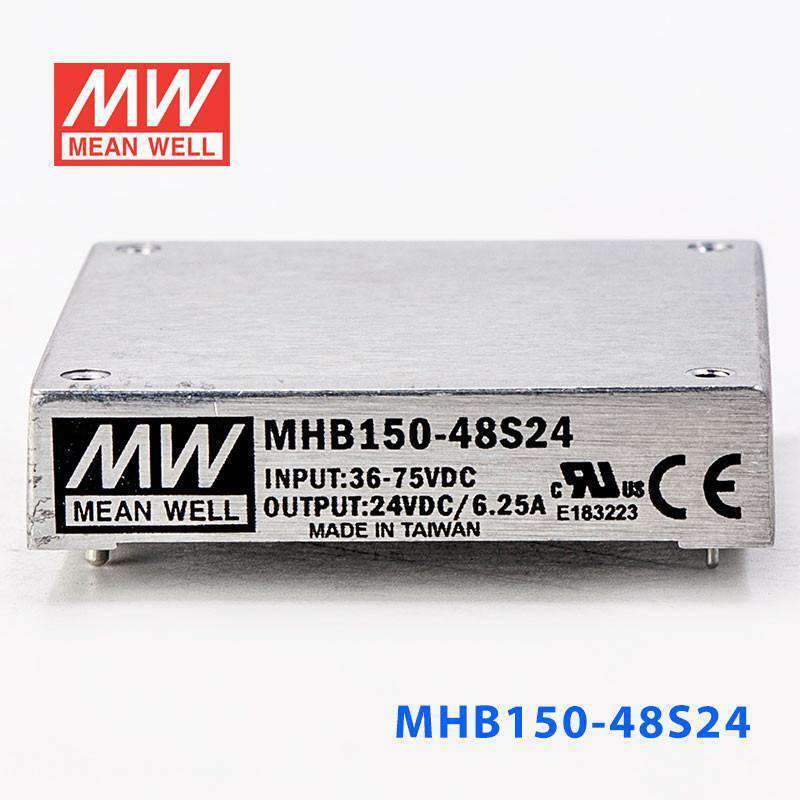

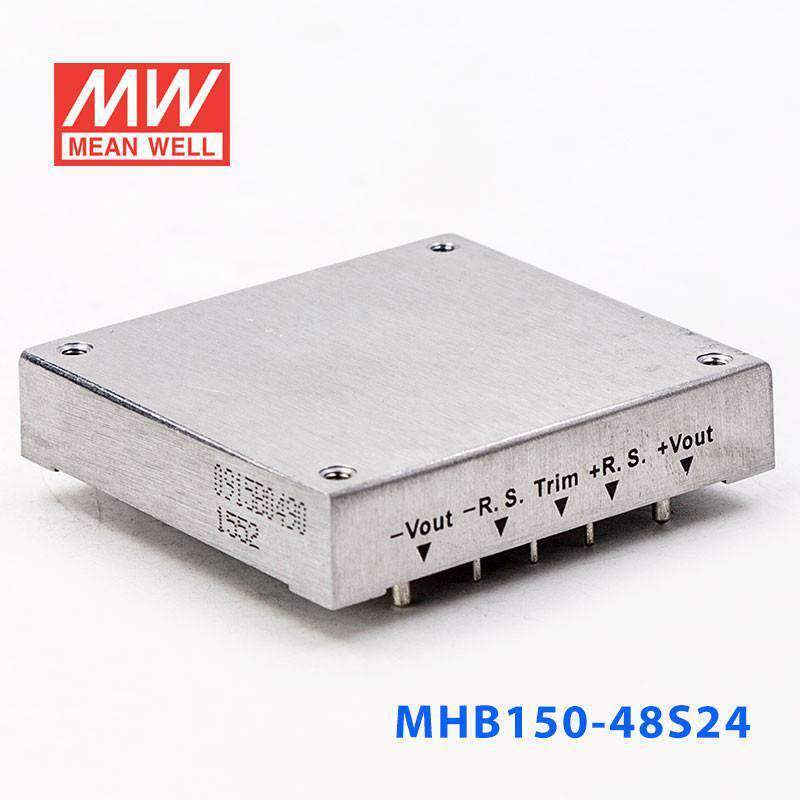

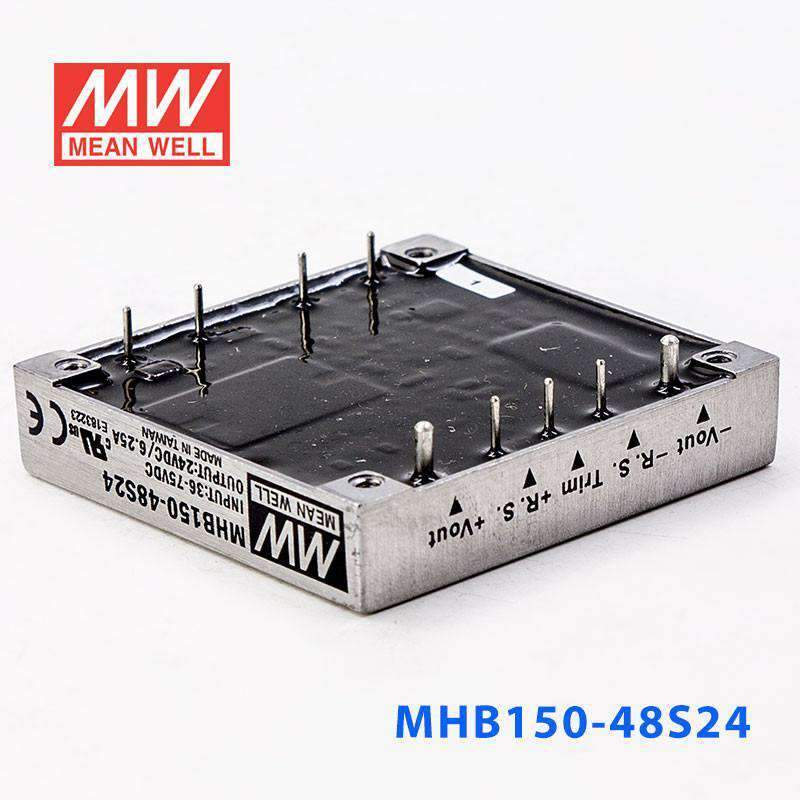

Mean Well MHB150-48S24 DC-DC Converter - 150W - 36~75V in 24V out 4...
Log in to see priceOverview
MHB150-48S24 is the 24V output model of this series: rated power 150W, typical efficiency 89%.
Features
- Half-brick size (2.28"×2.4"×0.5") with industry standard pin out
- 2:1 wide input range
- Protections: Short circuit / Over current / Over voltage / Over temperature
- High efficiency up to 89%
- 1500VDC I/O isolation
- Built-in remote ON/OFF control
- Built-in remote sense function
- Trimming output ±10%
- Five-sided shield metal case
- Optional heat sinks for extended operating temperature
- Output 3.3V/15V available
- Approvals: UL / CUL / EAC / CE / UKCA
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- CURRENT RANGE
- 0 ~ 6.25A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.2
- 240mVp-p
- VOLTAGE ACCURACYNote.3
- ±1.0%
- LINE REGULATION
- ±0.2%
- LOAD REGULATION
- ±0.2%
- SWITCHING FREQUENCY (Typ.)
- 500KHz
- EXTERNAL TRIM ADJ. RANGE (Typ.)
- ±10%
- EXTERNAL CAPACITIVE LOAD (max.)
- 6250uF
INPUT
- RATED DC INPUT
- 48VDC
- VOLTAGE RANGE
- 36 ~ 75VDC
- SURGE VOLTAGE (100ms max.)
- 100VDC
- UNDER VOLTAGE LOCKOUT
- Power up: 34VDC, Power down: 32.5VDC
- EFFICIENCY (Typ.)
- 89%
- DC CURRENT FULL LOAD
- 3.6A
- DC CURRENT NO LOAD
- 25mA
- FILTER
- Pi-network
PROTECTION
- OUTPUT OVER CURRENT
- 110 ~ 140% rated output power Protection type : Over current limiting, recovers automatically after fault condition is removed
- OUTPUT OVER VOLTAGE (Typ.)
- 115 ~ 140% rated output voltage Protection type : Output voltage clamp
- OUTPUT SHORT CIRCUIT
- Protection type : Can be continuous, recovers automatically after fault condition is removed
- OVER TEMPERATURE
- 100℃±5℃of case temperature
FUNCTION OPERATING
- REMOTE CONTROL
- Please refer to "Remote ON/OFF Control" for details
- OUTPUT TRIMMING
- ±10%, Please refer to "External Output Trimming" for details
ENVIRONMENT
- WORKING TEMPERATURE (Typ.)
- -40 ~ +100℃ ; Thermal shutdown at 100℃±5℃of case temperature (please refer to "Thermal Curve")
- WORKING HUMIDITY
- 0% ~ 95% RH max.
- STORAGE TEMP., HUMIDITY
- -55 ~ +105℃, 0 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0~60℃)
SAFETY & EMC
- SAFETY STANDARDS
- UL60950-1, EAC TP TC 004 approved
- ISOLATION VOLTAGE
- I/P-O/P:1500VDC, I/P-Case:1500VDC, O/P-Case:1500VDC
- ISOLATION RESISTANCE
- I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class A with external components (please refer to "EMC Suggestion Circuit"), EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8; BS EN/EN55024, light industry level, criteria A, EAC TP TC 020
OTHERS
- CASE MATERIAL
- Aluminum
- MTBF
- 900K hrs typ. MIL-HDBK-217F (25℃)
- DIMENSION
- 57.9*61*12.7mm (2.28"*2.40"*0.5") (L*W*H)
- PACKING
- 95g ; 12pcs/EPE, 60pcs/5 per carton
Test conditions and notes4
- 1. All parameters NOT specially mentioned are measured at 48VDC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 1uf ceramic & 10uf tantalum capacitor across output.
- 3. The power supply need to connect "+Vout" to "+R.S" and "-Vout" to "-R.S".
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”
Technical drawings
Downloads
FAQ
Can I use the MHB150-48S24 to power 24V industrial sensors or actuators from a 48V DC bus?
This model accepts 36-75V input and provides a constant 24V output, so it fits 48V-class systems that need a regulated 24V rail. It is rated for 150W and can supply up to 6.25A at 24V.
Is this converter appropriate for 24V automation equipment in embedded or industrial control systems?
It is suited to 24V loads that need constant-voltage output and stay within 150W total power. The available output current is 6.25A, and the unit is compact at 61.0 × 57.9 × 12.7 mm.
Can the MHB150-48S24 be used in wide-temperature factory or mobile equipment?
The specified operating case temperature range is -40°C to +100°C, with thermal shutdown at 100°C ±5°C case temperature, so proper derating or cooling is needed. The electrical rating is constant 24V output at up to 6.25A from a 36-75V input.
Would this work for 24V monitoring, interface, or control subsystems on a 36-75V power architecture?
Yes, the stated input range is 36-75V and the output is regulated at 24V constant voltage. The converter provides up to 6.25A with a 150W power rating for 24V subsystem loads.
Can I install this converter in an exposed outdoor enclosure?
The specs provide an operating case temperature range of -40°C to +100°C, but no IP rating is listed. That means thermal capability is specified, while outdoor exposure resistance is not defined in the provided data.
