What dimming methods are built into the NPF-60D-24?

The NPF-60D-24 supports built-in 3-in-1 dimming: PWM signal, 0–10V analog, and resistance control are all natively supported without any add-on dimming module.

Can the NPF-60D-24 be used to drive dimmable 24V LED strips in a commercial museum display?

Yes. The NPF-60D-24 delivers 60W at 24V with a constant current of 2.5A, and built-in dimming makes it suitable for museum or gallery displays where adjustable light levels are essential. Its IP67 rating also protects against humidity common in climate-controlled spaces.

What is the difference between the NPF-60D-24 and the NPF-90D-24?

Both are dimmable 24V IP67 drivers with 3-in-1 dimming and the same input range, but they differ in power: NPF-60D-24 is 60W at 2.5A and measures 150.0 × 53.0 × 35.0 mm, while NPF-90D-24 is 90W at 3.75A and measures 171.0 × 63.0 × 37.5 mm. Choose based on the total wattage of the LED load.

Is the NPF-60D-24 suitable for outdoor use without a separate waterproof box?

Yes. The NPF-60D-24 is IP67-rated, so it is fully protected against dust and temporary water immersion, and its -40°C to +85°C operating range covers most outdoor climatic conditions.

What certifications does the NPF-60D-24 carry?

The NPF-60D-24 holds CB, CCC, CE, EAC, ENEC, and UL certifications and comes with a 5-year manufacturer warranty.

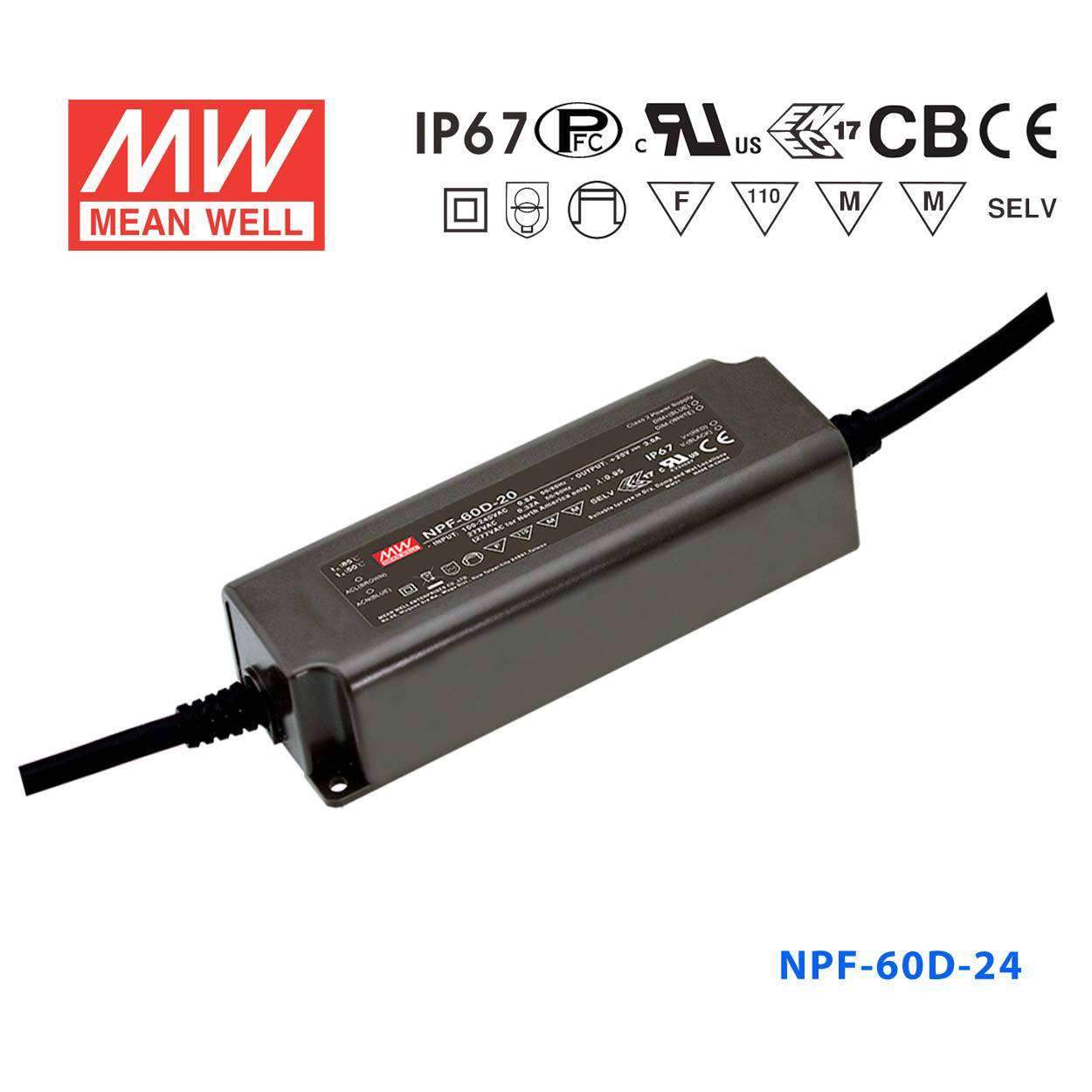

Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable | Auckland Distributor

The NPF-60D is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 24V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 24V
✓ Rated output current: 2.5A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable 1.12A	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A	60W	48V	1.25A	IP67	View
Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable 2A	60W	30V	2A	IP67	View
Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable 3A	60W	20V	3A	IP67	View
Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A	60W	15V	4A	IP67	View
Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
