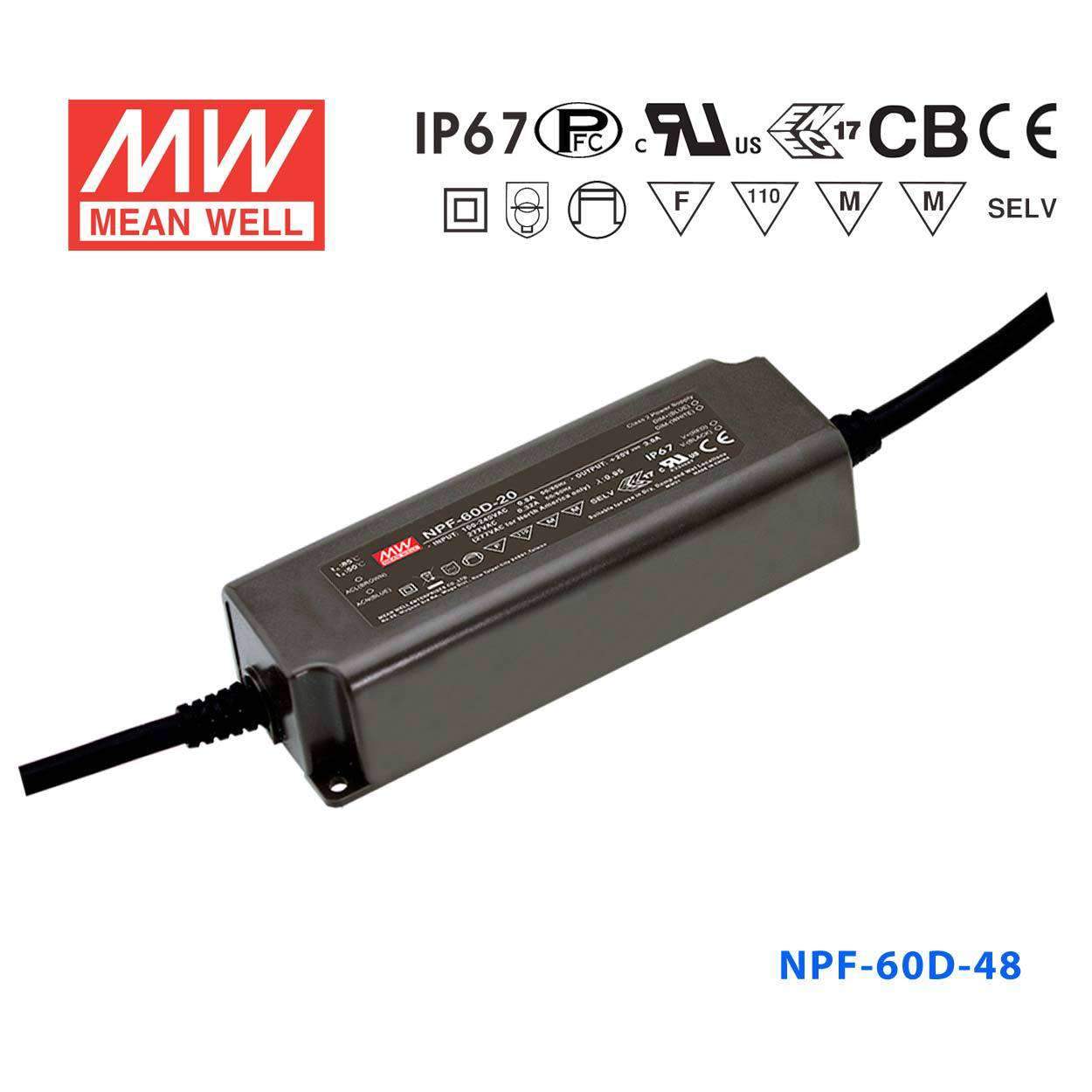

Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable

fully isolated plastic case, IP67, Class II design without FG, built-in 3 in 1 dimming
SKU:
NPF-60D-48

|

Description

Features

Universal AC input (up to 305VAC) / Full range
Built-in active PFC function
High efficiency up to 90%
No load power consumption <0.5W
Fully isolated plastic case with IP67 level
Class 2 power unit
Isolation class II, no F.G.
Protections: Short circuit / Over current / Over voltage / Over temperature
Suitable for dry, damp, and wet location
Cooling by free air convection
5 years warranty

General Specification

AC input voltage range 90~305VAC ; 127~431VDC
AC inrush current (max.) Cold start, 50A at 230VAC
Over current protection 95% ~108% constant current, auto-recovery
Over voltage protection 110%~140% rated output voltage
Withstand voltage I/P - O/P: 3.75kVAC
Working temperature -40~+85ºC (refer to output derating curve)
Safety standards UL8750, ENEC EN61347-1, EN61347-2-13 , EN62384 independent approved; Design refer to EN60335-1
EMC standards EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547
Connection Input UL rated, SJTW 18AWGx2C (30cm)
Connection Output UL rated, UL2464 18AWGx2C (30cm) + 22AWGx2C (30cm)
Dimension (LxWxH)(mm) 150x 53x 35

Specifications

  • Brand
    Mean Well
  • Series
    NPF Series
  • Power Rating
    60 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    1.25 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,EAC,ENEC,UL
  • Operation Mode
    Constant Current,Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    5 Year
  • Length
    15 cm
  • Width
    5.3 cm
  • Height
    3.5 cm
  • Weight
    0.49 kg
