What dimming inputs does the NPF-60D-30 accept?

The NPF-60D-30 includes built-in 3-in-1 dimming that accepts PWM signal, 0–10V analog, and resistance control simultaneously, eliminating the need for external dimming accessories.

Can the NPF-60D-30 power dimmable 30V LED modules in outdoor architectural uplighting?

Yes. The NPF-60D-30 delivers 60W at 30V with a constant current of 2A and a CC range of 18–30V. Its IP67 rating and -40°C to +85°C operating range make it appropriate for outdoor architectural uplighting fixtures where dimming is required.

How does the NPF-60D-30 differ from the NPF-60-30?

The NPF-60D-30 and NPF-60-30 are electrically identical (60W, 30V, 2A, IP67, CC range 18–30V). The NPF-60D-30 adds built-in 3-in-1 dimming; the NPF-60-30 is a fixed-output constant-current driver.

Is the NPF-60D-30 compatible with 0–10V dimming systems commonly used in commercial buildings?

Yes. The NPF-60D-30’s built-in 3-in-1 dimming natively accepts 0–10V analog signals, which is the standard dimming protocol for most commercial building automation and lighting control systems.

Can the NPF-60D-30 be installed in a wet outdoor location without a separate enclosure?

Yes. With an IP67 waterproof rating and an operating range of -40°C to +85°C, the NPF-60D-30 is designed for direct outdoor installation in wet or humid environments.

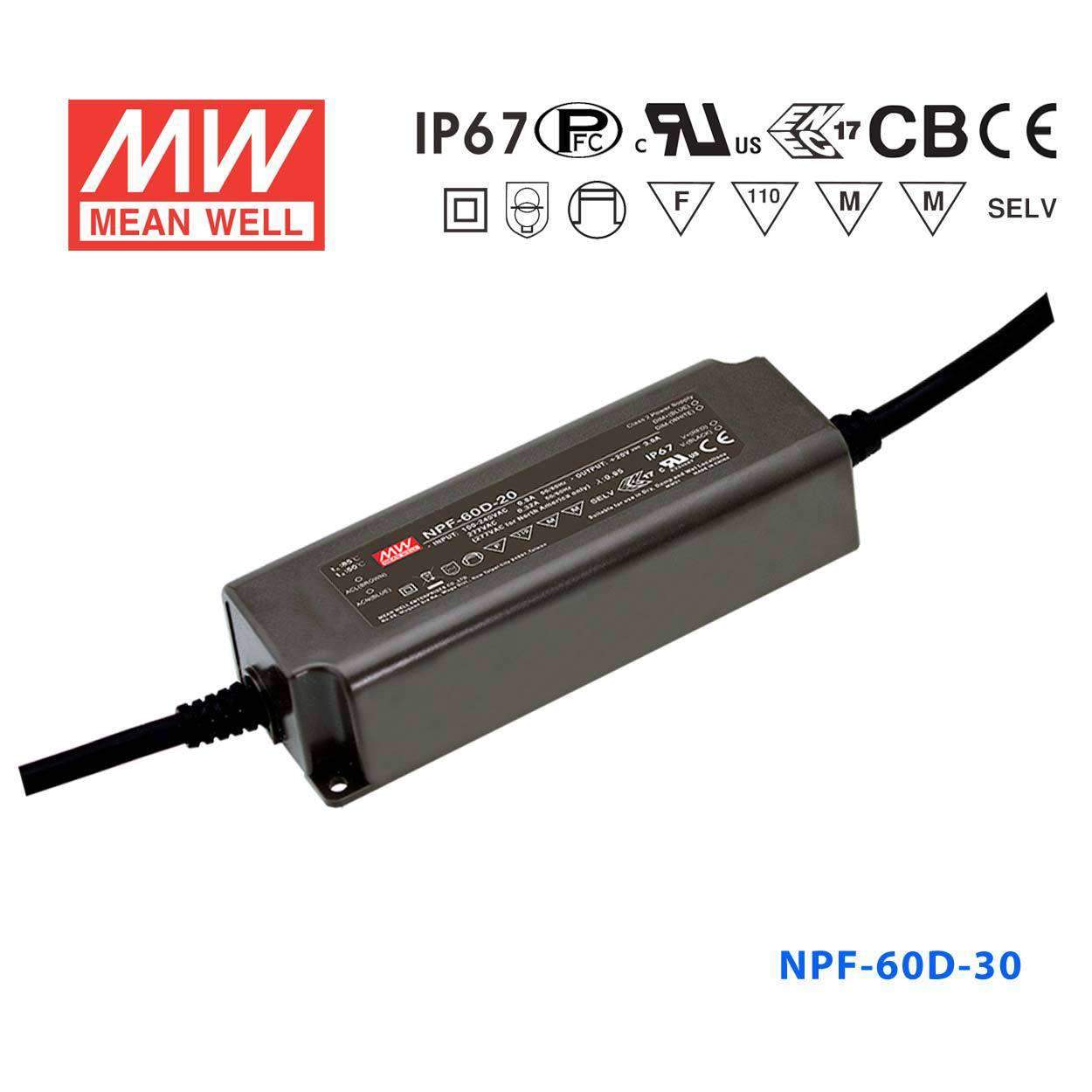

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable 2A

fully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU NPF-60D-30

Log in to see price Trade pricing & online ordering for account holders

Select model — 8 in this family

NPF-60D-30

NPF-40-30 Fixed output Backorder

NPF-40D-30 Dimmable Backorder

NPF-60-30 Fixed output Backorder

NPF-60D-30 Dimmable Backorder

NPF-90-30 Fixed output Backorder

NPF-90D-30 Dimmable Backorder

NPF-120-30 Fixed output Backorder

NPF-120D-30 Dimmable Backorder

Product variants

Notify me when it's back in stock

The NPF-60D is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 30V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 30V
✓ Rated output current: 2A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable 1.12A	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A	60W	48V	1.25A	IP67	View
Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable 3A	60W	20V	3A	IP67	View
Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A	60W	15V	4A	IP67	View
Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
