What dimming methods does the NPF-60D-48 support?

The NPF-60D-48 has built-in 3-in-1 dimming, accepting PWM signal, 0–10V analog, and resistance control. All three are natively integrated with no external dimming hardware required.

Can the NPF-60D-48 power dimmable 48V LED modules in industrial warehouse lighting?

Yes. The NPF-60D-48 delivers 60W at 48V with a constant current of 1.25A and a CC voltage range of 28–48V, covering 48V LED high-bay or warehouse modules. Its wide input range of 90–305VAC supports standard and industrial mains supplies.

What distinguishes the NPF-60D-48 from the NPF-90D-48?

Both are dimmable 48V IP67 drivers with built-in 3-in-1 dimming, but they differ in power: NPF-60D-48 is 60W at 1.25A (150.0 × 53.0 × 35.0 mm, 0.49 kg), while NPF-90D-48 is 90.24W at 1.88A (171.0 × 63.0 × 37.5 mm, 0.77 kg). Select based on the wattage the LED load requires.

Is the NPF-60D-48 rated for direct outdoor installation in rainy climates?

Yes. The NPF-60D-48 carries an IP67 rating for full dust protection and resistance to temporary water immersion, and its -40°C to +85°C operating range covers outdoor wet and cold conditions.

Does the NPF-60D-48 require a protective earth ground?

No. The NPF-60D-48 uses a Class II fully isolated plastic case without a functional ground (FG) terminal, so no protective earth connection is required.

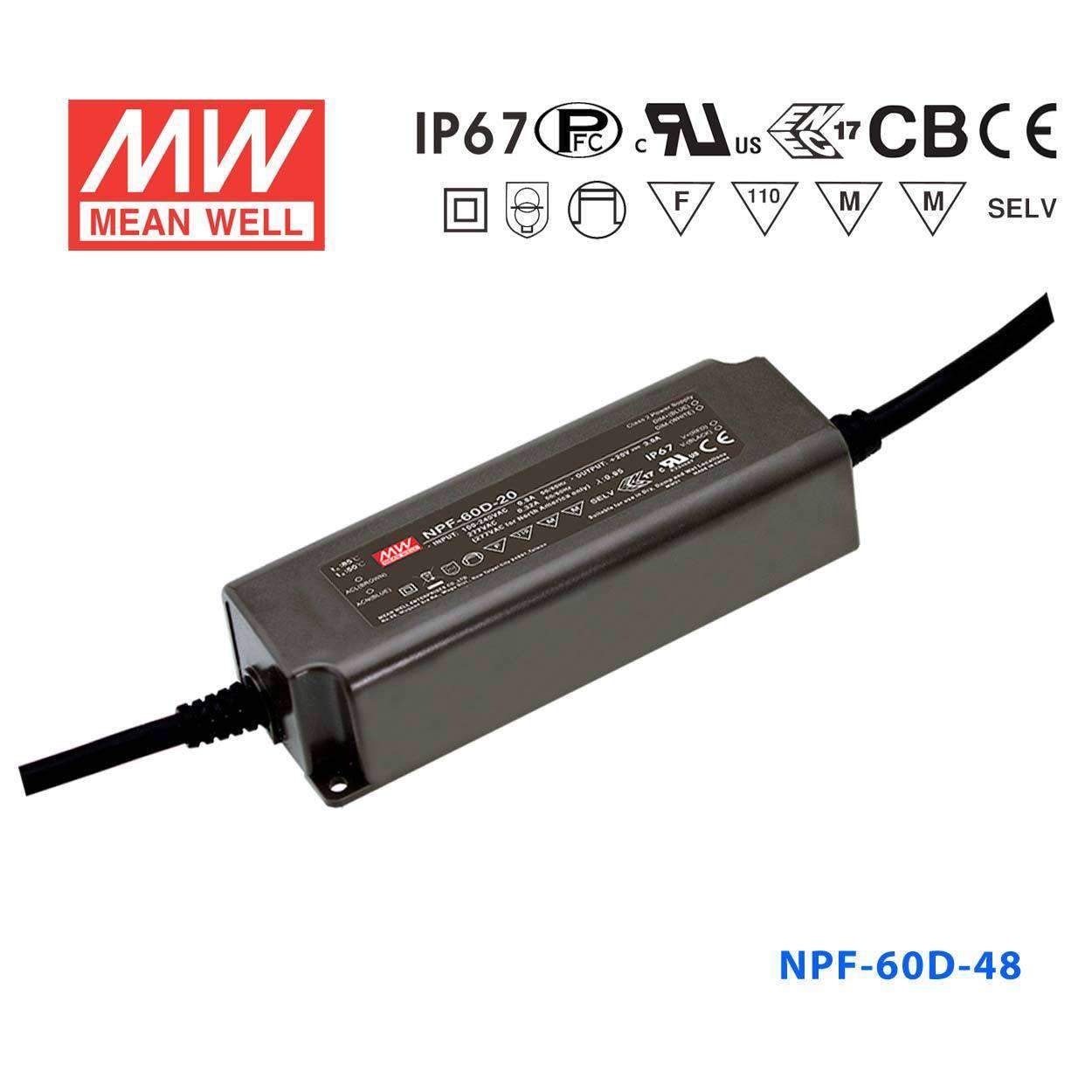

Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable | NPF Series

The NPF-60D is a 60W Mean Well AC-DC LED driver (input: 90~305VAC, output: 48V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 48V
✓ Rated output current: 1.25A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable 1.12A	60.48W	54V	1.12A	IP67	View
Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable 2A	60W	30V	2A	IP67	View
Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable 3A	60W	20V	3A	IP67	View
Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A	60W	15V	4A	IP67	View
Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
