What dimming signals does the NPF-60D-54 accept?

The NPF-60D-54 integrates 3-in-1 dimming, natively accepting PWM signal, 0–10V analog, and resistance control without requiring external dimmer modules.

Is the NPF-60D-54 appropriate for dimmable 54V LED tunnel lighting?

The NPF-60D-54 delivers 60.48W at 54V with a constant current of 1.12A and a CC voltage range of 32–54V, which covers the forward voltage range of many 54V LED tunnel or roadway lighting modules. Its IP67 rating and -40°C to +85°C range support the demanding environments of tunnel installations.

How does the NPF-60D-54 compare to the NPF-60D-48 and NPF-60D-42?

All three are 60W dimmable IP67 drivers with 3-in-1 dimming, but differ in output voltage: NPF-60D-42 is 42V at 1.43A (CC range 25–42V), NPF-60D-48 is 48V at 1.25A (CC range 28–48V), and NPF-60D-54 is 54V at 1.12A (CC range 32–54V). Match the model to the LED string’s rated forward voltage.

Can the NPF-60D-54 be installed outdoors without any enclosure?

Yes. The NPF-60D-54 is IP67-rated, providing dust-tight and temporary water immersion protection. Combined with its -40°C to +85°C operating temperature, it is designed for direct outdoor installation.

What certifications apply to the NPF-60D-54?

The NPF-60D-54 holds CB, CCC, CE, EAC, ENEC, and UL certifications and includes a 5-year manufacturer warranty.

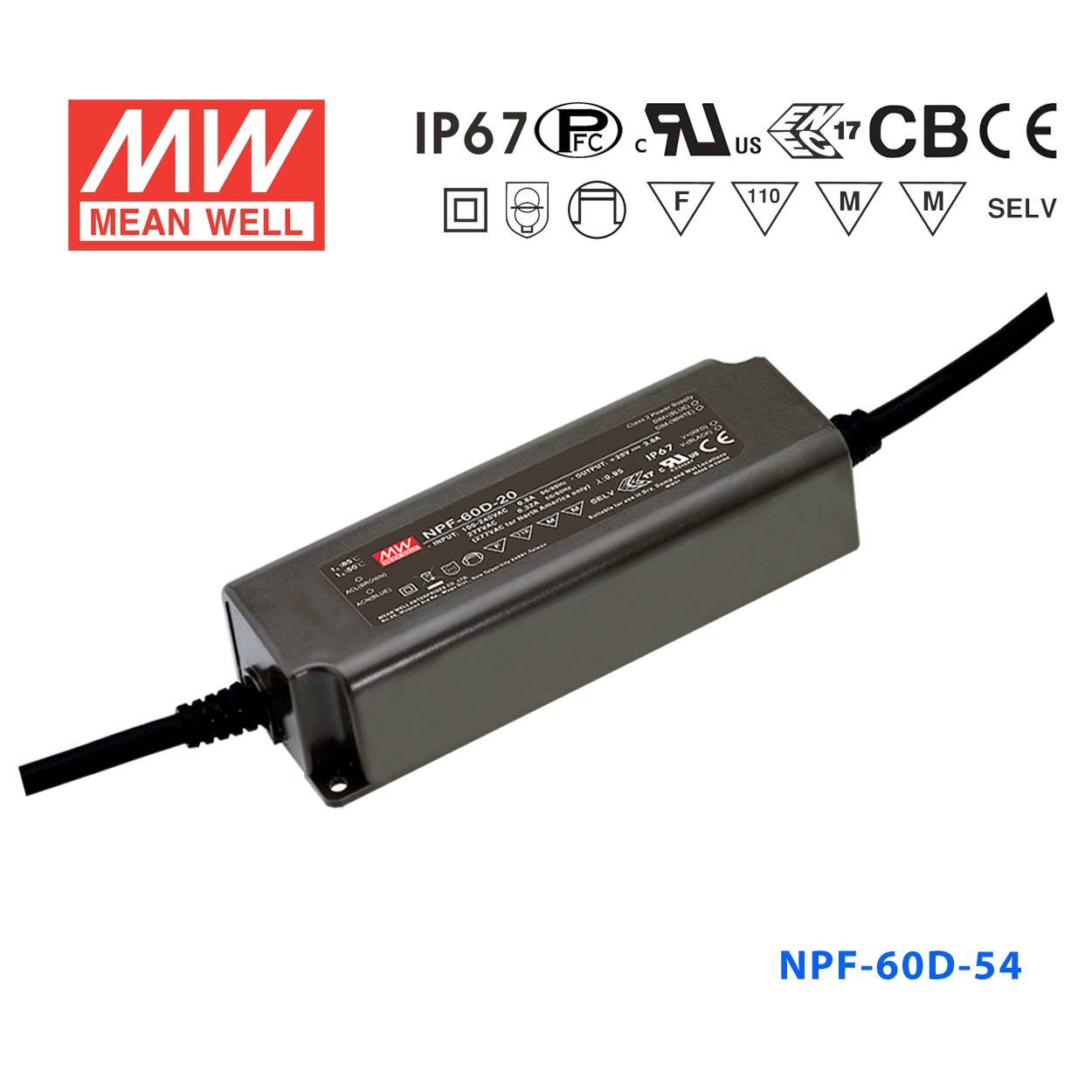

Mean Well NPF-60D-54 Power Supply 60W 54V - Dimmable | New Zealand Distributor

The NPF-60D is a 60.48W Mean Well AC-DC LED driver (input: 90~305VAC, output: 54V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 54V
✓ Rated output current: 1.12A
✓ 3-in-1 dimming (0–10V / PWM / resistance)
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well NPF-60D-48 Power Supply 60W 48V - Dimmable 1.25A	60W	48V	1.25A	IP67	View
Mean Well NPF-60D-42 Power Supply 60W 42V - Dimmable 1.43A	60.06W	42V	1.43A	IP67	View
Mean Well NPF-60D-36 Power Supply 60W 36V - Dimmable 1.67A	60.12W	36V	1.67A	IP67	View
Mean Well NPF-60D-30 Power Supply 60W 30V - Dimmable 2A	60W	30V	2A	IP67	View
Mean Well NPF-60D-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well NPF-60D-20 Power Supply 60W 20V - Dimmable 3A	60W	20V	3A	IP67	View
Mean Well NPF-60D-15 Power Supply 60W 15V - Dimmable 4A	60W	15V	4A	IP67	View
Mean Well NPF-60D-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
