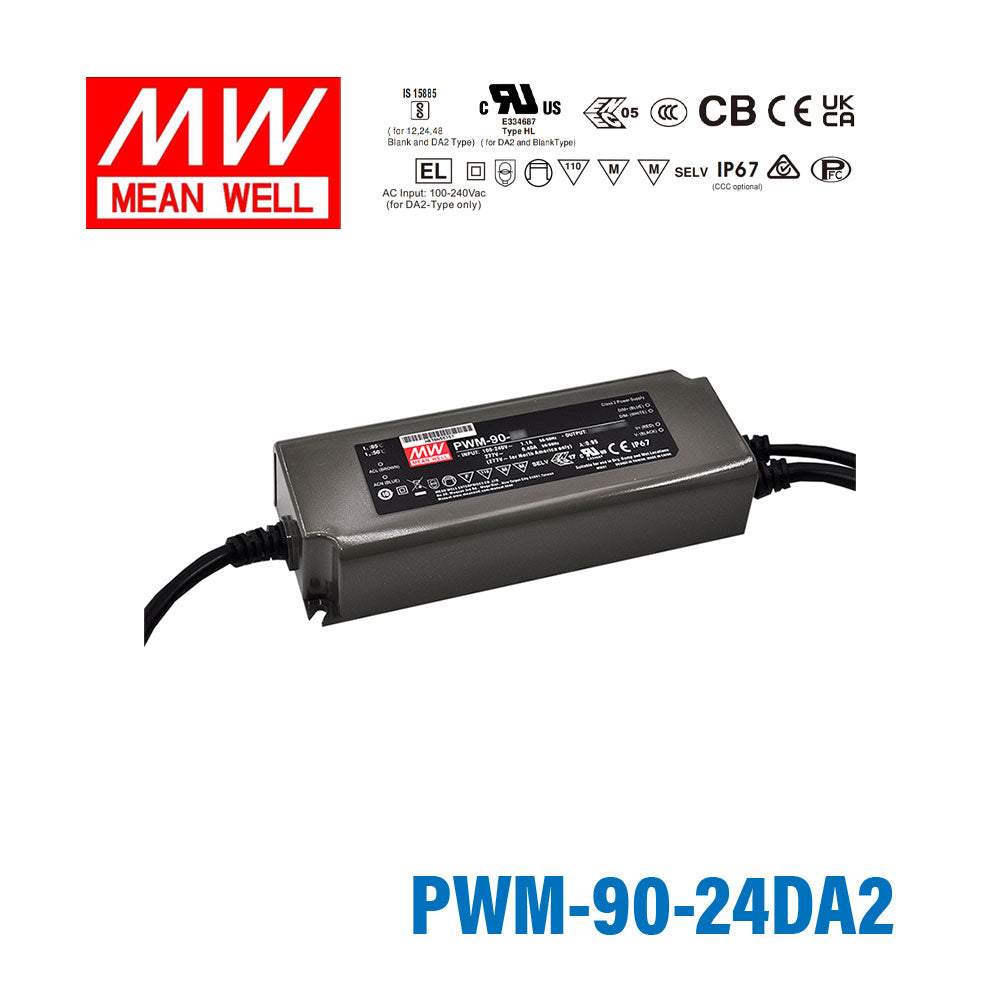

Mean Well PWM-90-24DA2 Power Supply 90W 24V DALI2 3.75A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI2

SKU PWM-90-24DA2

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

PWM-90-24DA2

PWM-40-24 Fixed output In stock

PWM-60-24 Dimmable Low stock

PWM-60-24DA DALI Backorder

PWM-60-24DA2 DALI2 In stock

PWM-90-24 Dimmable In stock

PWM-90-24DA DALI Backorder

PWM-90-24DA2 DALI2 In stock

Product variants

In stock

Overview

PWM-90-24DA2 is the 24V output model of this series: rated current 3.75A, rated power 90W, typical efficiency 90.5%.

PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.PWM-90 operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant Voltage PWM style output
Emergency lighting application is available according to IEC61347-2-13
Built-in active PFC function and class II design
Class 2 power unit(except PWM-90-12)
No load power consumption <0.5W
Fully encapsulated with IP67 level
Function: 3 in 1 dimming (dim-to-off); DALI-2
Minimum dimming level 0.2% for DALI-2 type
Typical lifet ime>50000 hours and 5 years warranty

Specifications

PWM-90-24DA2Specifications from the official datasheet (2026-07-08 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 3.75A
RATED POWER: 90W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.): 1.47kHz for Blank-Type, 2.5kHz for DA2-Type
SETUP, RISE TIME^{Note.2 Note.9}: 500ms, 80ms/ 115VAC or 230VAC
HOLD UP TIME (Typ.): 16ms/115VAC or 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.96/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550 μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W

PROTECTION

OVERLOAD: 108 ~ 130% rated output power Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover(except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE: 28 ~ 34V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, IP67,BIS IS 15885(Part2/Sec13)(for 12,24,48 Blank and DA2 Type), EAC TP TC 004,GB/T19510.1, GB/T19510.213 approved; Design refer to BS EN/EN60335-1;According to BS EN/EN61347-2-13 appendix J suitable for emergency installations(EL)(AC Input: 100-240Vac)(for DA2-Type only)
DALI STANDARDS: IEC62386-101, 102, 207,251 for DA2-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC; I/P-DA:1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 2394.5K hrs min. Telcordia SR-332 (Bellcore) ; 224.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*63*37.5mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.97CUFT

Certifications & ratings

AC Input: 100-240Vac (for DA2-Type only)

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA-2 type.

Technical drawings

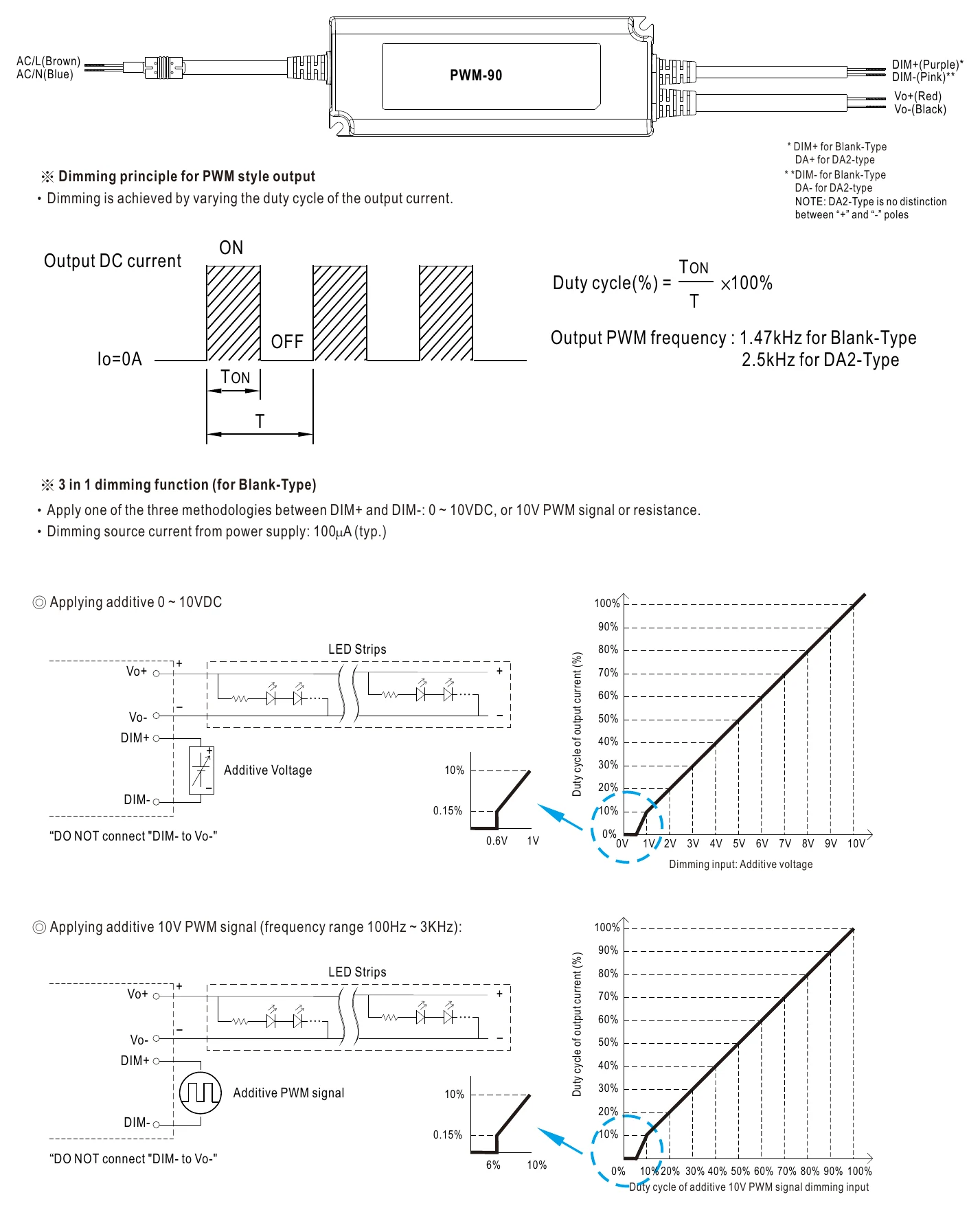

PWM-90-24DA2 DIMMING OPERATION — DIMMING OPERATION

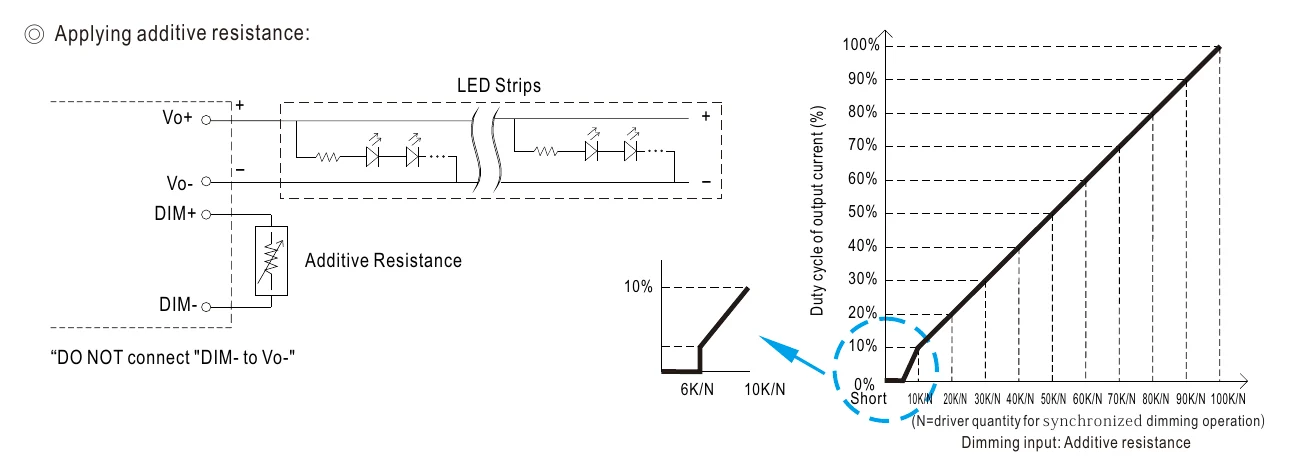

PWM-90-24DA2 ◎ Applying additive resistance — ◎ Applying additive resistance

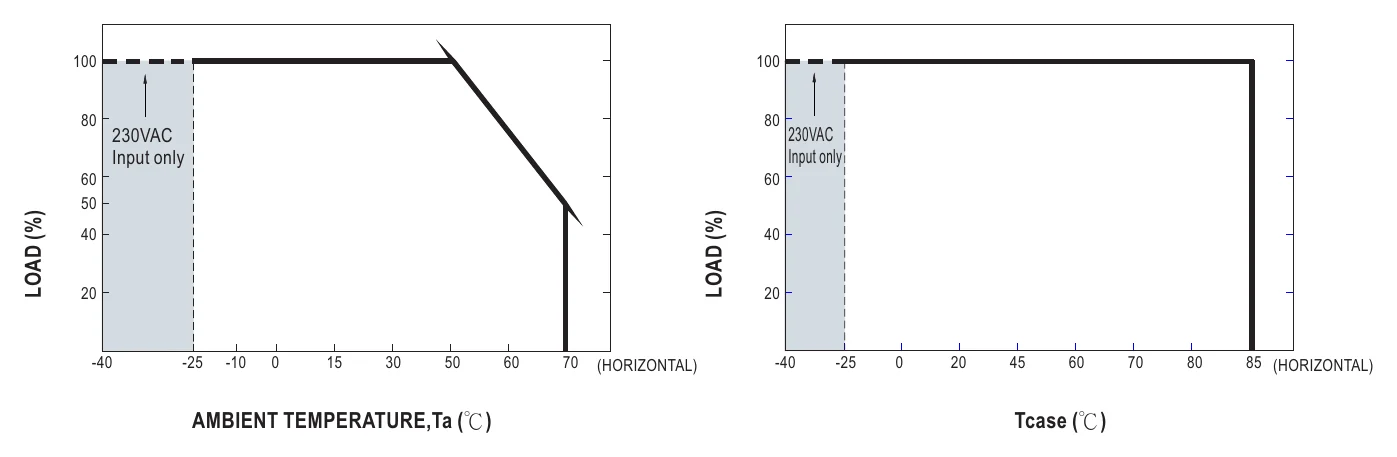

PWM-90-24DA2 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

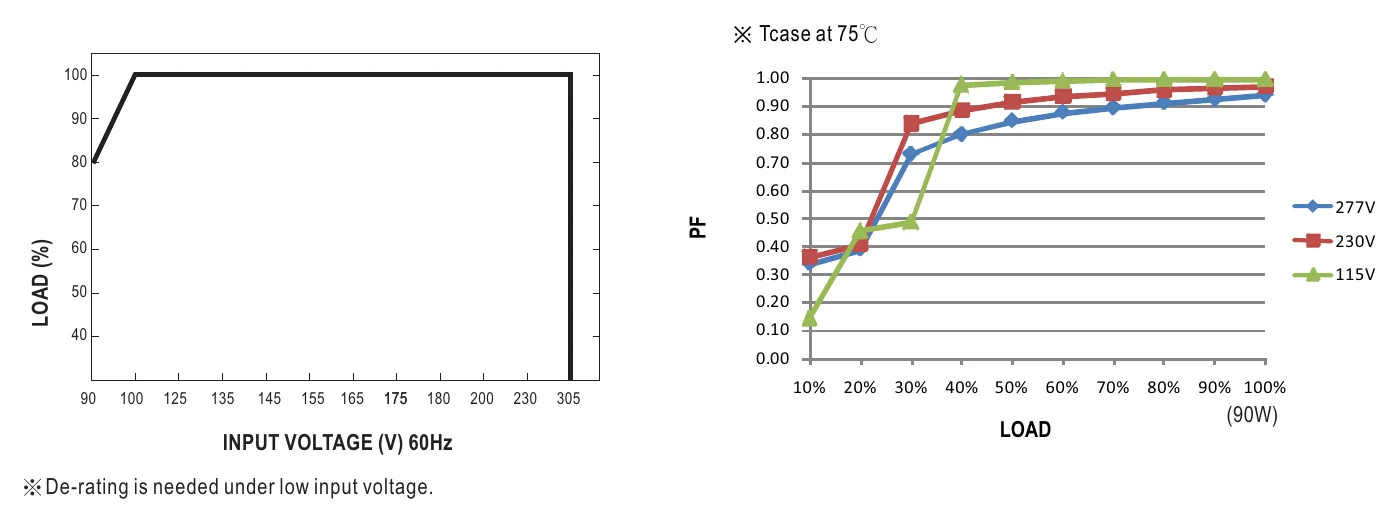

PWM-90-24DA2 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

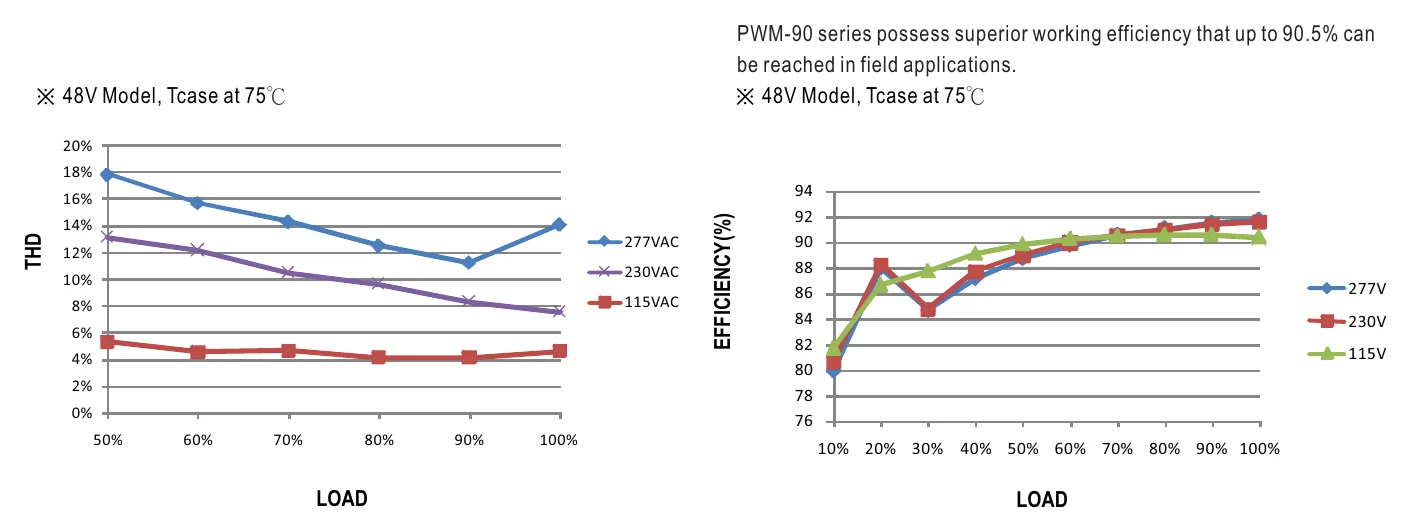

PWM-90-24DA2 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

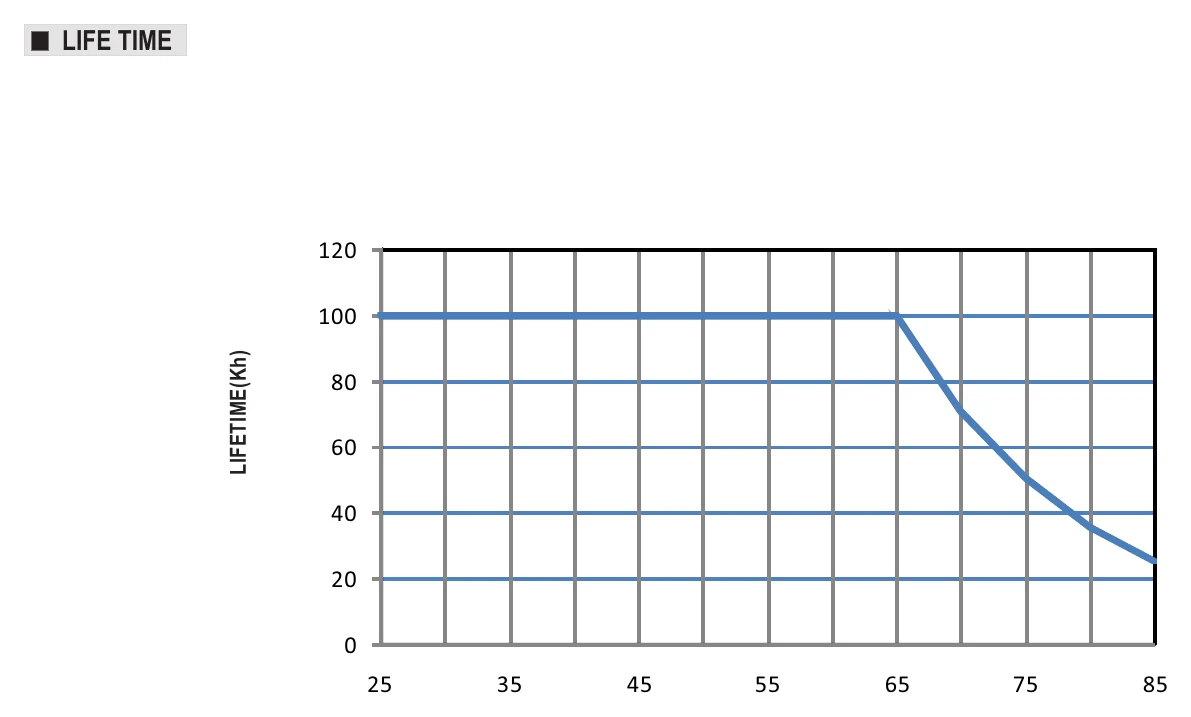

PWM-90-24DA2 LIFETIME(Kh) — LIFETIME(Kh)

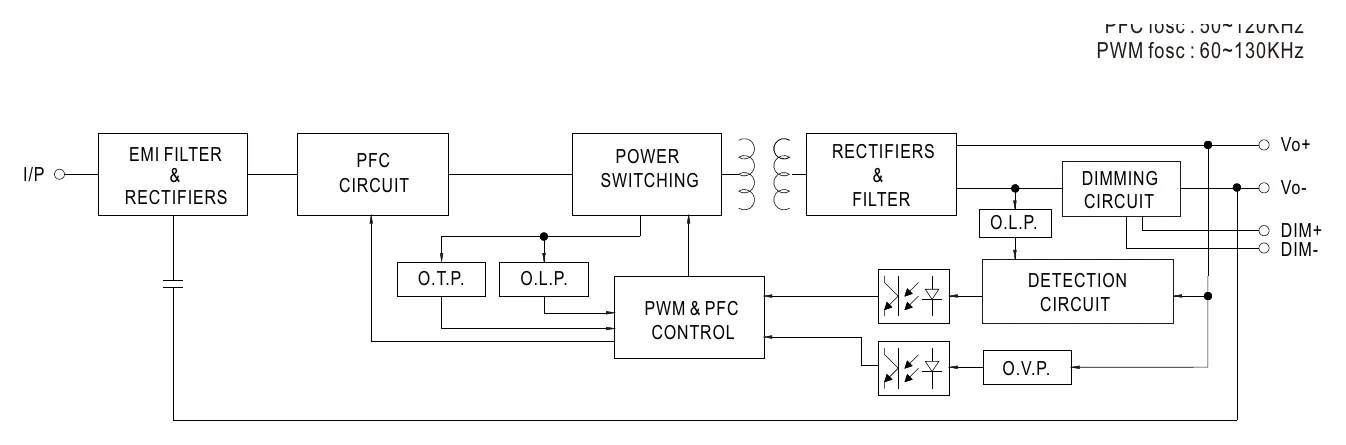

PWM-90-24DA2 Block Diagram — Block Diagram

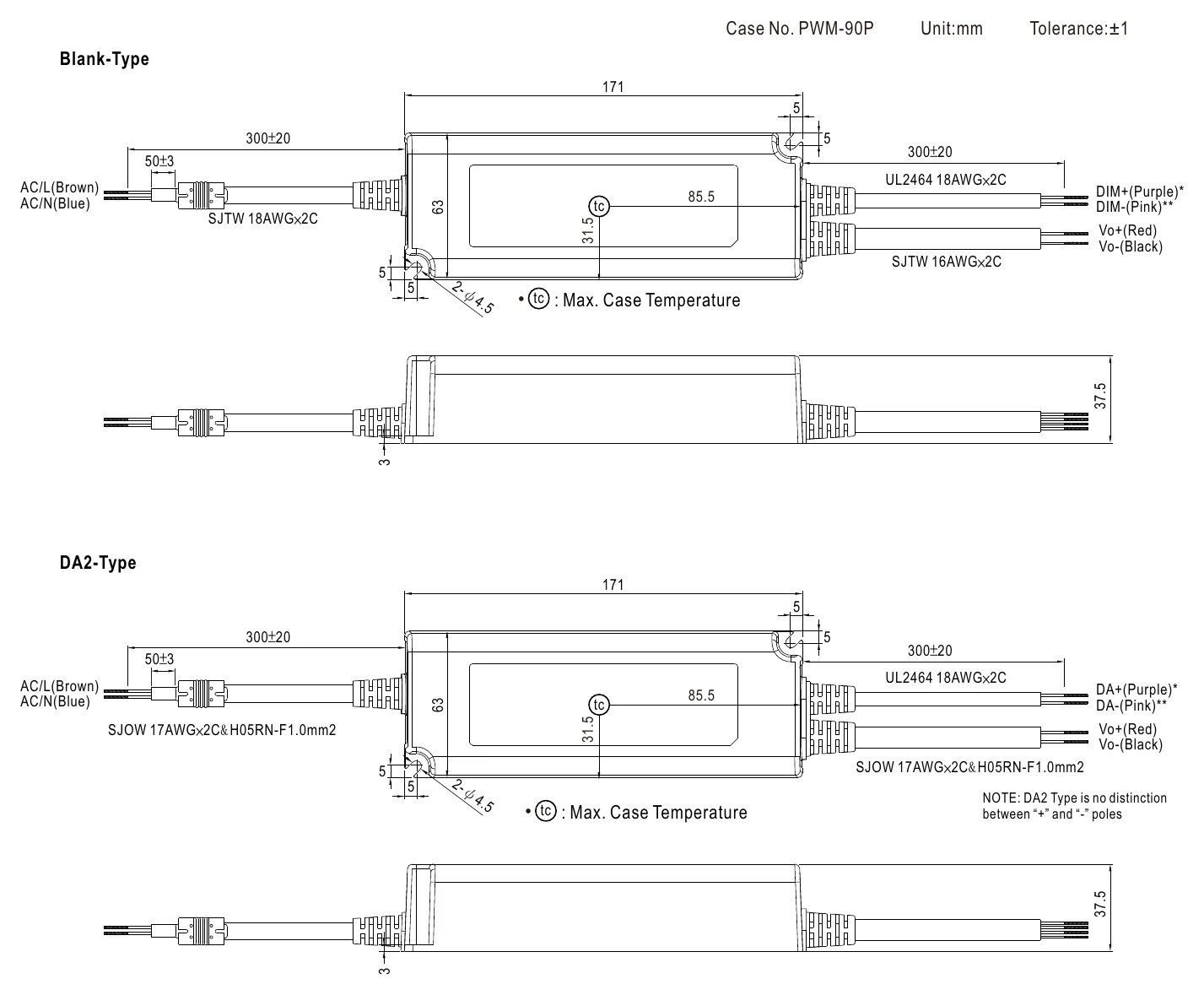

PWM-90-24DA2 Mechanical Specification — Mechanical Specification

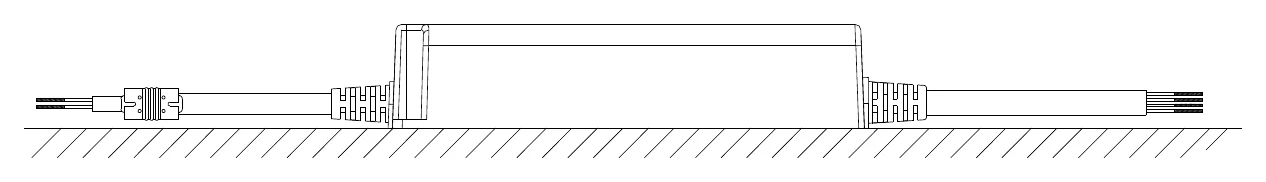

PWM-90-24DA2 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Industrial lighting

Downloads

Certificates5

UL Certificate (PWM-90)(EN) PDF Download

CB Certificate (PWM-90)(EN) PDF Download

EMC Certificate (PWM-90)(EN) PDF Download

ENEC Certificate (PWM-90)(EN) PDF Download

ErP Certificate (PWM-90)(EN) PDF Download

Test reports1

Test Report(PWM-90-24)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Does the PWM-90-24DA2 support the DALI2 protocol for smart lighting integration?

Yes. The PWM-90-24DA2 implements DALI2, the updated standard that adds enhanced device identification, status reporting, and multi-instance support compared to the original DALI protocol. It is suitable for integration into modern DALI2 smart building systems.

Is the PWM-90-24DA2 appropriate for outdoor LED lighting in coastal or high-humidity environments?

Yes. The IP67 waterproof rating protects against dust ingress and temporary water immersion, making it suitable for coastal or high-humidity outdoor environments. The operating range of -40°C to +85°C also covers conditions in warm, humid climates.

How much 24V LED strip can the PWM-90-24DA2 drive?

With a 90W output at 24V (3.75A), this driver can power 24V LED strip up to 90W total. For example, strip rated at 12W per meter supports 7.5 meters (90W ÷ 12W/m = 7.5m). For continuous duty, derate to 80% capacity (72W) — about 6 meters at that rating. Check your strip's specific rated power per meter.

Can I use the PWM-90-24DA2 to power 24V LED strips in a DALI2-controlled office lighting retrofit?

Yes. The DALI2 interface allows this driver to integrate directly into a DALI2 office lighting control system, supporting scene setting, occupancy-based dimming, and individual zone control. At 90W it can handle a meaningful strip load per zone.

What is the input voltage range for the PWM-90-24DA2?

The PWM-90-24DA2 accepts an input voltage range of 90 ~ 305VAC (and 127 ~ 431VDC). This wide range allows it to operate on standard global mains voltages without a selector switch, providing flexibility for various installation environments.

Can the PWM-90-24DA2 be used for 24V LED architectural lighting on building exteriors?

Yes. The IP67 waterproof rating allows outdoor placement, and the -40°C to +85°C operating range covers year-round exterior conditions. The DALI2 interface supports integration into facade lighting control systems that require addressable, dimmable zones.
