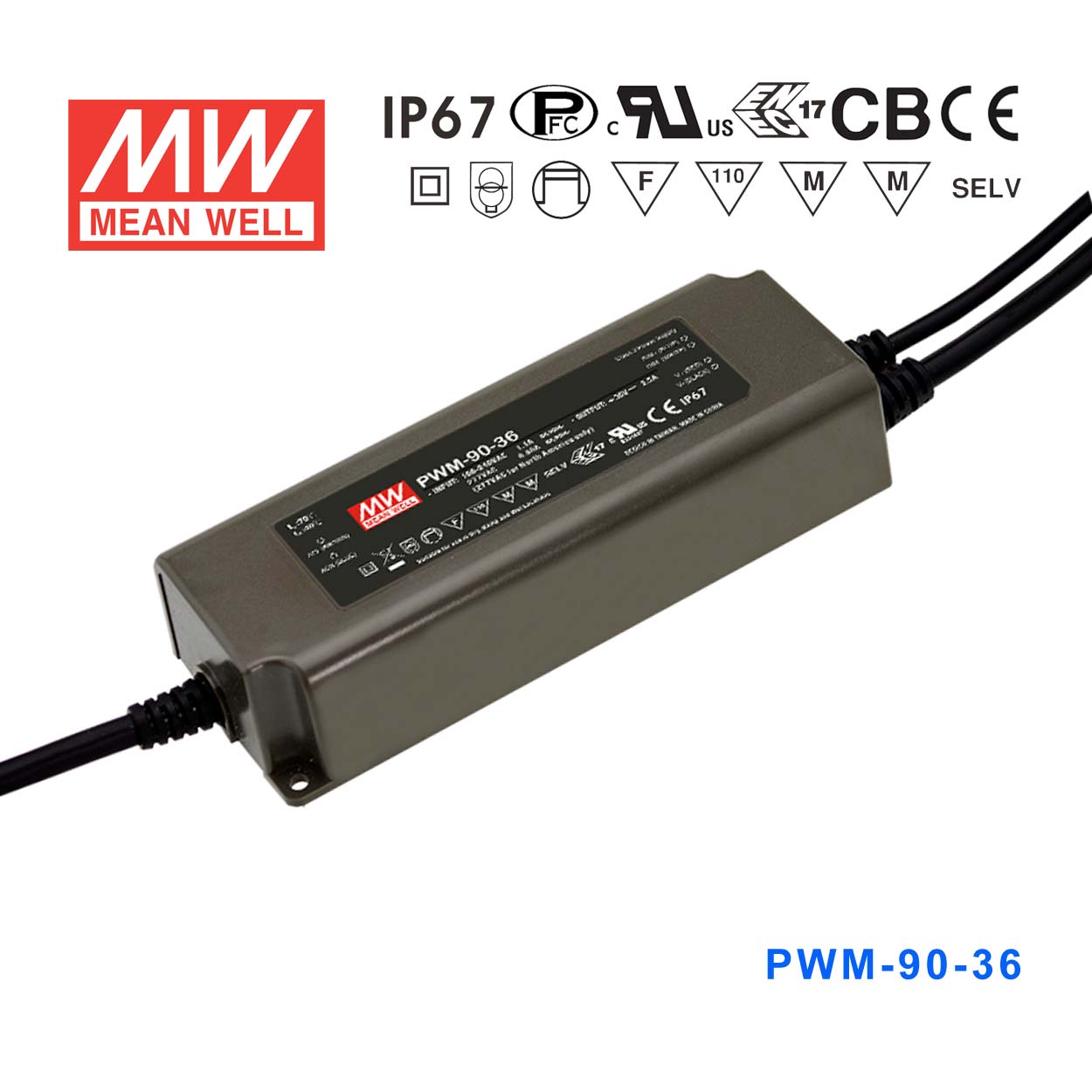

Mean Well PWM-90-36DA Power Supply 90W 36V - DALI 2.5A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI

SKU PWM-90-36DA

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

PWM-90-36DA

PWM-40-36 Fixed output Backorder

PWM-60-36 Dimmable Backorder

PWM-60-36DA DALI Backorder

PWM-90-36 Dimmable Backorder

PWM-90-36DA DALI Backorder

Product variants

Available to order

Overview

PWM-90-36DA is the 36V output model of this series: rated current 2.5A, rated power 90W, typical efficiency 90.5%.

PWM-90 series is a 90W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips.PWM-90 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-90 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant Voltage PWM style output with frequency 1.47kHz
Plastic housing with class II design
Built-in active PFC function
Class 2 power unit(except PWM-90-12)
No load power consumption <0.5W
Fully encapsulated with IP67 level
Function: 3 in 1 dimming (dim-to-off); DALI
Minimum dimming level 0.2% for DA type
Typical lifet ime>50000 hours and 5 years warranty

Specifications

PWM-90-36DASpecifications from the official datasheet (2019-12-26 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 2.5A
RATED POWER: 90W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.): 1.47kHz
SETUP, RISE TIME^Note.2: 500ms, 80ms/ 115VAC or 230VAC
HOLD UP TIME (Typ.): 16ms/115VAC or 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.98/115VAC, PF>0.96/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 90.5%
AC CURRENT (Typ.): 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W

PROTECTION

OVERLOAD: 108 ~ 130% rated output power Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41 ~ 46V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750(except for DA-Type), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67, BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004,GB19510.1,GB19510.14 approved; Design refer to EN60335-1
DALI STANDARDS: Comply with IEC62386-101, 102, 207 for DA-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 902.4K hrs min. Telcordia SR-332 (Bellcore) ; 224.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 171*63*37.5mm (L*W*H)
PACKING: 0.77Kg; 18pcs/14.9Kg/0.97CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL’s website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PWM-90-36DA DIMMING OPERATION — DIMMING OPERATION

PWM-90-36DA ◎ Applying additive resistance — ◎ Applying additive resistance

PWM-90-36DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-90-36DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-90-36DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-90-36DA Block Diagram — Block Diagram

PWM-90-36DA Mechanical Specification — Mechanical Specification

PWM-90-36DA Recommend Mounting Direction — Recommend Mounting Direction

PWM-90-36DA ◎Connection for Blank-type — ◎Connection for Blank-type

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting

Downloads

Datasheet1

PWM-90-36DA datasheetpwm_90_spec.pdf · 2019-12-26 edition PDF Download

Certificates5

UL Certificate (PWM-90)(EN) PDF Download

CB Certificate (PWM-90)(EN) PDF Download

EMC Certificate (PWM-90)(EN) PDF Download

ENEC Certificate (PWM-90)(EN) PDF Download

ErP Certificate (PWM-90)(EN) PDF Download

Test reports1

Test Report(PWM-90-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PWM-90-36DA be used with a DALI lighting controller for zone dimming?

Yes. The PWM-90-36DA has a native DALI interface allowing it to receive broadcast or individually addressed dimming commands from any DALI-compliant controller. It can be grouped with other DALI devices for coordinated zone dimming.

Is the PWM-90-36DA appropriate for outdoor or wet-location LED lighting?

Yes. The IP67 waterproof rating confirms protection against dust and temporary water immersion. This makes it suitable for outdoor architectural lighting, covered exterior signage, and wet-location fixtures where the driver is not permanently submerged.

How much 36V LED strip can the PWM-90-36DA support?

The driver outputs 90W at 36V (2.5A maximum). A 36V strip rated at 9W per meter would allow approximately 10 meters (90W ÷ 9W/m = 10m). For continuous-duty installations, limit load to 80% of rated output (72W) — about 8 meters at that strip rating. Confirm the wattage per meter on your specific strip.

Can the PWM-90-36DA drive 36V LED strips in a DALI-controlled retail environment?

Yes. The DALI interface allows precise, addressable dimming in a retail lighting control system. At 90W and 36V, it is capable of driving display lighting strips or perimeter accent strips within a single DALI zone.

Does the PWM-90-36DA function reliably in high-temperature environments like enclosed sign cabinets?

Yes. The operating temperature range extends up to +85°C, which accommodates the elevated ambient temperatures that can build up inside sealed sign cabinets or equipment enclosures. Ensure adequate airflow around the driver to maintain temperatures within spec.

Can the PWM-90-36DA be used for 36V LED strips in architectural facade lighting?

Yes. The IP67 waterproof rating allows outdoor mounting, and the DALI interface supports integration into facade lighting control systems where multiple zones or scenes are required. The 90W output provides sufficient capacity for a defined facade lighting zone.
