Mean Well RCP-1600-48 power supply 1600W 48V 33.5A

high efficiency up to 93%output voltage and current programmableactive currecnt sharing up to 8000Wsupport hot swap

SKU RCP-1600-48

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

RCP-1600-48 is the 48V output model of this series: rated current 33.5A, rated power 1608W, typical efficiency 93%.

RCP-1600 is a 1.6KW single output rack mountable front end AC/DC power supply with a 1U low profile and a high power density up to 25W/inch³. This series operates for 90~264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by the built-in DC fan with fan speed control, working for the temperature up to 70℃. RCP-1600 provides vast design flexibility by equipping various built-in functions such as the PMBus and CANBus communication protocol, output programming, active current sharing (up to 24000W via three 19” rack shelves, RHP-1U), remote control, auxiliary power, alarm signal, etc. Maximum number that can be monitored by master controller in communication shall be 15 power supplies.

Features

Universal AC input / Full range (Withstand 300VAC surge input for 5 seconds)
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Built-in OR-ing FET, support hot swap (hot plug)
Active current sharing up to 8000W for one 19” rack shelf
Built-in I2C interface, PMBus protocol (Optional CANBus protocol)
Protections: Short circuit / Overload / Over voltage / Over temperature
Optional conformal coating
5 years warranty

Specifications

RCP-1600-48Specifications from the official datasheet (2026-03-04 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 33.5A
CURRENT RANGE: 0 ~ 33.5A
RATED POWER: 1608W
RIPPLE & NOISE (max.)^Note.2: 300mVp-p
VOLTAGE ADJ. RANGE^Note.6: 47.5 ~ 58.8V
VOLTAGE TOLERANCE^Note.4: ±1.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME: 1500ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC at 75% load 10ms / 230VAC at full load

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 264VAC 250 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 0.97/230VAC at full load
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.)^Note.5: 15A/115VAC 8.5A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/230VAC
LEAKAGE CURRENT: <1.5mA / 230VAC

PROTECTION

OVERLOAD: 105 ~ 115% rated current Protection type : Constant current limiting, shut down O/P voltage after 5 sec. After O/P voltage falls, re-power on to recover
OVER VOLTAGE: 63 ~ 75V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

OUTPUT VOLTAGE PROGRAMMABLE(PV)^{Note 6}: Adjustment of output voltage is allowable to 40 ~ 125% of nominal output voltage(60~125% for 12V). Please refer to the Function Manual in following pages.

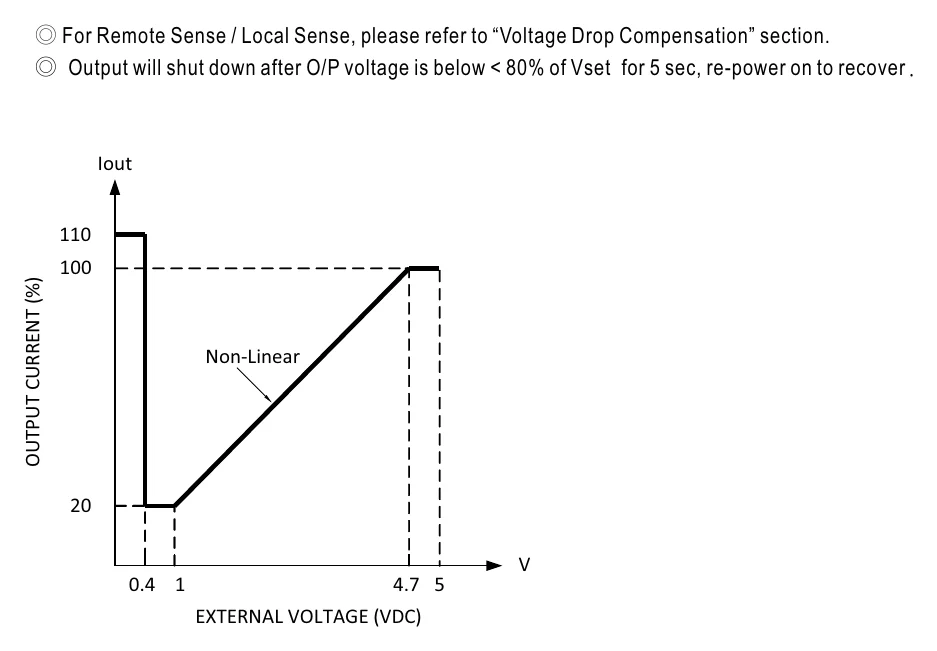

OUTPUT CURRENT PROGRAMMABLE(PC)^{Note 6}: Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages.
REMOTE ON-OFF CONTROL: By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages.
REMOTE SENSE: Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages.
AUXILIARY POWER: 5V @ 0.3A, 12V @ 0.8A
ALARM SIGNAL: Isolated TTL signal output for T-Alarm, AC-OK and DC-OK

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, CAN/CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC (0.5KVAC for 12V)
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 (CISPR32) Class B
Radiated BS EN/EN55032 (CISPR32) Class A
Harmonic Current BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note 8}: BS EN/EN55035, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 3
EFT / Burst BS EN/EN61000-4-4 Level 3
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted BS EN/EN61000-4-6 Level 3
Magnetic Field BS EN/EN61000-4-8 Level 4
Voltage Dips and Interruptions BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032 (CISPR32)	Class B
Radiated	BS EN/EN55032 (CISPR32)	Class A
Harmonic Current	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 3
EFT / Burst	BS EN/EN61000-4-4	Level 3
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line 4KV/Line-Earth
Conducted	BS EN/EN61000-4-6	Level 3
Magnetic Field	BS EN/EN61000-4-8	Level 4
Voltage Dips and Interruptions	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 483.3K hrs min. Telcordia SR-332 (Bellcore) ; 39.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 300*85*41mm (L*W*H)
PACKING: 1.87Kg; 6pcs/12.2Kg/1.16CUFT

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under parallel operation ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the output load is more than 5%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. PV/PC functions when users are not operating on PMBus/CANBus. SVR functions when users are neither operating on PMBus/CANBus nor using PV/PC.
7. Output will shut down after O/P voltage is below < 80% of Vset for 5 sec, re-power on to recover.
8. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 720mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

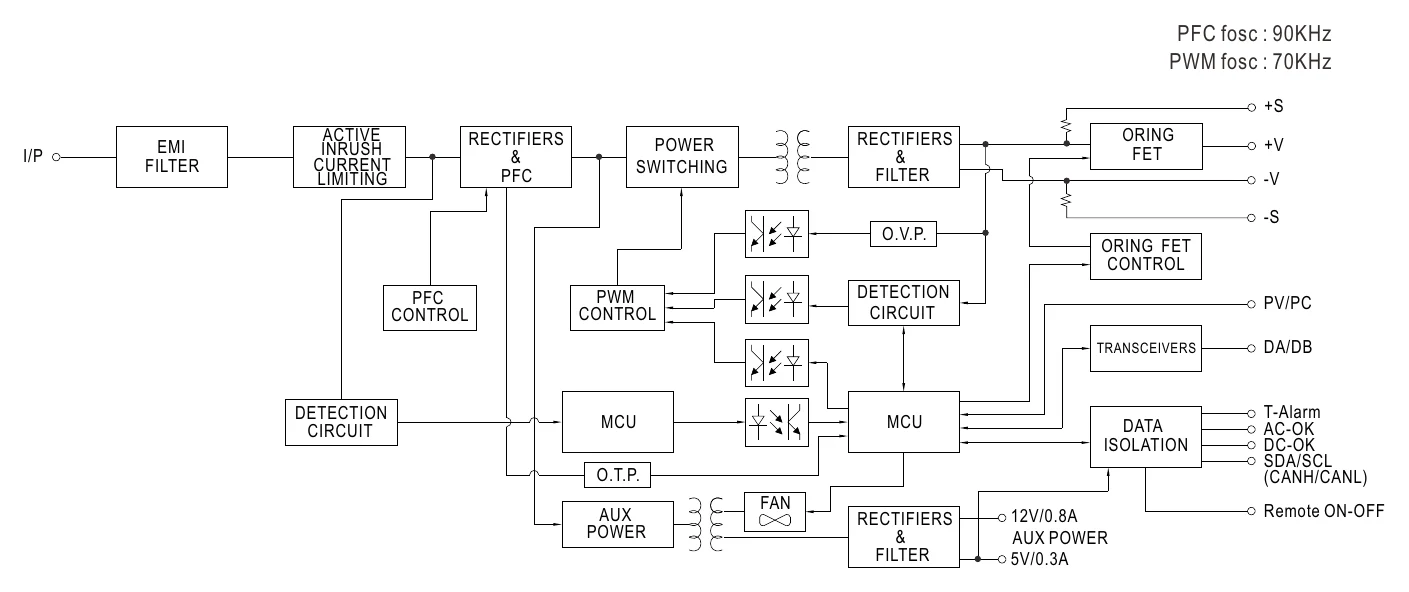

RCP-1600-48 Block Diagram — Block Diagram

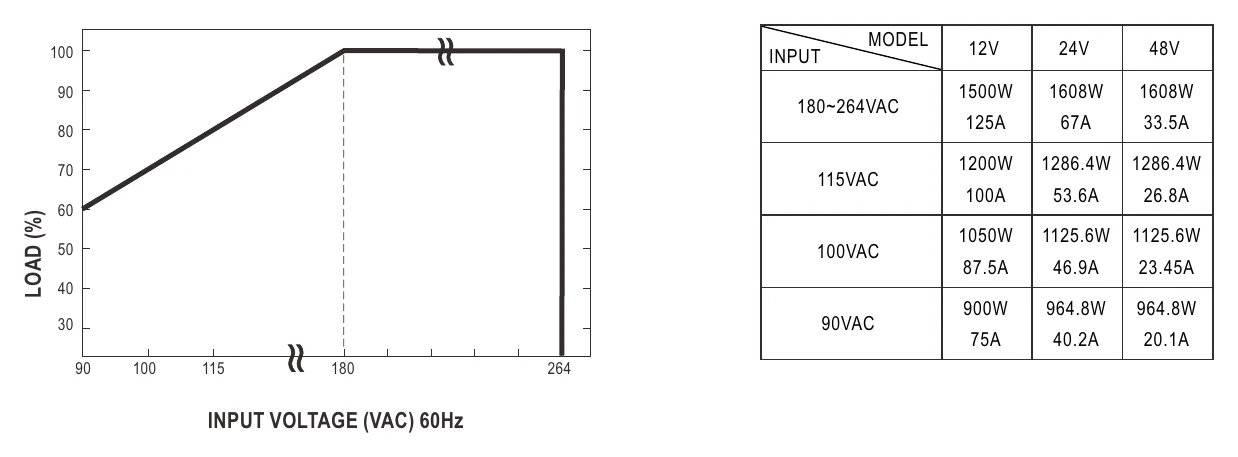

RCP-1600-48 Static Characteristics — Static Characteristics

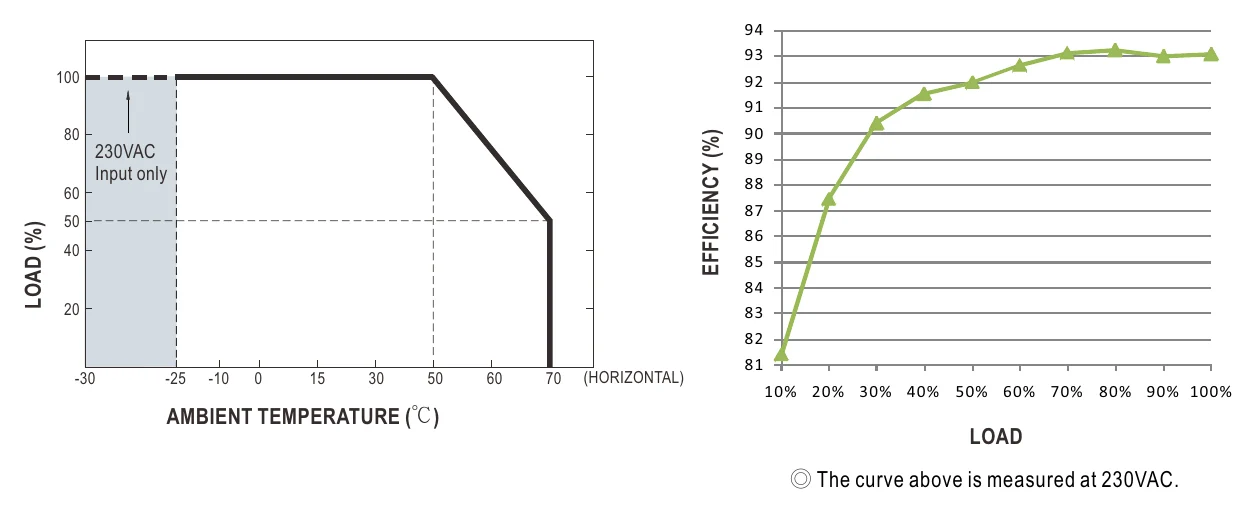

RCP-1600-48 Derating Curve — Derating Curve

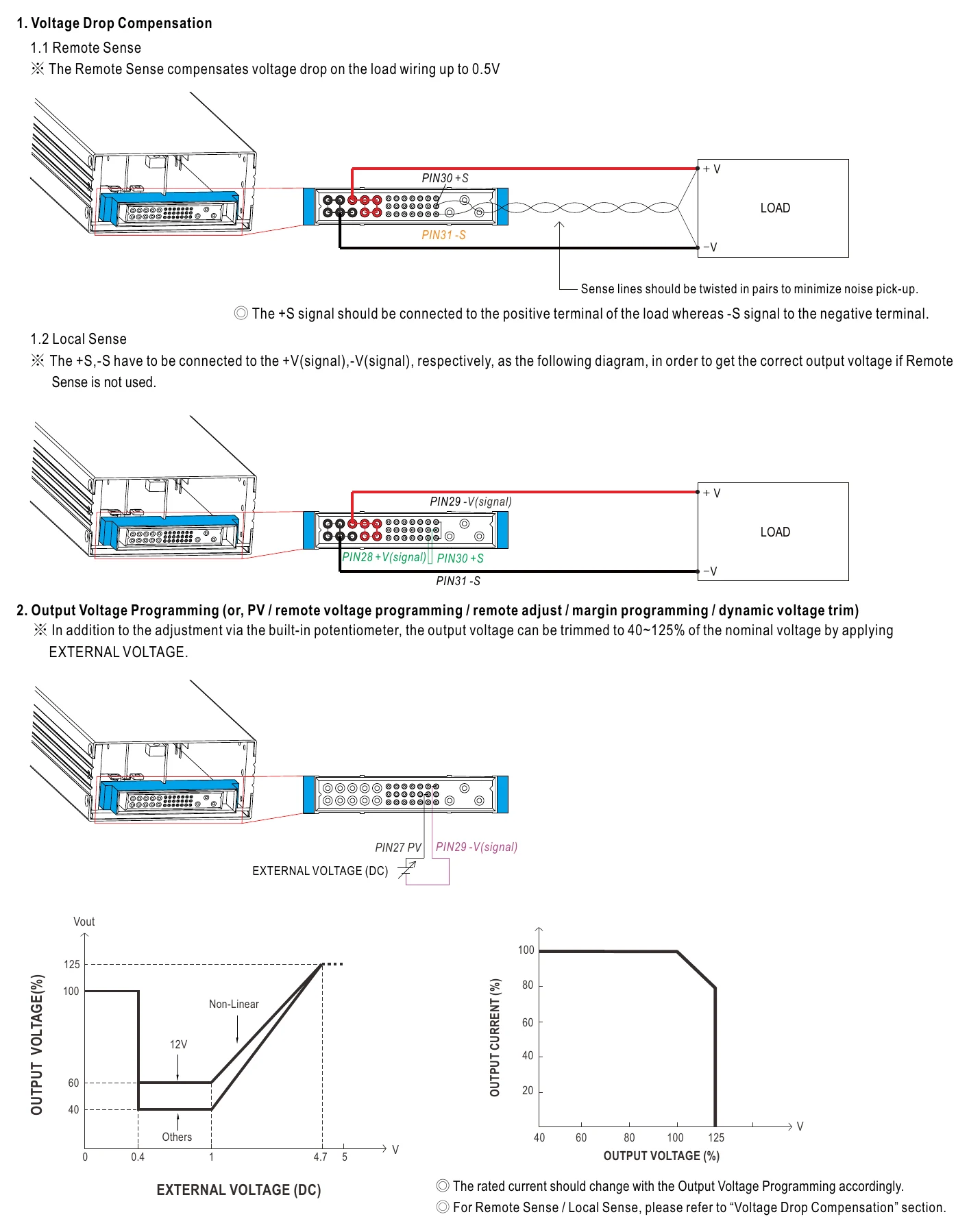

RCP-1600-48 Function Manual — Function Manual

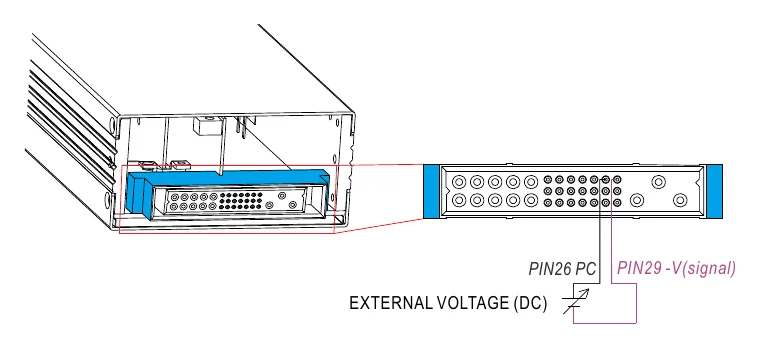

RCP-1600-48 PIN29 -V(signal) — PIN29 -V(signal)

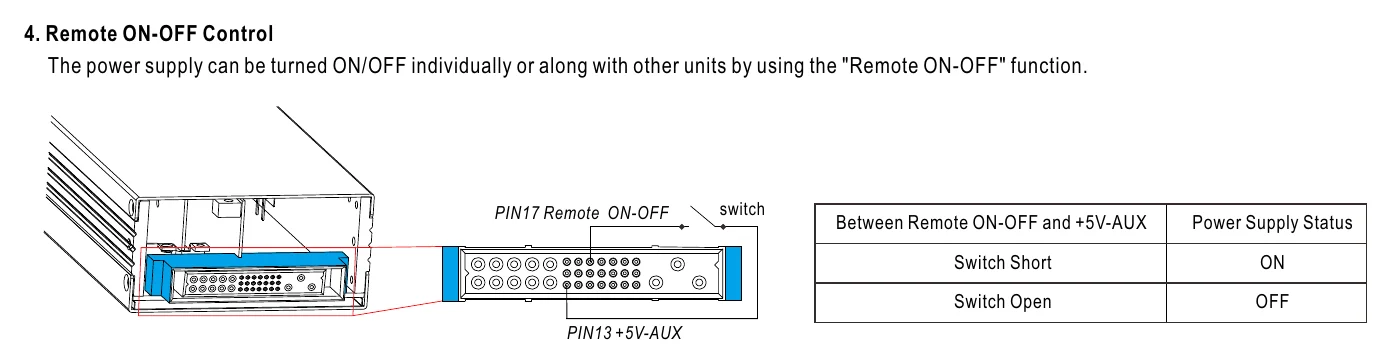

RCP-1600-48 4. Remote ON-OFF Control — 4. Remote ON-OFF Control

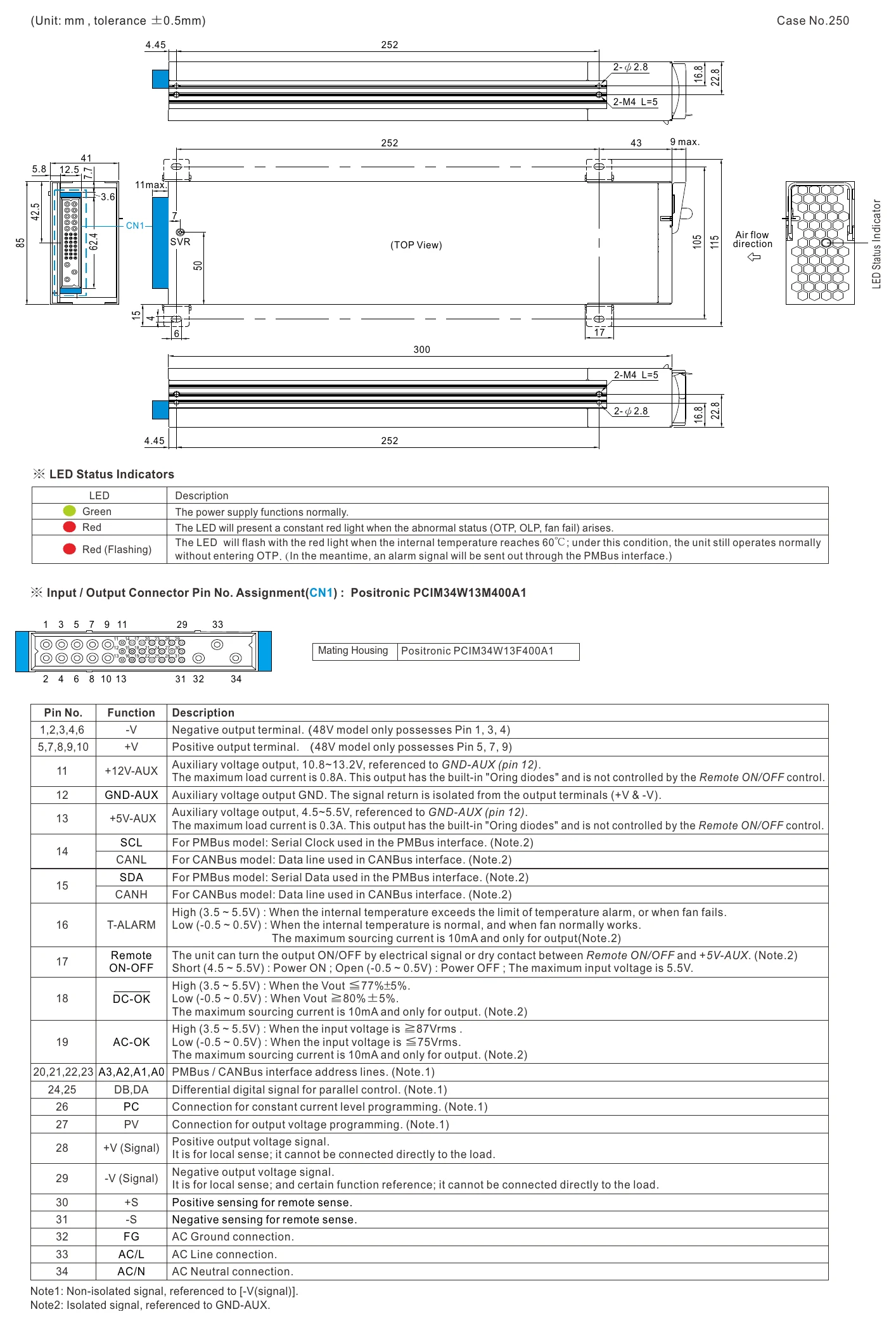

RCP-1600-48 Mechanical Specification — Mechanical Specification

Typical applications

Downloads

Certificates6

Mean Well E183223 UL Certificate PDF Download

Mean Well RCP-RCB-RSP-RPB-NSP-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-TUV Certificate PDF Download

Mean Well RCP-RCB-RSP-RPB-1600-RCB-1600NE-RHP-1U-RHP-8K1U-RHB-8K1U-CB(TUV) Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-1600-RCB-1600-EMC Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-RCB-1600-NSP-1600-CE-dec Certificate PDF Download

Mean Well RHP-8K1U-RHB-8K1U-RCP-RCB-1600-NSP-1600-UK-dec Certificate PDF Download

Test reports1

Mean Well RCP-1600-48 Test Report PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the RCP-1600-48 for 48V industrial networking or automation equipment?

Yes, this model provides 48V constant-voltage output at up to 1608W and 33.5A, which suits higher-power 48V DC industrial equipment. Its 90-264VAC input range also supports sites with different AC input standards.

Is the RCP-1600-48 a fit for centralized 48V embedded or communications power systems?

It can fit centralized 48V DC architectures where equipment is designed around a 48V bus and needs up to 33.5A. Programmable output voltage and current can also be useful in systems that require controlled 48V DC output behavior.

Can this unit be used in rack-mounted 48V power platforms that need redundancy or expansion?

Yes, the unit combines a 300 x 85 x 41 mm form factor with hot-swap support for serviceable rack power designs. Active current sharing up to 8000W also makes it suitable where multiple 48V supplies are combined for higher-capacity systems.

Is the RCP-1600-48 suitable for outdoor deployment or wide-temperature indoor use?

The operating temperature range is -30°C to +70°C, so it is specified for broad indoor temperature conditions. No IP rating is listed in the provided specs, so outdoor suitability is not confirmed by the product data shown here.
