Mean Well

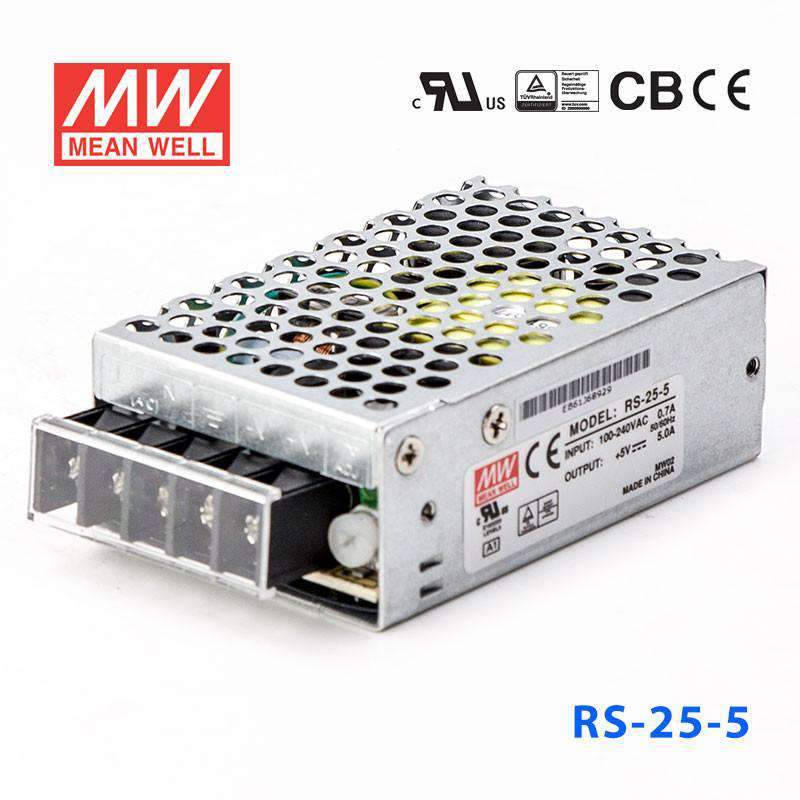

Mean Well RS-25-5 Power Supply 25W 5V 5A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-25-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-25-5
In stock
|

Overview

RS-25-5 is the 5V output model of this series: rated current 5A, rated power 25W, typical efficiency 78.5%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • No load power consumption<0.5W
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-25-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER
25W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
Β±2.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±1.0%
SETUP, RISE TIME
1800ms, 23ms/230VAC 4000ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
78.5%
AC CURRENT (Typ.)
0.7A/115VAC 0.4A/230VAC
INRUSH CURRENT (Typ.)
COLD START 45A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 180% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.
-20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note 6)

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943 .1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1:2005 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020, CNS15936 Class B
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
3992.0K hrs min. Telcordia SR-332 (Bellcore) ; 663.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
78*51*28mm (L*W*H)
PACKING
0.2Kg; 60pcs/13Kg/0.46CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-25-5 Mechanical Specification
Mechanical Specification
RS-25-5 Block Diagram
Block Diagram
RS-25-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-25-5 to power a 5V single-board computer or embedded controller?

Yes, if the equipment needs a 5V constant voltage supply and the total load does not exceed 5A or 25W. That makes it suitable for many 5V embedded controllers, processor boards, and support electronics within that power budget.

Is the RS-25-5 suitable for 5V industrial logic, I/O, or communications electronics?

It is intended for 5V constant voltage loads and can deliver up to 5A. For industrial logic or communications electronics designed for a regulated 5V rail, it is a fit if the total demand stays within 25W.

Can this power supply run multiple low-power 5V modules in one enclosure?

It can, provided the combined load remains at or below 5A and 25W. Its compact 78.0 x 51.0 x 28.0 mm size also helps when several low-power modules share limited enclosure space.

Would the RS-25-5 work in compact automation or test equipment that needs a 5V rail?

It is a reasonable choice for compact automation or bench equipment that needs 5V DC and stays within 5A output current. The 88-264VAC input range also supports use across common global AC supply ranges.

Can the RS-25-5 be used in outdoor or washdown environments?

The operating temperature range is specified as -20 degrees C to +70 degrees C, so the thermal range is defined. No IP rating is listed, which means the provided specs do not confirm protection for outdoor exposure, washdown, or dust-heavy environments.

How does the RS-25-5 compare with the other RS-25 models?

The RS-25 lineup includes RS-25-3.3 at 19.8W, 3.3V, 6A; RS-25-5 at 25W, 5V, 5A; RS-25-12 at 25.2W, 12V, 2.1A; RS-25-15 at 25.5W, 15V, 1.7A; RS-25-24 at 26.4W, 24V, 1.1A; and RS-25-48 at 27.36W, 48V, 0.57A. Compared with the higher-voltage versions, the 5V model provides higher output current at 5A.
