Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

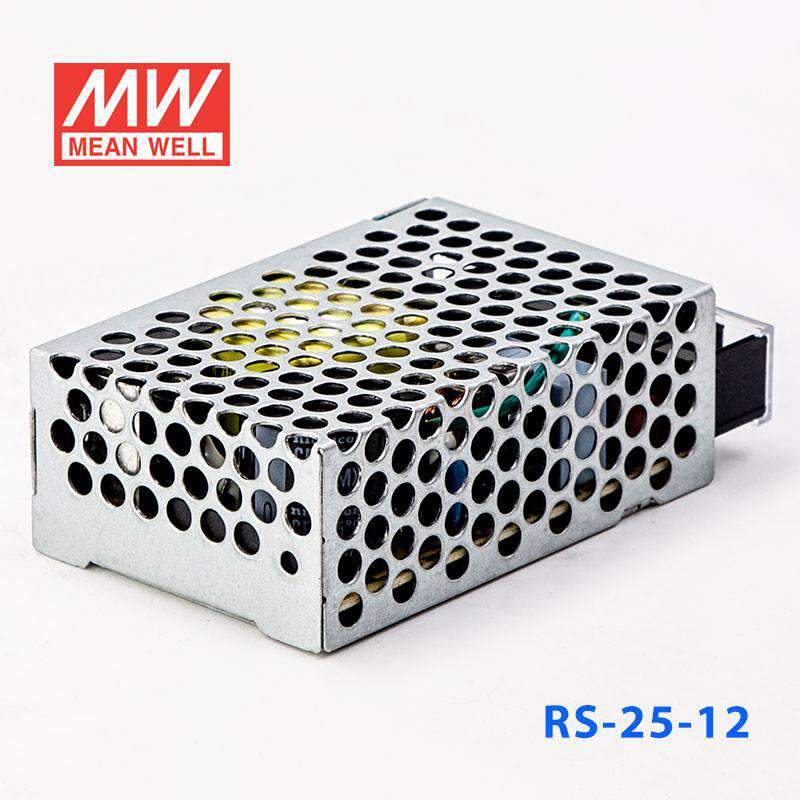

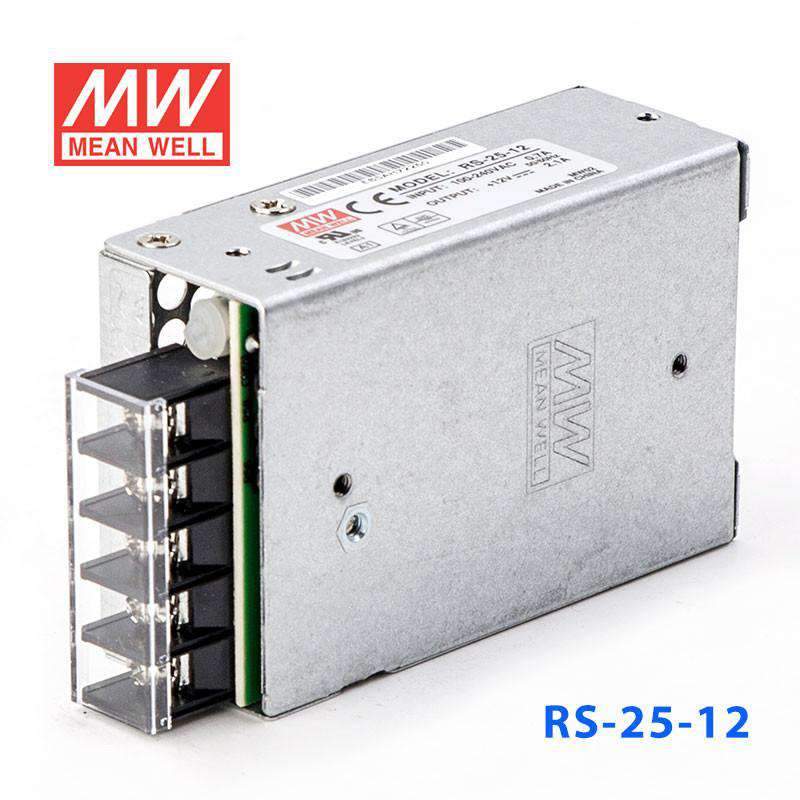

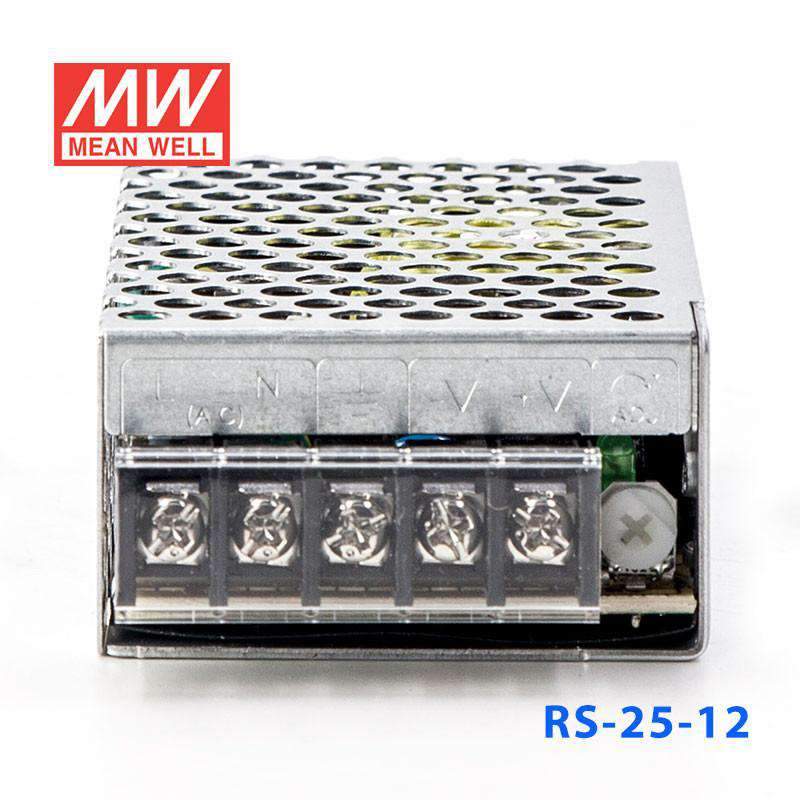

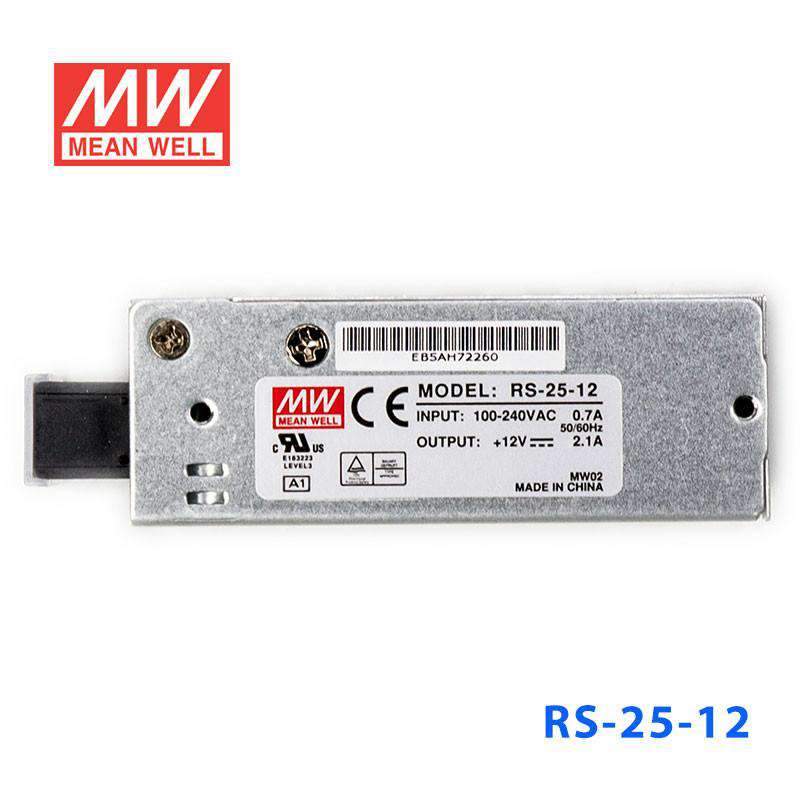

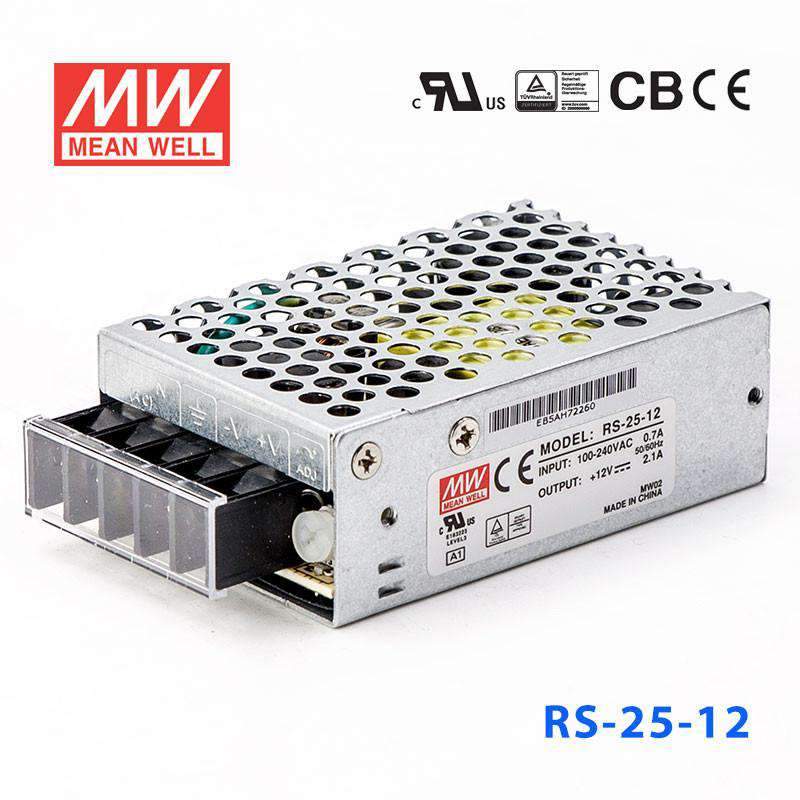

Mean Well RS-25-12 Power Supply 25W 12V 2.1A

4.8 (14 reviews)

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-25-12

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

RS-25-12

RS-15-12 15W 12V Backorder

RS-100-12 100W 12V Backorder

RS-150-12 150W 12V Backorder

RS-25-12 25W 12V Low stock

RS-35-12 35W 12V Backorder

RS-50-12 50W 12V Backorder

RS-75-12 75W 12V Backorder

Product variants

Notify me when it's back in stock

The RS-25 is a 25W Mean Well DIN rail power converter with a 78mm profile (input range: 125~373VDC).

Key Features

✓ 78mm width — DIN rail TS-35 compatible
✓ Input voltage range: 125~373VDC
✓ Cooling by free air convection — no minimum load required
✓ Protections: Short circuit / Overload / Over voltage
✓ Safety approvals: UL62368- TUV EN62368- EAC TP TC 004,CCC GB4943.1,BSMI CNS14336-`
✓ 3 years warranty

Frequently Asked Questions

Can I use the RS-25-12 for a small 12V control or automation device?

Yes, if the load requires constant-voltage 12V and draws no more than 2.1A. With 25.2W available, it is aimed at smaller 12V control and automation loads rather than higher-power equipment.

Is the RS-25-12 suitable for compact embedded systems that run on 12V DC?

It is a constant-voltage 12V supply with up to 2.1A output current. That makes it a practical fit for compact embedded systems whose total demand stays within 25.2W.

Can this model power a low-power 12V industrial sensor or interface module?

It can power 12V industrial electronics as long as the total load is at or below 2.1A and 25.2W. The compact 78.0 × 51.0 × 28.0 mm size also supports space-constrained equipment layouts.

How do I know whether the RS-25-12 is too small for my 12V load?

Use it only with constant-voltage 12V equipment that stays within 2.1A and 25.2W. If your load needs more than either of those values, you need a higher-capacity 12V model.

Is the RS-25-12 for indoor use only, or can it handle wider environmental conditions?

Its operating temperature range is -20°C to +70°C, which supports a broad indoor industrial temperature span. The provided specs do not include an IP rating, so outdoor exposure is not established by this data.

How does the RS-25-12 compare with other 12V RS series options?

The listed 12V RS models are RS-15-12 at 15.6W and 1.3A, RS-25-12 at 25.2W and 2.1A, RS-35-12 at 35W and 3A, RS-50-12 at 50.4W and 4.2A, RS-75-12 at 72W and 6A, RS-100-12 at 102W and 8.5A, and RS-150-12 at 150W and 12.5A. RS-25-12 sits near the low-power end of that 12V range.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current
Mean Well RS-25-5 Power Supply 25W 5V 5A	25W	5V	5A	View
Mean Well RS-25-24 Power Supply 25W 24V 1.1A	26.4W	24V	1.1A	View
Mean Well RS-25-48 Power Supply 25W 48V 570mA	27.36W	48V	0.57A	View
Mean Well RS-25-3.3 Power Supply 25W 3.3V 6A	19.8W	3.3V	6A	View
Mean Well RS-25-15 Power Supply 25W 15V 1.7A	25.5W	15V	1.7A	View

Customer reviews

4.8 Reviews verified for authenticity

5 ★ (12)

4 ★ (1)

3 ★ (1)

2 ★ (0)

1 ★ (0)

Reviewed by 14 customers across the RS series

Exactly as specced
By Daniel R.|2026-06-18✓ Verified Buyer
Model: RS-15-24Quantity: 4
Drop-in replacement, ran cool under full load on our DIN rail. Shipped same day.
Workhorse
By Maria K.|2026-05-28✓ Verified Buyer
Model: RS-50-24Quantity: 12
Bought a dozen for a control panel build — every one perfect.
Solid little supply
By Greg T.|2026-04-30✓ Verified Buyer
Model: RS-100-24Quantity: 2
Does the job. Wish the terminals were a touch bigger.
