Over 15 years experience of providing support of MEAN WELL Power Supplies
Description
Description
Features
No load power consumption <0.5W |
All using 105°C long life electrolytic capacitors |
Protections: Short circuit / Overload / Over voltage |
Meet EMS EN50082-2/EN61000-6-2 |
Heavy industry level (35~150W) |
Withstand 300VAC surge input for 5 sec. |
High operating temperature up to 70°C |
Withstand 5G vibration test |
Miniature size, high power density |
High efficiency, long life and high reliability |
LED indicator for power on |
100% full load burn-in test |
Suitable for critical applications |
3 years warranty |
General Specification
AC input voltage range | 88~264VAC, 125~373VDC |
AC inrush current (max.) | 30A at 230VAC |
DC adjustment range | ±10% by potentiometer for single output; CH1 -5%~+10% by potentiometer for multiple output |
Overload protection | 110%~180% |
Over voltage protection | 115%~135% rated output voltage, hiccup mode, auto-recovery |
Withstand voltage | I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute |
Working temperature | -20~+70°C |
Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
Safety standards | UL60950-1, TUV EN60950-1 approved |
EMC standards | EN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2) (35~150W) |
Connection | Terminal block for input and output |
Dimension (LxWxH) | 78x 51x 28 |
Case No. | 931A |
Packing | 60pcs /13.0kg |
Specifications
Specifications
-

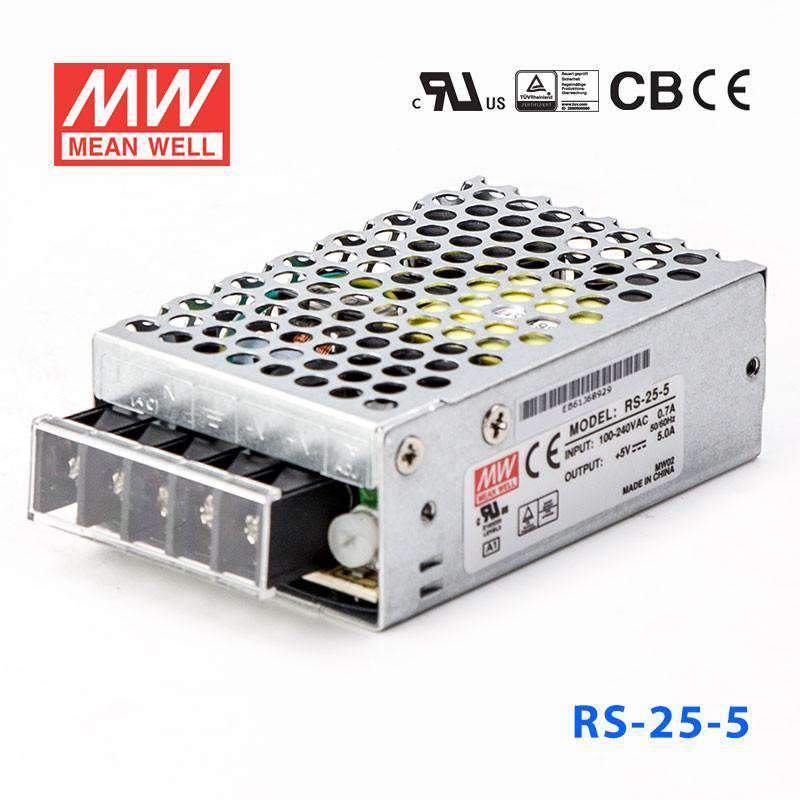

BrandMean Well
-
SeriesRS Series
-
Power Rating25 Watt
-
Output Voltage5 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CCC,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length7.8 cm
-
Width5.1 cm
-
Height2.8 cm
-
Weight0.2 kg
