Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

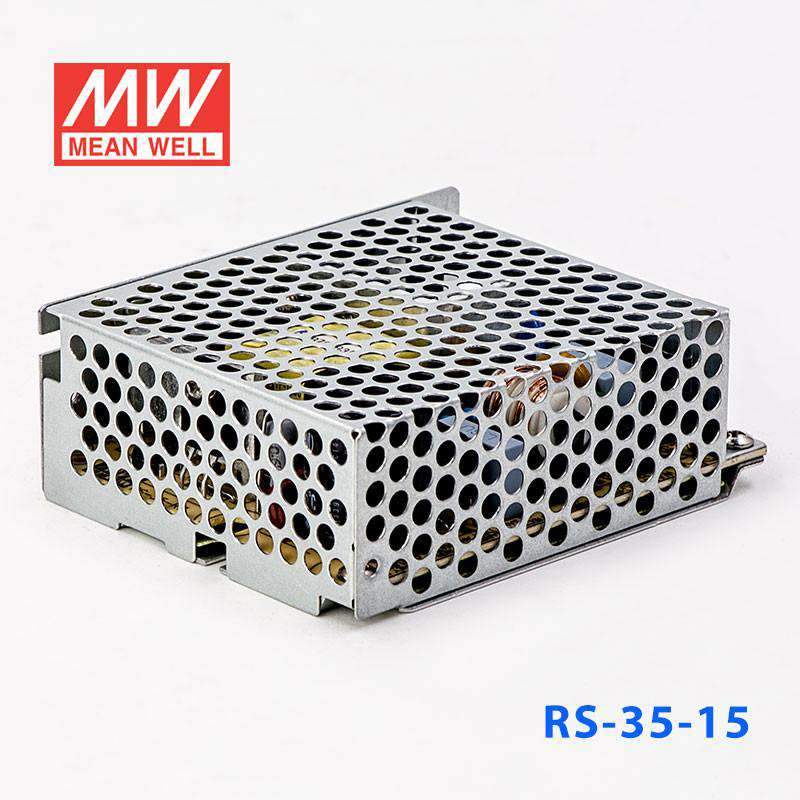

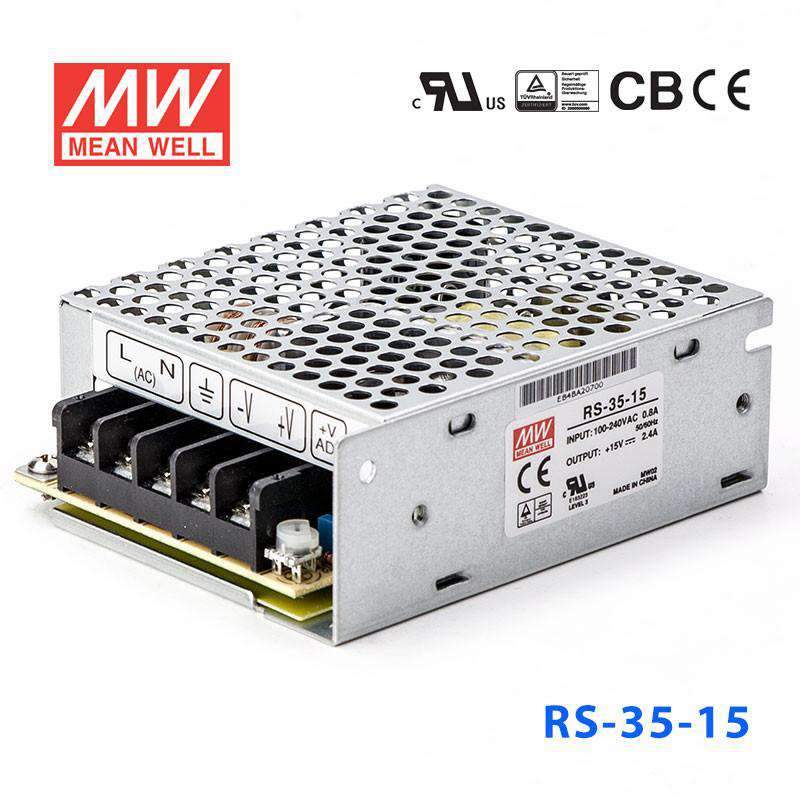

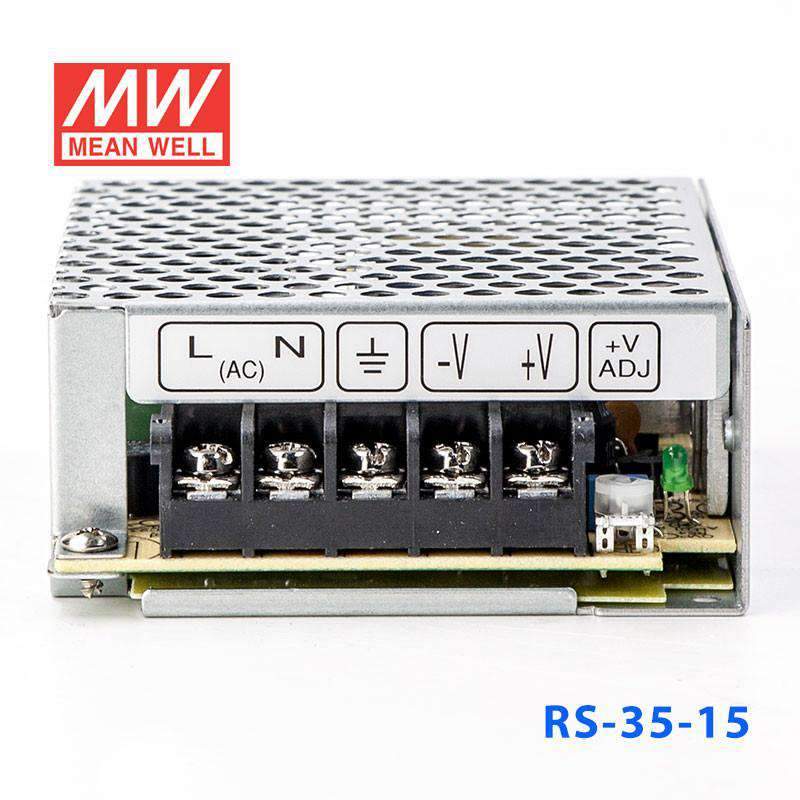

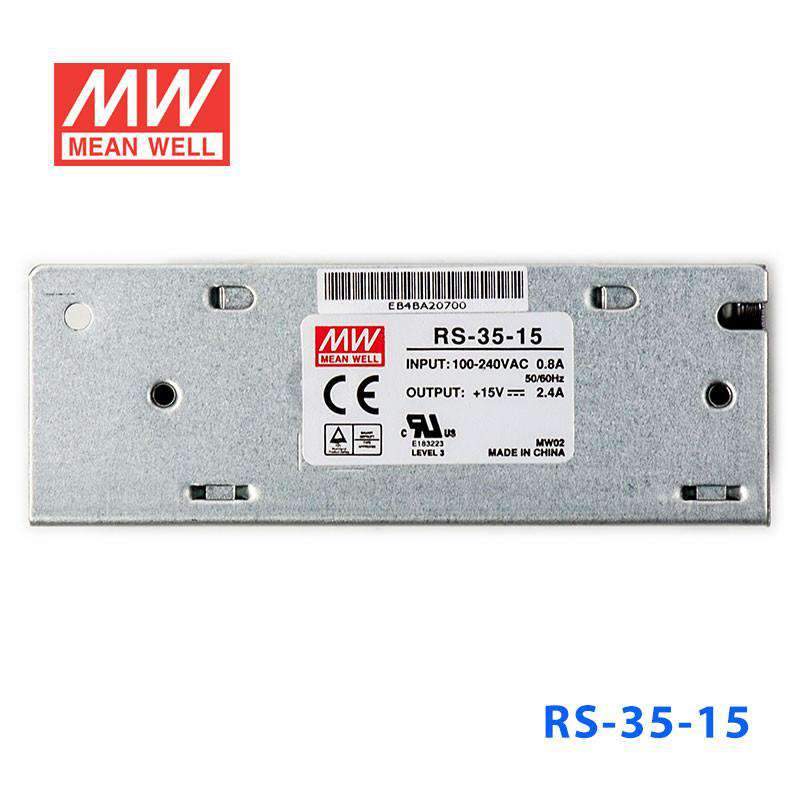

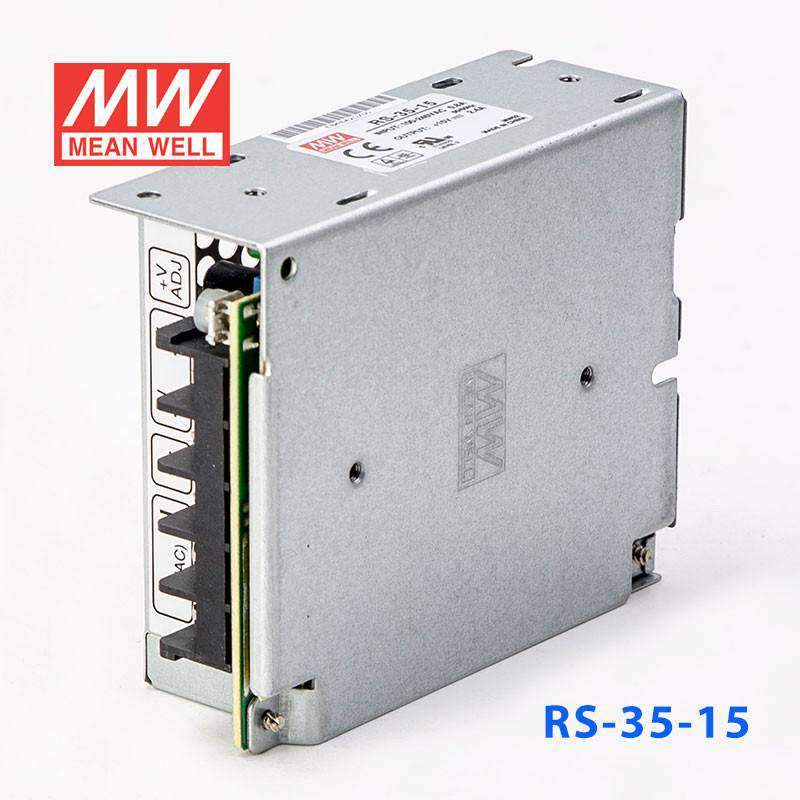

Mean Well RS-35-15 Power Supply 35W 15V 2.4A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-35-15
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-35-15
Available to order
|

Overview

RS-35-15 is the 15V output model of this series: rated current 2.4A, rated power 36W, typical efficiency 86%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-35-15Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
15V
RATED CURRENT
2.4A
CURRENT RANGE
0 ~ 2.4A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
13.5 ~ 16.5V
VOLTAGE TOLERANCENote.3
Β±1.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±0.5%
SETUP, RISE TIME
500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
86%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 36A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-15 Mechanical Specification
Mechanical Specification
RS-35-15 Block Diagram
Block Diagram
RS-35-15 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-35-15 for 15V industrial instrumentation or analog control equipment?

Yes, if the equipment is designed for a constant 15V DC input and stays within 35W and 2.4A. That makes it suitable for lighter-duty industrial or bench equipment that specifically calls for 15V.

Is the RS-35-15 a good choice for embedded test fixtures or electronics that need 15V DC?

It can be used for embedded fixtures, controllers, or electronics that require a regulated 15V DC supply and draw up to 2.4A. The 88-264VAC input also supports use in locations with different AC input standards.

Can this model power small 15V automation modules inside a machine or cabinet?

Yes, for small automation modules that are rated for constant 15V DC and do not exceed 35W total load. Its miniature 99.0 Γ— 82.0 Γ— 36.0 mm form factor is useful where cabinet space is limited.

Will the RS-35-15 handle demanding industrial environments?

The unit is rated for operation from -25Β°C to +70Β°C and is specified to withstand 5G vibration. Those specs make it more suitable for protected industrial equipment than a basic office-only supply, provided the application stays within its electrical ratings.

What is the difference between RS-35-15 and the other 35W RS power supplies?

The 35W RS family includes RS-35-3.3 at 3.3V and 7A, RS-35-5 at 5V and 7A, RS-35-12 at 12V and 3A, RS-35-15 at 15V and 2.4A, RS-35-24 at 24V and 1.5A, and RS-35-48 at 48V and 0.8A. They all share the same 35W power class, with the output voltage and current changing by model.
