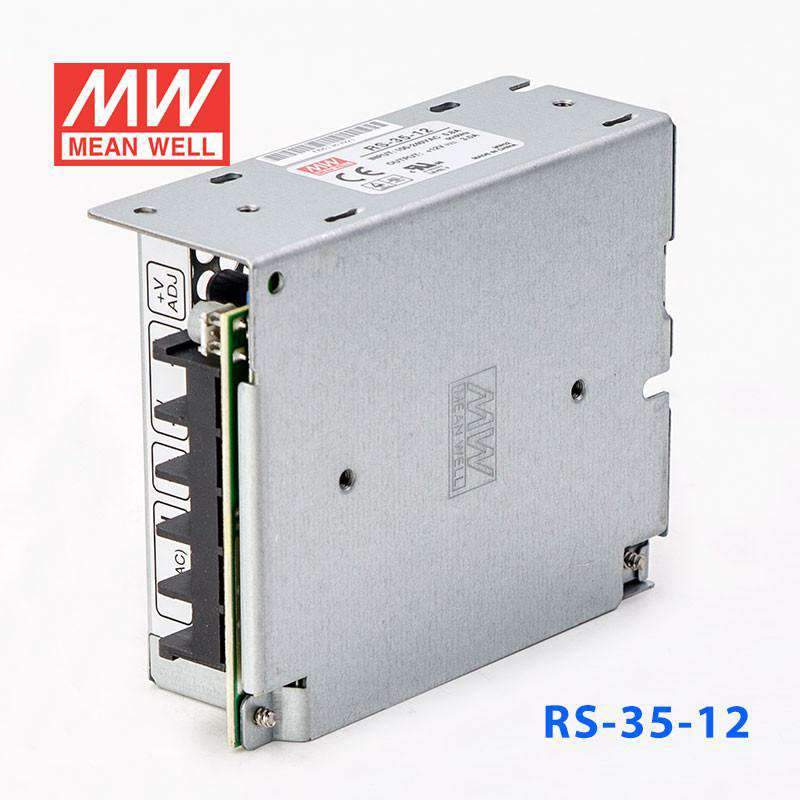

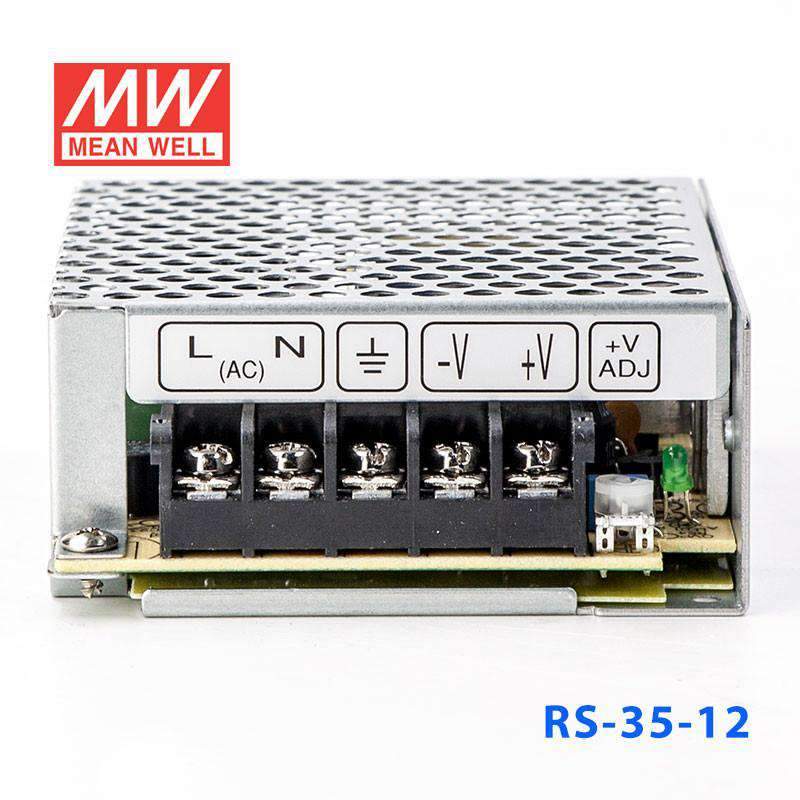

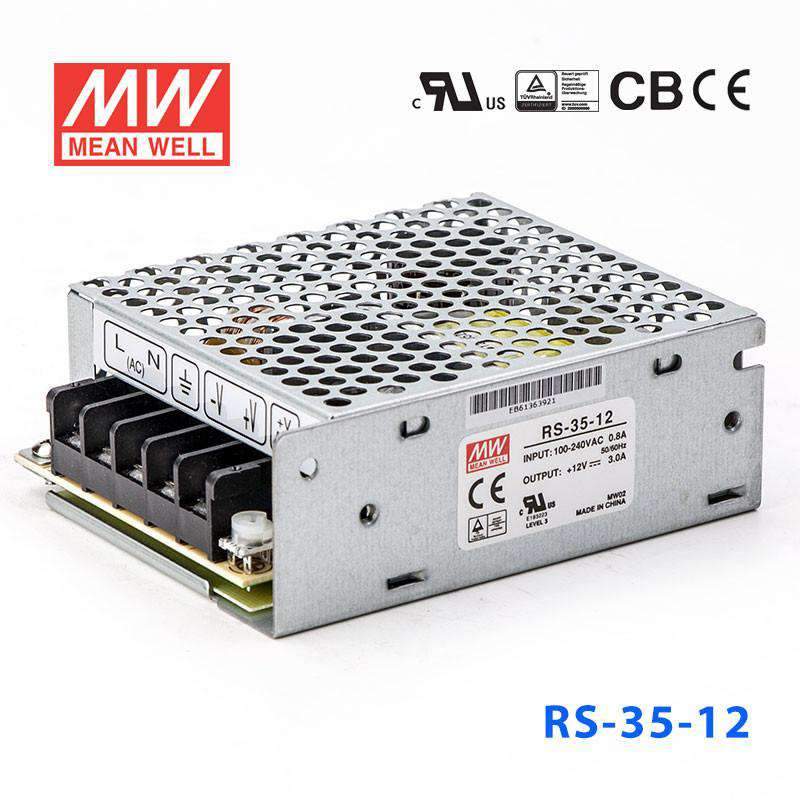

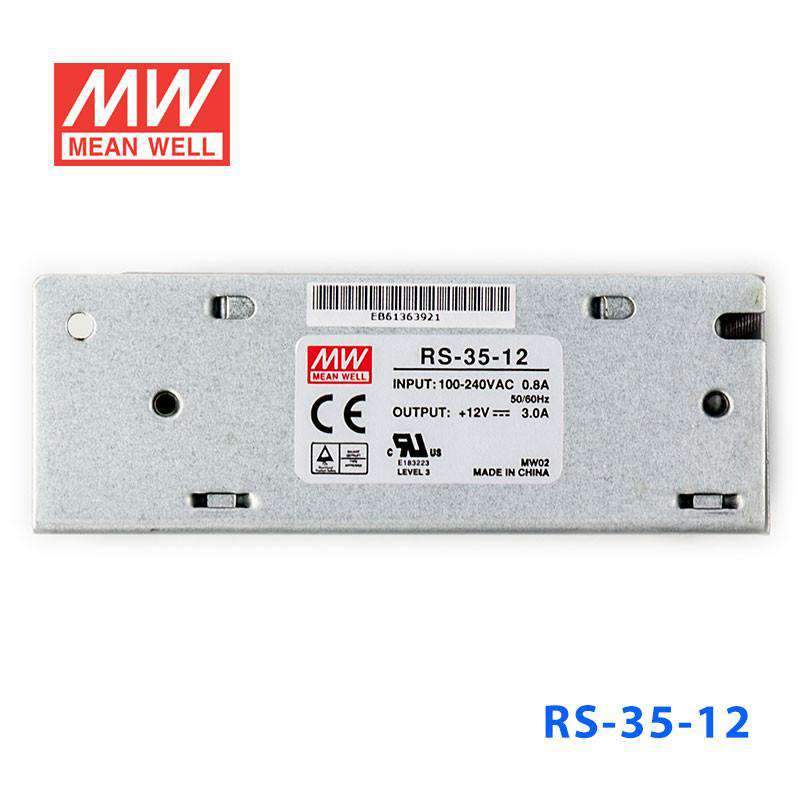

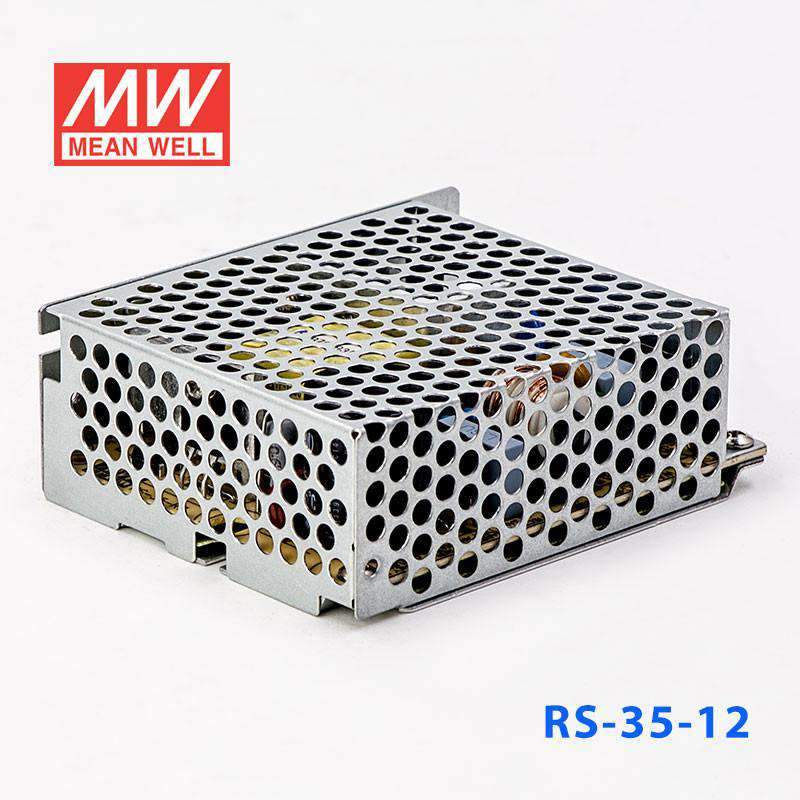

Mean Well RS-35-12 Power Supply 35W 12V 3A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-35-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-35-12
Available to order
|

Overview

RS-35-12 is the 12V output model of this series: rated current 3A, rated power 36W, typical efficiency 84.5%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-35-12Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER
36W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
10.8 ~ 13.2V
VOLTAGE TOLERANCENote.3
Β±1.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±0.5%
SETUP, RISE TIME
500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
84.5%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 36A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-12 Mechanical Specification
Mechanical Specification
RS-35-12 Block Diagram
Block Diagram
RS-35-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-35-12 for a 12V industrial control panel or automation enclosure?

Yes, if the panel components need a constant 12V DC supply and the total load stays within 36W and 3A. Its compact 99.0 Γ— 82.0 Γ— 36.0 mm size also helps in smaller control enclosures.

Is the RS-35-12 suitable for powering 12V embedded systems or industrial electronics?

It is a fit for embedded or industrial electronics that require regulated 12V DC and draw no more than 3A from a 36W supply. The wide 88-264VAC input is useful when the equipment may be deployed across different AC mains environments.

Can this 12V power supply run small 12V HMI accessories, relays, or control devices?

It can support small 12V control devices, relay assemblies, or HMI-related accessories when their combined demand remains at or below 36W and 3A. This model is constant voltage, so it is intended for equipment designed for a 12V DC source.

Is the RS-35-12 intended for indoor or outdoor use?

The provided specs list an operating temperature range of -25Β°C to +70Β°C, but no IP rating is provided. Without an IP rating, it is better suited to protected indoor or enclosed equipment use rather than exposed outdoor conditions.

How does the RS-35-12 compare with other 35W Mean Well RS models?

Within the 35W RS group, the options are RS-35-3.3 at 3.3V and 7A, RS-35-5 at 5V and 7A, RS-35-12 at 12V and 3A, RS-35-15 at 15V and 2.4A, RS-35-24 at 24V and 1.5A, and RS-35-48 at 48V and 0.8A. The main difference between them is the output voltage and matching current rating.
