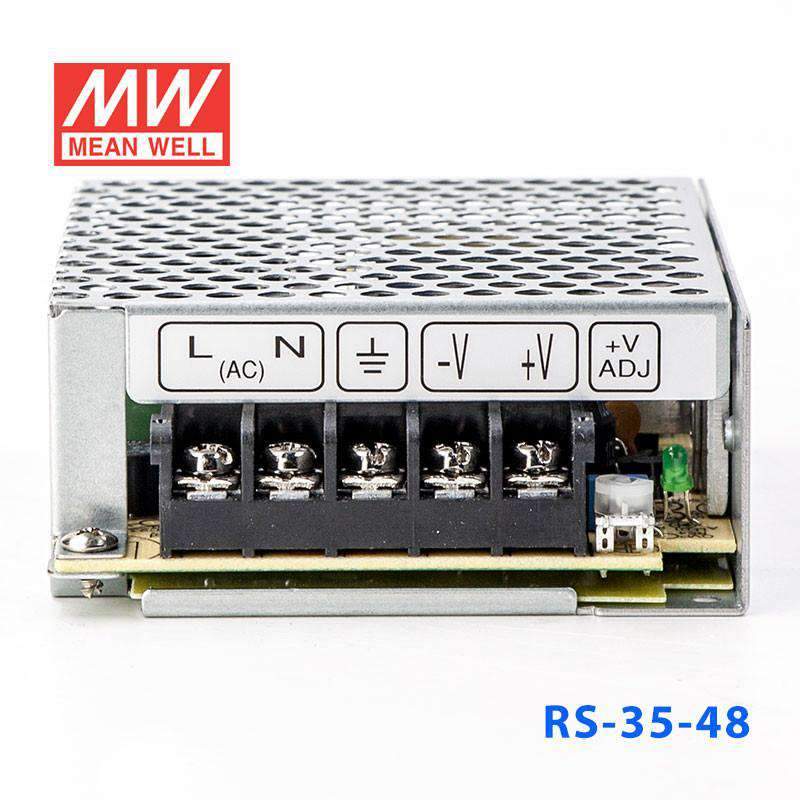

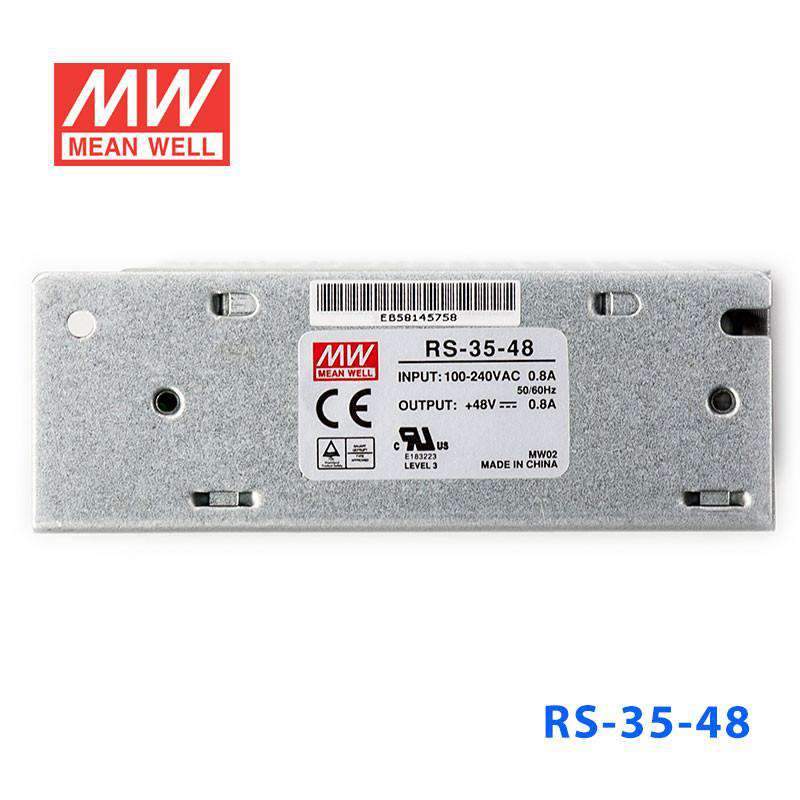

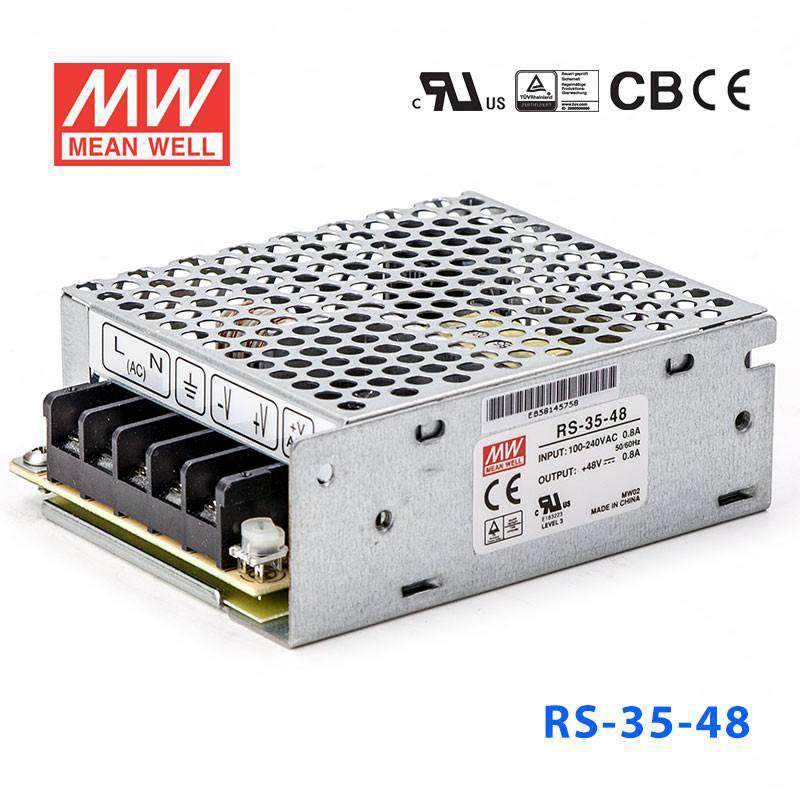

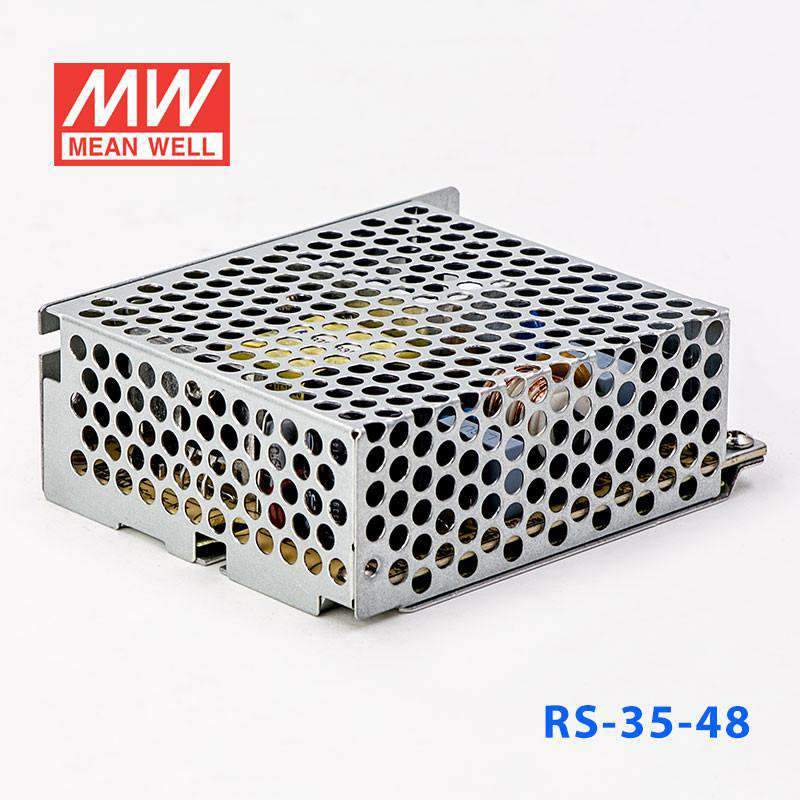

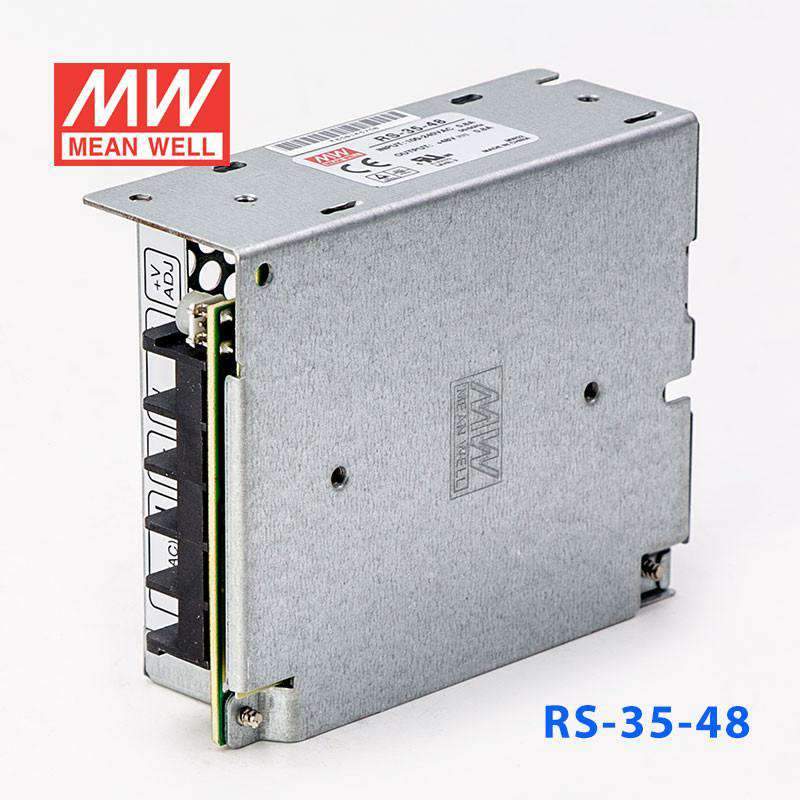

Mean Well RS-35-48 Power Supply 35W 48V 800mA

4.8 (14 reviews)

miniature sizeeconomicalwithstand 5G vibration and 70°C operation

SKU RS-35-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

RS-35-48

RS-15-48 15W 48V Backorder

RS-100-48 100W 48V Low stock

RS-150-48 150W 48V Low stock

RS-25-48 25W 48V Backorder

RS-35-48 35W 48V Backorder

RS-50-48 50W 48V Backorder

RS-75-48 75W 48V Low stock

Product variants

Available to order

Overview

RS-35-48 is the 48V output model of this series: rated current 0.8A, rated power 38.4W, typical efficiency 88.5%.

Features

Universal AC input / Full range
Protections: Short circuit / Over load / Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
No load power consumption<0.5W
All using 105℃ long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70℃
Withstand 5G vibration test
High efficiency, long life and high reliability
3 years warranty

Specifications

RS-35-48Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE: 48V
RATED CURRENT: 0.8A
CURRENT RANGE: 0 ~ 0.8A
RATED POWER: 38.4W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 42 ~ 54V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION^Note.4: ±0.5%
LOAD REGULATION^Note.5: ±0.5%
SETUP, RISE TIME: 500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.): 80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE: 88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY(Typ.): 88.5%
AC CURRENT (Typ.): 0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.): COLD START 36A/230VAC
LEAKAGE CURRENT: <2mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 55.2 ~ 64.8V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF: 3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 99*82*36mm (L*W*H)
PACKING: 0.3Kg; 45pcs/14Kg/0.76CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-35-48 Mechanical Specification — Mechanical Specification

RS-35-48 Derating Curve — Derating Curve

Downloads

Certificates4

UL Certificate (RS-35)(EN) PDF Download

CB Certificate (RS-35)(EN) PDF Download

TUV Certificate (RS-35)(EN) PDF Download

EMC Certificate (RS-35)(EN) PDF Download

Test reports1

Test Report (RS-35-48)(EN) PDF Download

FAQ

Can I use the RS-35-48 for 48V telecom or industrial communications equipment?

Yes, if the equipment is designed for a constant 48V DC input and draws no more than 35W and 0.8A. That makes it relevant for lighter-duty telecom or industrial communications hardware built around a 48V DC bus.

Is the RS-35-48 suitable for 48V control devices in automation systems?

It can be used for small 48V control devices or subsystems when the total demand stays within 0.8A at 48V. The supply is constant voltage, so it should only be used with equipment intended for a regulated 48V DC source.

Can this power supply support compact embedded or IT hardware that runs on 48V DC?

It is suitable for compact embedded or IT hardware that accepts 48V DC input and remains within the 35W output limit. Its 99.0 × 82.0 × 36.0 mm size is also useful where mounting space is constrained.

Is the RS-35-48 rated for outdoor use?

The provided specs show an operating temperature range of -25°C to +70°C, but no IP rating is listed. Without an IP rating, it is better considered for indoor cabinets or other protected enclosures instead of exposed outdoor locations.

How does RS-35-48 compare with the other 35W RS models?

The 35W RS lineup includes RS-35-3.3 at 3.3V and 7A, RS-35-5 at 5V and 7A, RS-35-12 at 12V and 3A, RS-35-15 at 15V and 2.4A, RS-35-24 at 24V and 1.5A, and RS-35-48 at 48V and 0.8A. RS-35-48 is the highest-voltage version in that 35W group and therefore carries the lowest current rating.
