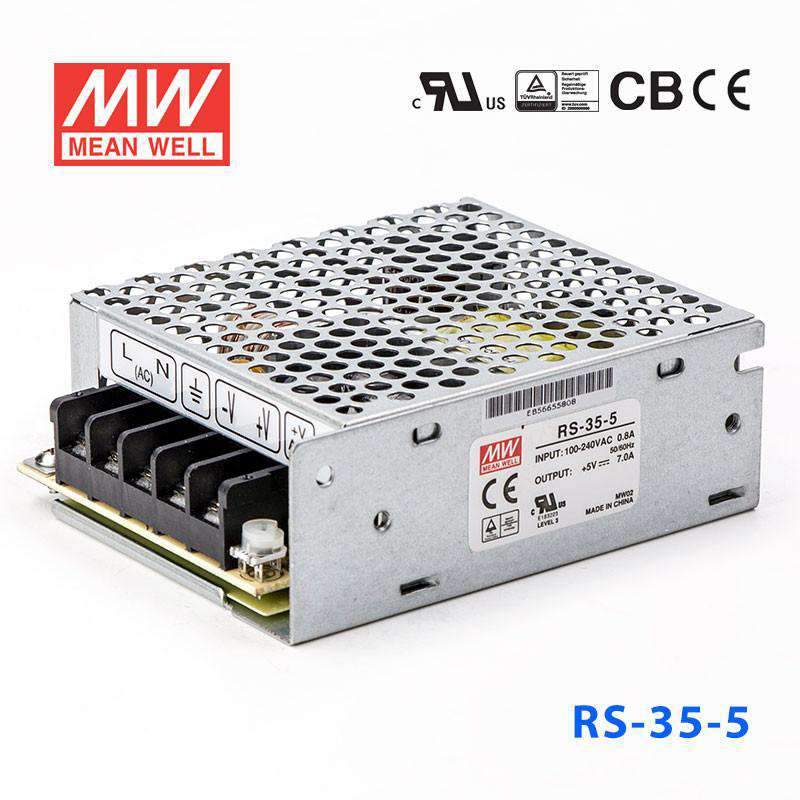

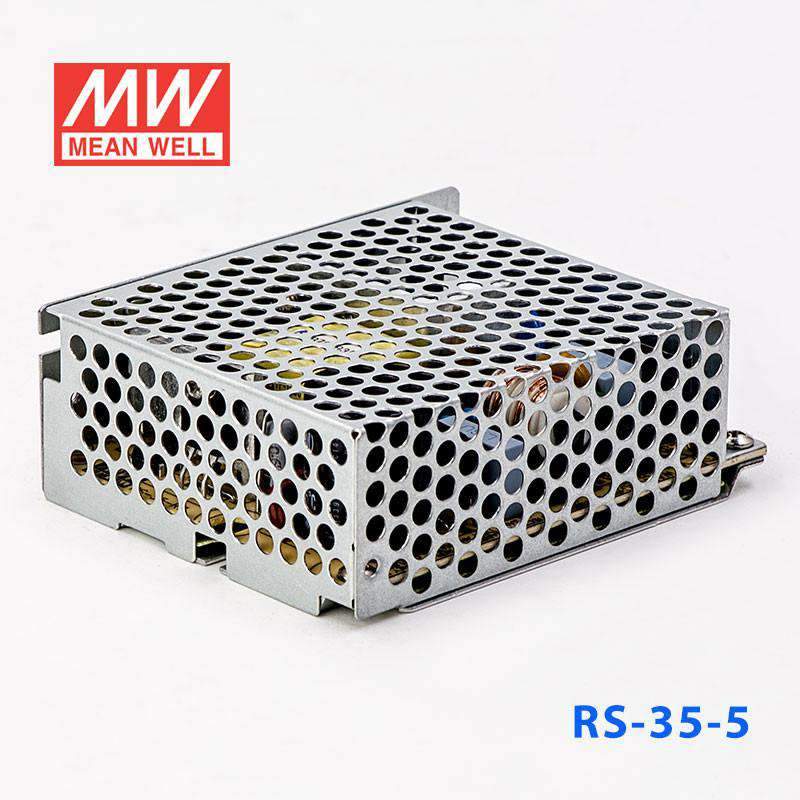

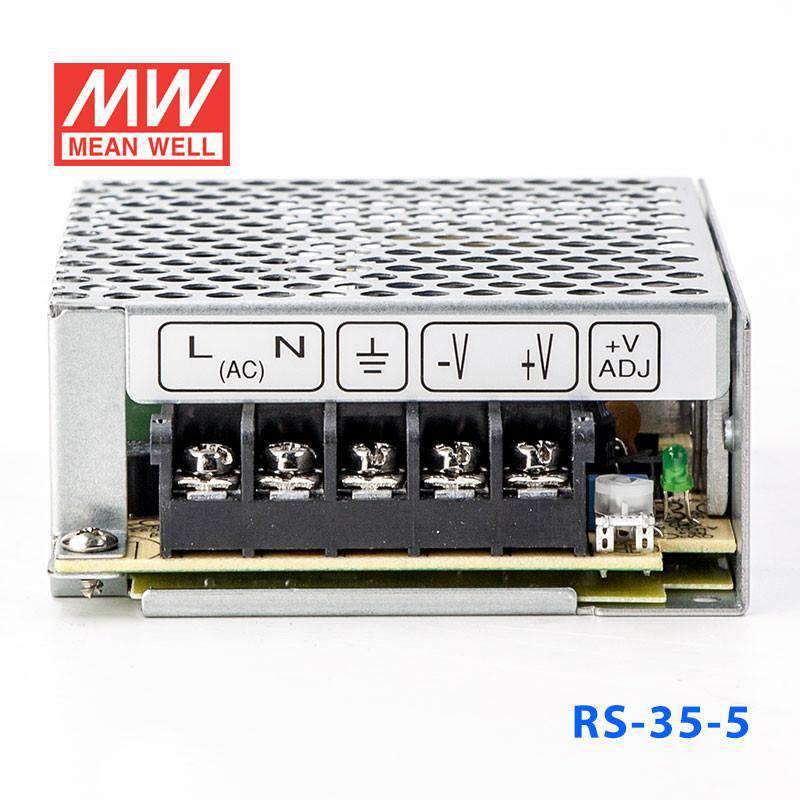

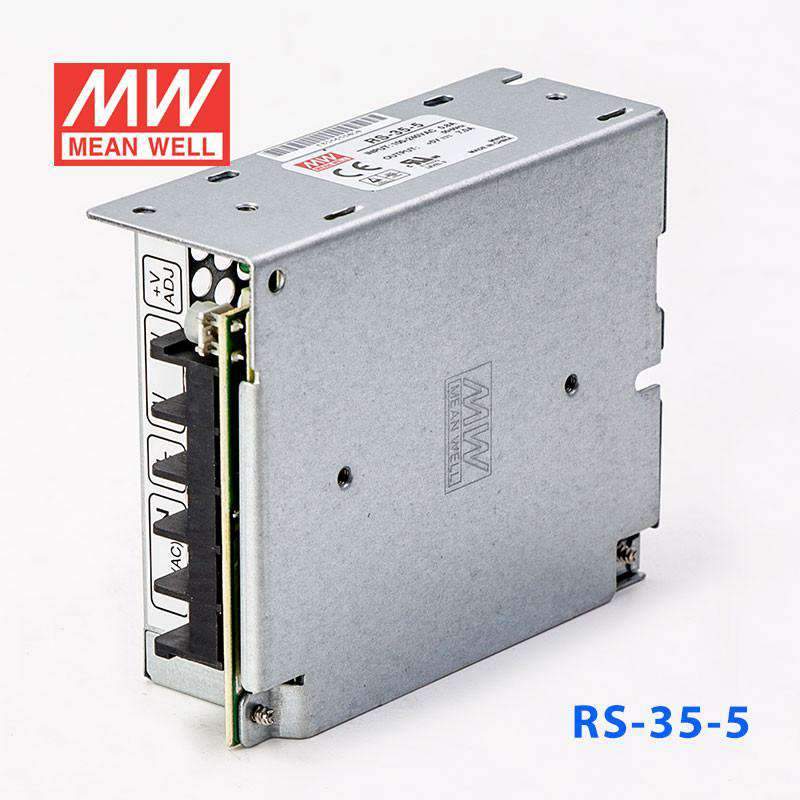

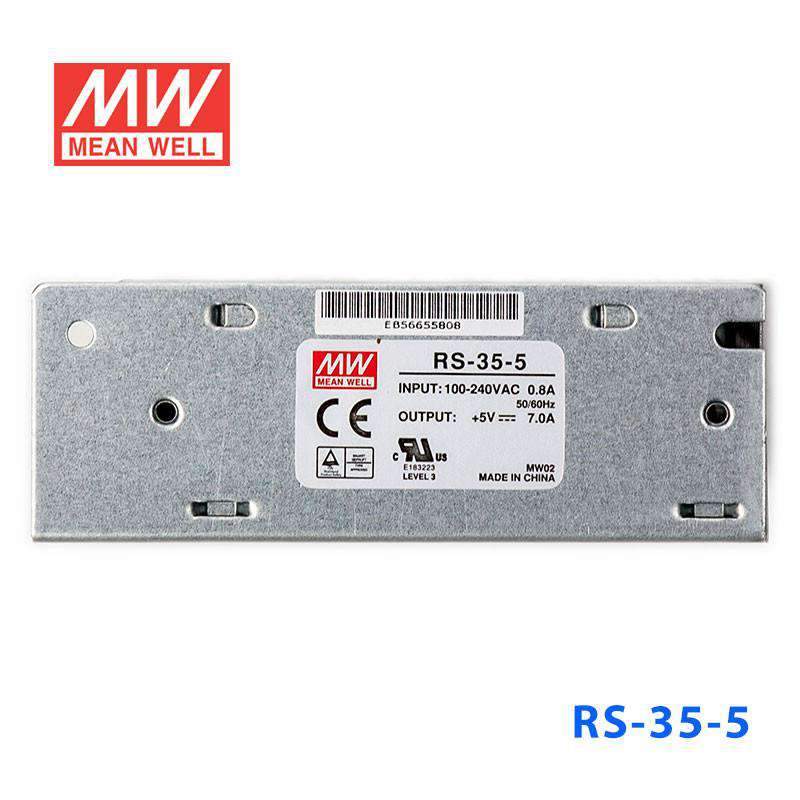

Mean Well RS-35-5 Power Supply 35W 5V 7A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-35-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-35-5
Available to order
|

Overview

RS-35-5 is the 5V output model of this series: rated current 7A, rated power 35W, typical efficiency 80.5%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Over load / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • No load power consumption<0.5W
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-35-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
7A
CURRENT RANGE
0 ~ 7A
RATED POWER
35W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.5 ~ 5.5V
VOLTAGE TOLERANCENote.3
Β±2.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±1.0%
SETUP, RISE TIME
500ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
80ms/230VAC 15ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
80.5%
AC CURRENT (Typ.)
0.8A/115VAC 0.55A/230VAC
INRUSH CURRENT (Typ.)
COLD START 36A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3428.3K hrs min. Telcordia SR-332 (Bellcore) ; 602.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*82*36mm (L*W*H)
PACKING
0.3Kg; 45pcs/14Kg/0.76CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

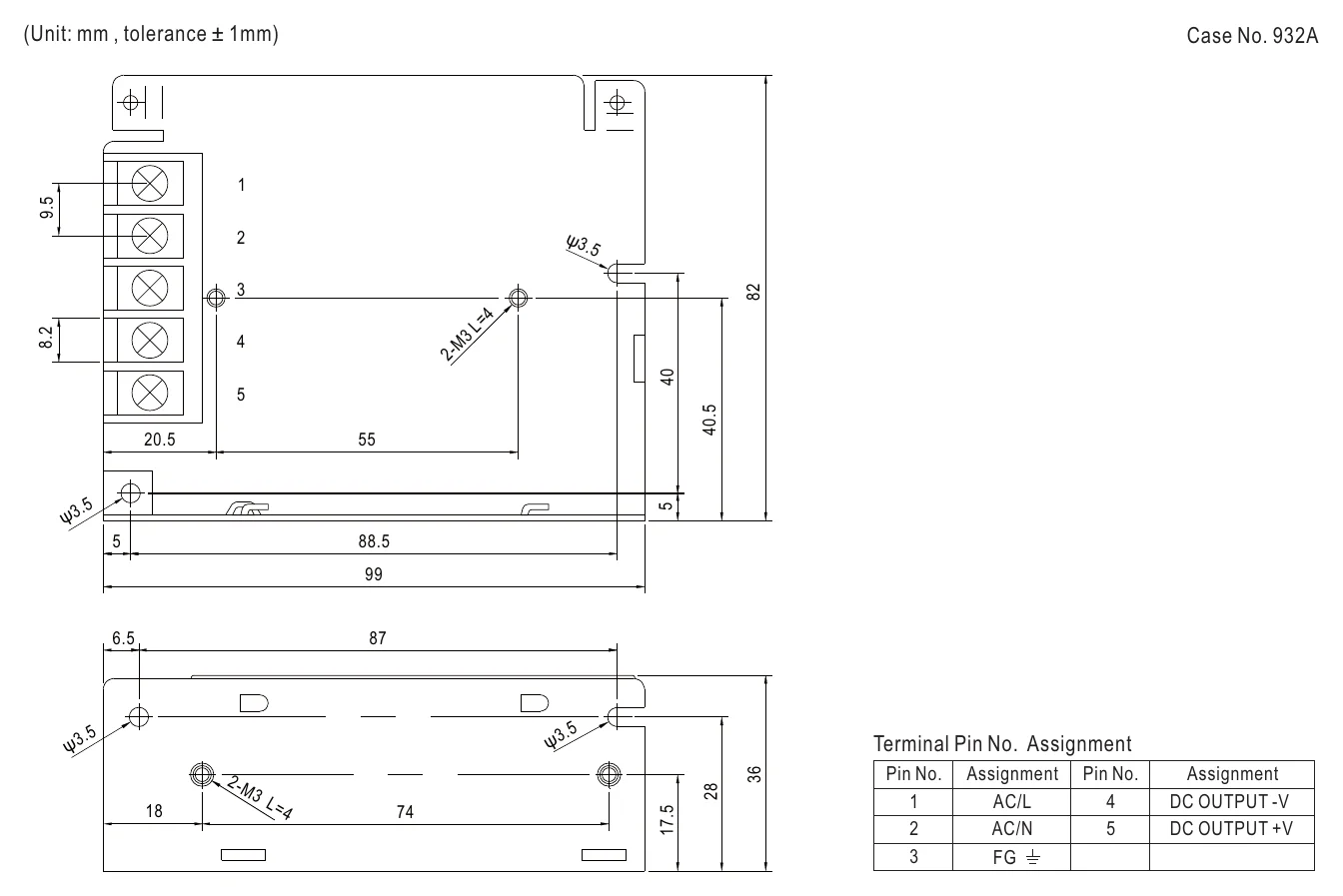

RS-35-5 Mechanical Specification
Mechanical Specification

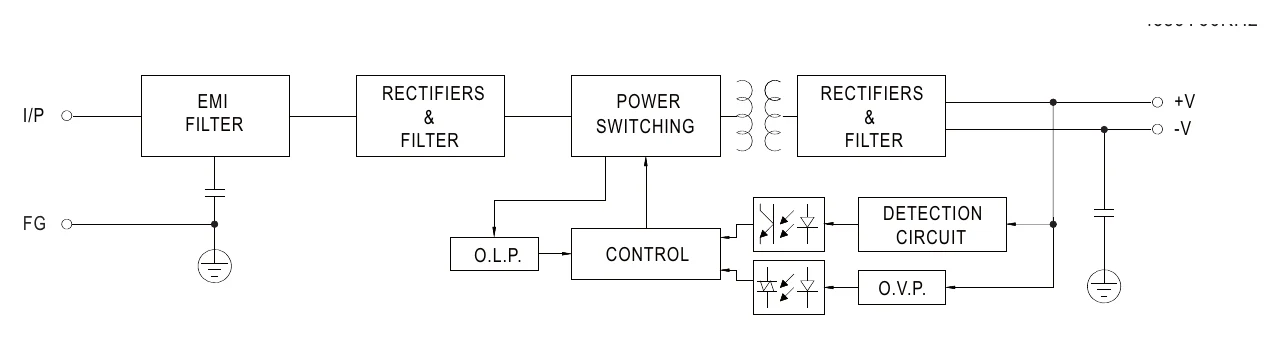

RS-35-5 Block Diagram
Block Diagram

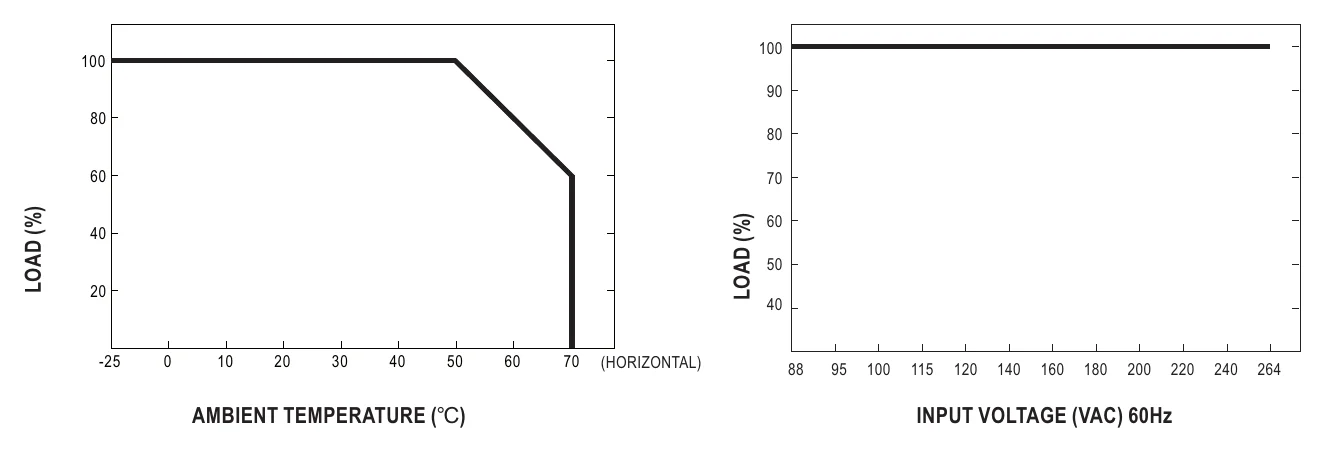

RS-35-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-35-5 for a 5V PLC accessory or small industrial controller?

Yes, if the load requires a constant 5V supply and stays within 7A and 35W. That makes it suitable for low-voltage industrial control electronics, compact controllers, and similar 5V devices that do not exceed the unit's rated output.

Is the RS-35-5 a fit for embedded computing or SBC-based equipment that runs on 5V?

It can be, because the supply provides constant 5V output up to 7A with 35W total capacity. It is best matched to embedded platforms, edge devices, and processor boards that specifically require 5V and remain inside those current and power limits.

Can this 5V power supply be used for automation sensors and logic modules?

It can support 5V automation electronics when the combined demand stays at or below 7A and 35W. The RS-35-5 is intended for constant-voltage loads, so it fits 5V logic modules, sensor electronics, and other low-voltage control devices rated for 5V.

How does the RS-35-5 compare with the other 5V models in the RS series?

Within the 5V RS range, the listed models are RS-15-5 at 15W and 3A, RS-25-5 at 25W and 5A, RS-35-5 at 35W and 7A, RS-50-5 at 50W and 10A, RS-75-5 at 60W and 12A, RS-100-5 at 80W and 16A, and RS-150-5 at 130W and 26A. The RS-35-5 sits above the 15W and 25W versions and below the 50W, 60W, 80W, and 130W versions in available 5V output capacity.

Is the RS-35-5 suitable for outdoor or high-temperature locations?

The published specs show an operating temperature range of -25Β°C to +70Β°C and note 70Β°C operation plus 5G vibration resistance. No IP rating is listed, so the specs support temperature-capable indoor enclosure use, but they do not establish outdoor or weather-exposed suitability.
