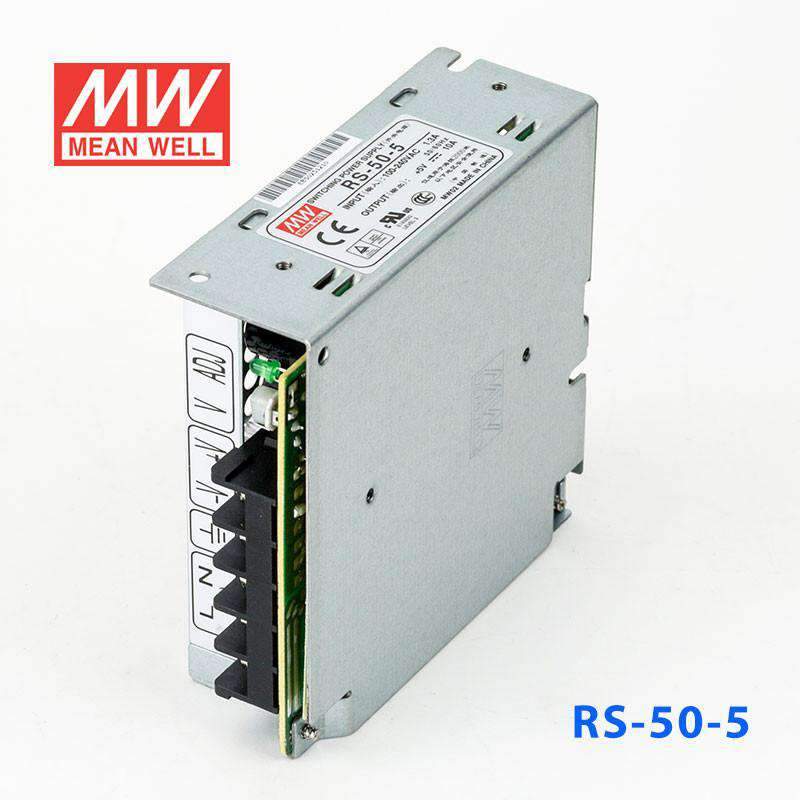

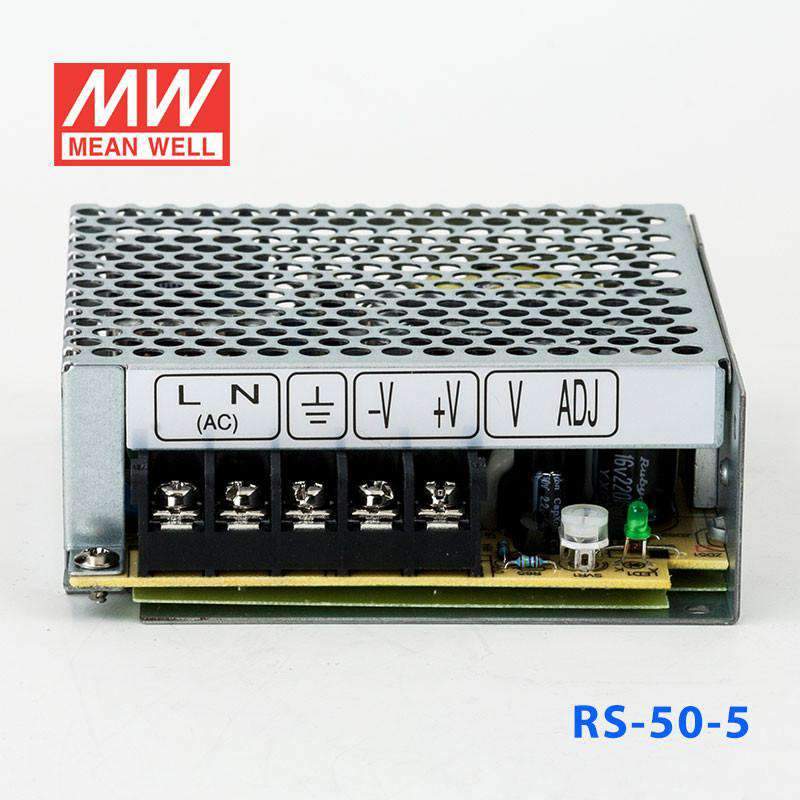

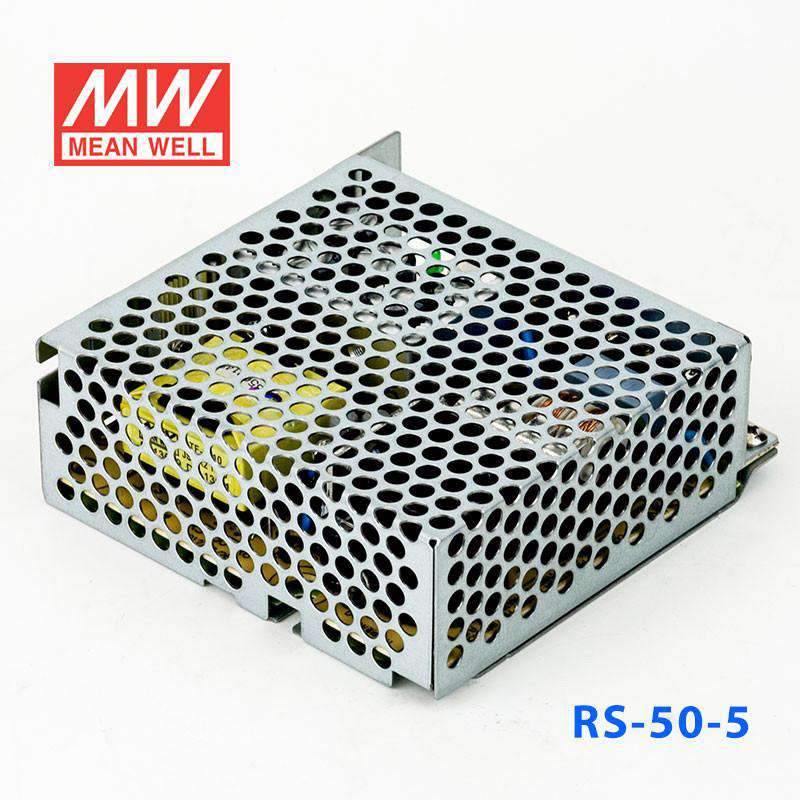

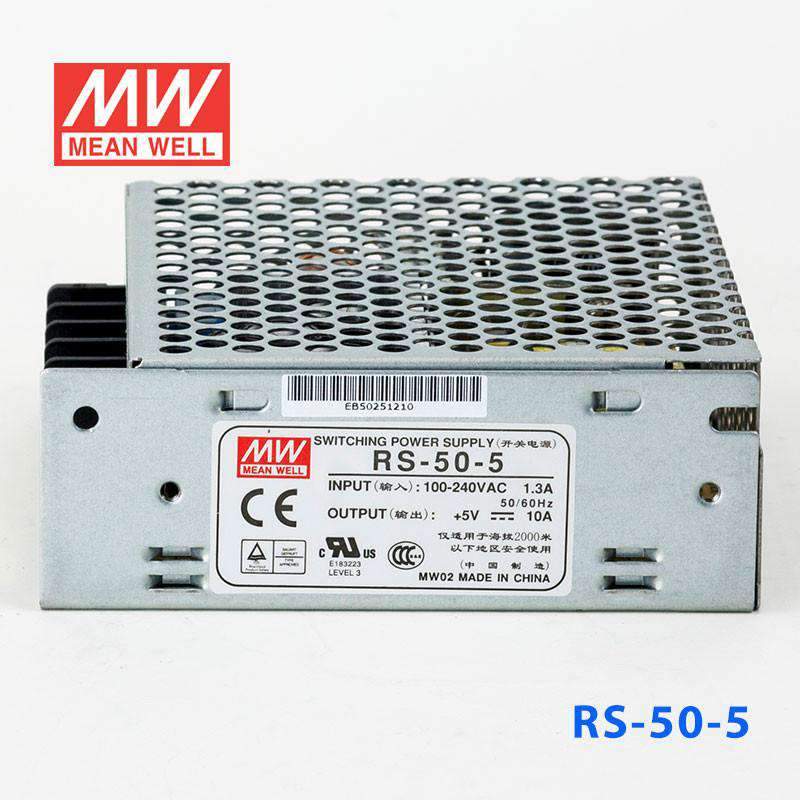

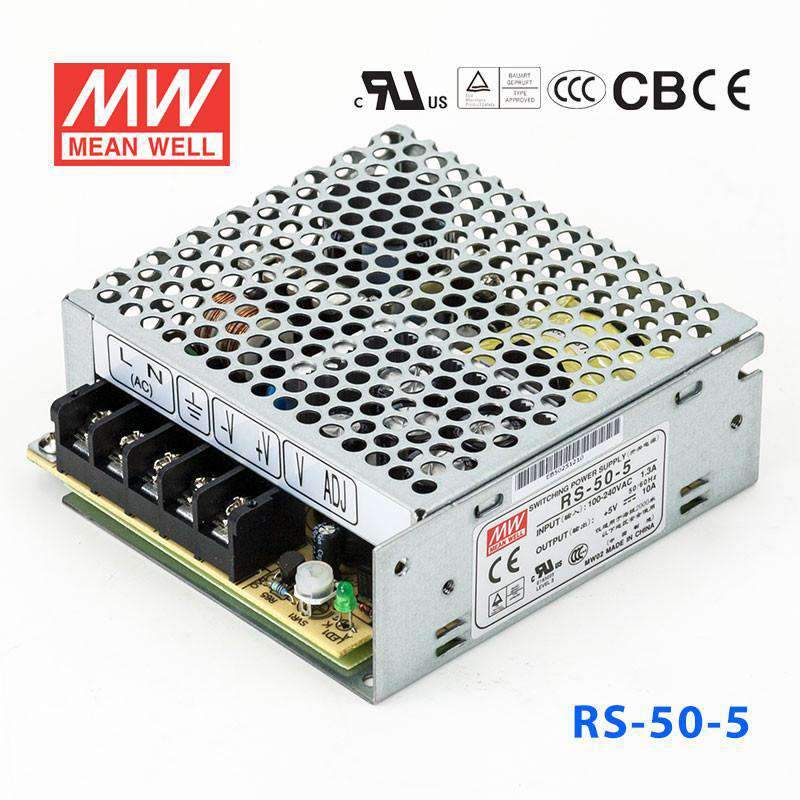

Mean Well RS-50-5 Power Supply 50W 5V 10A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-50-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-50-5
Available to order
|

Overview

RS-50-5 is the 5V output model of this series: rated current 10A, rated power 50W, typical efficiency 83%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • No load power consumption<0.5W
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-50-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
10A
CURRENT RANGE
0 ~ 10A
RATED POWER
50W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
Β±2.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±1.0%
SETUP, RISE TIME
500ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
83%
AC CURRENT (Typ.)
1.3A/115VAC 0.8A/230VAC
INRUSH CURRENT (Typ.)
COLD START 33A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1 , EAC TP TC 004, CCC GB4943.1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
2956.7K hrs min. Telcordia SR-332 (Bellcore) ; 575.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
99*97*36mm (L*W*H)
PACKING
0.41Kg; 45pcs/19.5Kg/0.94CUFT
Test conditions and notes7
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

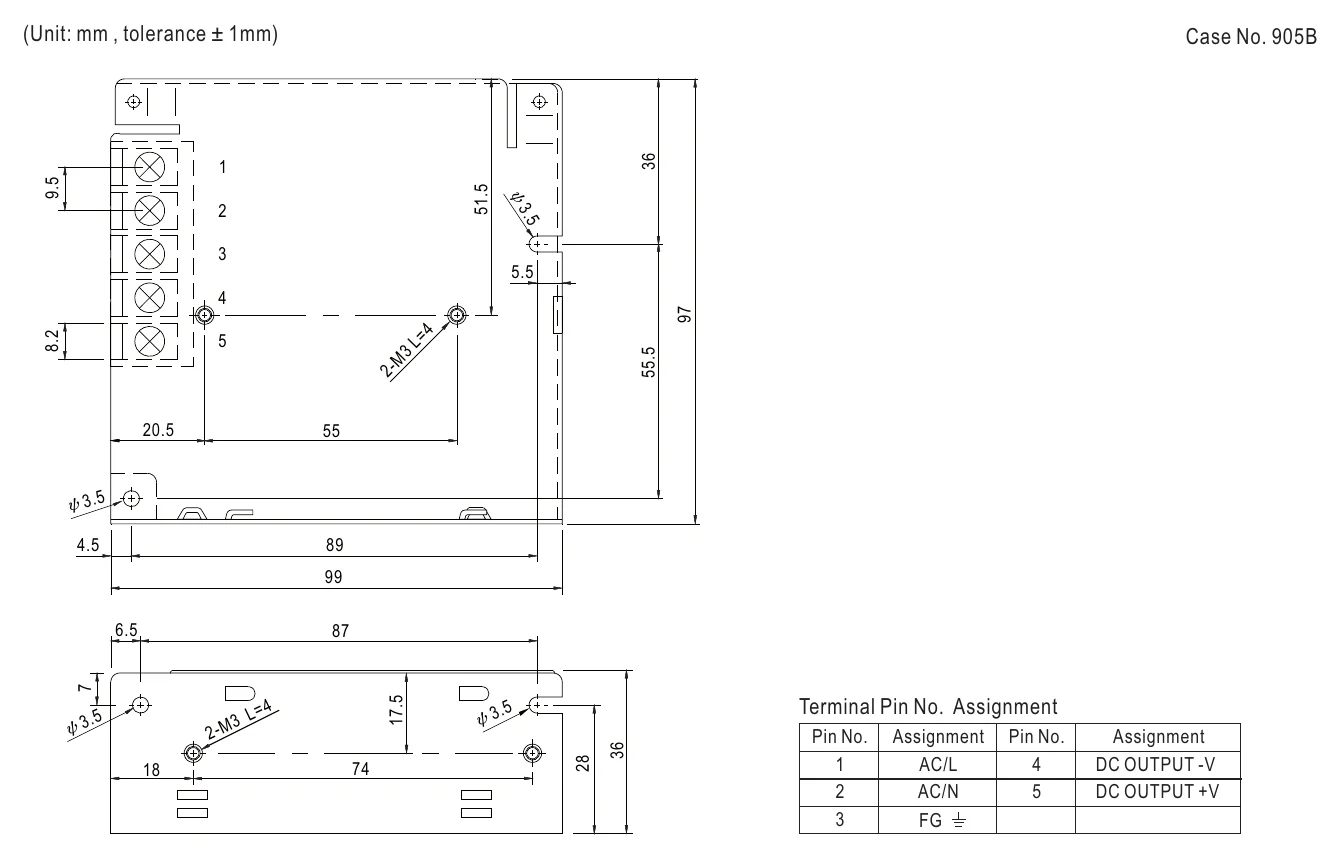

RS-50-5 Mechanical Specification
Mechanical Specification

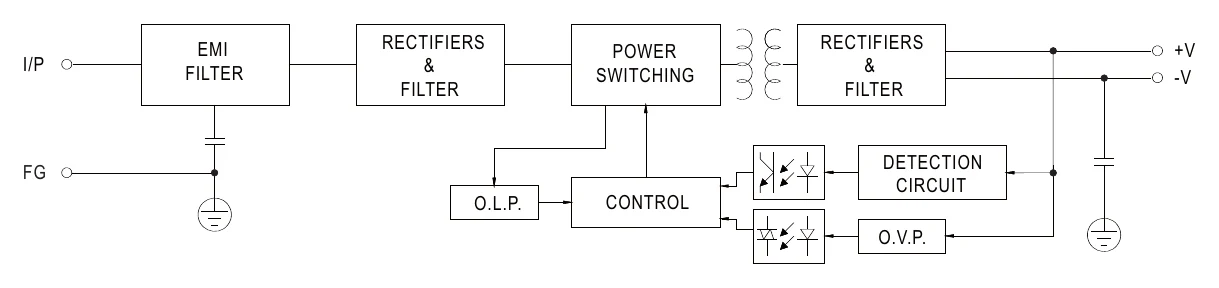

RS-50-5 Block Diagram
Block Diagram

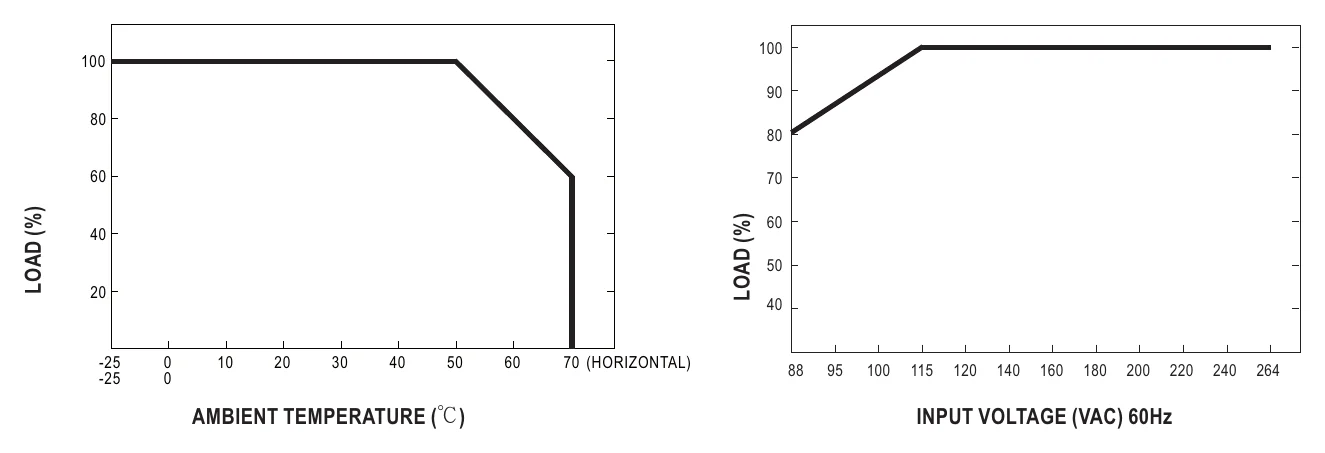

RS-50-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-50-5 for a 5V industrial controller or logic board?

Yes, if the equipment requires 5V constant voltage and draws no more than 10A or 50W. That makes it suitable for many 5V control and logic applications in industrial or embedded systems.

Is the RS-50-5 suitable for powering a 5V embedded computer or development platform?

It can be a fit for 5V embedded hardware when the combined load stays within 10A and 50W. The wide 88-264VAC input also supports use in systems that need broad AC input compatibility.

Can this model power multiple 5V peripherals in one enclosure?

Yes, as long as the total 5V load remains at or below 10A and 50W. Its constant-voltage output makes it appropriate for grouped 5V electronics that share the same power requirement.

Would the RS-50-5 work in an industrial cabinet with vibration and limited space?

It is designed for 5G vibration and has a compact 99.0 x 97.0 x 36.0 mm form factor. That combination can be useful in tighter control cabinets where a 5V, 10A supply is needed.

Can the RS-50-5 be used outdoors or in high-temperature environments?

The specified operating range is -25C to +70C, so it supports a broad temperature window. No IP rating is provided here, so the specs do not establish outdoor or washdown suitability.
