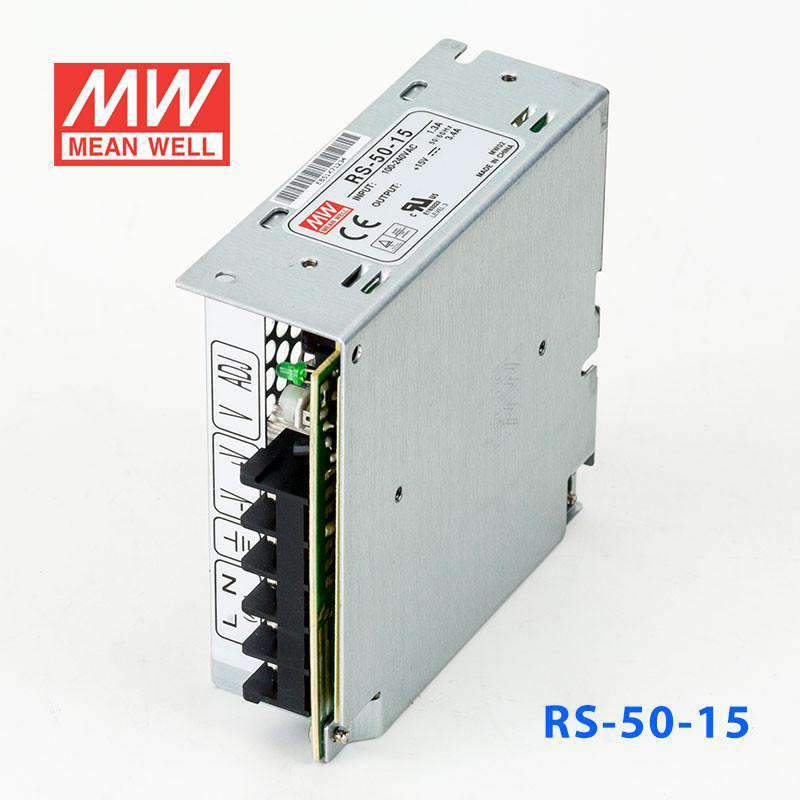

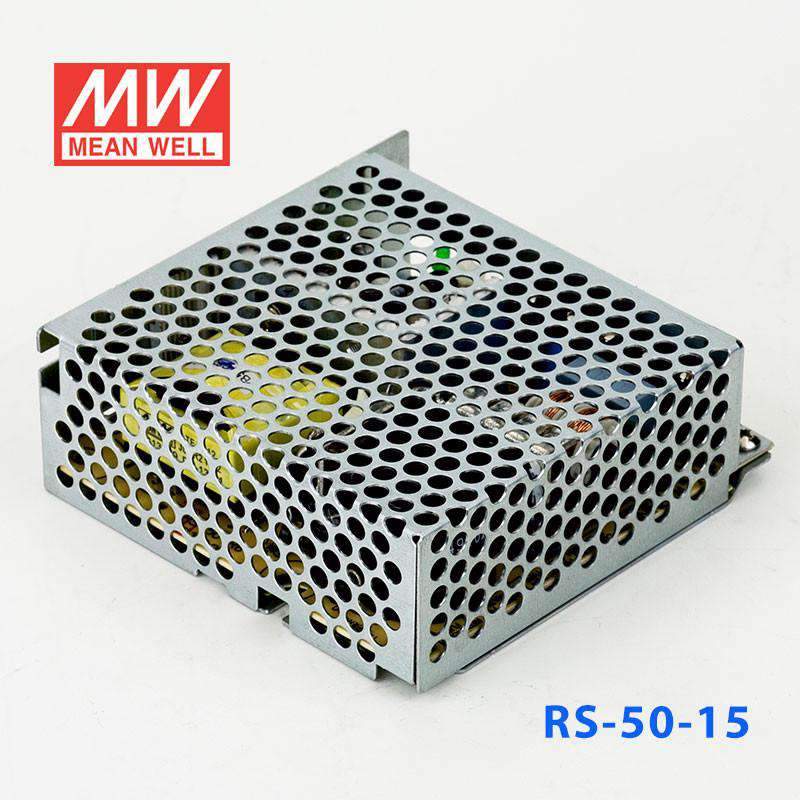

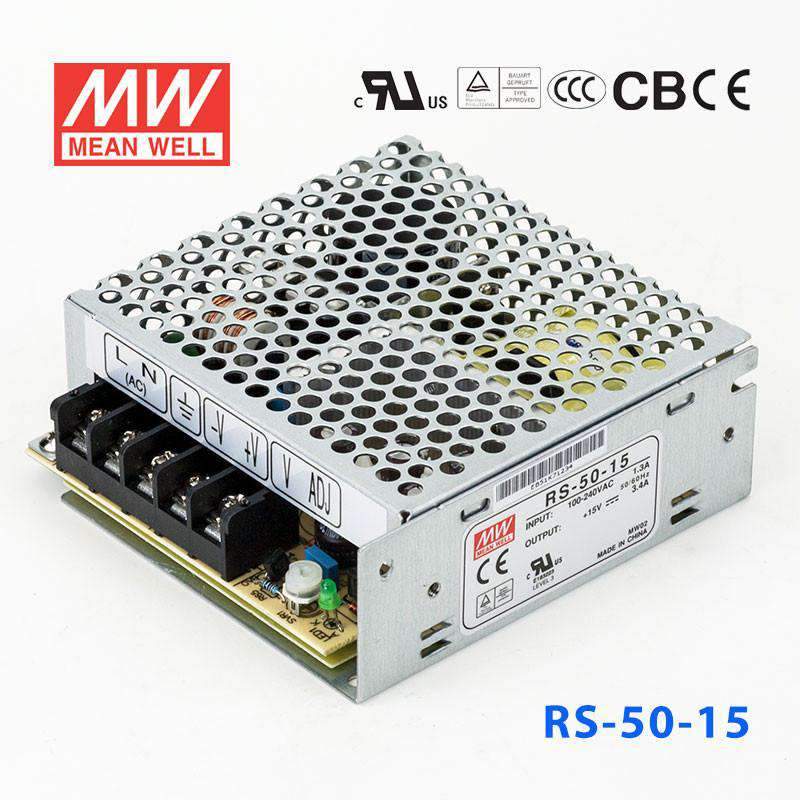

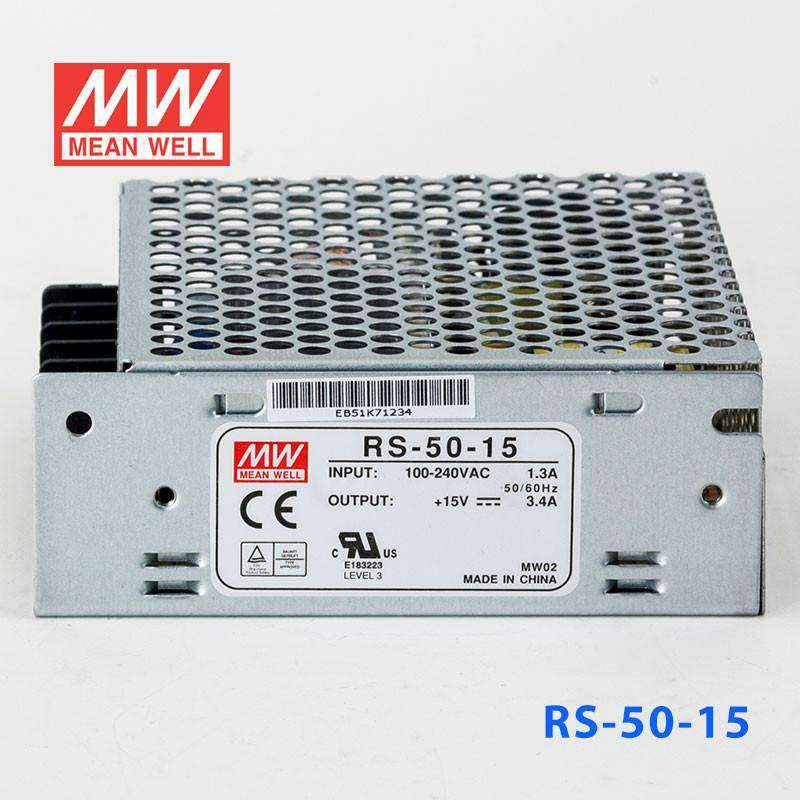

Mean Well RS-50-15 Power Supply 50W 15V

Name: Mean Well RS-50-15 Power Supply 50W 15V
Brand: Mean Well
SKU: RS-50-15
Price: 50.6 NZD
Availability: InStock

miniature size, economical, withstand 5G vibration and 70°C operation

SKU:

RS-50-15

Please for Pricing

Notify me when it's back in stock

Description

Features:

No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~150%
Overload protection Type	Type Hiccup mode, auto-recovery
Over voltage protection Range	115%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

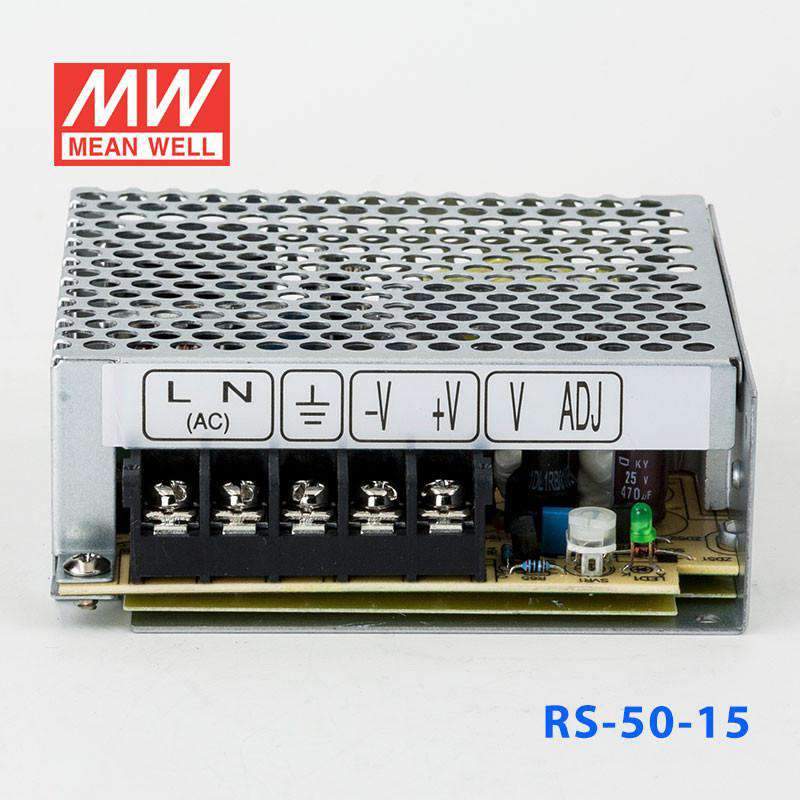

Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH)	99x 82x 30

Specifications

Brand

Mean Well
Series

RS Series
Power Rating

51 Watt
Output Voltage

15 Volt
Rated Current

3.4 Ampere
Input Voltage

88V~264V
Standards Met

CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.41 kg
