Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

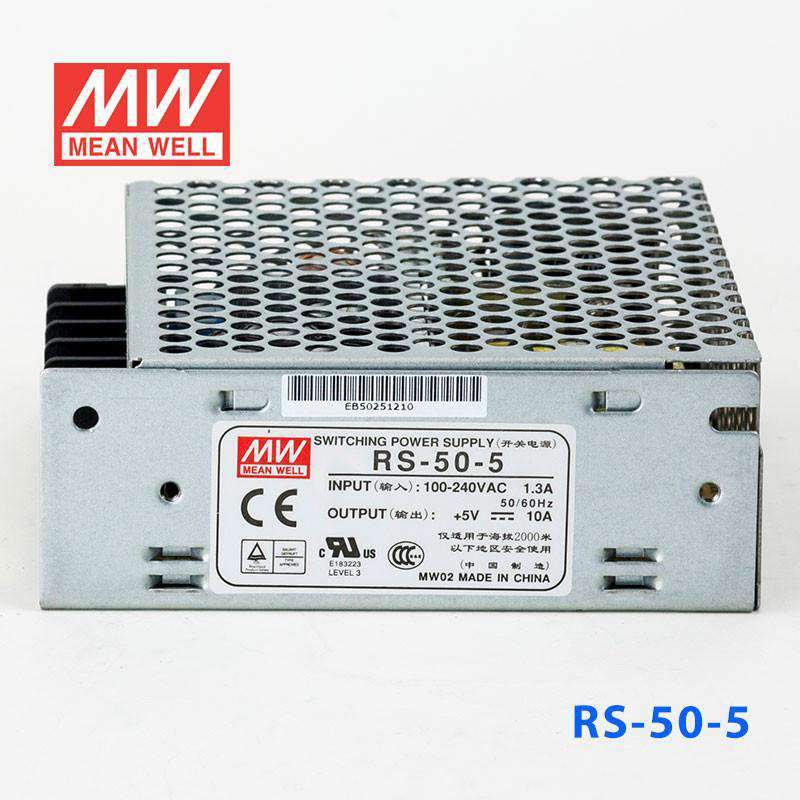

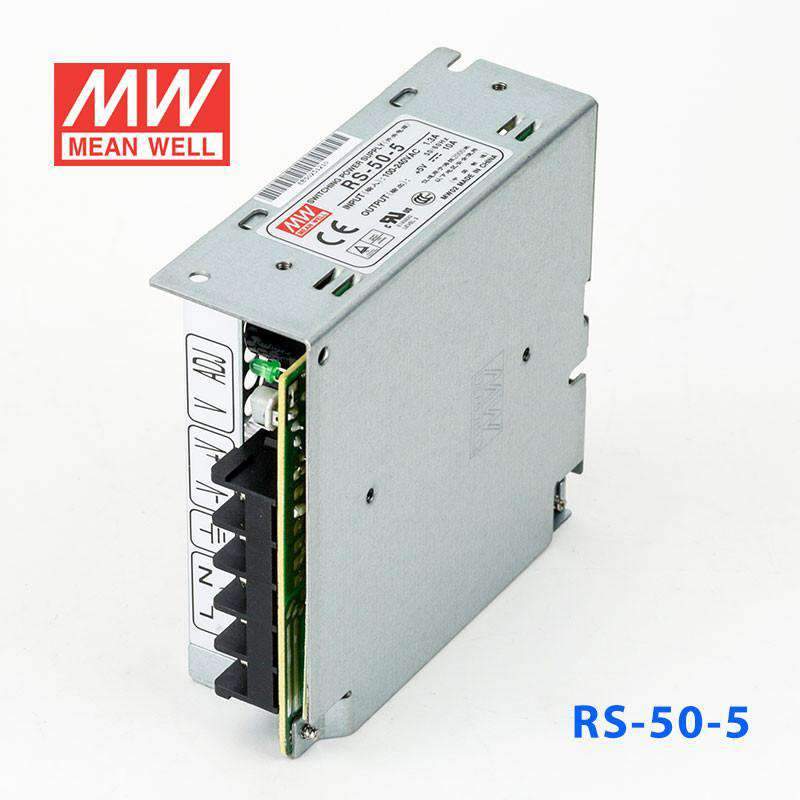

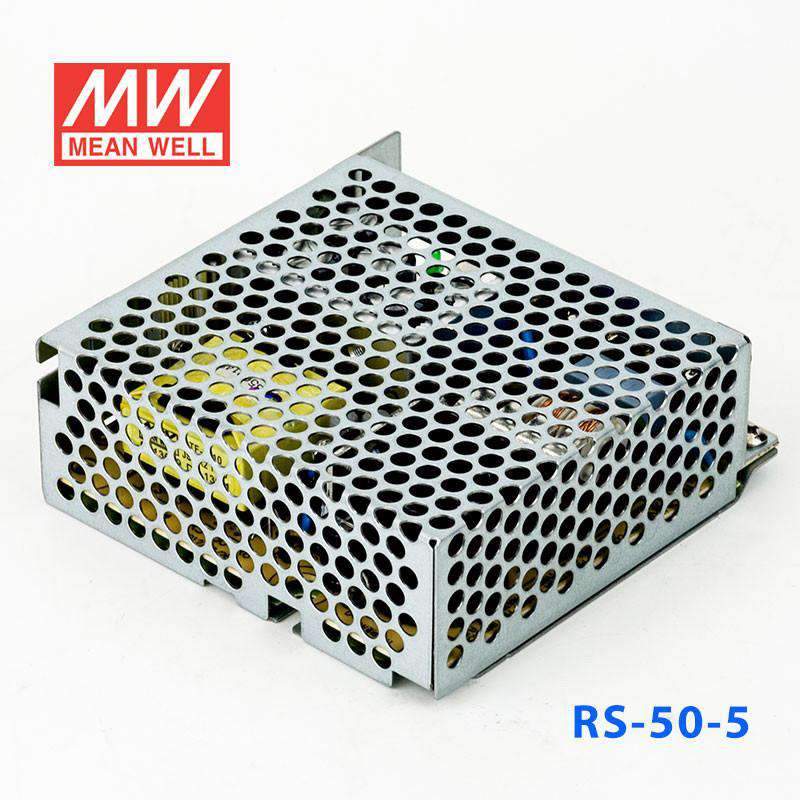

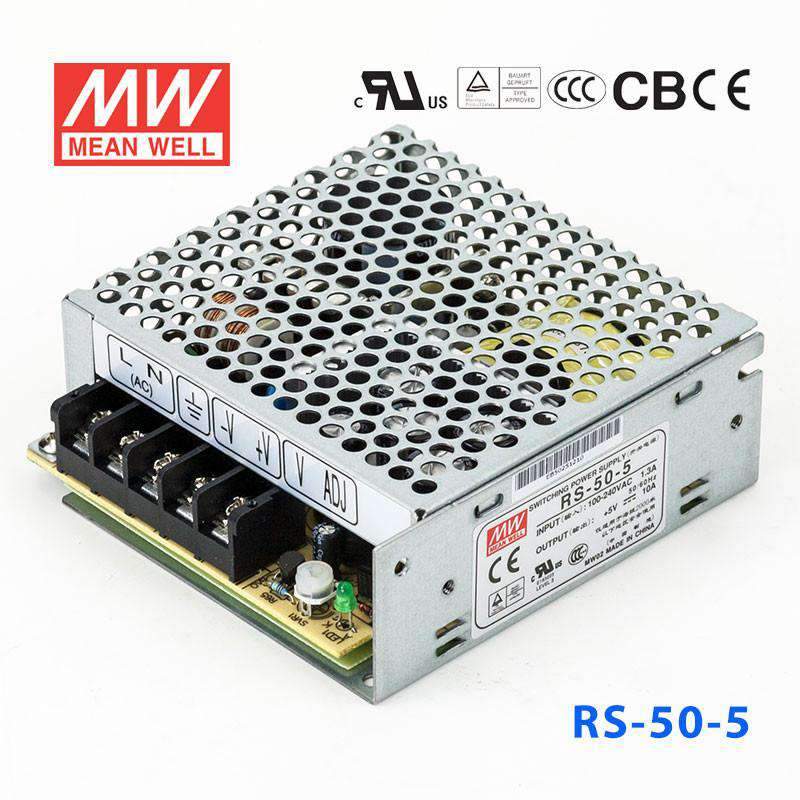

Mean Well RS-50-5 Power Supply 50W 5V

Name: Mean Well RS-50-5 Power Supply 50W 5V
Brand: Mean Well
SKU: RS-50-5
Price: 50.6 NZD
Availability: InStock

miniature size, economical, withstand 5G vibration and 70°C operation

Please for Pricing

Notify me when it's back in stock

Description

Features:

No load power consumption <0.2W for 35W/50W; <0.3W for 75W/100W
Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Ultra compact and 1U low profile
Withstand 5G vibration test
High operating temperature up to 70oC
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection
Compliance to IEC/EN60335-1(PD3) and IEC/EN61558-1,-2-16 for household appliances
Operating altitude up to 5000 meters
High efficiency, long life and high reliability
LED indicator for power on
Low cost
3 years warranty

General Specification

AC input voltage range	85~264VAC; 120~370VDC
AC inrush current (max.)	Cold start, 45A at 230VAC
DC adjustment range	±10% by potentiometer
Overload protection Range	110%~150%
Overload protection Type	Type Hiccup mode, auto-recovery
Over voltage protection Range	115%~135% rated output voltage
Over voltage protection Type	Shut down o/p voltage, re-power on to recover
Withstand voltage	3.75kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature	-30~+70°C (refer to output derating curve)
Safety standards	UL60950-1, IEC/EN60950-1, IEC/EN61558-1, EN61558-2-16, IEC/EN60335-1, CCC GB4943 approved
EMC standards	EN55022 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11, GB9254

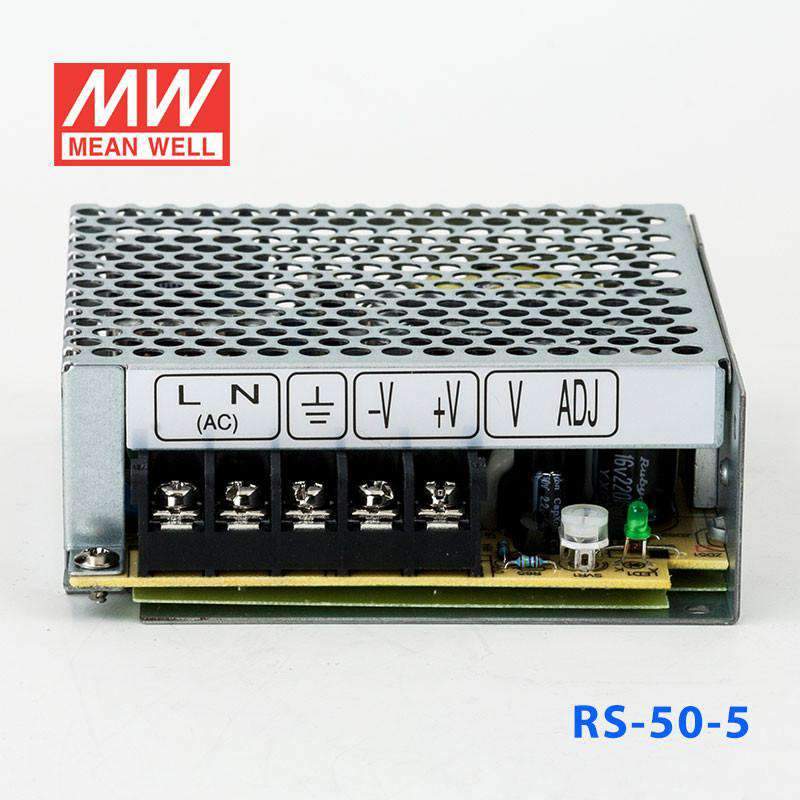

Connection	5P/9.5mm pitch terminal block
Dimension (LxWxH)	99x 82x 30

Specifications

Brand

Mean Well
Series

RS Series
Power Rating

50 Watt
Output Voltage

5 Volt
Rated Current

10 Ampere
Input Voltage

88V~264V
Standards Met

CB,CCC,CE,EAC,TUV,UL
Operation Mode

Constant Voltage
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

9.9 cm
Width

9.7 cm
Height

3.6 cm
Weight

0.41 kg
