What is the VM-K40505G.01 video door entry kit used for?

The VM-K40505G.01 is a Due Fili Plus colour hands-free video door entry kit for 1- or 2-family door entry applications. It is intended for properties that need an entrance panel, audio/video unit, indoor video entryphone, and power supply in one kit.

What components are included in the Video Kit 1/2-Fam.Tab 7+41005?

This kit includes a Pixel series entrance panel support with a 1M Pixel grey frame, one push button, an audio/video electronic unit, a wide-angle teleloop 41005, an A/V teleloop front module, a blank module, a flush mounting box, a Tab 7 hands-free video entryphone, and a 40110 power supply unit. The indoor video entryphone has a white finish and a 7 inch colour LCD display.

Is this kit suitable for a single-family or two-family property?

Yes. The product name and kit configuration identify it as a 1/2-family video door entry kit, making it suitable for single-family or two-family door entry use cases.

What display does the indoor unit have?

The included Tab 7 hands-free video entryphone has a 7 inch colour LCD display. The indoor unit is supplied in a white finish.

What system family does this door entry kit belong to?

The VM-K40505G.01 is described as a Due Fili Plus video door entry kit. It is part of the Elvox door entry and smart home/building product categories.

What is the warranty period for this model?

This model has a 3 year warranty period. The listed product weight is 2.4625 kg.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

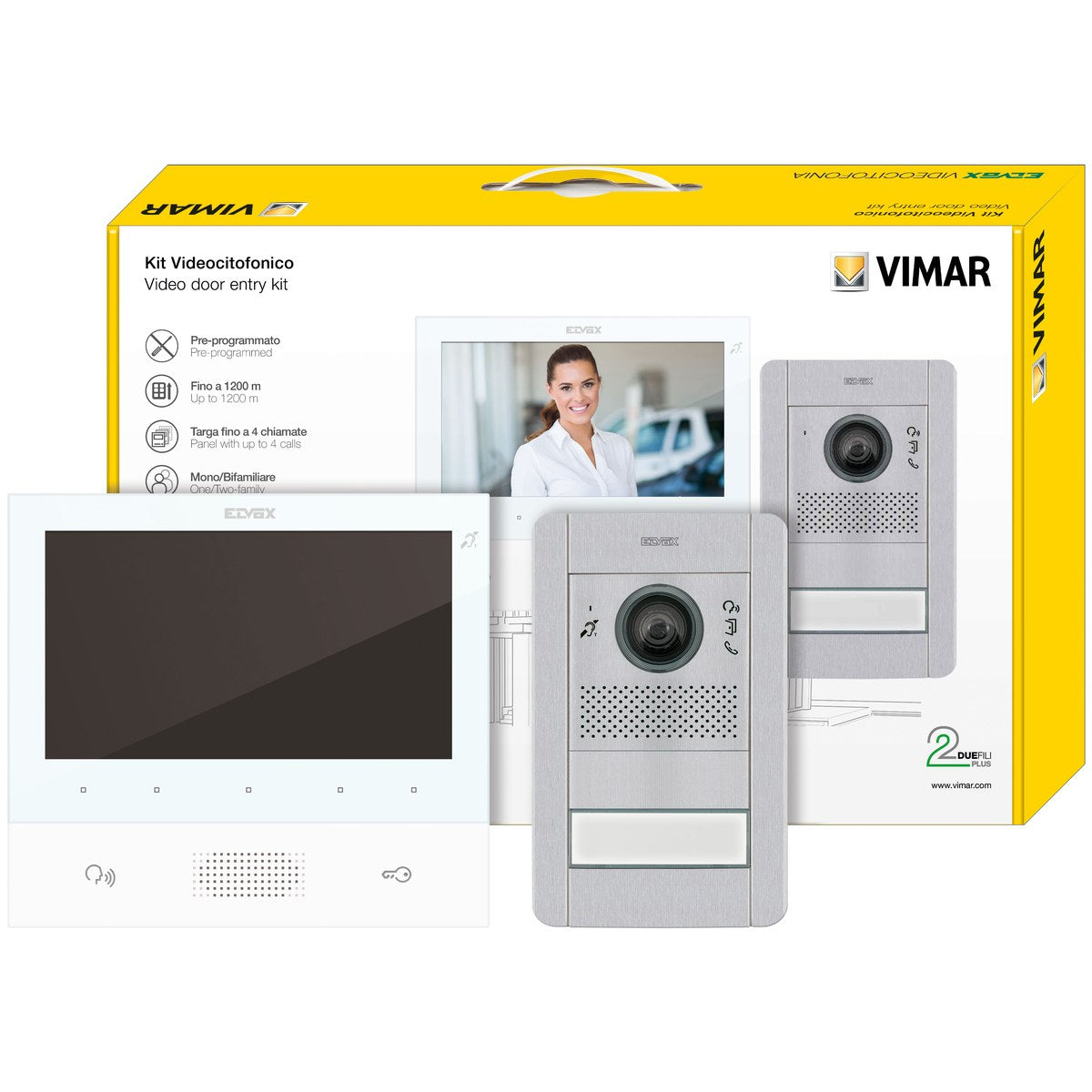

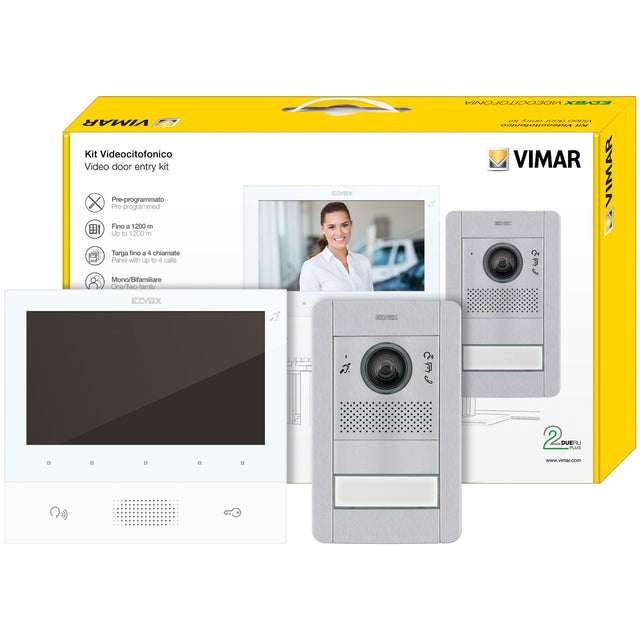

Video Kit 1/2-Fam.Tab 7+41005

Door Entry KitTablet and Door Entry

SKU VM-K40505G.01

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Due Fili Plus colour hands-free video door entry kit containing: 1 support + 1M Pixel grey frame 41131.01 with 1 push button, 1 audio/video electronic unit, wide-angle teleloop 41005, 1 Pixel grey A/V teleloop front module 41105.01, 1 Pixel grey single blank module 41113.01, 1 flush mounting box for 1 module 9191 for Pixel series entrance panel, 1 surface mounting Tab 7 hands-free video entryphone with white 7in colour LCD display 40505, 1 power supply unit 40110
