Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Video Kit 1/2-Fam.Tab 7+41005

Door Entry KitTablet and Door Entry
SKU VM-K40505G.01
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-K40505G.01 is Vimar K40505G.01, video kit 1/2-Fam.Tab 7+41005.

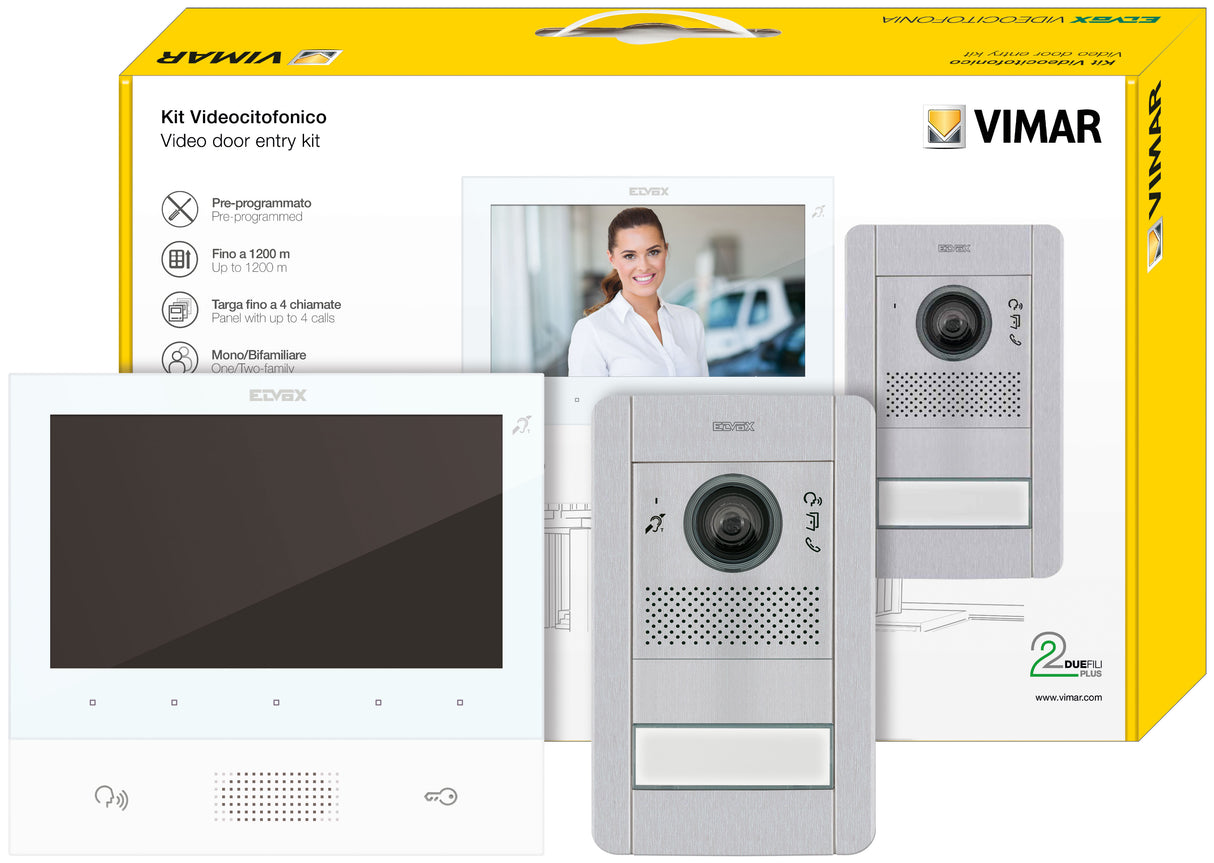

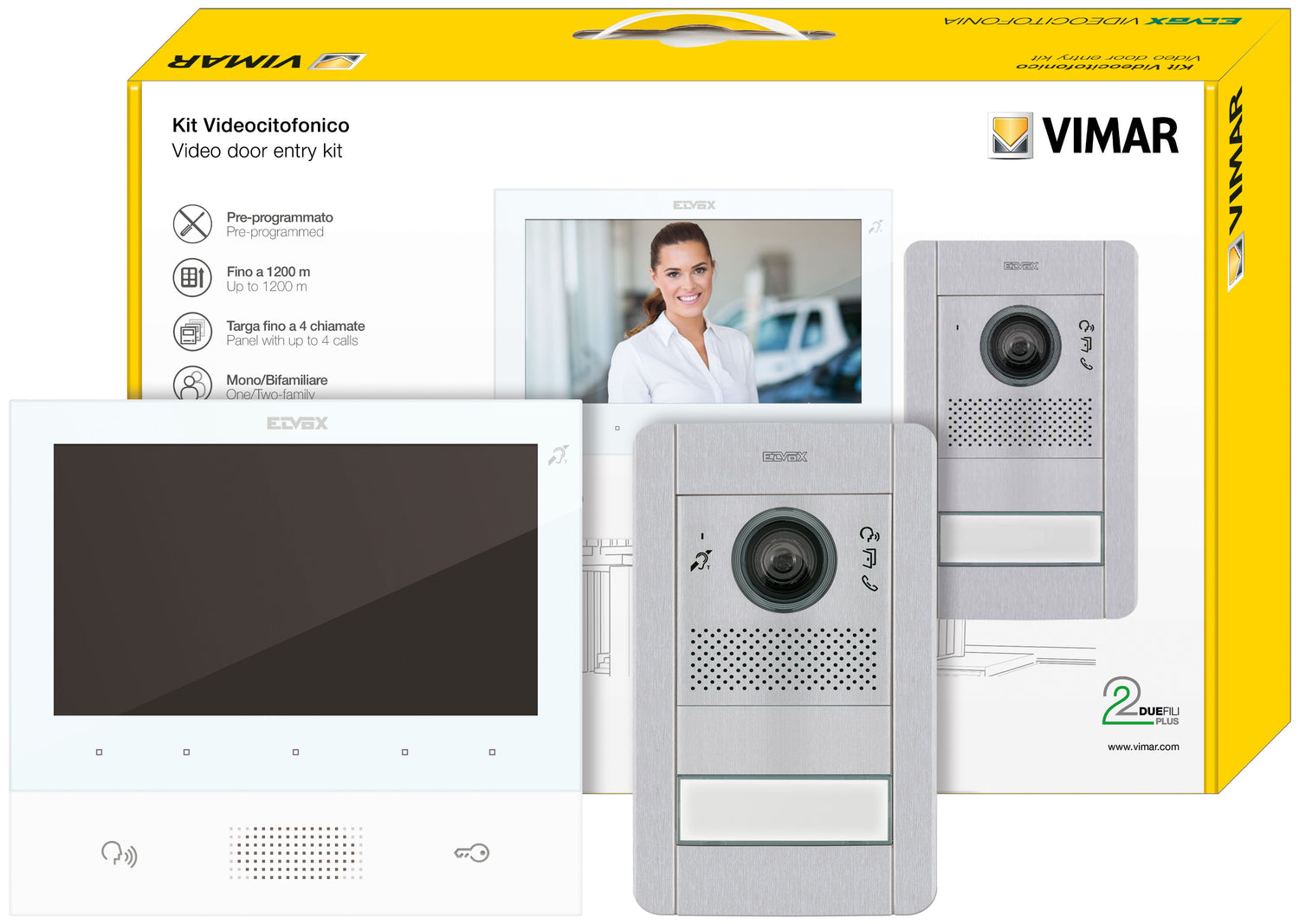

Due Fili Plus colour hands-free video door entry kit containing: 1 support + 1M Pixel grey frame 41131.01 with 1 push button, 1 audio/video electronic unit, wide-angle teleloop 41005, 1 Pixel grey A/V teleloop front module 41105.01, 1 Pixel grey single blank module 41113.01, 1 flush mounting box for 1 module 9191 for Pixel series entrance panel, 1 surface mounting Tab 7 hands-free video entryphone with white 7in colour LCD display 40505, 1 power supply unit 40110

Specifications

VM-K40505G.01Specifications from the official datasheet

Technical data

Product type
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177.8 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

Packaging

EAN
8013406306760
Packed size (cm)
51 Γ— 34 Γ— 9.5
Packed weight
1881.6 g

Certifications

Certifications
CE marking (EU), UK PSTI compliance, WEEE Directive

Downloads

FAQ

What is the VM-K40505G.01 video door entry kit used for?

The VM-K40505G.01 is a Due Fili Plus colour hands-free video door entry kit for 1- or 2-family door entry applications. It is intended for properties that need an entrance panel, audio/video unit, indoor video entryphone, and power supply in one kit.

What components are included in the Video Kit 1/2-Fam.Tab 7+41005?

This kit includes a Pixel series entrance panel support with a 1M Pixel grey frame, one push button, an audio/video electronic unit, a wide-angle teleloop 41005, an A/V teleloop front module, a blank module, a flush mounting box, a Tab 7 hands-free video entryphone, and a 40110 power supply unit. The indoor video entryphone has a white finish and a 7 inch colour LCD display.

Is this kit suitable for a single-family or two-family property?

Yes. The product name and kit configuration identify it as a 1/2-family video door entry kit, making it suitable for single-family or two-family door entry use cases.

What display does the indoor unit have?

The included Tab 7 hands-free video entryphone has a 7 inch colour LCD display. The indoor unit is supplied in a white finish.

What system family does this door entry kit belong to?

The VM-K40505G.01 is described as a Due Fili Plus video door entry kit. It is part of the Elvox door entry and smart home/building product categories.

What is the warranty period for this model?

This model has a 3 year warranty period. The listed product weight is 2.4625 kg.
