Vimar

Two-family Kit 7in Video Touch Plug-in

Vimar Elvox Video Intercom Kit
SKU VM-K40916
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-K40916 is Vimar K40916, two-family kit 7in video touch plug-in.

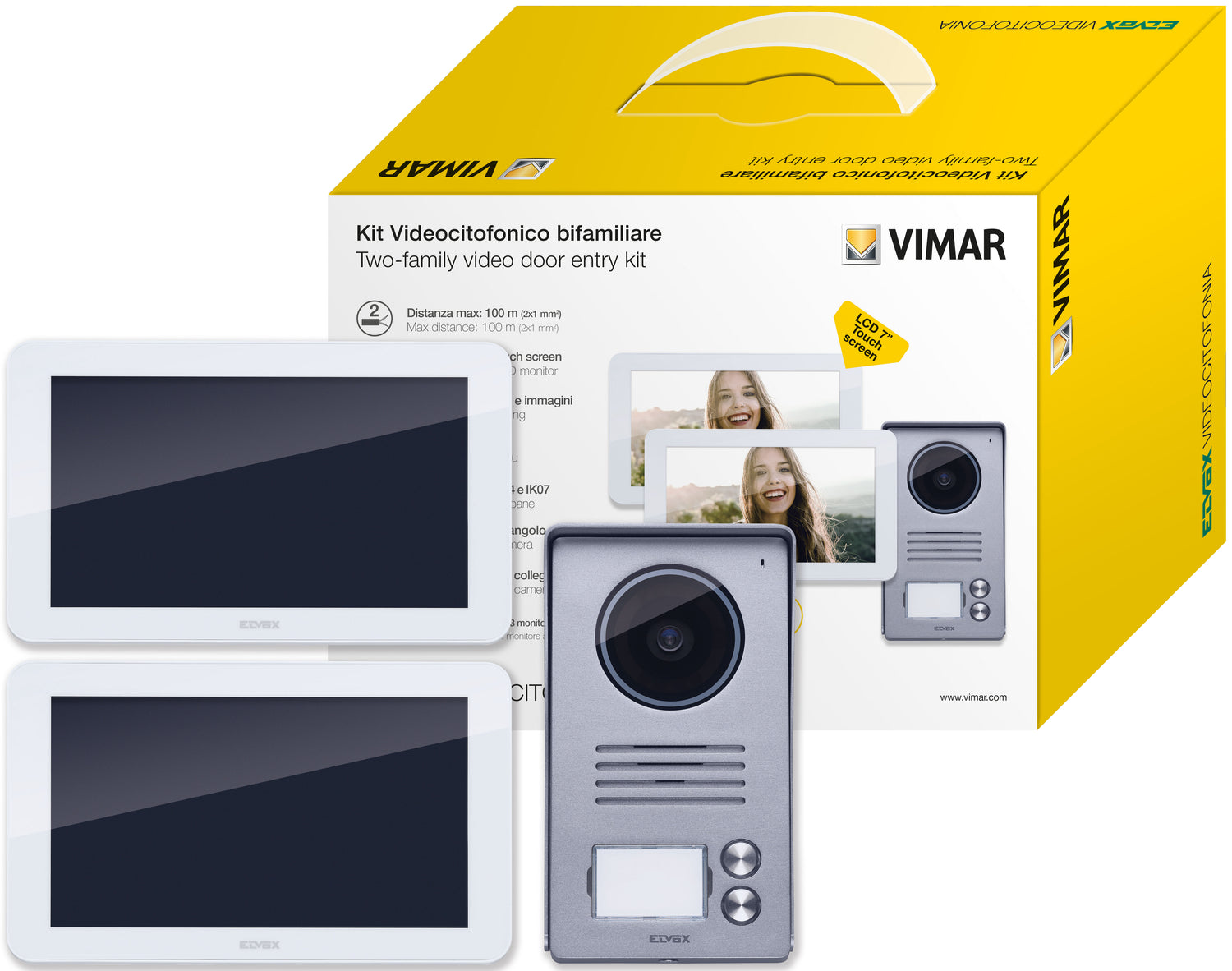

˝Video door entry kit containing 2 hands-free touch screen 7˝˝ LCD video entryphones, 1 entrance panel with 2 buttons and rainproof cover, 2 24 Vdc 1 A supply units with interchangeable plugs (EU, BS, US, AU)complete with surface mounting fixing brackets˝

Features

  • The kits are ready to use and do not require any particular programming; maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. β€˜Mute’ function

Specifications

VM-K40916Specifications from the official datasheet

Technical data

Product type
Door station set
With video
Yes
Number of indoor stations
2
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177.8 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

Packaging

EAN
8013406306289
Packed size (cm)
27 Γ— 13.5 Γ— 20.5
Packed weight
2007.5 g
Pieces per box
4

Certifications

Certifications
CE marking (EU), RCM (Australia), WEEE Directive

Downloads

FAQ

What is included with the VM-K40916 two-family video door entry kit?

The VM-K40916 kit includes two hands-free 7 inch touch screen LCD video entryphones, one entrance panel with two buttons, and a rainproof cover. It also includes two 24 Vdc 1 A supply units with interchangeable EU, BS, US, and AU plugs, plus surface mounting fixing brackets.

Is the VM-K40916 suitable for a two-family property?

Yes. This kit is designed as a two-family video door entry solution and includes an entrance panel with two buttons and two indoor video entryphones. It is suited to applications where two separate occupants or units need video door entry from one entrance point.

What type of indoor screens are supplied with this kit?

The kit includes two hands-free touch screen LCD video entryphones. Each screen is 7 inches and supplied in a white finish.

Can this kit be used in different countries or regions?

The supplied power units include interchangeable plugs for EU, BS, US, and AU plug formats. This makes the kit more practical for B2B buyers handling projects across multiple regions where those plug types are used.

Does the entrance panel include weather protection?

Yes. The VM-K40916 includes an entrance panel with a rainproof cover. This supports use at an entrance location where the panel may need protection from rain exposure.

What warranty period applies to the VM-K40916?

The listed warranty period for this model is 3 years. This applies to the VM-K40916 two-family video touch plug-in kit as specified.

How much does the VM-K40916 kit weigh?

The listed product weight is 1.939 kg. This is useful for procurement, handling, and logistics planning for B2B orders.
