Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

Vimar ELVOX Door entry / Due Fili Plus kit / Pixel

Vimar ELVOX Door entry / Due Fili Plus kit
SKU VM-K40915
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

VM-K40915 is Vimar K40915, one-family kit 7in video touch plug-in.

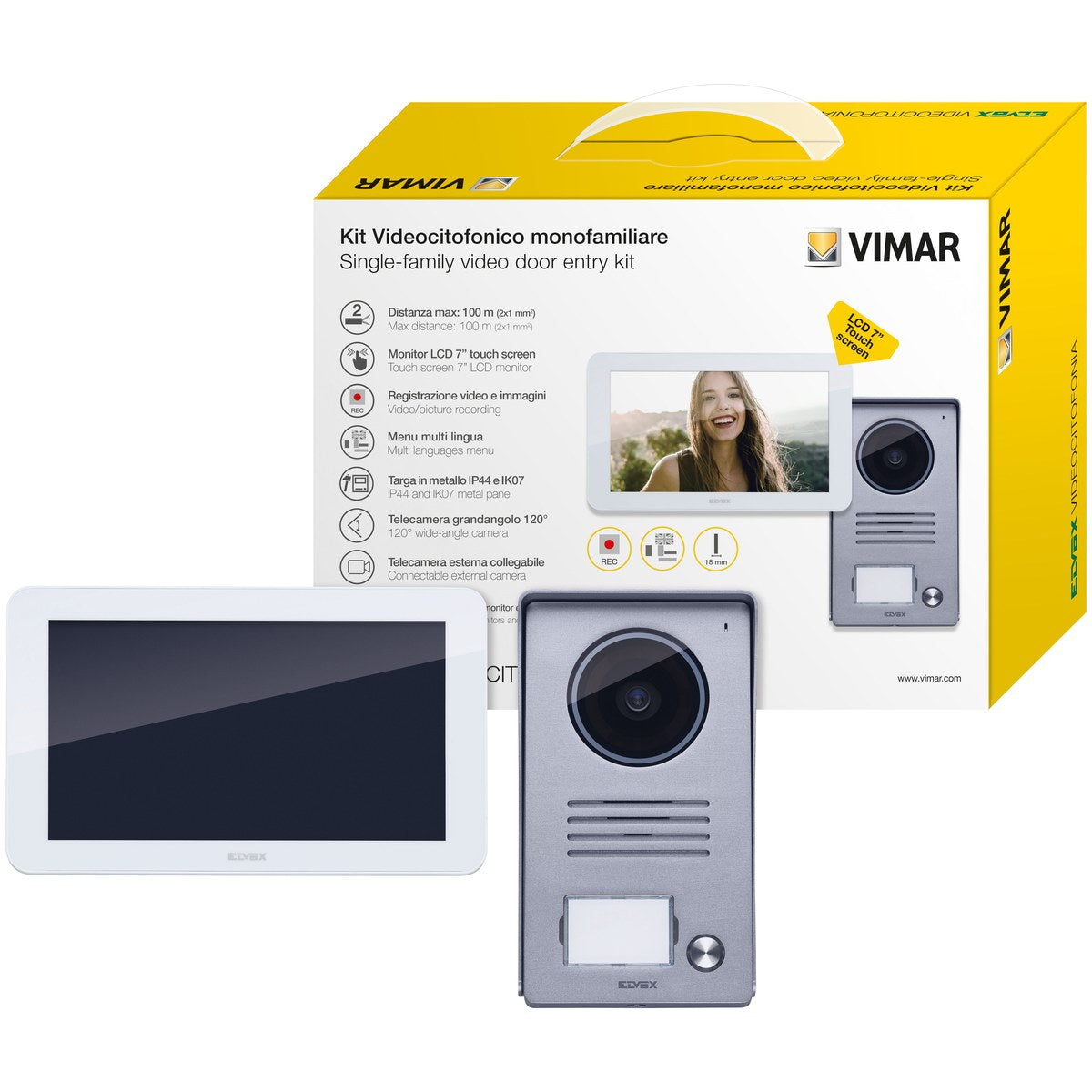

˝Video door entry kit containing 1 hands-free touch screen 7˝˝ LCD video entryphone, 1 entrance panel with 1 button and rainproof cover, 1 24 Vdc 1 A supply unit with interchangeable plugs (EU, BS, US, AU)complete with surface mounting fixing brackets˝

Features

  • The kits are ready to use and do not require any particular programming; maximum distance between the entrance panel and the last monitor: up to 100 m with 1 mm2
  • Expandable: up to 3 monitors can be associated with each call push button
  • Multiple languages (Italian, English, French, German, Spanish, Portuguese, Greek, Dutch)
  • Intercom function between indoor stations (of the same family)
  • Ringtone volume and volume for communicating, brightness, colour and contrast are adjustable. Possibility of choosing between 6 melodies available for selection. ‘Mute’ function

Specifications

VM-K40915Specifications from the official datasheet

Technical data

Product type
Door station set
With video
Yes
Number of indoor stations
1
Number of outdoor stations
1
Installation technique
2-wire
Mounting method indoor station
Surface mounted
Colour indoor station
White
Mounting method outdoor station
Surface mounted
Material outdoor station
Aluminium
Colour outdoor station
Grey
Expandable to max. number of indoor stations
2
Expandable to max. number of outdoor stations
2
Picture system
PAL
Can be connected to smartphone
No
Internal communication
Yes
Hands free
Yes
With day/night function
No
Zoom, pan/tilt function
No
With memory function
No
Screen diagonal
177.8 mm
Screen diagonal (inch)
70
Manual adjustable camera
No
Hearing aid compatible
Yes

Packaging

EAN
8013406306272
Packed size (cm)
26.5 × 10.8 × 20
Packed weight
1351 g
Pieces per box
4

Certifications

Certifications
CE marking (EU), NOM (Mexico), WEEE Directive, RCM (Australia)

Downloads

FAQ

What is included with the Vimar ELVOX VM-K40915 door entry kit?

The VM-K40915 kit includes one hands-free 7-inch touch screen LCD video entryphone, one entrance panel with one button and a rainproof cover, and one 24 Vdc 1 A supply unit. It also includes interchangeable plugs for EU, BS, US, and AU outlets, plus surface mounting fixing brackets.

Is this kit suitable for a single entrance point?

Yes. The entrance panel supplied with the VM-K40915 has one button, making it a good fit for a single entrance point or one-call application. It is part of the Vimar ELVOX Due Fili Plus Pixel door entry kit range.

What type of indoor monitor does the VM-K40915 include?

This kit includes a hands-free video entryphone with a 7-inch LCD touch screen. The finish colour listed for this model is white.

Does the entrance panel include weather protection?

Yes. The VM-K40915 entrance panel is supplied with a rainproof cover. This makes it suitable for door entry applications where the entrance panel needs added protection from rain exposure.

Which plug formats are supplied with the power unit?

The included 24 Vdc 1 A supply unit comes with interchangeable plugs. The listed plug formats are EU, BS, US, and AU.

What are the warranty period and weight for this model?

The Vimar ELVOX VM-K40915 has a listed warranty period of 3 years. Its listed product weight is 1.3510 kg.
