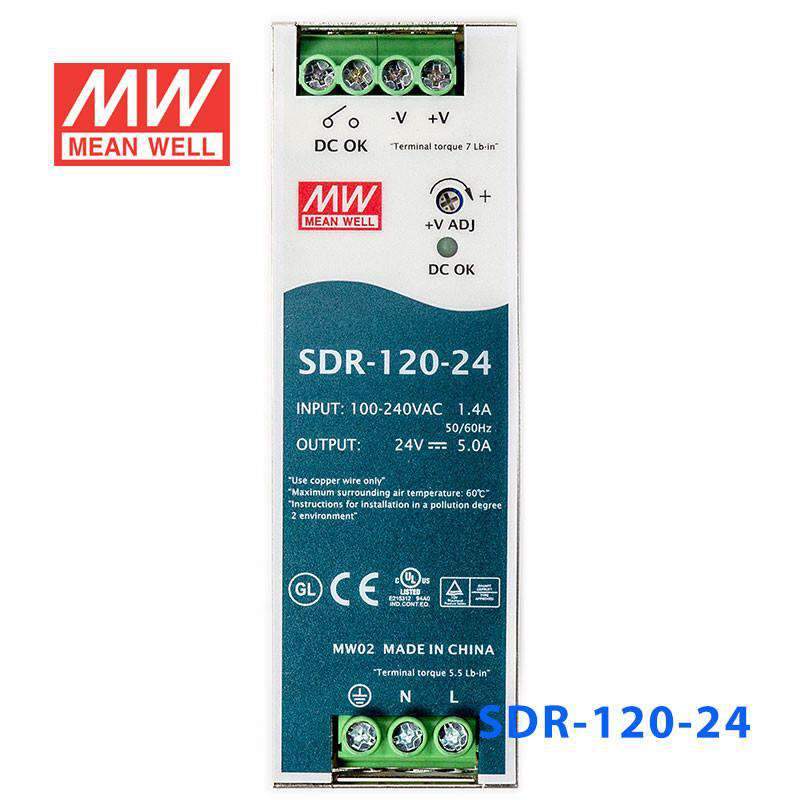

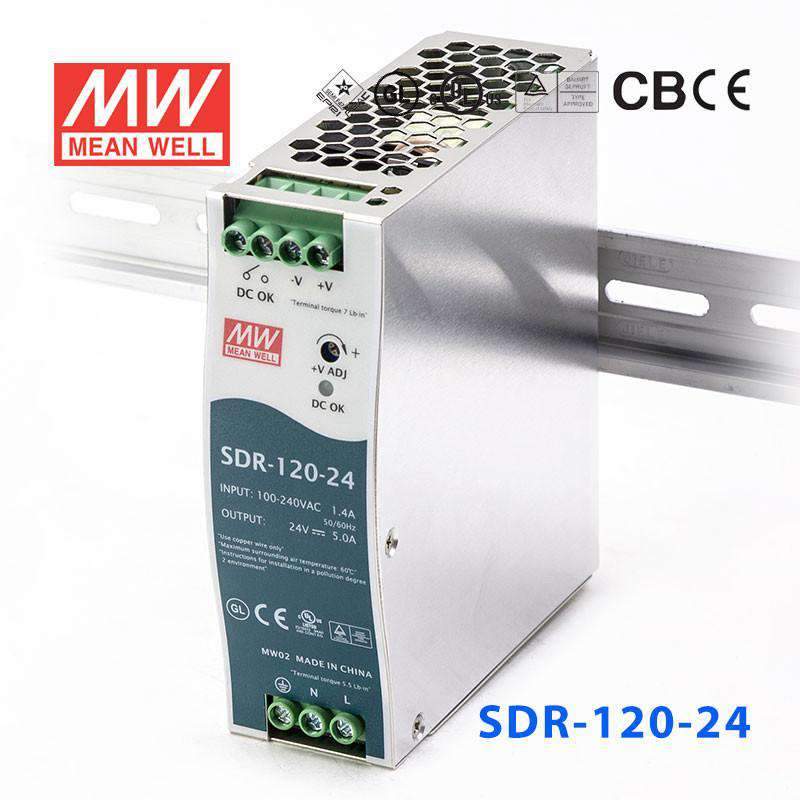

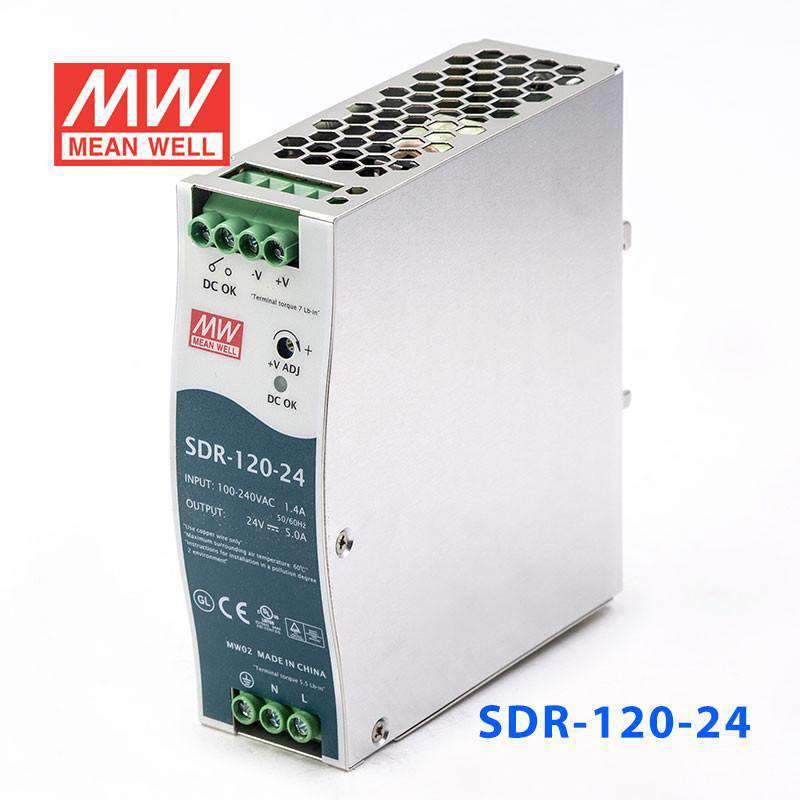

Mean Well SDR-120-24 Single Output Industrial Power Supply 120W 24V...
Log in to see priceOverview
SDR-120-24 is the 24V output model of this series: rated current 5A, rated power 120W, typical efficiency 91%.
Features
- High efficiency 91% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.93
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508 (industrial control equipment) approved
- BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
- Built-in DC OK relay contact
- 100% full load burn-in test
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 24V
- RATED CURRENT
- 5A
- CURRENT RANGE
- 0 ~ 5A
- RATED POWER
- 120W
- PEAK CURRENT
- 7.5A
- PEAK POWERNote.6
- 180W (3 sec.)
- RIPPLE & NOISE (max.)Note.2
- 100mVp-p
- VOLTAGE ADJ. RANGE
- 24 ~ 28V
- VOLTAGE TOLERANCENote.3
- ±1.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIME
- 1500ms, 60ms/230VAC 3000ms, 60ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 20ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGENote.7
- 88 ~ 264VAC 124 ~ 370VDC
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR (Typ.)
- 0.93/230VAC 0.96/115VAC at full load
- EFFICIENCY (Typ.)
- 91%
- AC CURRENT (Typ.)
- 1.4A/115VAC 0.7A/230VAC
- INRUSH CURRENT (Typ.)
- 35A/115VAC 70A/230VAC
- LEAKAGE CURRENT
- <1mA / 240VAC
PROTECTION
- OVERLOAD
- Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage >150% rated power, constant current limiting with auto-recovery within 3 seconds and shut down o/p voltage after 3 seconds
- OVER VOLTAGE
- 29 ~ 33V Protection type : Shut down o/p voltage, re-power on to recover
- OVER TEMPERATURE
- 95℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION
- DC OK REALY CONTACT RATINGS (max.)
- 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY & EMC
- SAFETY STANDARDS
- UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004, BSMI CNS15598-1 approved;(meet BS EN/EN60204-1)
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936 Class B
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved
OTHERS
- MTBF
- 1764.6K hrs min. Telcordia SR-332 (Bellcore) ; 292.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 40*125.2*113.5mm (W*H*D)
- PACKING
- 0.67Kg; 20pcs/14.4Kg/1.0CUFT
Test conditions and notes8
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
- 6. 3 seconds max., please refer to peak loading curves.
- 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
- 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
Certificates11
Test reports1
FAQ
Can I use the SDR-120-24 to power a 24V PLC and I/O system in a control panel?
Yes, this model is a 24V DIN rail power supply rated for 120W and 5A, which fits many 24V PLC, I/O, and control panel loads within that range. Its 125.2 x 113.5 x 40.0 mm housing is a slim format for DIN rail layouts where panel space is limited.
Is the SDR-120-24 suitable for 24V industrial automation controls inside a machine cabinet?
It is intended for DIN rail mounting and provides 24V output up to 5A, so it is appropriate for 24V industrial automation controls that stay within 120W total load. The wide 88-264VAC input also suits panels that may be supplied from different standard AC mains ranges.
Can this power supply be used for a 24V building management or control enclosure?
Yes, the SDR-120-24 is appropriate for 24V building management and control enclosure applications when the connected devices require no more than 120W or 5A. Its DIN rail form factor and 40.0 mm slim profile make it practical for organized cabinet installations.
Is the SDR-120-24 meant for exposed environments or for use inside an enclosure?
This unit is better suited to indoor control cabinets and protected enclosures rather than exposed outdoor mounting. The specified operating temperature range is -25°C to +70°C, and its safety approvals include UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 and BSMI CNS15598-1.
How does the SDR-120-24 compare with other Mean Well SDR DIN rail models?
In the SDR-120 series, the related models are the SDR-120-12 at 120W, 12V, 10A (12-14V adjustable) and the SDR-120-48 at 120W, 48V, 2.5A (48-55V adjustable), while the SDR-120-24 delivers 120W at 24V, 5A (24-28V adjustable). All three share the 88-264VAC input with PFC, DC OK relay contact and 40 x 125.2 x 113.5 mm housing; the 24V model has the highest typical efficiency at 91%, versus 89% (12V) and 90.5% (48V).
