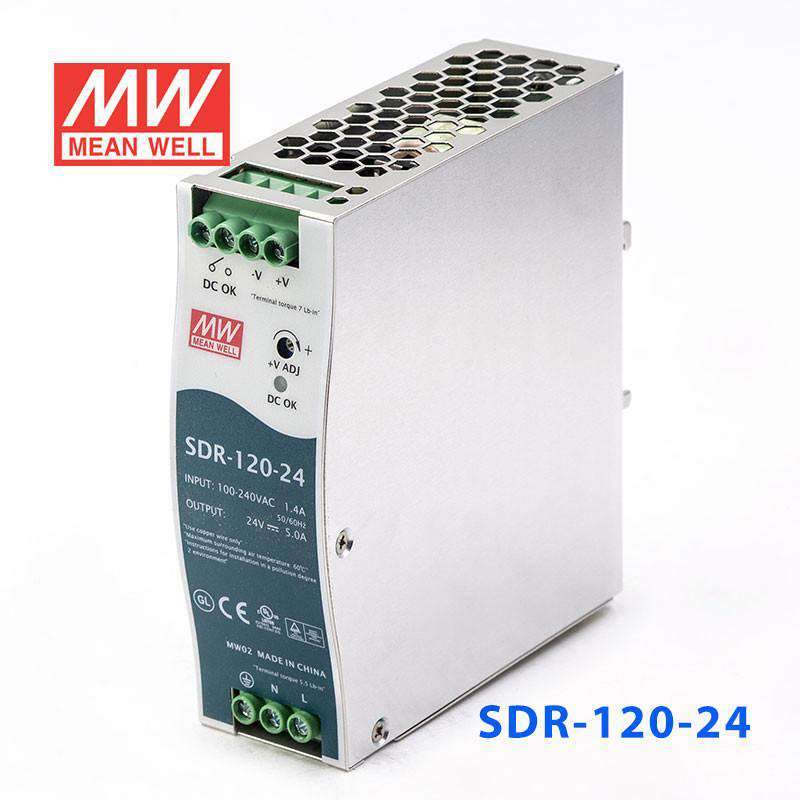

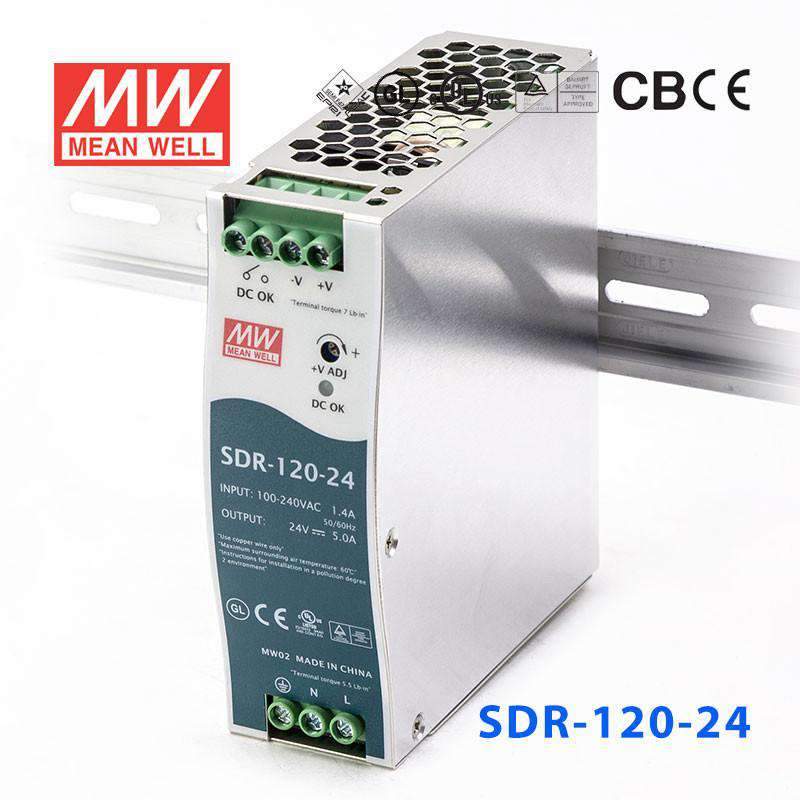

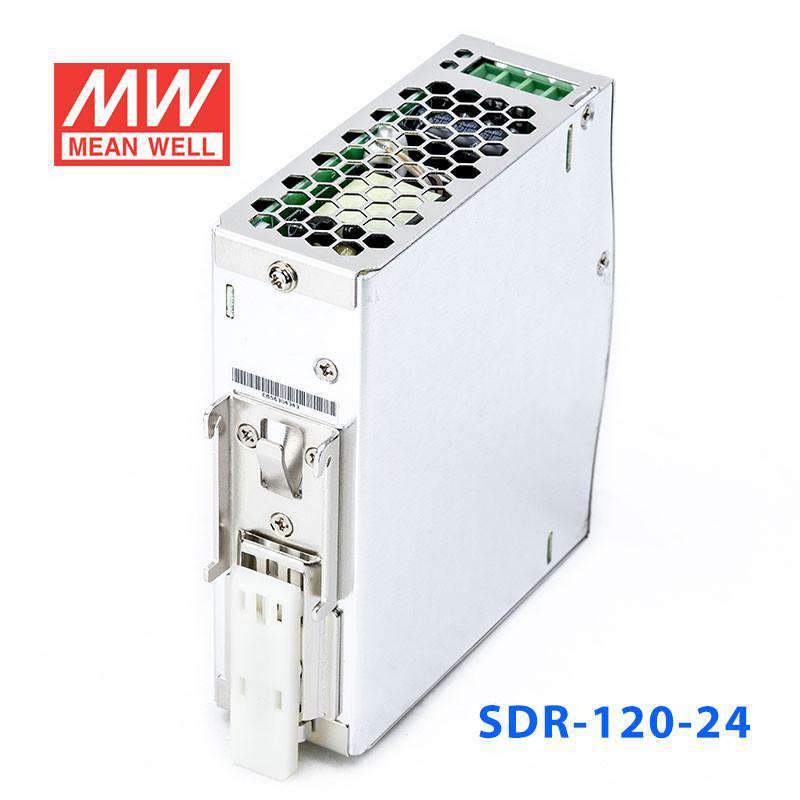

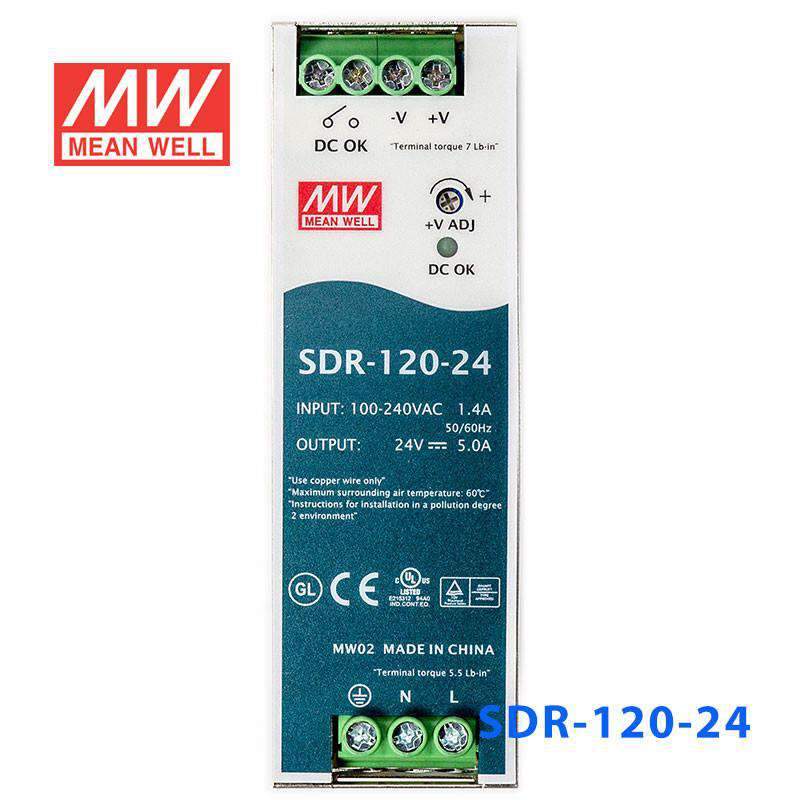

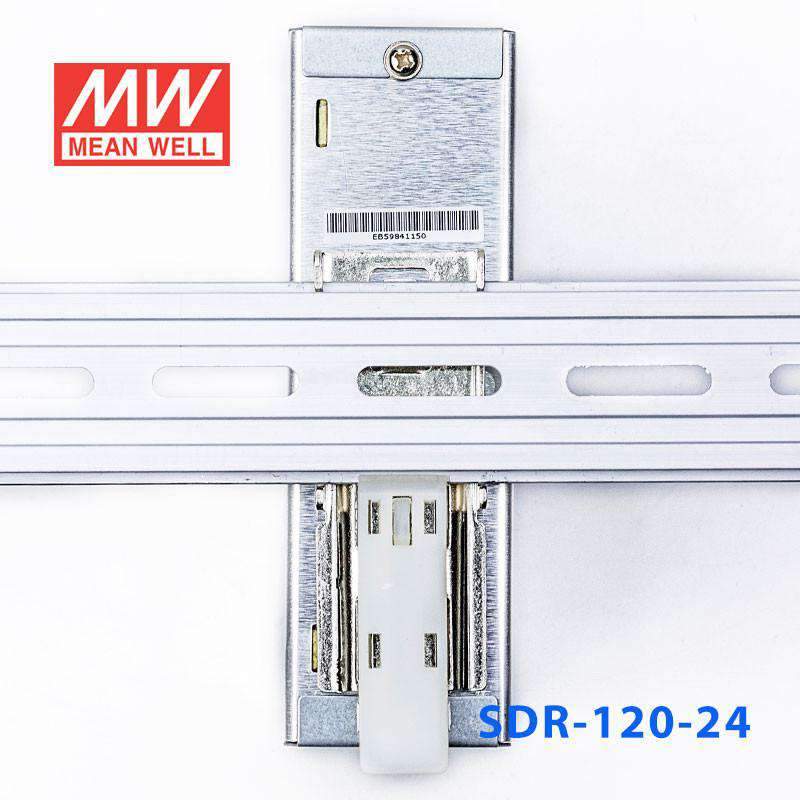

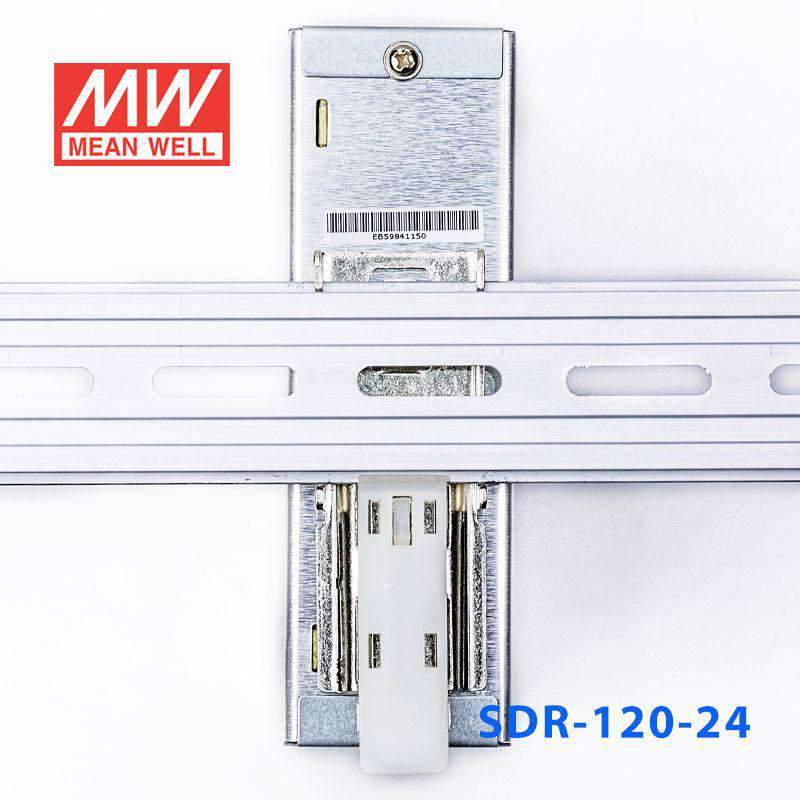

Mean Well SDR-120-24 Single Output Industrial Power Supply 120W 24V...
Please Login for Pricing
Description
Description
The SDR-120 is a 120W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Safety approvals: IEC60068-2-6 Ul508, TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage88V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.52 cm
-
Width11.35 cm
-
Height4 cm
-
Weight0.67 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the SDR-120-24 to power a 24V PLC and I/O system in a control panel?
Yes, this model is a 24V DIN rail power supply rated for 120W and 5A, which fits many 24V PLC, I/O, and control panel loads within that range. Its 125.2 x 113.5 x 40.0 mm housing is a slim format for DIN rail layouts where panel space is limited.
Is the SDR-120-24 suitable for 24V industrial automation controls inside a machine cabinet?
It is intended for DIN rail mounting and provides 24V output up to 5A, so it is appropriate for 24V industrial automation controls that stay within 120W total load. The wide 88-264VAC input also suits panels that may be supplied from different standard AC mains ranges.
Can this power supply be used for a 24V building management or control enclosure?
Yes, the SDR-120-24 is appropriate for 24V building management and control enclosure applications when the connected devices require no more than 120W or 5A. Its DIN rail form factor and 40.0 mm slim profile make it practical for organized cabinet installations.
Is the SDR-120-24 meant for exposed environments or for use inside an enclosure?
This unit is better suited to indoor control cabinets and protected enclosures rather than exposed outdoor mounting. The specified operating temperature range is -25°C to +70°C, and its certifications include BSMI, CB, CE, cUL, EAC, c_gl, and TÜV.
How does the SDR-120-24 compare with other Mean Well SDR DIN rail models?
In the listed SDR range, the related models are SDR-120-12 at 120W, 12V, 10A; SDR-120-48 at 120W, 48V, 2.5A; SDR-240-24 at 240W, 24V, 10A; SDR-240-48 at 240W, 48V, 5A; SDR-480-24 at 480W, 24V, 20A; SDR-480-48 at 480W, 48V, 10A; SDR-480P-24 at 480W, 24V, 20A; SDR-480P-48 at 480W, 48V, 10A. The lower-power siblings also include SDR-75-12 at 75.6W, 12V, 6.3A; SDR-75-24 at 76.8W, 24V, 3.2A; SDR-75-48 at 76.8W, 48V, 1.6A; and the higher-power models are SDR-960-24 at 960W, 24V, 40A and SDR-960-48 at 960W, 48V, 20A.
Other SDR-120 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SDR-120-12 Single Output Industrial Power Supply 120W 12V - DIN Rail | 120W | 12V | 10A | Indoor | View |
| Mean Well SDR-120-48 Single Output Industrial Power Supply 120W 48V - DIN Rail | 120W | 48V | 2.5A | Indoor | View |
