Mean Well

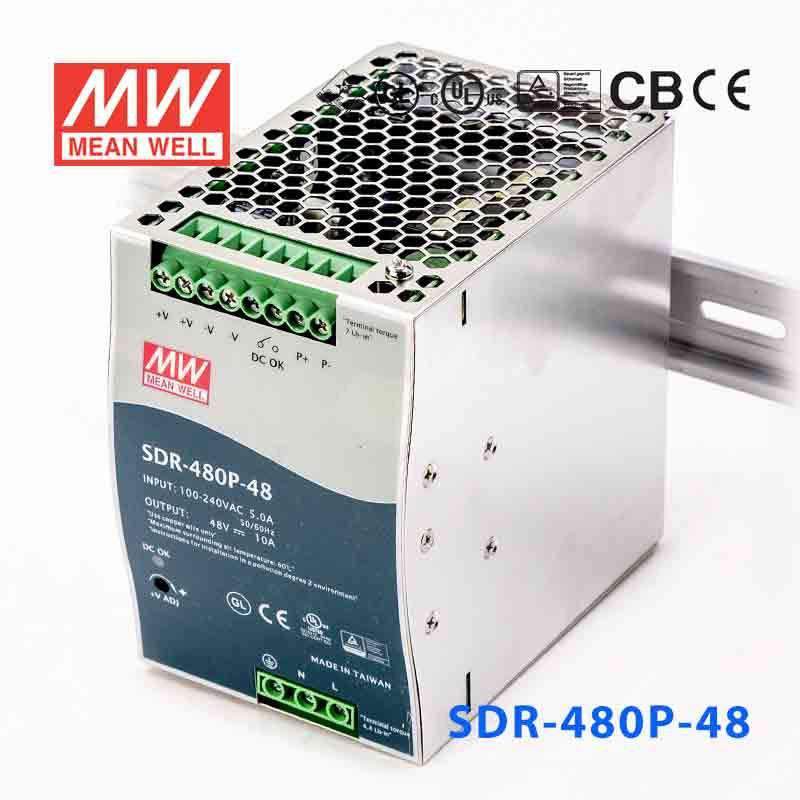

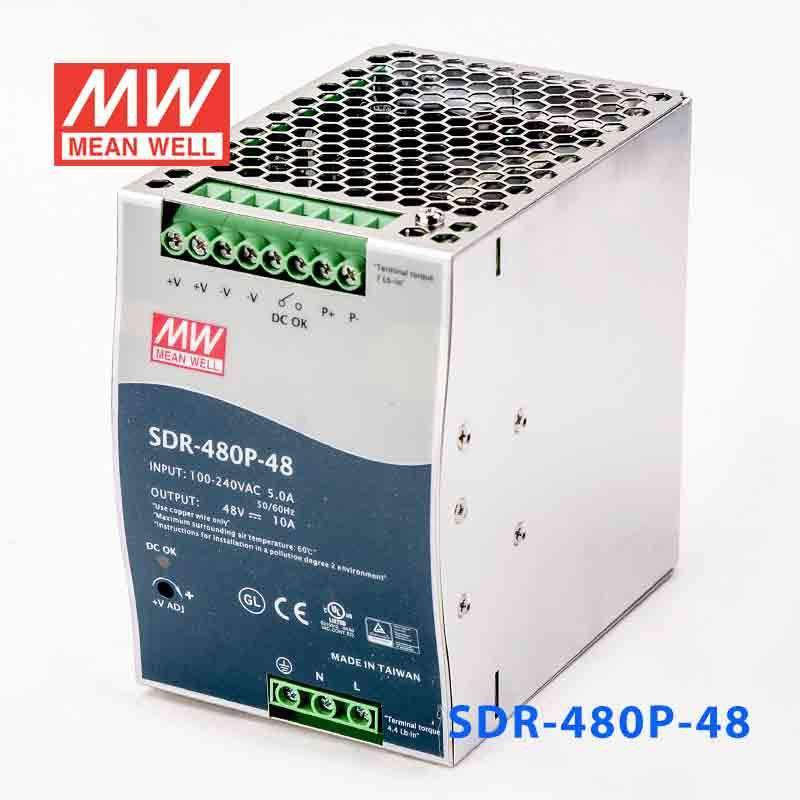

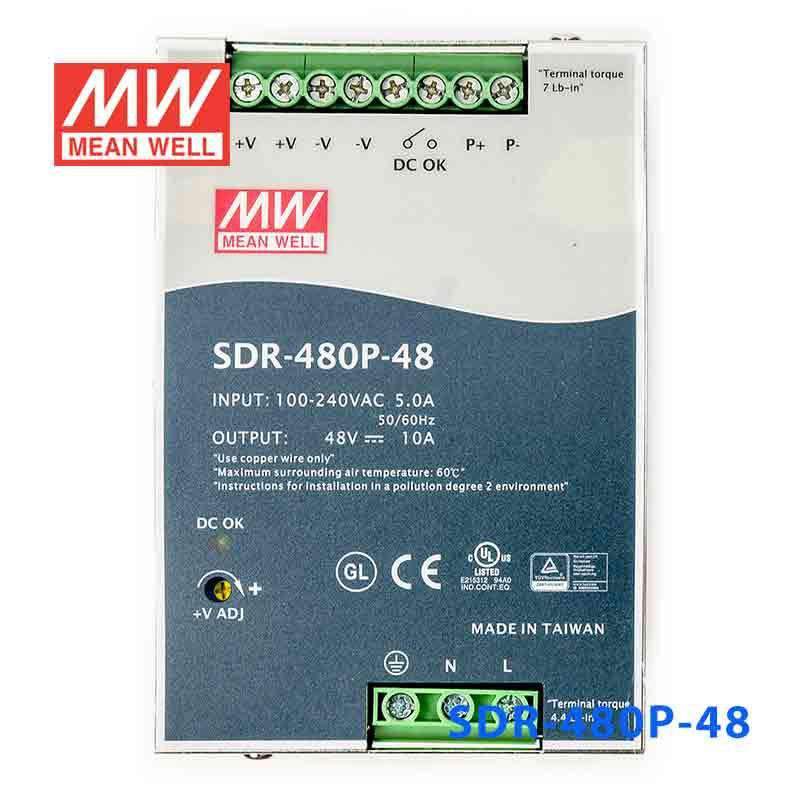

Mean Well SDR-480P-48 Single Output Industrial Power Supply 480W 48V 10A - DIN Rail

SKU SDR-480P-48
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 6 in this family

SDR-480P-48
Available to order
|

Overview

SDR-480P-48 is the 48V output model of this series: rated current 10A, rated power 480W, typical efficiency 94%.

Features

  • Current sharing up to 3840W(7+1)
  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.94
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit

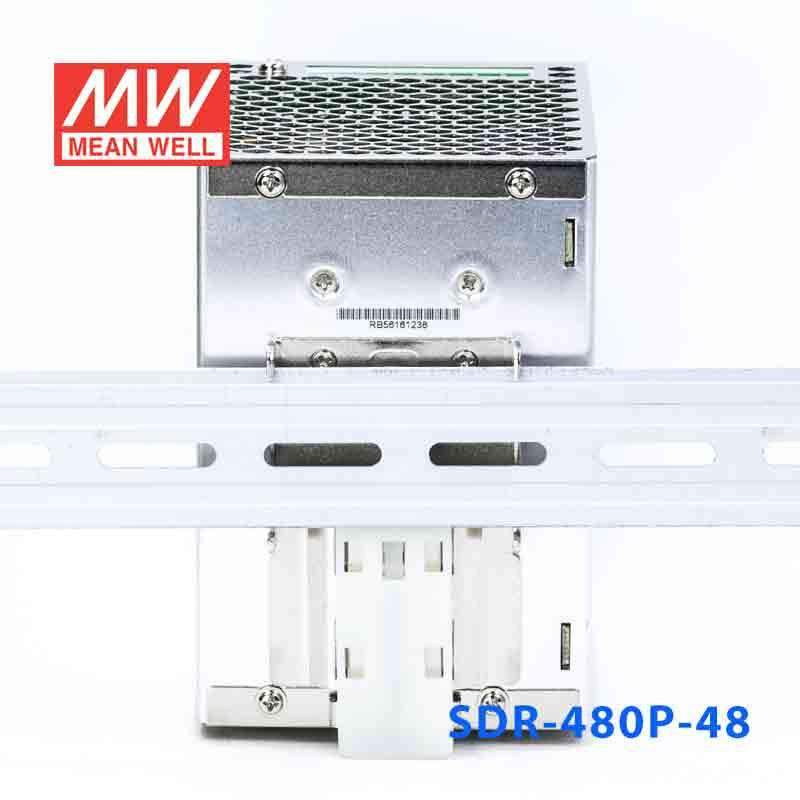

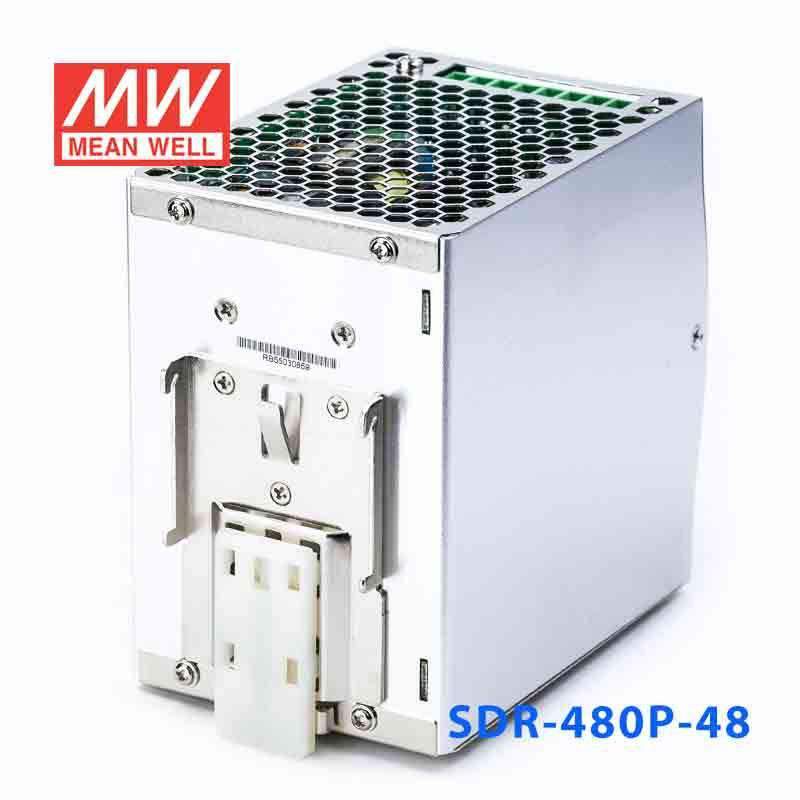

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty

Specifications

SDR-480P-48Specifications from the official datasheet (2025-02-17 edition)

OUTPUT

DC VOLTAGE
48V
RATED CURRENT
10A
CURRENT RANGE
0 ~ 10A
RATED POWER
480W
PEAK CURRENT
15A
PEAK POWERNote.6
720W (3sec.)
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
48 ~ 55V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
1500ms, 150ms/230VAC 3000ms, 150ms/115VAC at full load
HOLD UP TIME (Typ.)
14ms/230VAC at full load

INPUT

VOLTAGE RANGENote.7
90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
0.94/230VAC 0.99/115VAC at full load
EFFICIENCY (Typ.)
94%
AC CURRENT (Typ.)
5A/115VAC 2.5A/230VAC
INRUSH CURRENT (Typ.)
40A/115VAC 80A/230VAC
LEAKAGE CURRENT
<0.6mA / 240VAC

PROTECTION

OVERLOAD
Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery >150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
OVER VOLTAGE
56 ~ 65V Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE
105℃±5℃ (TSW : detect on heatsink of power switch) Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

DC OK REALY CONTACT RATINGS (max.)
60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
CURRENT SHARING
Please see the Function Manual

ENVIRONMENT

WORKING TEMP.Note.5
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004, BSMI CNS15598-1 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS15936
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020, SEMI F47 approved

OTHERS

MTBF
969.8K hrs min. Telcordia SR-332 (Bellcore) ; 118.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
85.5*125.2*128.5mm (W*H*D)
PACKING
1.6Kg; 8pcs/13.8Kg/0.9CUFT
Test conditions and notes8
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  5. 5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
  6. 6. 3 seconds peak power max. and the average output power should not exceed the rate power.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

SDR-480P-48 Mechanical Specification
Mechanical Specification
SDR-480P-48 Block Diagram
Block Diagram
SDR-480P-48 Derating Curve
Derating Curve

Downloads

FAQ

Can the SDR-480P-48 be used in 48V industrial control panels?

Yes. The SDR-480P-48 is a 48V DIN rail power supply rated for 480W and 10A, so it fits 48V industrial control panels and automation cabinets that require that output level. It is intended for organized DIN rail mounting within the panel.

Is the SDR-480P-48 suitable for 48V building management systems?

It can be used where a building management or centralized control system requires 48V output up to 10A and 480W. The unit also accepts 90-264VAC input, which supports common AC-fed control cabinet designs.

Can I use the SDR-480P-48 to power several 48V cabinet devices from one source?

Yes, as long as the combined load stays within 48V, 10A, and 480W. That makes it relevant for enclosures containing multiple 48V controllers, relays, and automation devices that share a DIN rail power source.

What other SDR models should I look at if I need a different voltage or capacity than the SDR-480P-48?

On the SDR-480P series datasheet, the alternative is the SDR-480P-24 at 480W, 24V, 20A (adjustable 24-28V). For more capacity, the series supports current sharing: up to 8 units can be paralleled (up to 3840W in a 7+1 arrangement), with total output current limited to rated current × number of units × 0.9.

Is the SDR-480P-48 appropriate for enclosed cabinet operation in industrial settings?

Yes, it is suited to enclosed control cabinet use within its -25°C to +70°C operating temperature range, with output derating at higher temperatures per the derating curve. The 85.5 × 125.2 × 128.5 mm (W × H × D) DIN rail housing is built for cabinet mounting rather than bench-top or exposed-location use.
