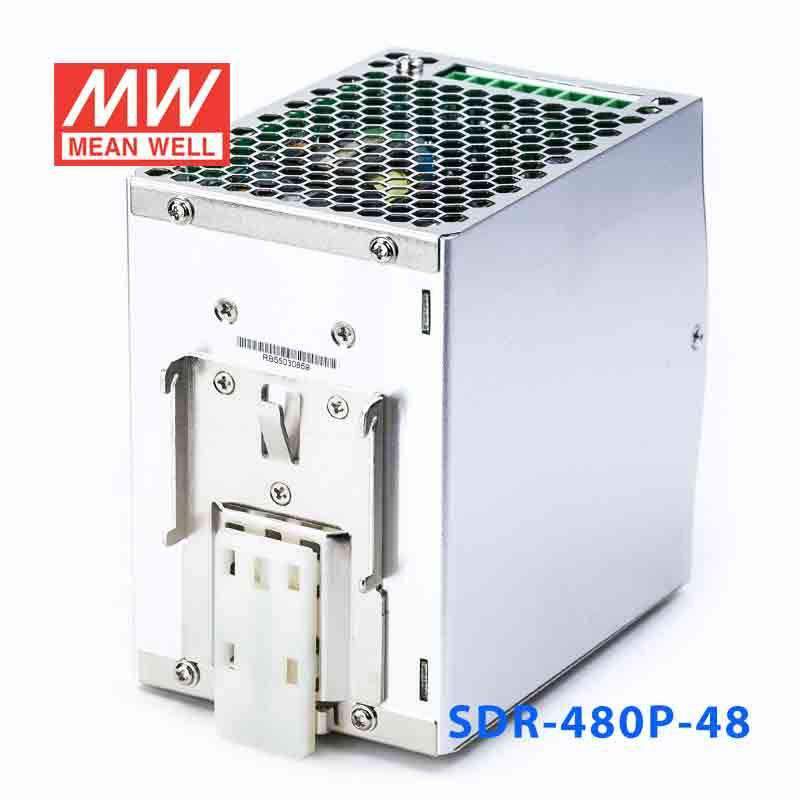

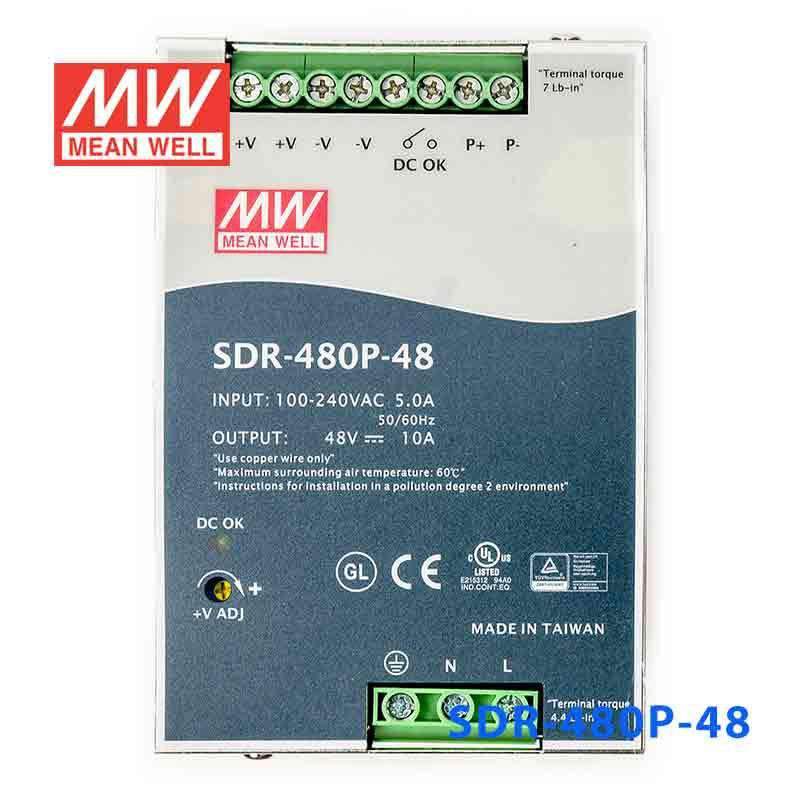

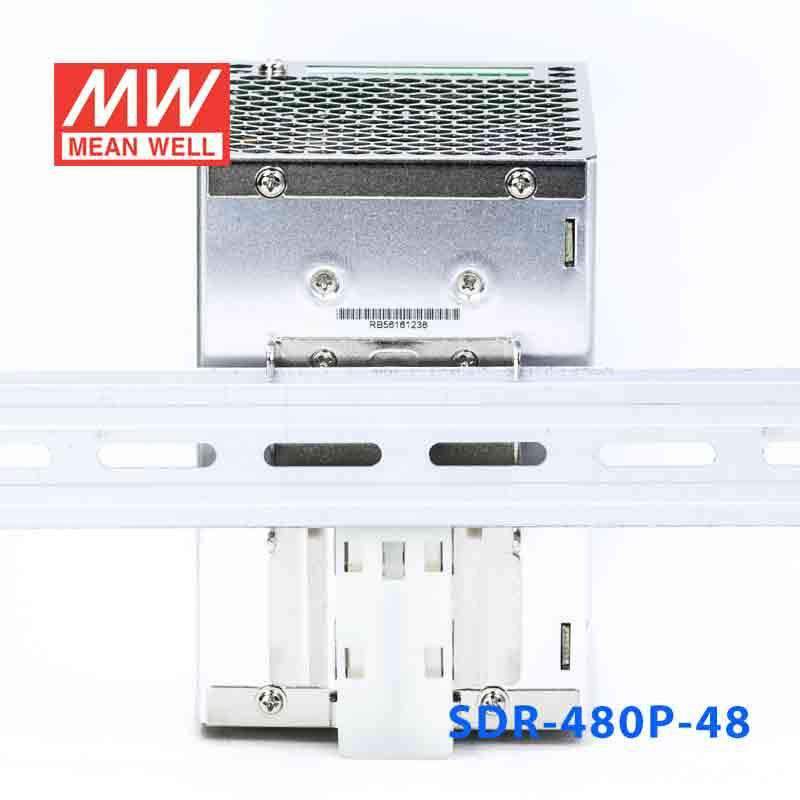

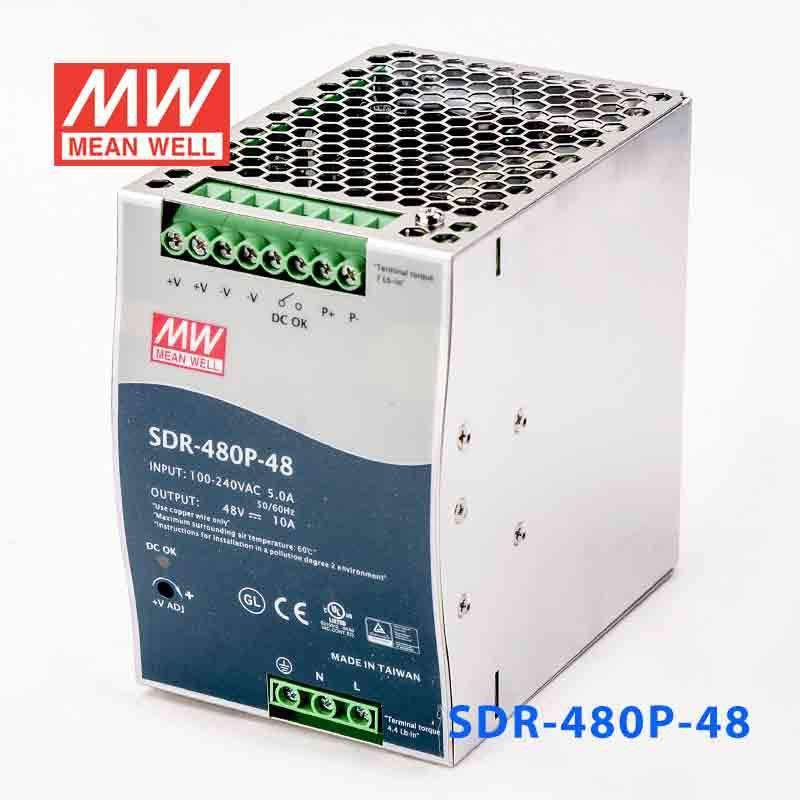

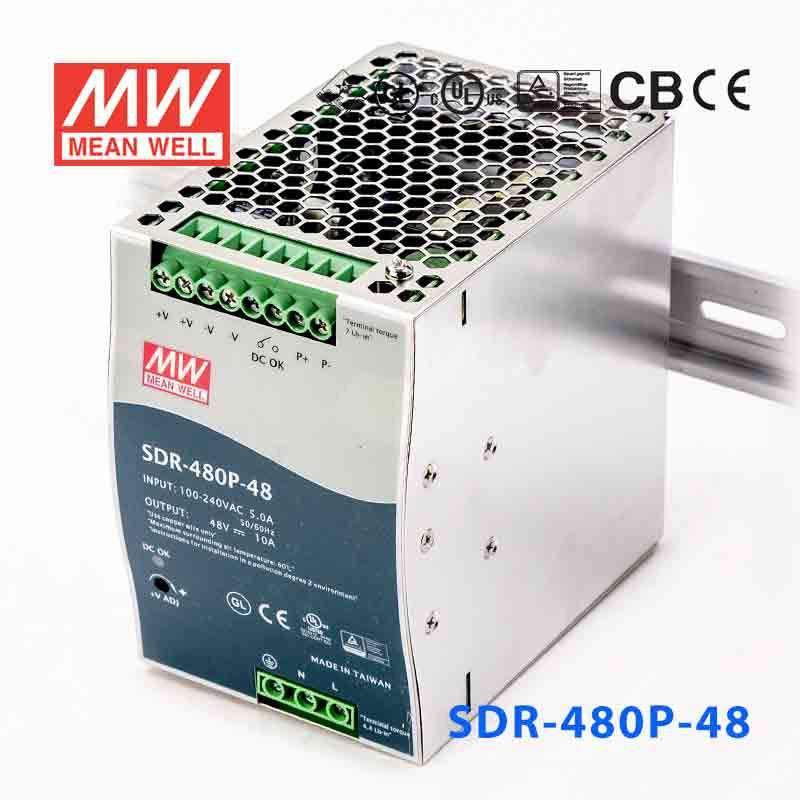

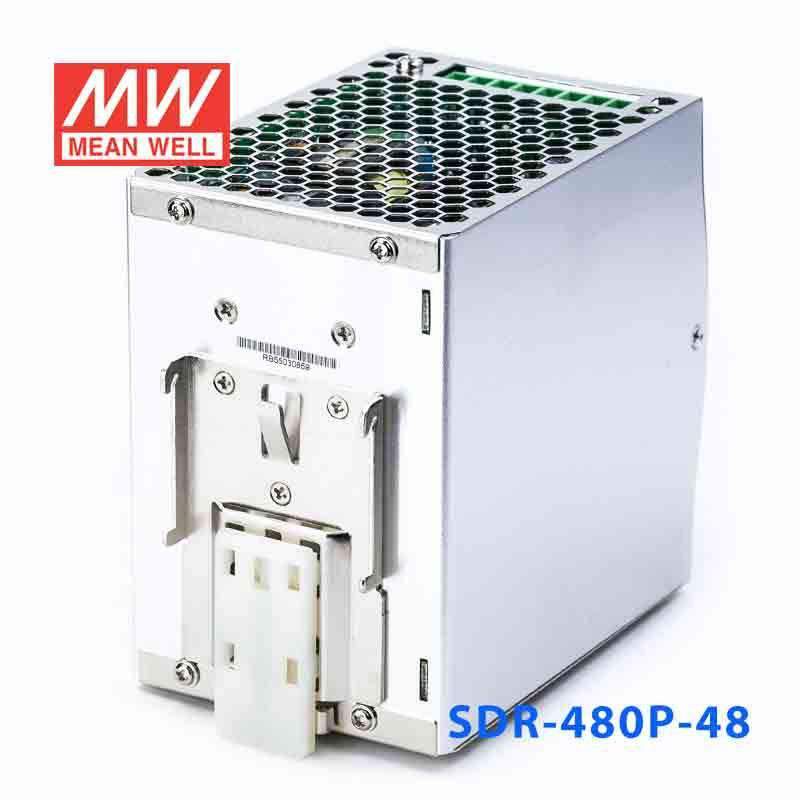

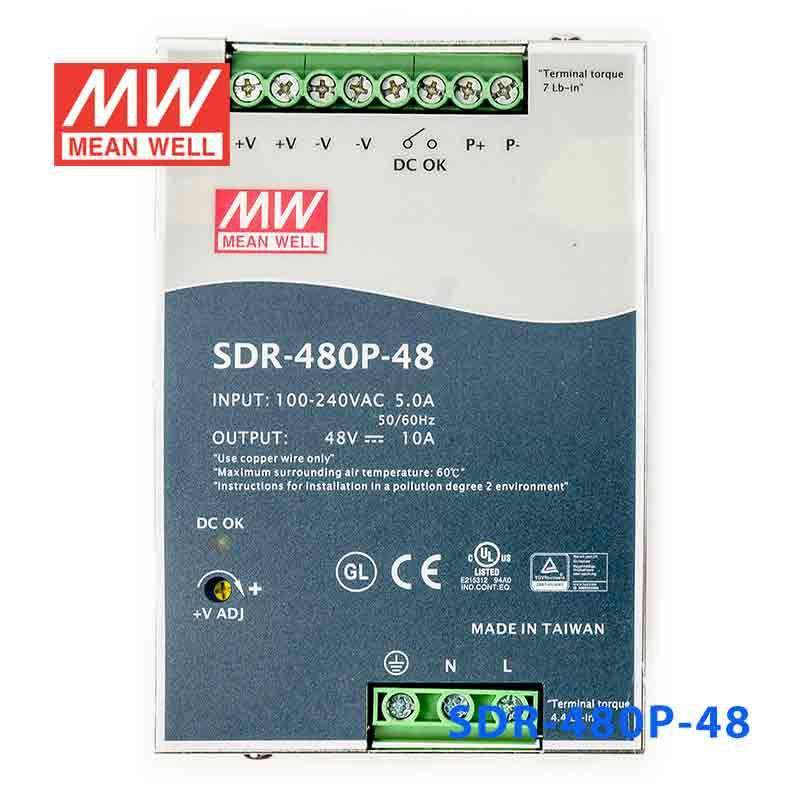

Mean Well SDR-480P-48 Single Output Industrial Power Supply 480W 48...
Please Login for Pricing
Description
Description
The SDR-480P is a 480W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ DC OK relay contact output
- ✓ Current sharing up to 3840W (parallel units)
- ✓ Safety approvals: ¢J , 10 ~ 95% RH ¢J) -40 ~ +85 ¡(cid:211) 0.03%/ Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 (0 ~ 50 ¢J UL508 TUV EN60950-1
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesSDR Series
-
Power Rating480 Watt
-
Output Voltage48 Volt
-
Rated Current10 Ampere
-
Input Voltage90V~264V
-
Standards MetBSMI,CB,CE,cUL,EAC,GL,TUV
-
Operating Temperature-25°C~70°C
-
Warranty3 Year
-
Length12.85 cm
-
Width12.52 cm
-
Height8.55 cm
-
Weight1.6 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the SDR-480P-48 be used in 48V industrial control panels?
Yes. The SDR-480P-48 is a 48V DIN rail power supply rated for 480W and 10A, so it fits 48V industrial control panels and automation cabinets that require that output level. It is intended for organized DIN rail mounting within the panel.
Is the SDR-480P-48 suitable for 48V building management systems?
It can be used where a building management or centralized control system requires 48V output up to 10A and 480W. The unit also accepts 90-264VAC input, which supports common AC-fed control cabinet designs.
Can I use the SDR-480P-48 to power several 48V cabinet devices from one source?
Yes, as long as the combined load stays within 48V, 10A, and 480W. That makes it relevant for enclosures containing multiple 48V controllers, relays, and automation devices that share a DIN rail power source.
What other SDR models should I look at if I need a different voltage or capacity than the SDR-480P-48?
The listed SDR family includes SDR-75-12 at 75.6W, 12V, 6.3A; SDR-75-24 at 76.8W, 24V, 3.2A; SDR-75-48 at 76.8W, 48V, 1.6A; SDR-120-12 at 120W, 12V, 10A; SDR-120-24 at 120W, 24V, 5A; SDR-120-48 at 120W, 48V, 2.5A; SDR-240-24 at 240W, 24V, 10A; and SDR-240-48 at 240W, 48V, 5A. The higher-output entries shown are SDR-480-24 at 480W, 24V, 20A; SDR-480-48 at 480W, 48V, 10A; SDR-480P-24 at 480W, 24V, 20A; SDR-960-24 at 960W, 24V, 40A; and SDR-960-48 at 960W, 48V, 20A.
Is the SDR-480P-48 appropriate for enclosed cabinet operation in industrial settings?
Yes, it is suited to enclosed control cabinet use within its -25°C to +70°C operating temperature range. The 128.5 × 125.2 × 85.5 mm DIN rail housing is built for cabinet mounting rather than bench-top or exposed-location use.
Other SDR-480P Models
1 other model| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well SDR-480P-24 Single Output Industrial Power Supply 480W 24V - DIN Rail | 480W | 24V | 20A | Indoor | View |
