Mean Well

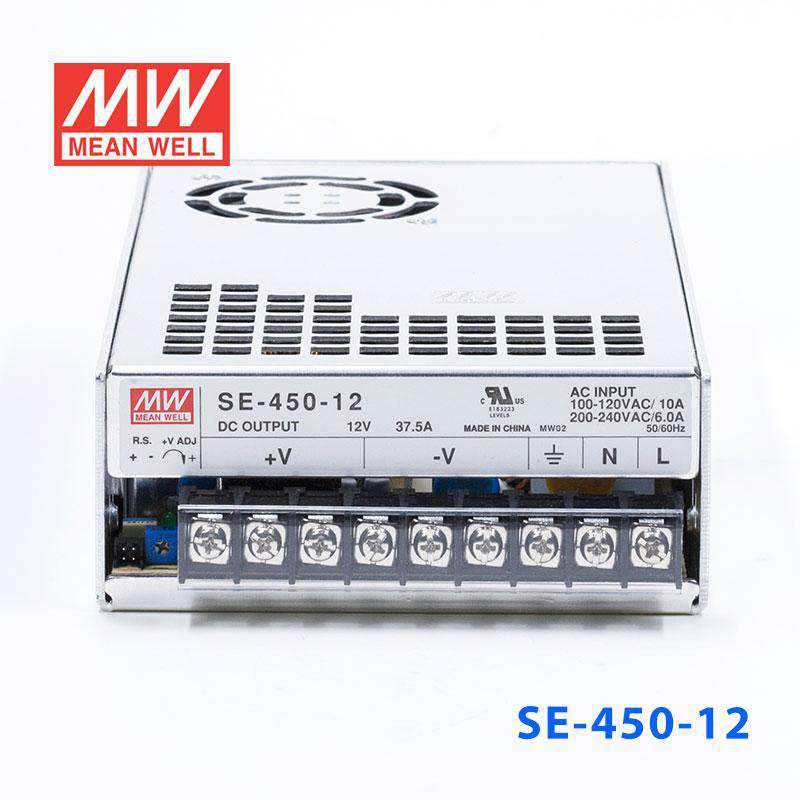

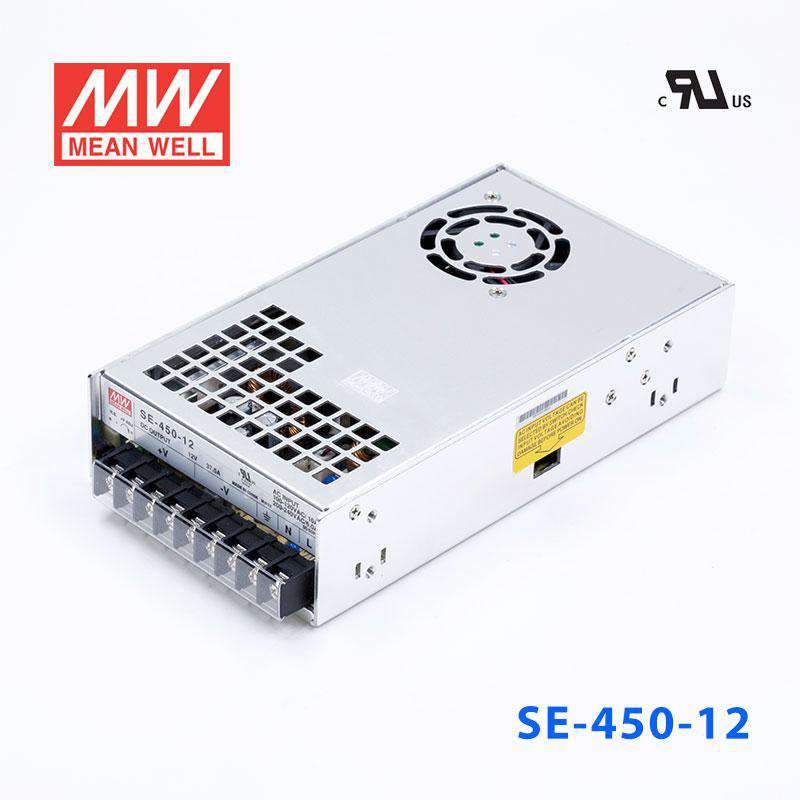

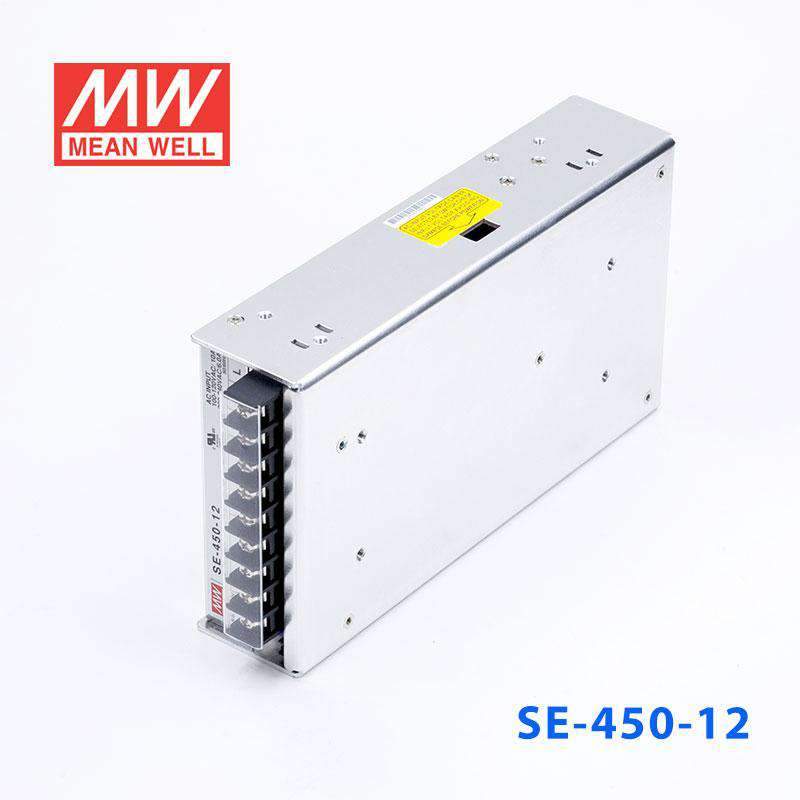

Mean Well SE-450-12 Power Supply 450W 12V 37.5A

economical model medium to high power(450W~1500W)
SKU SE-450-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

SE-450-12
End of Life, Succeeded by LRS-450-12
Available to order
|

Overview

SE-450-12 is the 12V output model of this series: rated current 37.5A, rated power 450W, typical efficiency 83%.

Features

  • AC input active surge current limiting

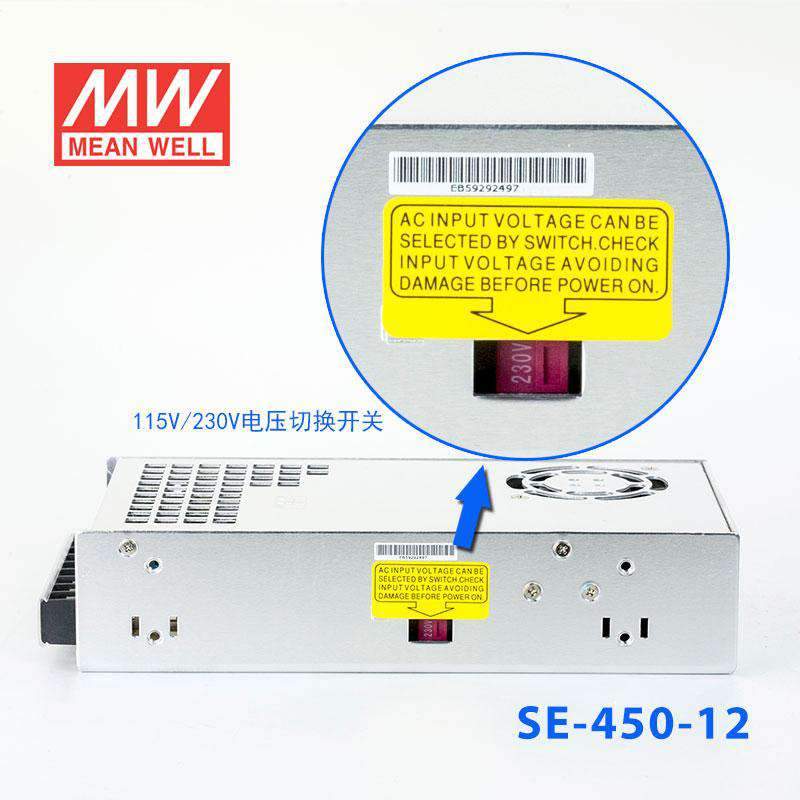

  • AC input range selected by switch
  • Protections: Short circuit /Overload / Over voltage / Over temperature

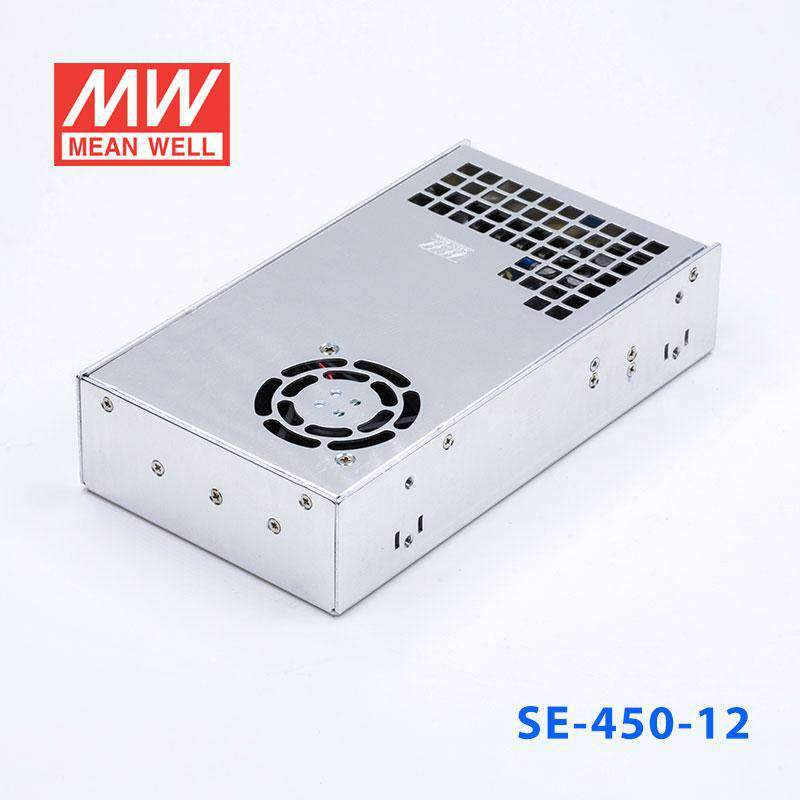

  • Forced air cooling by built-in DC ball bearing fan
  • Built-in remote sense function
  • LED indicator for power on
  • UL approved
  • 2 years warranty

Specifications

SE-450-12Specifications from the official datasheet (2024-09-30 edition)

OUTPUT

DC VOLTAGE
12V
RATED CURRENT
37.5A
CURRENT RANGE
0 ~ 37.5A
RATED POWER
450W
RIPPLE & NOISE (max.)Note.2
200mVp-p
VOLTAGE ADJ. RANGE
10.8 ~ 13.5V
VOLTAGE TOLERANCENote.3
±1.0%
LINE REGULATION
±0.3%
LOAD REGULATION
±0.5%
SETUP, RISE TIME
1500ms, 50ms/230VAC 1500ms, 50ms/115VAC at full load
HOLD UP TIME (Typ.)
16ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE
90 ~ 132VAC / 180 ~ 264VAC selected by SW 254 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
83%
AC CURRENT (Typ.)
10A/115VAC 6A/230VAC
INRUSH CURRENT (Typ.)
35A/115VAC 55A/230VAC
LEAKAGE CURRENT
<2.5mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Shut down o/p voltage, re-power on to recovery
OVER VOLTAGE
13.8 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recovery
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃,10 ~ 95% RH
TEMP. COEFFICIENT
±0.05%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY

SAFETY STANDARDS
UL62368-1, EAC TP TC 004 approved; Design refer to BS EN/EN62368-1
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

OTHERS

MTBF
1557.5 K hrs min. Telcordia SR-332 (Bellcore) ; 224.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
225*124*50mm (L*W*H)
PACKING
1.25Kg;12PCS/16Kg/1CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. This power supply does not meet the harmonic current requirements outlined by BS EN/EN61000-3-2. Please do not use this power supply under the following conditions: a) the end-devices is used within the European Union, and b) the end-devices is connected to public mains supply with 220Vac or greater rated nominal voltage, and c) the power supply is: - installed in end-devices with average or continuous input power greater than 75W, or - belong to part of a lighting system Exception: Power supplies used within the following end-devices do not need to fulfill BS EN/EN61000-3-2 a) professional equipment with a total rated input power greater than 1000W; b) symmetrically controlled heating elements with a rated power less than or equal to 200W

Technical drawings

SE-450-12 Mechanical Specification
Mechanical Specification
SE-450-12 Block Diagram
Block Diagram
SE-450-12 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the SE-450-12 for a 12V industrial control panel with multiple DC loads?

Yes, this model is a constant voltage 12V power supply rated for 37.5A and 450W. That makes it suitable for 12V industrial control panels, automation assemblies, or embedded systems that need a shared 12V DC bus within that output limit.

Is the SE-450-12 a good fit for 12V machine-vision lighting or inspection equipment?

It can be a fit when the inspection hardware requires regulated 12V DC and the total load stays within 37.5A and 450W. Note 5 of the sheet says it does not meet EN61000-3-2 harmonic limits, so it must not be part of a lighting system on 220VAC+ public mains in the EU.

Can I use the SE-450-12 to power a 12V embedded computing or communications cabinet?

Yes, if the cabinet is built for 12V DC input and the combined demand does not exceed 37.5A or 450W. Its switch-selectable 90-132VAC / 180-264VAC input also supports use in facilities on 115VAC or 230VAC supplies.

Is the SE-450-12 suitable for outdoor or harsh-environment use?

The provided specs list an operating temperature of -10°C to +60°C, but no IP rating is stated. Without an IP rating in the product specs, it is better treated as a power supply for indoor or protected enclosures rather than exposed outdoor installation.

How does the SE-450-12 compare with the other SE-450 voltage versions?

Within the SE-450 family, the listed variants are SE-450-3.3 at 3.3V, 75A, 247.5W; SE-450-5 at 5V, 75A, 375W; SE-450-12 at 12V, 37.5A, 450W; SE-450-15 at 15V, 30A, 450W; SE-450-24 at 24V, 18.8A, 451.2W; SE-450-36 at 36V, 12.5A, 450W; and SE-450-48 at 48V, 9.4A, 451.2W. The main difference between them is the output voltage and corresponding output current/power rating.
