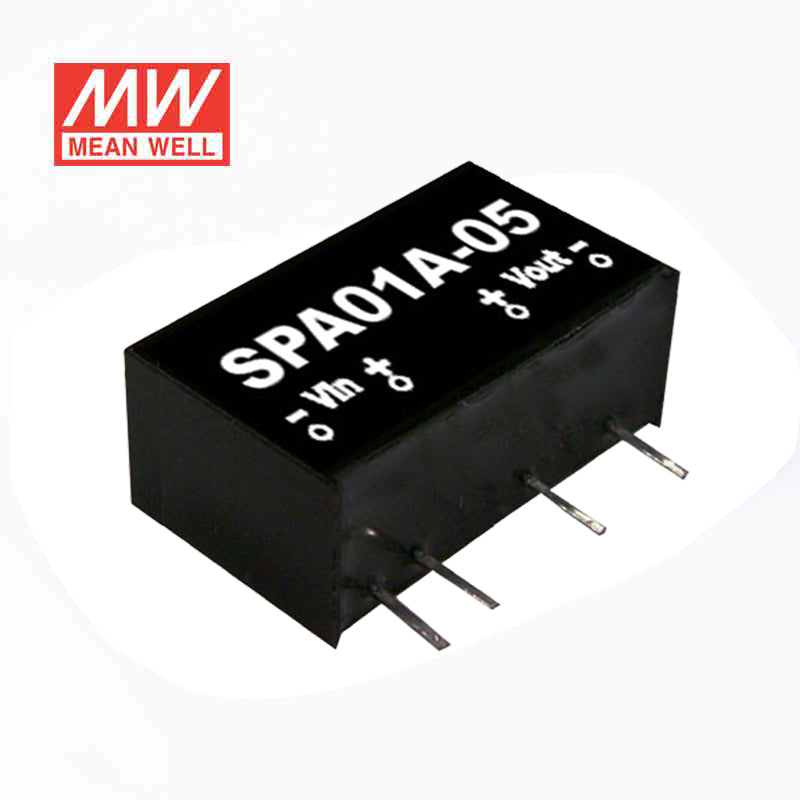

Mean Well SPA01A-05 DC-DC Converter - 1W - 9~18V in 5V out 200mA

SKU SPA01A-05
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

SPA01A-05 is the 5V output model of this series: rated power 1W, typical efficiency 77%.

Features

  • Single in line package
  • 2:1 wide input range
  • 1500VDC I/O isolation
  • Built-in EMI filter without external components
  • Protections: Short circuit / Overload
  • Cooling by free air convection
  • 100% full load burn-in test
  • Low cost / High reliability
  • 2 years warranty

Specifications

SPA01A-05Specifications from the official datasheet (2024-08-02 edition)

OUTPUT

DC VOLTAGE
5V
CURRENT RANGE
20 ~ 200mA
RATED POWER
1W
RIPPLE & NOISE (max.)Note.2
60mVp-p
LINE REGULATIONNote.3
±0.5%
LOAD REGULATIONNote.4
±0.5%
VOLTAGE ACCURACY
±2.0%
SWITCHING FREQUENCY
100KHz min.

INPUT

VOLTAGE RANGE
9 ~ 18VDC
EFFICIENCY (Typ.)
77%
DC CURRENT Full load
110mA
DC CURRENT No load
20mA
FILTER
Capacitor Type
PROTECTION
Fuse recommended

PROTECTION (Note. 5)

OVERLOAD
130 ~ 200% rated output power Protection type : Recovers automatically after fault condition is removed
SHORT CIRCUIT
All output equipped with short circuit Protection type : Recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-40 ~ +90℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +105℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.05% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY

SAFETY STANDARDS
EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE
I/P-O/P:1.5KVDC
ISOLATION RESISTANCE
I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
ISOLATION CAPACITANCE
80pF max.
EMC EMISSION
Compliance to BS EN/EN55032 Class B, FCC part 15 Class B , EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A , EAC TP TC 020

OTHERS

MTBF
500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
17.4*7.75*11.1mm or 0.69"*0.30"*0.44" inch (L*W*H)
PACKING
3g ; 28pcs/per tube, 2800pcs/100 tube/per carton
Test conditions and notes5
  1. 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
  2. 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
  3. 3.Line regulation is measured from low line to high line at rated load.
  4. 4.Load regulation is measured from 10% to 100% rated load.
  5. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.

Technical drawings

SPA01A-05 Mechanical Specification
Mechanical Specification
SPA01A-05 Packing
Packing

Downloads

FAQ

Can I use the SPA01A-05 to derive 5V power inside a compact embedded board?

Yes, this DC-DC converter is designed for 5V constant voltage output with a 1W power rating. Its 17.4 × 11.1 × 7.75 mm size also suits space-constrained embedded designs.

Is the SPA01A-05 suitable for low-power industrial monitoring or control electronics?

It can be used for low-power 5V electronics when the total load fits within 1W. The input range is listed as 9-18VDC, so the source side needs to stay within that range.

Can this converter support a 5V sensor or logic stage from a 9-18VAC source?

Yes, if the application needs a 5V constant voltage output and remains within the 1W rating. It is intended for low-power conversion rather than larger 5V loads.

Is the SPA01A-05 appropriate for harsh temperature environments?

The specified operating temperature range is -40°C to +90°C, which is broader than the SP power supplies listed here. No IP rating is provided, so the specs do not establish outdoor or sealed-enclosure performance.

When is the SPA01A-05 a better fit than the SPA01A-12 or SPA01A-15?

Choose the SPA01A-05 when the required output is 5V at 1W. The listed siblings are SPA01A-12 at 1W, 12V, 0.08A and SPA01A-15 at 1W, 15V, 0.07A.
