Can I use the SPA01A-05 to derive 5V power inside a compact embedded board?

Yes, this DC-DC converter is designed for 5V constant voltage output with a 1W power rating. Its 17.4 × 11.1 × 7.75 mm size also suits space-constrained embedded designs.

Is the SPA01A-05 suitable for low-power industrial monitoring or control electronics?

It can be used for low-power 5V electronics when the total load fits within 1W. The input range is listed as 9-18VAC, so the source side needs to stay within that range.

Can this converter support a 5V sensor or logic stage from a 9-18VAC source?

Yes, if the application needs a 5V constant voltage output and remains within the 1W rating. It is intended for low-power conversion rather than larger 5V loads.

Is the SPA01A-05 appropriate for harsh temperature environments?

The specified operating temperature range is -40°C to +90°C, which is broader than the SP power supplies listed here. No IP rating is provided, so the specs do not establish outdoor or sealed-enclosure performance.

When is the SPA01A-05 a better fit than the SPA01A-12 or SPA01A-15?

Choose the SPA01A-05 when the required output is 5V at 1W. The listed siblings are SPA01A-12 at 1W, 12V, 0.08A and SPA01A-15 at 1W, 15V, 0.07A.

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

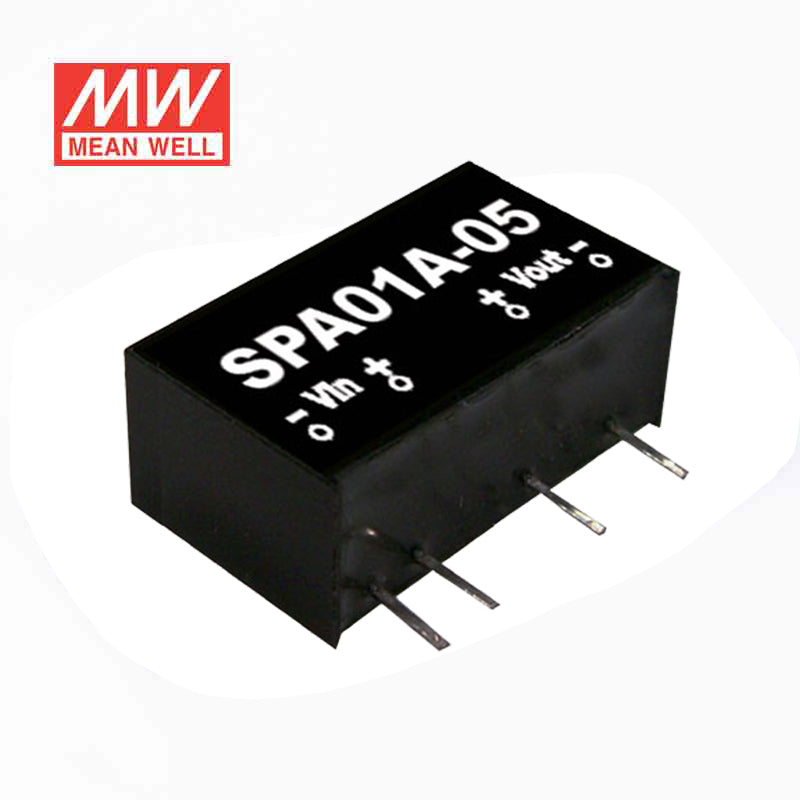

Mean Well SPA01A-05 DC-DC Converter - 1W - 9~18V in 5V out 200mA

SKU:

SPA01A-05

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The SPA01A is a 1W Mean Well power converter (input range: 9~18VDC, operating temperature: -40~+90℃).

Key Features

✓ Input voltage range: 9~18VDC
✓ 1.5KVDC reinforced I/O isolation
✓ Wide operating temperature: -40~+90℃
✓ Protections: Short circuit / Overload
✓ Safety approvals: 20% ~ 90% RH non-condensing -40 ~ +105 ± 0.05% / , 10 ~ 95% RH ℃ (0 ~ 50 ℃ ℃ ) 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well SPA01C-15 DC-DC Converter - 1W - 36~75V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SPA01C-12 DC-DC Converter - 1W - 36~75V in 12V out 83mA	1W	12V	0.08A	Indoor	View
Mean Well SPA01C-05 DC-DC Converter - 1W - 36~75V in 5V out 200mA	1W	5V	0.2A	Indoor	View
Mean Well SPA01B-15 DC-DC Converter - 1W - 18~36V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SPA01B-12 DC-DC Converter - 1W - 18~36V in 12V out 83mA	1W	12V	0.08A	Indoor	View
Mean Well SPA01B-05 DC-DC Converter - 1W - 18~36V in 5V out 200mA	1W	5V	0.2A	Indoor	View
Mean Well SPA01A-15 DC-DC Converter - 1W - 9~18V in 15V out 67mA	1W	15V	0.06A	Indoor	View
Mean Well SPA01A-12 DC-DC Converter - 1W - 9~18V in 12V out 83mA	1W	12V	0.08A	Indoor	View
