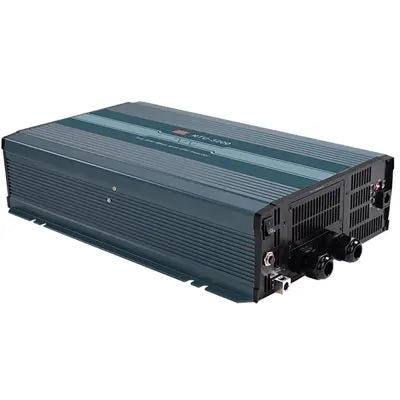

Mean Well NTS-3200-224AU True Sine Wave DC-AC Inverter 3200W 230V out 24V in with AU Socket

3200W24V160A50HzAU Socket

SKU NTS-3200-224AU

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NTS-3200-224AU is the model of this series: typical efficiency 92%.

NTS-3200 is a 3200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high quality fan with low acoustic noise, 6400W peak power, adjustable AC output voltage and frequency, -25~+70℃ wide operating temperature range, complete protection features, and etc. Combined with batteries, the NTS-3200 is suitable for use in residential, commercial, marine, automobile, mine, construction site, and remote areas with no access to utility power, and the output can be used to power fans, TV, radio, phone charger, PC/laptop, lighting, induction stove, air conditioner, electromechanical tool, communication equipment, power distribution cabinet, outdoor camping equipment, marine AC power, factory equipment, and etc.

Features

True sine wave output (THD<3%)
High surge power up to 6400W
Temperature controlled cooling fan
AC output voltage and frequency selectable by DIP S.W
No load dissipation <1.7W at standby saving mode
-25℃~+70℃ wide operating temperature
Power ON-OFF remote control
Front panel indicator for operation status
Protections :
Input : Reverse polarity / DC. low alarm / DC low shutdown / Over voltage
Output : Short circuit / Overload / Over temp.
Battery over discharge protection (low voltage disconnect)
Suitable for lead-acid or li-ion batteries
Remote controller
(IRC1, IRC2, IRC3 accessory sold separately, please refer to: https://www.meanwell.com/webapp/product/search.aspx?prod=IRC1 )
Support RS-232 communication(Communication cable order No.: RJ11-RS232, sold sperately)
Carry handle accessory available(Order NO.: Carry handle, sold separately)
Conformal coating
3 years warranty

Specifications

NTS-3200-224AUSpecifications from the official datasheet (2024-10-30 edition)

AC OUTPUT

RATED POWER(Continuous): 3200W
OVER RATED POWER(3 Min.): 3680W
PEAK POWER(10 Sec.): 4800W
SURGE POWER(30 Cycles): 6400W
AC VOLTAGE: Factory setting set at 230VAC 200 / 220 / 230 / 240Vac selectable by DIP S.W
FREQUENCY: Factory setting set at 50±0.1Hz 50/60Hz selectable by DIP S.W
WAVEFORM^Note.1: True sine wave (THD<3%)
AC REGULATION: ±3.0% at rated output voltage
FRONT PANEL LED: Please see page 5

DC INPUT

DC VOLTAGE: 24Vdc
VOLTAGE RANGE (Typ.): 20 ~ 33Vdc
DC CURRENT (Typ.): 160A
NO LOAD DISSIPATION (SAVING MODE)(Typ.)^Note.2: Default disable, auto detect AC output load≦10W will be changed to saving mode 1.7W
OFF MODE CURRENT DRAW: ≦2mA
EFFICIENCY (Typ.)^Note.1: 92%
BATTERY TYPES: Lead Acid or li-ion

PROTECTION

FUSE (INTERNAL): 40A*6
LOW ALARM: 22±0.5Vdc
LOW SHUTDOWN: 20±0.5Vdc
LOW RESTART: 25±0.5Vdc
HIGH ALARM: 31±0.5Vdc
HIGH SHUTDOWN: 33±0.5Vdc
HIGH RESTART: 30±0.5Vdc
BAT. POLARITY: By internal fuse open
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. Protection type : Shut down o/p voltage, re-power on to recover
CIRCUIT BREAKER: None
TB TYPE: None

FUNCTION

REMOTE CONTROL CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
REMOTE CONTROL ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector (Please refer to page 4 for more details)

ENVIRONMENT

WORKING TEMP.: -25 ~ +70℃(Refer to “Derating curve”)
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +70℃ / -22 ~ +158℉, 10 ~ 95% RH non-condensing
VIBRATION: 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1 approved (Please refer to next page “AC output socket” table for more details )
WITHSTAND VOLTAGE: DC I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
EMC EMISSION: Parameter Standard Test Level

Radiated FCC for 112,124,148 only(expect for Type-UN) Class A
Radiated BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN) Class A
Harmonic Current BS EN/ EN61000-3-2
Voltage Flicker BS EN/ EN61000-3-3
EMC IMMUNITY: BS EN/ EN55024, BS EN/ EN55035

Parameter Standard Test Level

ESD BS EN/ EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/ EN61000-4-3 Level 2, 3V/m
Magnetic Field BS EN/ EN61000-4-8 Level 1, 1A/m

Parameter	Standard	Test Level
Radiated	FCC for 112,124,148 only(expect for Type-UN)	Class A
Radiated	BS EN/ EN55032(CISPR32) for 212,224,248 only(expect for Type-UN)	Class A
Harmonic Current	BS EN/ EN61000-3-2
Voltage Flicker	BS EN/ EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/ EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/ EN61000-4-3	Level 2, 3V/m
Magnetic Field	BS EN/ EN61000-4-8	Level 1, 1A/m

OTHERS

MTBF: 336.9K hrs min. Telcordia TR/SR-332 (Bellcore) ; 30.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 420*270*98mm (L*W*H)
PACKING: 8.6Kg; 1pcs/ 10.4Kg/ 1.39CUFT

Test conditions and notes5

1.Efficiency, AC regulation and THD are tested by 2400W load, linear load at 12.5Vdc/25Vdc/50Vdc input voltage.
2.No load dissipation at non-saving mode(Typ.): 112/124/148 for 25W, 212/224/248 for 55W.
3.All parameters not specified above are measured at rated load, 25℃ of ambient temperature and set to factory setting.
4.Internal pre-start circuit, the setup time is 8s.
5.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

NTS-3200-224AU AC Output Socket — AC Output Socket

NTS-3200-224AU DERATING CURVE — DERATING CURVE

NTS-3200-224AU IRC1/2/3 Remote Controller (Accessory — IRC1/2/3 Remote Controller (Accessory

NTS-3200-224AU Support RS-232 Communication — Support RS-232 Communication

NTS-3200-224AU AC Output Voltage、Frequency、Power — AC Output Voltage、Frequency、Power

NTS-3200-224AU MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

NTS-3200-224AU Accessory List — Accessory List

NTS-3200-224AU ※ Terminal protector mating along with NTS-3200… — ※ Terminal protector mating along with NTS-3200…

NTS-3200-224AU Illustration (page 8) — Illustration (page 8)

NTS-3200-224AU TYPICALTYPICAL APPLICATIONAPPLICATION — TYPICALTYPICAL APPLICATIONAPPLICATION

Typical applications

Downloads

Certificates6

Mean Well NTU-NTS-2200-3200- ICES Certificate PDF Download

Mean Well NTU-NTS-2200-3200-EMC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-FCC Certificate PDF Download

Mean Well NTU-NTS-2200-3200-2xx-E13 Certificate PDF Download

Mean Well NTS-NTU-2200-3200-CB Certificate PDF Download

Mean Well NTS-NTU-2200-3200-DEKRA MarK Certificate PDF Download

Test reports1

Mean Well NTS-3200-224 Test Report PDF Download

FAQ

What is the Mean Well NTS-3200-224AU designed for?

The NTS-3200-224AU is a 3200W true sine wave DC-AC inverter that converts 24V DC input to 230V AC output. It is suited to commercial and industrial applications that need clean AC power from a DC battery system, including mobile, backup, and off-grid power setups. This AU version is supplied with an Australian socket configuration.

Does the NTS-3200-224AU provide true sine wave output?

Yes. The NTS-3200-224AU provides true sine wave AC output with total harmonic distortion below 3%, which is useful where stable, low-distortion output is required. That makes it a better fit for sensitive loads than inverter types that do not specify true sine wave performance.

What input and output ratings does this inverter have?

This model is rated for 24V DC input and 230V AC output, with a continuous power rating of 3200W. It also supports high surge power up to 6400W for short-duration startup demands. The AC output voltage and frequency are selectable by DIP switch within the ranges listed in the specification.

Can the NTS-3200-224AU be used with lead-acid or lithium-ion battery systems?

Yes. Mean Well specifies the NTS-3200-224AU as suitable for both lead-acid and li-ion battery systems. It also has a low-voltage alarm at 22±0.5Vdc and shuts down at 20±0.5Vdc input to help protect the connected battery source.

Is the NTS-3200-224AU suitable for demanding operating environments?

This model is built for wide-temperature operation from -25°C up to 70°C, with load derating at higher temperatures. It is fan-cooled, and Mean Well specifies it for 10–500Hz, 3G vibration. These ratings make it well suited to demanding industrial and mobile installations.

What protection features are included in the NTS-3200-224AU?

The NTS-3200-224AU includes output short-circuit, overload and over-temperature protection. It also has DC input low-voltage shutdown (20±0.5Vdc) and high-voltage shutdown (33±0.5Vdc); after a short-circuit, overload or over-temperature shutdown it must be re-powered to recover. These protections are intended to help safeguard the inverter and the connected power system during abnormal conditions.

Does this inverter support remote control or communication accessories?

Yes. The NTS-3200-224AU supports remote power on-off control and has optional remote controller accessories including IRC1, IRC2, and IRC3, which are sold separately. It also supports RS-232 communication using the specified communication cable accessory, also sold separately.

What certifications and compliance approvals does the NTS-3200-224AU have?

Mean Well lists the NTS-3200 series with approvals including CB IEC62368-1, EAC TP TC 004 and AS/NZS 62368.1; EN62368-1, UL458 and E13 apply only to particular socket types, per Mean Well's AC output socket table. EMC-related compliance includes EN55032 Class A and EN61000-4-2, -3, and -8. For buyers in regulated commercial projects, these published approvals can help with product screening and specification review.
