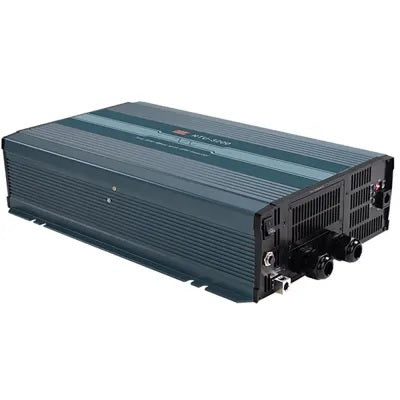

Mean Well NTS-3200-224AU True Sine Wave DC-AC Inverter 3200W 230V out 24V in with AU Socket

The NTS-3200-224AU is a 3200W true sine wave DC-AC inverter that converts 24V DC input to 230V AC output. It is suited to commercial and industrial applications that need clean AC power from a DC battery system, including mobile, backup, and off-grid power setups. This AU version is supplied with an Australian socket configuration.

Yes. The NTS-3200-224AU provides true sine wave AC output with total harmonic distortion below 3%, which is useful where stable, low-distortion output is required. That makes it a better fit for sensitive loads than inverter types that do not specify true sine wave performance.

This model is rated for 24V DC input and 230V AC output, with a continuous power rating of 3200W. It also supports high surge power up to 6400W for short-duration startup demands. The AC output voltage and frequency are selectable by DIP switch within the ranges listed in the specification.

Yes. Mean Well specifies the NTS-3200-224AU as suitable for both lead-acid and li-ion battery systems. It also includes battery over-discharge protection with low voltage disconnect to help protect the connected battery source.

This model is built for wide-temperature operation and is specified up to 70C, with conformal coating for added durability. It also uses a temperature-controlled cooling fan, which helps manage thermal performance under changing load and ambient conditions. These features make it more suitable for harsher operating environments than basic inverter designs.

The NTS-3200-224AU includes protection for short circuit, overload, and over voltage conditions. It also has battery over-discharge protection and overload temperature shutdown behavior that requires re-powering to recover. These protections are intended to help safeguard the inverter and the connected power system during abnormal conditions.

Yes. The NTS-3200-224AU supports remote power on-off control and has optional remote controller accessories including IRC1, IRC2, and IRC3, which are sold separately. It also supports RS-232 communication using the specified communication cable accessory, also sold separately.

Mean Well lists the NTS-3200-224AU with approvals including IEC62368-1, EN62368-1, UL458, E13, EAC TP TC 004, and AS/NZS 62368.1. EMC-related compliance includes EN55032 Class A and EN61000-4-2, -3, and -8. For buyers in regulated commercial projects, these published approvals can help with product screening and specification review.
