Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

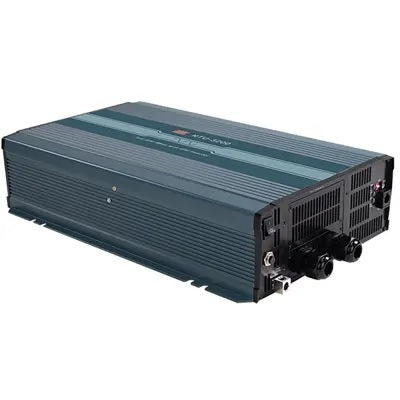

Mean Well NTS-3200-248AU True Sine Wave DC-AC Inverter 3200W 230V out 48V in with AU Socket

3200W48V80A50HzAU Socket

SKU:

NTS-3200-248AU

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The NTS-3200 is a 3200W Mean Well power converter (input range: 10~16.5Vdc).

Key Features

✓ Input voltage range: 10~16.5Vdc
✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
✓ Remote ON/OFF control
✓ Safety approvals: CB IEC62368-1,Dekra Seal BS EN/EN62368-1,UL458, E13,EAC TP TC 004,AS/NZS 62368.1
✓ 3 years warranty

Frequently Asked Questions

What kind of output waveform does the Mean Well NTS-3200-248AU provide?

This model provides a true sine wave AC output with total harmonic distortion below 3%. That makes it a better fit for equipment that needs cleaner power than modified sine wave inverters can provide.

What are the input and output power details for the NTS-3200-248AU?

The NTS-3200-248AU is a 3200W DC-AC inverter designed for 48V DC input and 230V AC output. It also supports high surge power up to 6400W for short-duration demand.

Is this inverter suitable for demanding commercial or mobile power applications?

Yes. With 3200W continuous power, true sine wave output, and up to 6400W surge capacity, it is suited to professional applications where stable AC output is important. Buyers commonly consider this class of inverter for vehicles, field systems, and off-grid business equipment.

Can the NTS-3200-248AU work with different battery chemistries?

Yes. Mean Well specifies this model as suitable for both lead-acid and lithium-ion battery systems. That gives B2B buyers flexibility when standardizing across different DC power platforms.

What protection features are included in this inverter?

This model includes protection for short circuit, overload, over voltage, and battery over-discharge through low-voltage disconnect. It also includes overload shutdown behavior and requires re-powering on to recover after protection is triggered.

Is the NTS-3200-248AU designed for harsh operating environments?

Yes. It is rated for operation up to 70°C, uses a temperature-controlled cooling fan, and includes conformal coating for added durability. These features make it better suited to tougher industrial and mobile environments than basic indoor-only inverter designs.

Does this model support voltage or frequency selection and remote monitoring options?

Yes. The AC output voltage and frequency are selectable by DIP switch, and the unit supports optional remote controllers and RS-232 communication accessories. Those options can be useful for commercial users who want more control and status visibility around the inverter.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Waveform	Frequency
Mean Well NTS-3200-224AU True Sine Wave DC-AC Inverter 3200W 230V out 24V in with AU Socket	3200W	230V	True Sine Wave	50Hz	View
Mean Well NTS-3200-212AU True Sine Wave DC-AC Inverter 3200W 230V out 12V in with AU Socket	3200W	230V	True Sine Wave	50Hz	View
