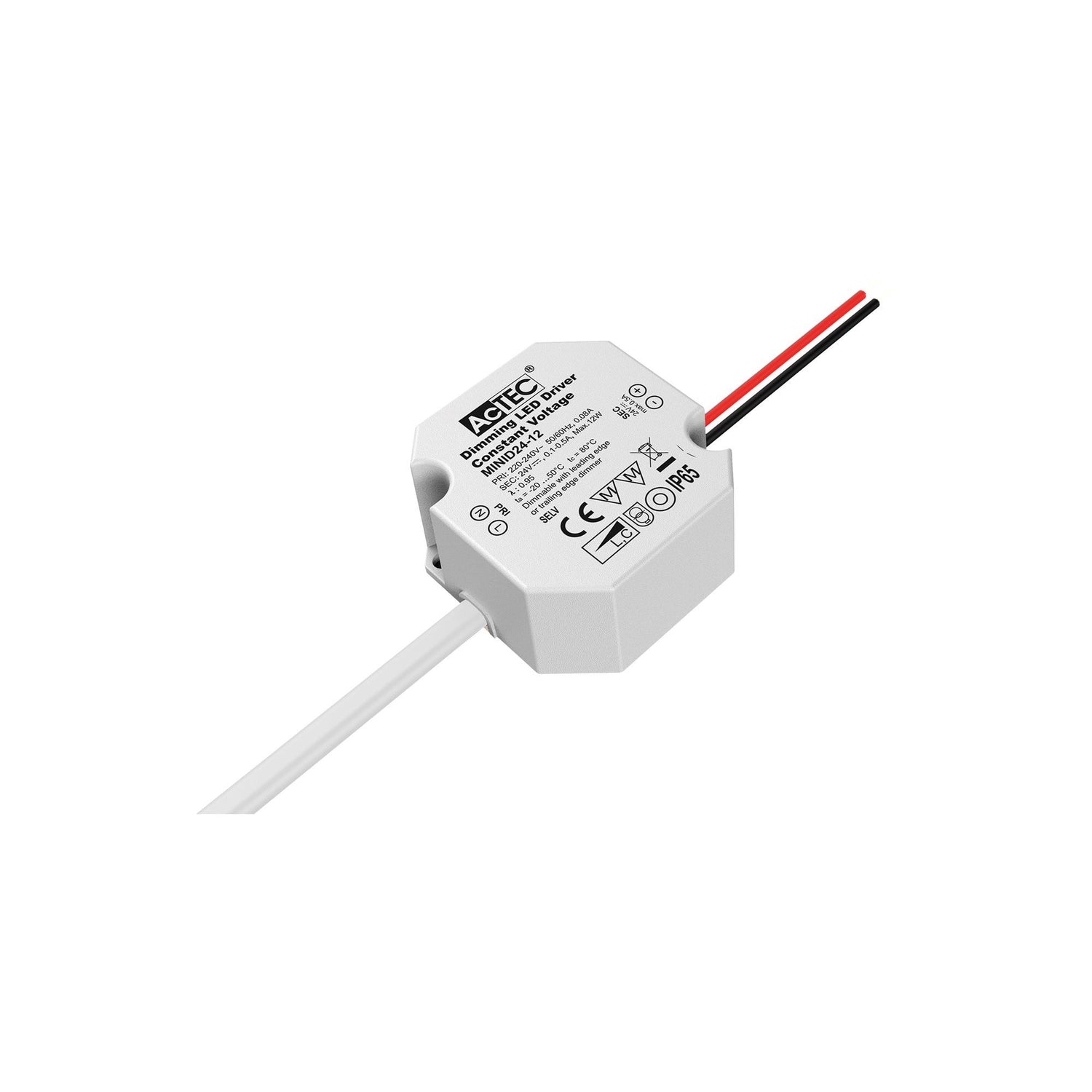

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC MINID12-12 Triac Dimmable Driver 12W 12V IP65 Mini Size 80mA

super compact design, flicker-free, protection class II

SKU:

MINID12-12

Please for Pricing

Notify me when it's back in stock

Description

Features:

Super compact design
Dimmable constant voltage driver
Analogue flicker-free
Dimming with leading edge or trailing edge dimmer
Smooth dimming compatible with most dimmer
Dimming range 1…100%
Primary and secondary sides come with leads
Protections: opencircuit, shortcircuit, overload, over temperature
SELV equivalent
Protection class II

General Specification

AC input voltage range

198 – 264 V

AC inrush current (max.)

5 (th = 100 μs)

Surge transient protection

0.5 (L/N acc to. EN 61547 Clause 5.7)

Over temperature

Yes

Over load

Yes

No load

Yes

Short-circuit

Yes

Ambient temperature range ta

°C -20 …+50

Safety standards

EN 61347-1 EN 61347-2-13 EN 62384 EN 55015 EN 61000-3-2 EN 61000-3-3 EN 61547 EN 60598-1 EN 50581 (EU) 2019/2020

Dimension (LxWxH)

50 x 48 x 24 mm (L*W*H)

Specifications

Brand

AcTEC
Series

AcTEC MINID Series
Power Rating

12 Watt
Output Voltage

12 Volt
Rated Current

0.08 Ampere
Input Voltage

220V~240V
Standards Met

EN,SELV
Operation Mode

Constant Voltage
Operating Temperature

90°C~-20°C
Warranty

5 Year
Length

5 cm
Width

4.8 cm
Height

2.4 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What type of LED applications is the AcTEC MINID12-12 designed for?

The MINID12-12 is a 12V constant voltage dimmable LED driver for low-power lighting applications that need up to 12W output. Its compact size and IP65 rating make it suitable for installations where space is limited and added protection against dust and water is important.

Is the AcTEC MINID12-12 dimmable, and what kind of dimmers does it support?

Yes, this model is dimmable and supports both leading edge and trailing edge dimmers. It is described as analogue flicker-free and offers a 1 to 100% dimming range for smooth light control.

What are the main electrical specifications of the MINID12-12?

This driver has a rated output of 12W at 12V constant voltage. Its AC input voltage range is 198 to 264V, which suits standard mains supply conditions in markets using that voltage range.

Can the MINID12-12 be used in demanding environments?

Yes, the unit is rated IP65 and has an ambient temperature range of -20 to +50°C. That makes it a practical option for environments where moisture resistance and stable operation across a wide temperature range are needed.

What protections are built into the AcTEC MINID12-12 driver?

The MINID12-12 includes protection for open circuit, short circuit, overload, over temperature, and no-load operation. These built-in protections help support reliability in professional LED lighting applications.

How compact is the MINID12-12 compared with typical LED drivers?

This model is positioned as a super compact mini-size driver, measuring 50 x 48 x 24 mm. That smaller form factor can make it a better fit than larger drivers when enclosure space is tight.

What compliance and safety standards does the MINID12-12 meet?

The product lists compliance with standards including EN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547, EN 60598-1, and EN 50581. It is also described as SELV equivalent and Protection Class II.

What warranty is offered for the AcTEC MINID12-12?

This model includes a 5-year warranty period. That is useful for buyers who want longer-term coverage for commercial or project-based LED installations.

Model	Power	Voltage	Current	IP Rating
AcTEC MINID24-12 Triac Dimmable Driver 12W 24V IP65 Mini Size 80mA	12W	24V	0.08A	IP65	View
