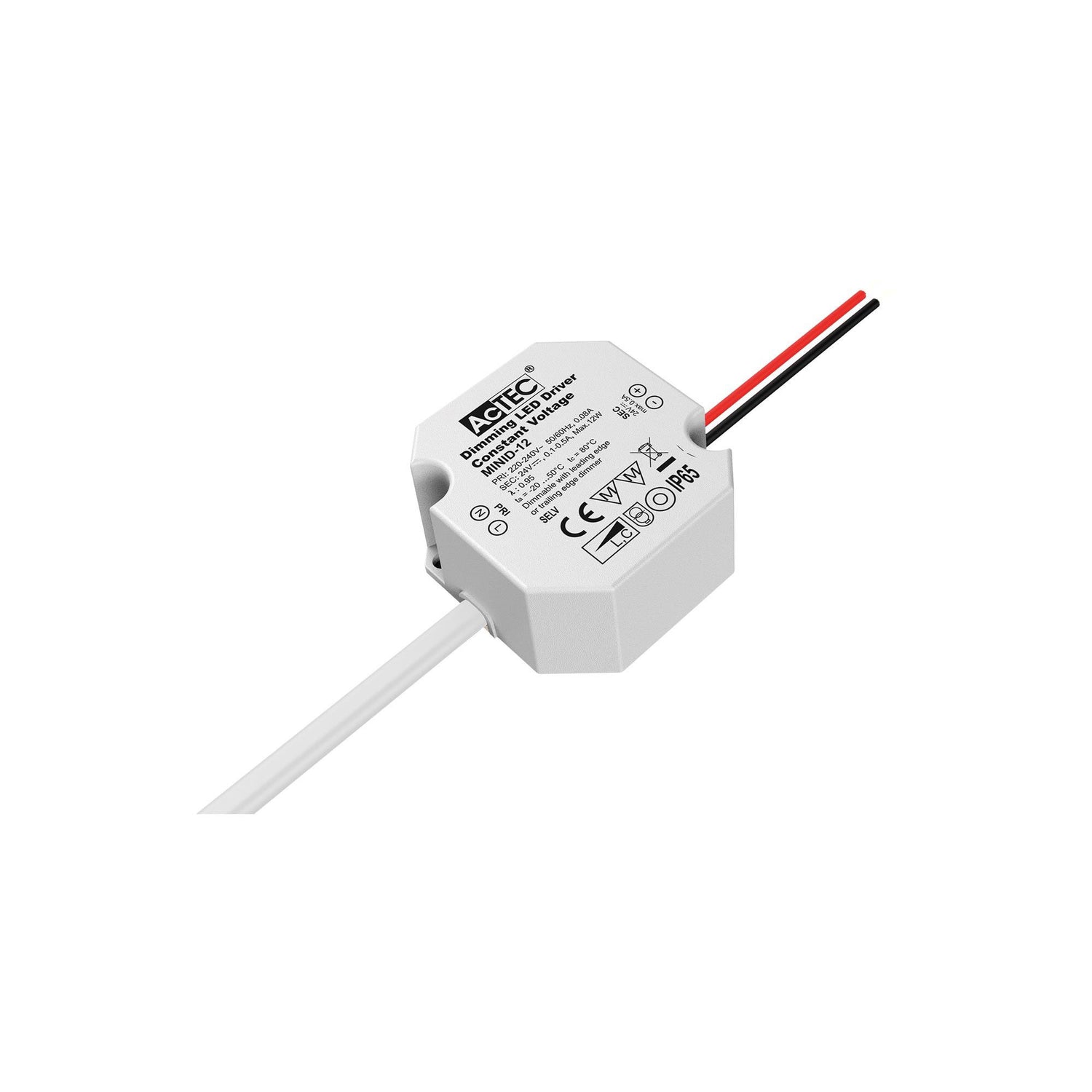

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

AcTEC MINID24-12 Triac Dimmable Driver 12W 24V IP65 Mini Size 500mA

minimum load 2.4Wsuper compact designflicker-freeprotection class II

SKU MINID24-12

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

The AcTEC MINID24-12 is a super-compact 12W, 24V constant voltage triac dimmable LED driver in an IP65 housing, designed for smooth flicker-free dimming from leading edge or trailing edge wall dimmers. It delivers a regulated 24V DC output at up to 500mA and dims across the full 1…100% range.

Accepting 220–240VAC mains (198–264V range, DC input compatible 176–250V DC), the MINID24-12 runs at up to 82% efficiency with a 0.95 power factor. It carries open circuit, short circuit, overload and over-temperature protection, is SELV isolated, and is rated for ambient temperatures of -20…+50°C. It requires a minimum load of 2.4W to run and dim correctly.

Key Features

✓Constant voltage output: 24V DC at up to 500mA (12W max)
✓Minimum load 2.4W — below this the driver may flicker or fail to start
✓Triac dimmable — works with leading edge or trailing edge dimmers
✓Analogue flicker-free, dimming range 1…100%
✓Nominal power range 2.4–12 W (0.1A–500mA output)
✓Super compact: 50 × 48 × 24 mm, 98 g
✓IP65 rated, indoor or outdoor use, white plastic housing
✓AC input 220–240V (198–264V range), 50/60Hz; DC input compatible 176–250V DC
✓Efficiency 82% at full load, power factor 0.95, THD ≤25%
✓Pre-wired leads both sides — 290mm input, 305mm output
✓Protections: open circuit, short circuit, overload, over temperature
✓SELV galvanic isolation, protection class II, max open-circuit voltage ≤27 Vdc
✓Ambient temperature range -20…+50°C (max case temp 80°C)
✓Inrush current 5 A pk (th = 100 μs); surge protection 0.5 kV (L/N)
✓Certification: CE

Frequently Asked Questions

What is the AcTEC MINID24-12 designed for?

The AcTEC MINID24-12 is a 24V constant voltage dimmable LED driver for low-power LED lighting applications. Its 12W output and compact mini-size design make it suited to installations where space is limited and smooth dimming is required.

Is this driver dimmable, and what type of dimmers does it support?

Yes, this model is dimmable and supports both leading edge and trailing edge dimmers. It is specified for smooth analogue flicker-free dimming across a 1 to 100% dimming range.

What are the main electrical specifications of the MINID24-12?

This driver is rated at 12W output with a 24V constant voltage output. The listed AC input voltage range is 198 to 264V, and the maximum AC inrush current is 5 at th = 100 microseconds.

Can this model be used in damp or exposed environments?

This driver is rated IP65, which indicates protection against dust ingress and water jets. It is also specified for an ambient temperature range of -20 to +50 degrees C, making it suitable for demanding environments within that range.

What protections are built into this LED driver?

The MINID24-12 includes protection for open circuit, short circuit, overload, and over temperature conditions. It is also listed as having no-load protection, which adds another layer of operating safety for the driver.

What makes this model different from larger LED drivers?

A key differentiator of the MINID24-12 is its very compact 50 x 48 x 24 mm housing. It combines mini-size dimensions with 24V constant voltage output, IP65 protection, and dimming support, which is useful where both space savings and dimming performance matter.

Does this driver include compliance and safety-related features for professional use?

Yes, this model is described as SELV equivalent and Protection Class II. It also lists compliance with multiple standards, including EN 61347-1, EN 61347-2-13, EN 62384, EN 55015, EN 61000 series requirements, EN 61547, EN 60598-1, EN 50581, and EU 2019/2020.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
AcTEC MINID12-12 Triac Dimmable Driver 12W 12V IP65 Mini Size 1A	12W	12V	0.08A	IP65	View
