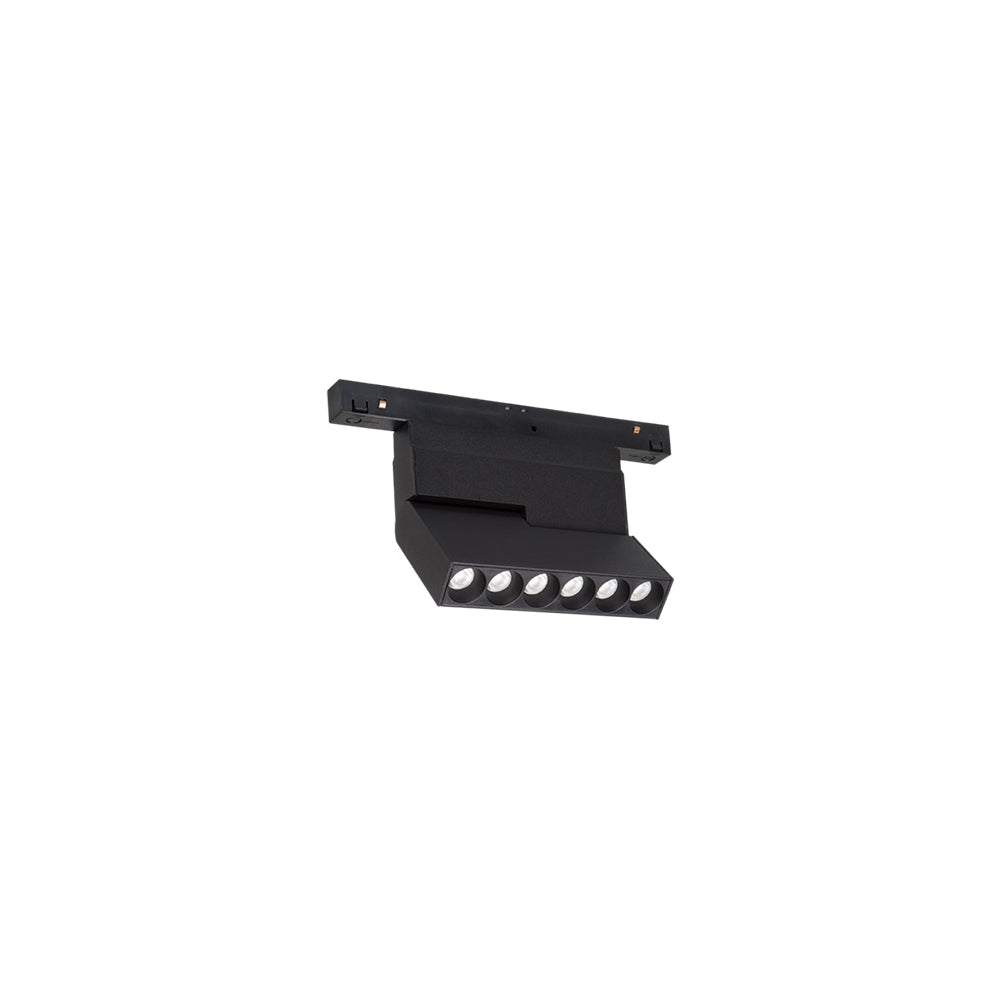

Archilight Bend 117C Black Track Light BLE 10W
Notify me when it's back in stock
Specifications
Specifications
- Order code
- KC-017007A06
- Input
- 48V
- Power rating
- 10W
- Beam angle
- 23° / 36° / 60°
- Brightness
- 910 lm
- Efficacy
- ≥90 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 2700K-6000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Adjustable 90°
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White, Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, Class II, IP20
Technical drawings
Downloads
Datasheet1
FAQ
What type of light is the Archilight Bend 117C Black Track Light BLE 10W?
This is a magnetic track light module from the Archilight Bend series with a modern rectangular spotlight design. It is designed for interior applications and is suited to residential, hospitality, office, and retail spaces. The product is intended to pair with Motion series track systems.
Where is this track light best used?
The Bend 117C is intended for indoor lighting projects where a clean, directional spotlight is needed. Its low-glare design and modern form make it suitable for commercial and residential environments, including hospitality, office, retail, and home interiors. It is a good fit for projects that need focused accent or display lighting.
What are the key performance specifications of this product family?
This parent model is rated at 10W and uses a 48V power input. It has a CRI greater than 90 for strong color rendering, a rated lifetime of 50,000 hours, and a 5-year warranty period. The listed variant in this family has a 36 degree beam angle.
Is the Archilight Bend 117C dimmable?
Yes, this track light supports dimming. The default configuration includes Bluetooth APP Control, while DALI control is available as an optional feature. This allows for flexible integration into various smart lighting or commercial control systems.
Does this track light include a driver?
No, the product data indicates that the driver is not included. This is an important specification detail for commercial quoting and project planning. The fitting should be assessed as part of a complete track lighting system rather than as a standalone all-in-one fixture.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Bend 117C Series Models
2 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Bend 117C White Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
| Archilight Bend 117C Black Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
