Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

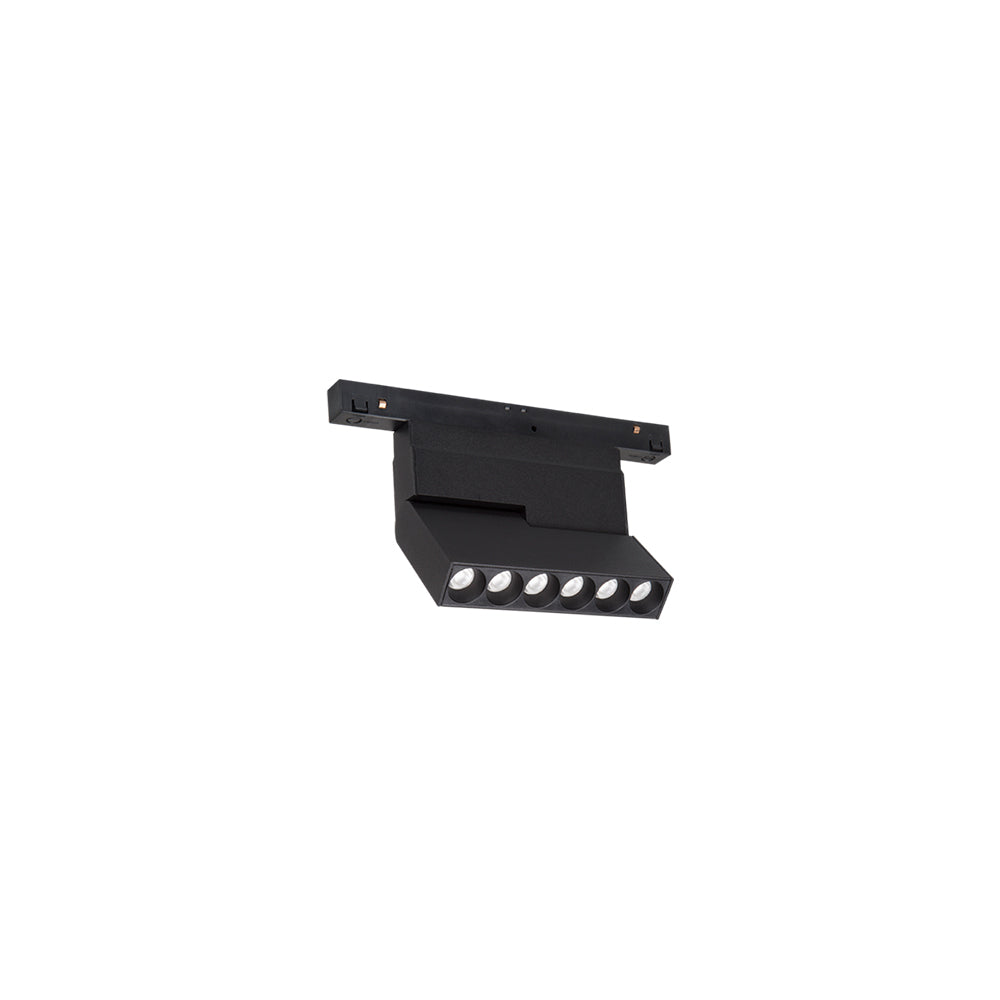

Archilight Bend 117C Black Tracklight Light 10W

SKU KC-017007A06-23D-2700K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017007A06-23D-2700K-B

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Bend 117C Black Tracklight Light 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017007A06-23D-2700K-B	23°	Warm White 2700K
KC-017007A06-23D-3000K-B	23°	Warm White 3000K
KC-017007A06-23D-4000K-B	23°	Natural White 4000K
KC-017007A06-36D-2700K-B	36°	Warm White 2700K
KC-017007A06-36D-3000K-B	36°	Warm White 3000K
KC-017007A06-36D-4000K-B	36°	Natural White 4000K
KC-017007A06-60D-2700K-B	60°	Warm White 2700K
KC-017007A06-60D-3000K-B	60°	Warm White 3000K
KC-017007A06-60D-4000K-B	60°	Natural White 4000K

Specifications

Input: 48V
Power rating: 10W
Brightness: 910 lm
Efficacy: ≥90 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Adjustable 90°
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

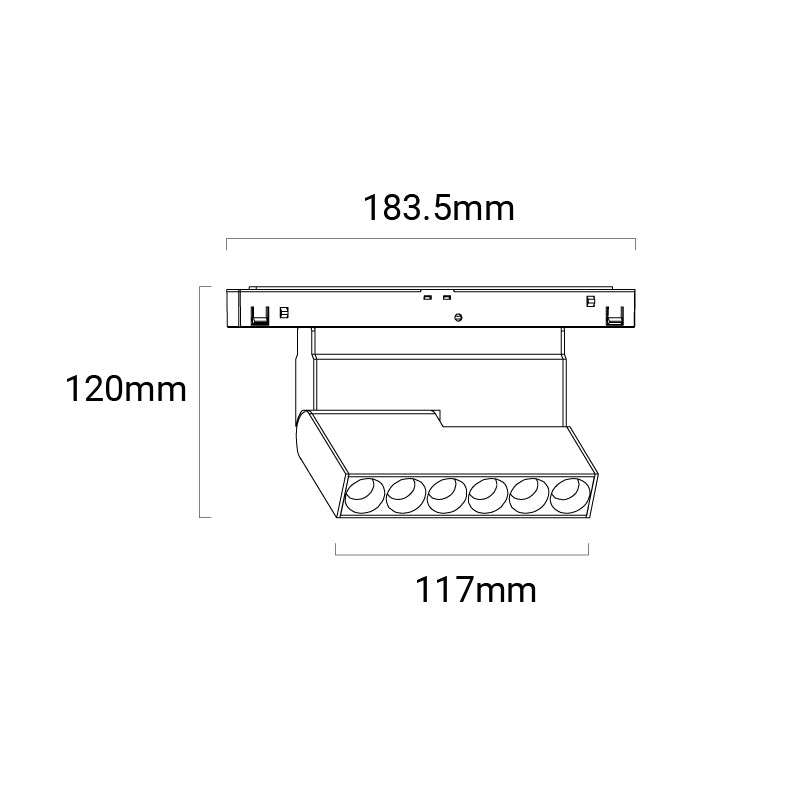

Archilight Bend 117C Black Tracklight Light 10W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Bend 117C Black Tracklight Light 10W datasheetBend_117C.pdf PDF Download

FAQ

What type of light is the Archilight Bend 117C Black Tracklight Light 10W?

This product is a 10W magnetic track light module from the Bend series with a tiltable rectangular spotlight design. It is made for use with Motion series track systems and is positioned for interior lighting applications where a clean, modern look is required.

What beam angles are available across this Bend 117C family?

This parent family is available in 23 degree, 36 degree, and 60 degree beam angles. That gives buyers narrow, medium, and wider distribution options depending on whether the goal is accent lighting, focused task lighting, or broader general illumination.

What colour temperature options are offered for this parent product?

The Bend 117C Black Tracklight Light 10W family is offered in 2700K, 3000K, 4000K, and 5000K variants. These options let you choose from warmer ambient light through to cooler, more neutral commercial-style light while staying within the same product family.

What are the light output and colour rendering specifications?

Across the listed variants, this family delivers 850 lumens and a CRI of 90. A CRI of 90 indicates strong colour rendering, which makes it suitable for residential, hospitality, office, and retail environments where visual quality matters.

Is a driver included with the Archilight Bend 117C 10W track light?

No, the listed product data shows that the driver is not included. It is also specified as a 48V power input product, so buyers should confirm system compatibility at the track system level before purchase.

Is this Bend 117C track light dimmable?

The product data for this family lists dimming control as none. That means these variants should be treated as non-dimmable unless a separate project-level system specification confirms otherwise.

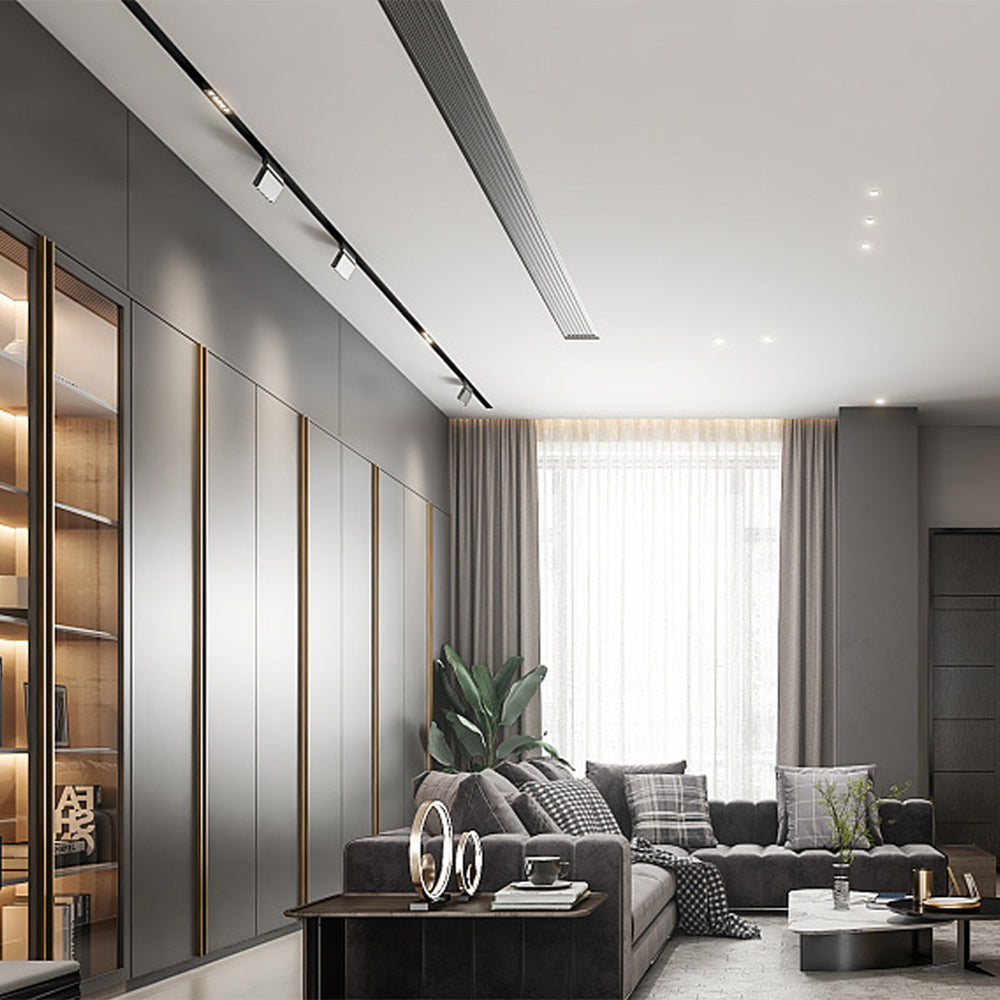

Where is this track light typically used?

The Bend series is described for use in residential, hospitality, office, and retail applications. Its low glare rating, high CRI, and choice of beam angles make it suitable for interior spaces that need controlled, visually comfortable accent or general lighting.

What are the physical size, lifespan, and warranty details for this product family?

The parent model dimensions are 183.5 mm long, 117 mm wide, and 120 mm high, with a listed weight of 0.5 kg. This family is rated for a 50,000 hour lifetime and includes a 5 year warranty period.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Bend 117C Black Track Light BLE 10W	10W	90	Optional	19	View
Archilight Bend 117C White Tracklight Light 10W	10W	90	Non Dimmable	19	View
