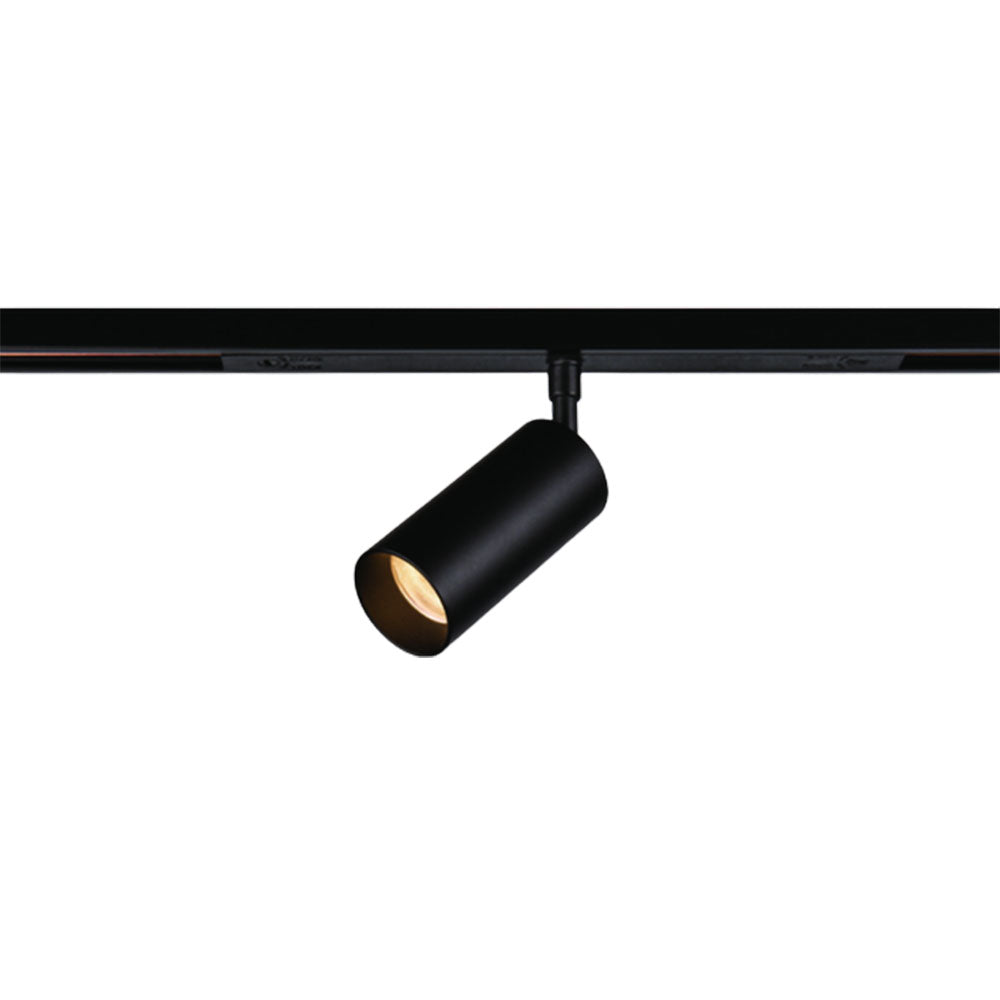

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold

SKU KC-10.002A01-15D-3000K-BG

Log in to see price Trade pricing & online ordering for account holders

Configure — 8 variants

KC-10.002A01-15D-3000K-BG

LED Colour

Beam Angle

8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Technical drawings

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini A surface — XS TRACK Mini A surface

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini A surface (2) — XS TRACK Mini A surface (2)

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini A surface (3) — XS TRACK Mini A surface (3)

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini O suspended — XS TRACK Mini O suspended

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini O suspended (2) — XS TRACK Mini O suspended (2)

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold CURVED TRACK Mini AC — CURVED TRACK Mini AC

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold CURVED TRACK Mini AC (2) — CURVED TRACK Mini AC (2)

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold XS TRACK Mini A / Mini O / Mini T — XS TRACK Mini A / Mini O / Mini T

Downloads

Datasheet1

Archilight Dot Mini 28 Track Light 5.3W - Black + Gold datasheetdot_28_spec_sheet.pdf PDF Download

FAQ

What type of product is the Archilight Dot Mini 28 Track Light 5.3W?

The Archilight Dot Mini 28 is a compact LED light module designed for use within the Archilight Mini track system. It is part of the Mini-series, which is built around an ultra-thin, minimalist aesthetic for interior track lighting applications. This parent model is offered in a black and gold finish.

What beam angle options are available in this parent product family?

This parent family is available in 15 degree, 24 degree, 36 degree, and 50 degree beam angle variants. These options let buyers choose between narrower accent lighting and broader light spread depending on the application. Beam angle differences are supported by the child variants in this family.

What colour temperature options are available for this track light family?

The family includes 3000K and 4000K options, plus variants listed as 2700-6000K. That means buyers can select between warmer and more neutral white light options within the same parent range. Availability depends on the specific child variant selected.

What are the main performance specifications of the Archilight Dot Mini 28?

This product family is rated at 5.3W and delivers 461 lumens in the listed child variants. It has a CRI of 90, a rated lifetime of 50,000 hours, and a 5-year warranty period. These specifications make it suitable for quality-focused interior lighting projects.

Is a driver included with the Archilight Dot Mini 28 Track Light?

No, the parent model is listed as driver not included. It is also specified as a 48V power input product. Buyers should account for compatible system components separately when planning the full track lighting setup.

Is this track light dimmable?

No, the parent model is specified with dimming control set to none. That means this family should be treated as non-dimmable based on the provided product data. If dimming is required, that would need to be checked against a different product family.

What kind of spaces is the Archilight Dot Mini 28 best suited for?

Based on the product description, this light is intended for dedicated interior spaces where the lighting effect should stand out more than the fitting itself. Its ultra-thin Mini-series design supports a clean, minimalist look while maintaining performance. It is well suited to architectural and commercial interior applications that use micro magnetic track systems.

Which track system styles is the Archilight Dot Mini 28 intended to pair with?

The product description lists Mini S Surface Tracks, Mini T Trimless Tracks, and Mini O Suspended Tracks as pairing options. These pairings indicate the parent family is designed to work across multiple Mini track presentation styles. This helps buyers keep a consistent lighting language across different interior conditions.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Dot Mini 28 Track Light 5.3W - White + Gold	5.3W	90	Non Dimmable	19	View
Archilight Dot Mini 28 Track Light 5.3W - White	5.3W	90	None	19	View
Archilight Dot Mini 28 Track Light 5.3W - Black	5.3W	90	None	19	View
