Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

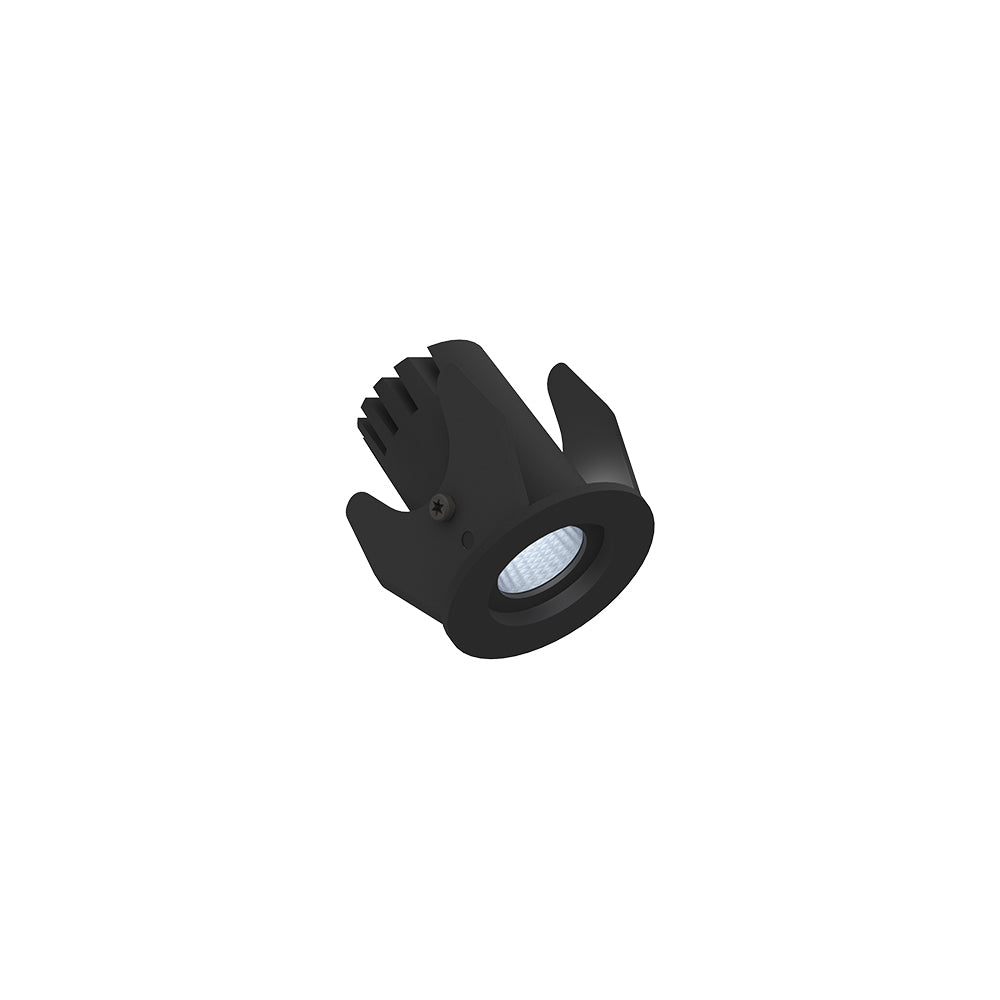

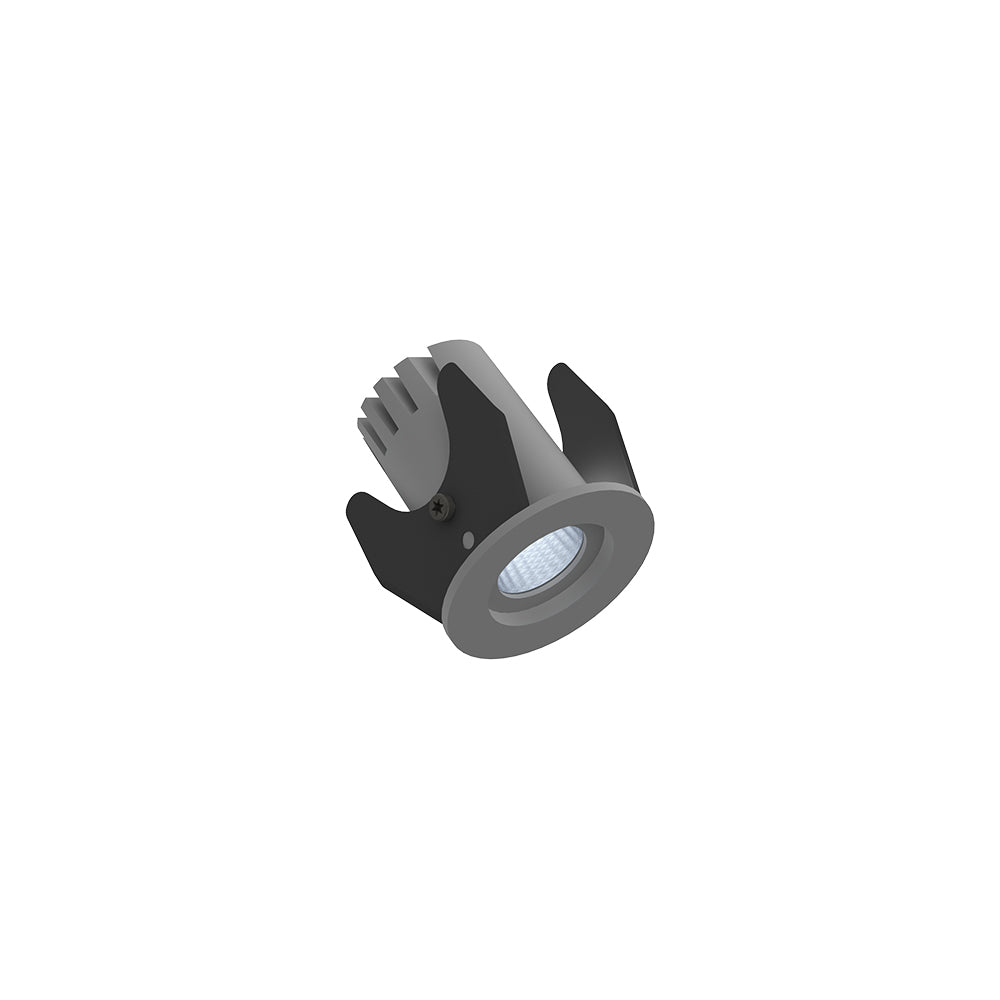

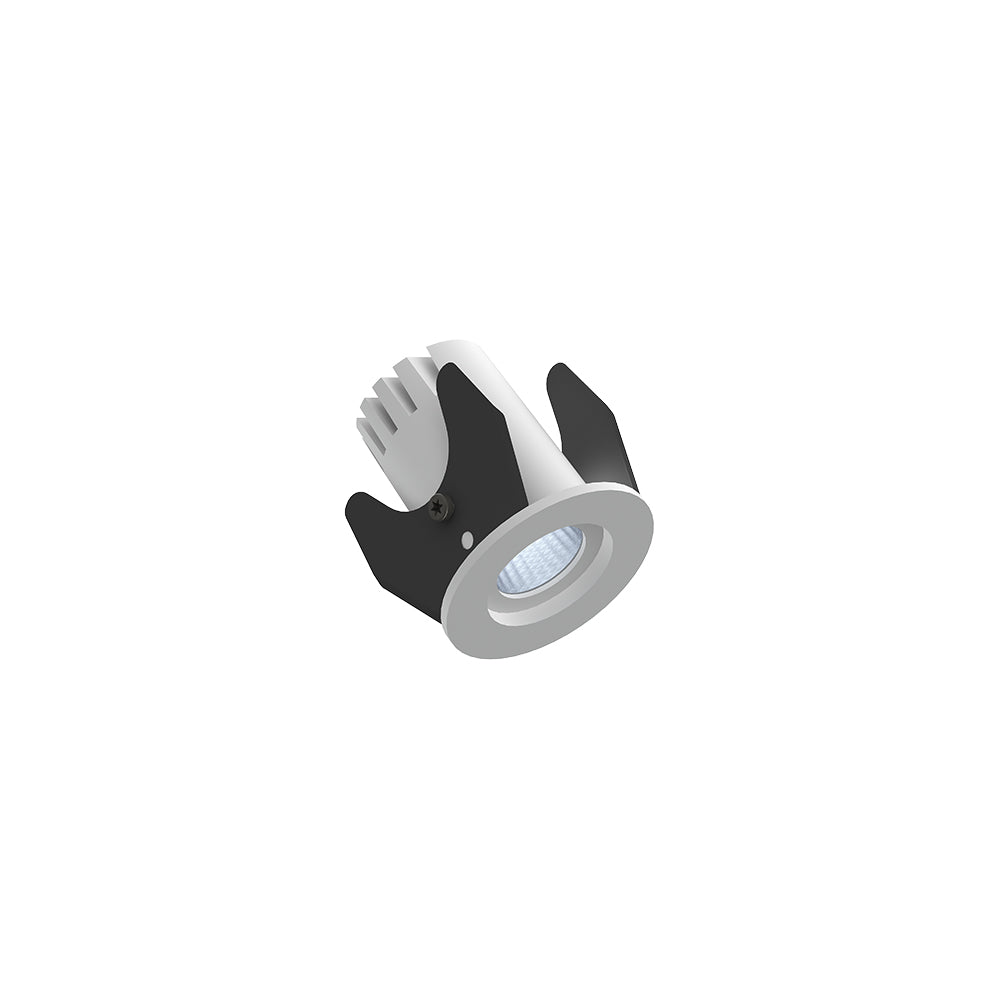

Archilight Fluxe35 Series 4.5W Downlight

SKU 925303BL0211

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

925303BL0211

LED Colour

Finish Colour

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Recessed Downlight

Specifications

Archilight Fluxe35 Series 4.5W DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness	Finish Colour
925303BL0211	Natural White 4000K	425 lm	Black
925303BL7211	Warm White 3000K	400 lm	Black
925303GR0211	Natural White 4000K	425 lm	Grey
925303GR7211	Warm White 3000K	400 lm	Grey
925303MW0211	Natural White 4000K	425 lm	White
925303MW7211	Warm White 3000K	400 lm	White

Specifications

Input: 350mA
Power rating: 4.5W
Beam angle: 40°
Efficacy: ≥85lm/W
Colour render index(CRI): ≥82
UGR: <19
IP level: IP44
Temperature range: -20°C~45°C
Dimming control: Dimmable(Dimmer optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Not Included
Warranty: 7 years
Lifetime: 70,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

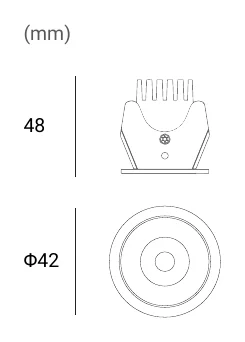

Archilight Fluxe35 Series 4.5W Downlight Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Fluxe35 Series 4.5W Downlight datasheetFLUXE_35.pdf PDF Download

FAQ

What type of product is the Archilight Fluxe35 Series 4.5W Downlight?

The Archilight Fluxe35 Series is a recessed LED downlight family for interior lighting applications. It is a compact 4.5W luminaire designed for projects that need a small fitting size, consistent light quality, and a clean architectural finish.

What options are available within the Fluxe35 family?

This parent family includes variants in three finish colors: black, grey, and white. It also includes two color temperatures, 3000K and 4000K, while the beam angle remains 40 degrees across the range.

How bright is the Archilight Fluxe35 Series 4.5W Downlight?

Brightness depends on the variant selected. The 3000K versions are rated at 400 lumens, while the 4000K versions are rated at 425 lumens.

Is the Fluxe35 downlight supplied with a driver, and is it dimmable?

The driver is not included with this product family. The fitting is optionally dimmable, so dimming capability depends on using a suitable external driver and compatible dimming control setup.

What are the main performance specifications of the Fluxe35 family?

All variants in this family are rated at 4.5W, CRI 82, and a 70,000-hour lifetime. Archilight also backs the range with a 7-year warranty, making it suitable for long-term commercial and residential projects.

What cut-out size does the Fluxe35 family use?

All listed variants use a 35 mm cut-out. That consistency makes it easier to compare finish and color temperature options within the family without changing the ceiling opening size requirement.

Is the Archilight Fluxe35 suitable for damp or splash-prone areas?

The product is rated IP44 only when installed in a closed ceiling and only for water splashes on the front side. That means its environmental protection is limited and should be evaluated based on the specific location and exposure conditions.
