Archilight Fluxe50 Series 4.5W Downlight
Log in to see priceSpecifications
Variants
| SKU | LED Colour | Brightness | Finish Colour |
|---|---|---|---|
| 865303BL0211 | Natural White 4000K | 425 lm | Black |
| 865303BL7211 | Warm White 3000K | 400 lm | Black |
| 865303GR0211 | Natural White 4000K | 425 lm | Grey |
| 865303GR7211 | Warm White 3000K | 400 lm | Grey |
| 865303MW0211 | Natural White 4000K | 425 lm | White |
| 865303MW7211 | Warm White 3000K | 400 lm | White |
Specifications
- Input
- 350mA
- Power rating
- 4.5W
- Beam angle
- 40°
- Efficacy
- ≥85lm/W
- Colour render index(CRI)
- ≥82
- UGR
- <19
- IP level
- IP20
- Temperature range
- -20°C~45°C
- Dimming control
- Dimmable(Dimmer optional)
- Tiltable
- Adjustable
- Mounting
- Recessed
- Driver
- Driver Not Included
- Warranty
- 7 years
- Lifetime
- 70,000hrs
- Material
- Die-Cast Aluminum
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F

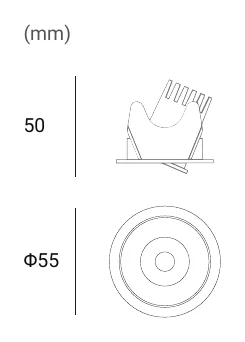

Technical drawings
Downloads
Datasheet1
FAQ
What are the main specifications shared across the Archilight Fluxe50 Series 4.5W Downlight family?
All variants in the Fluxe50 Series use 4.5W of power, have a CRI of 82, a 70,000-hour rated lifetime, and a 7-year warranty. The fixture body measures 55 x 55 x 45 mm and weighs 0.138 kg. Each version is designed as a compact recessed downlight in the same product family.
What variant choices are available in the Fluxe50 Series?

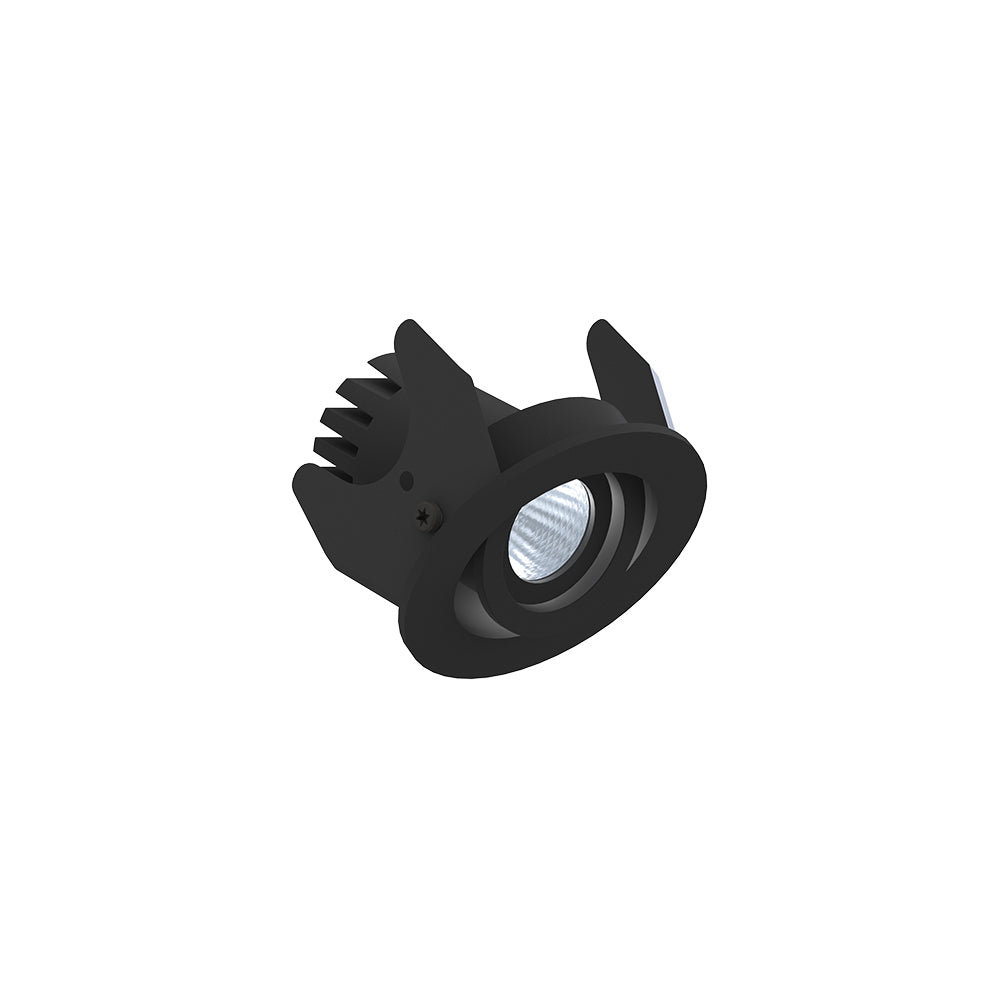

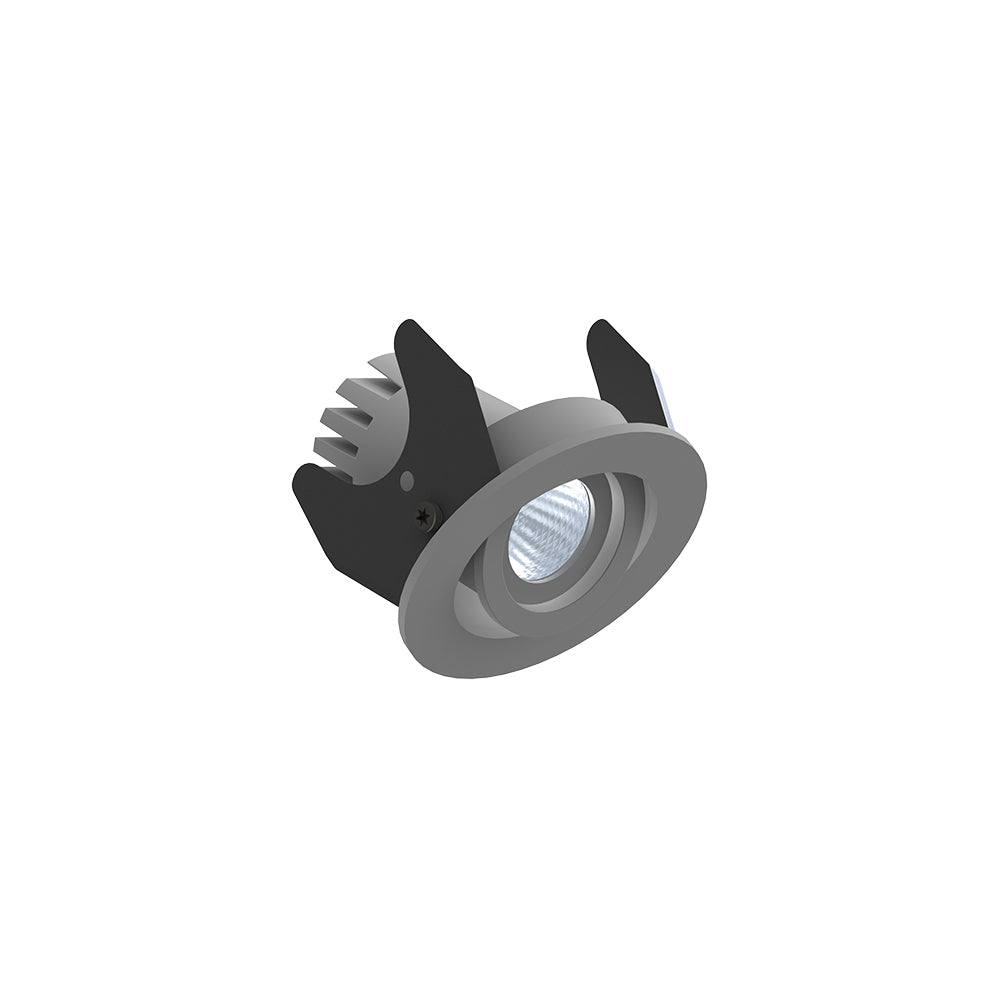

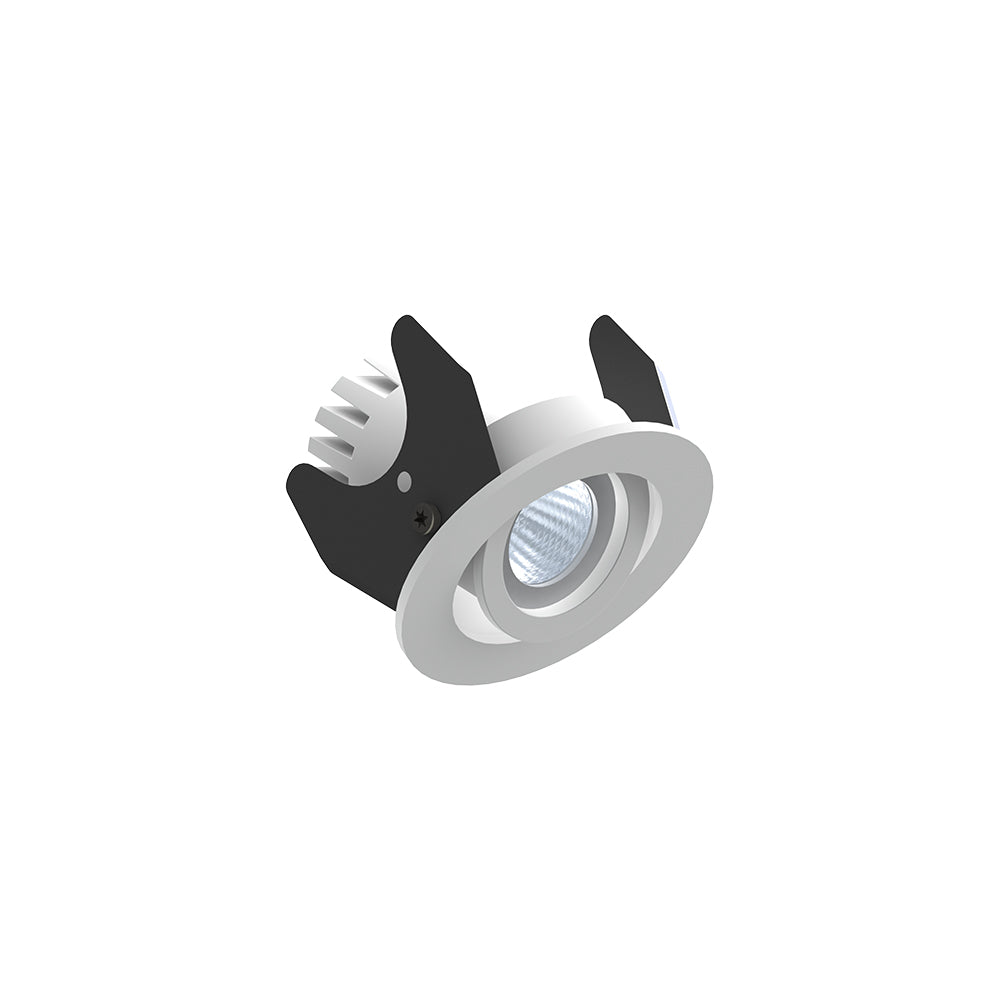

This parent model is offered in three finish colours: black, grey, and white. It is also available in two colour temperatures, 3000K and 4000K. Across the family, all variants keep the same 40 degree beam angle and 50 mm cut-out size.
How does the light output differ between the Fluxe50 Series variants?
The 3000K versions are listed at 400 lumens, while the 4000K versions are listed at 425 lumens. That means the cooler colour temperature option provides slightly higher brightness within this family. Other core specifications remain the same across those variants.
What cut-out size does the Archilight Fluxe50 Series require?
All listed variants in this family use a 50 mm cut-out, with both the minimum and maximum cut-out dimensions shown as 50 mm. This makes the series straightforward to compare at the parent level because the sizing is consistent. Buyers can focus on colour temperature and finish without changing the cut-out requirement.
Is a driver included with the Archilight Fluxe50 Series 4.5W Downlight?
No, the family data states that the driver is not included. The series is marked as optionally dimmable, so dimming capability depends on the driver and control setup selected for the project. For procurement, this means the downlight and driver should be considered as separate components.
Is the Fluxe50 Series suitable for areas exposed to moisture or splashing water?
The product description states that the fitting is IP44 only when installed in a closed ceiling, and only the front side may be exposed to water splashes. This means it is intended for interior applications where limited splash resistance is needed under the stated condition. It should not be described as broadly waterproof across the whole fixture.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Fluxe Series Models
1 other model| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight Fluxe35 Series 4.5W Downlight | 4.5W | 82 | Optional | 35 Millimeter | View |
