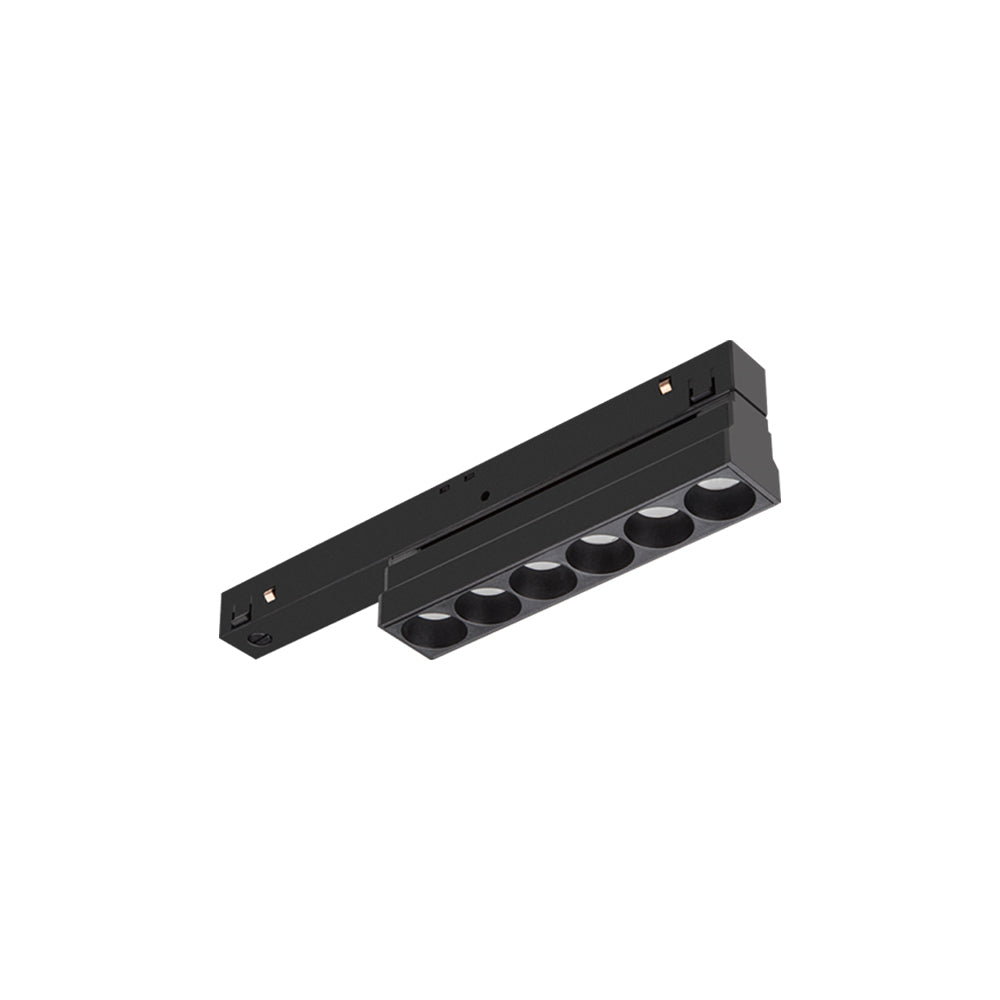

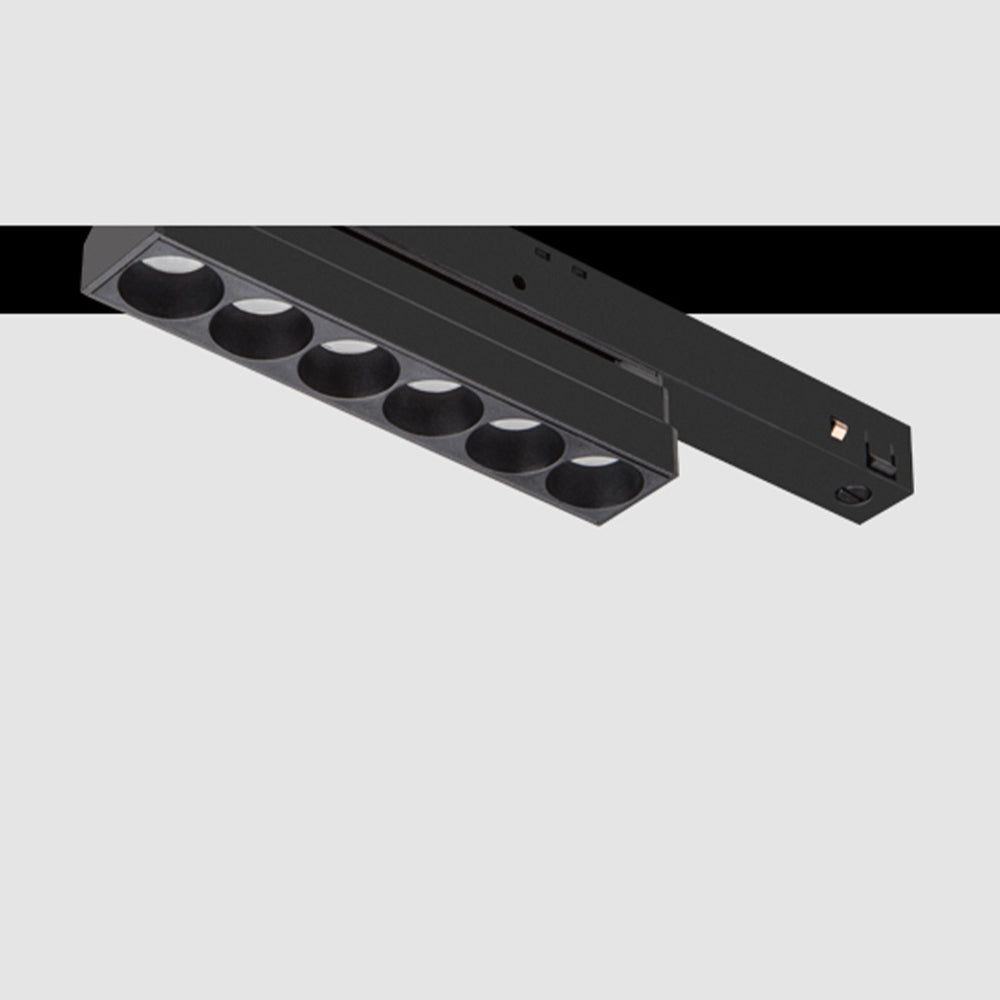

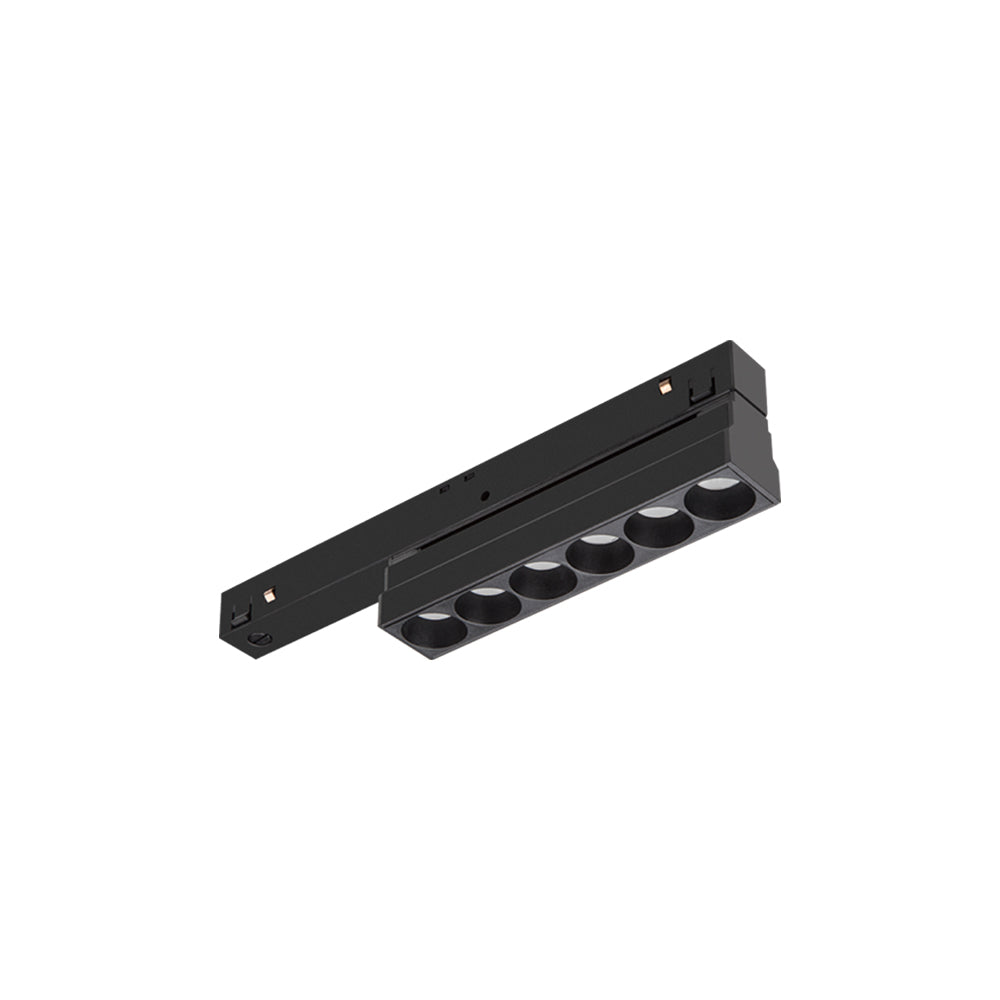

Archilight Grid 117 Black Tracklight Light 20W

SKU KC-017021A06-23D-2700K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017021A06-23D-2700K-B

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Grid 117 Black Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017021A06-23D-2700K-B	23°	Warm White 2700K
KC-017021A06-23D-3000K-B	23°	Warm White 3000K
KC-017021A06-23D-4000K-B	23°	Natural White 4000K
KC-017021A06-36D-2700K-B	36°	Warm White 2700K
KC-017021A06-36D-3000K-B	36°	Warm White 3000K
KC-017021A06-36D-4000K-B	36°	Natural White 4000K

Product Specifications

Input: 48V
Power rating: 10W
Brightness: 830 lm
Efficacy: ≥83 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Not Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, Class II

Technical drawings

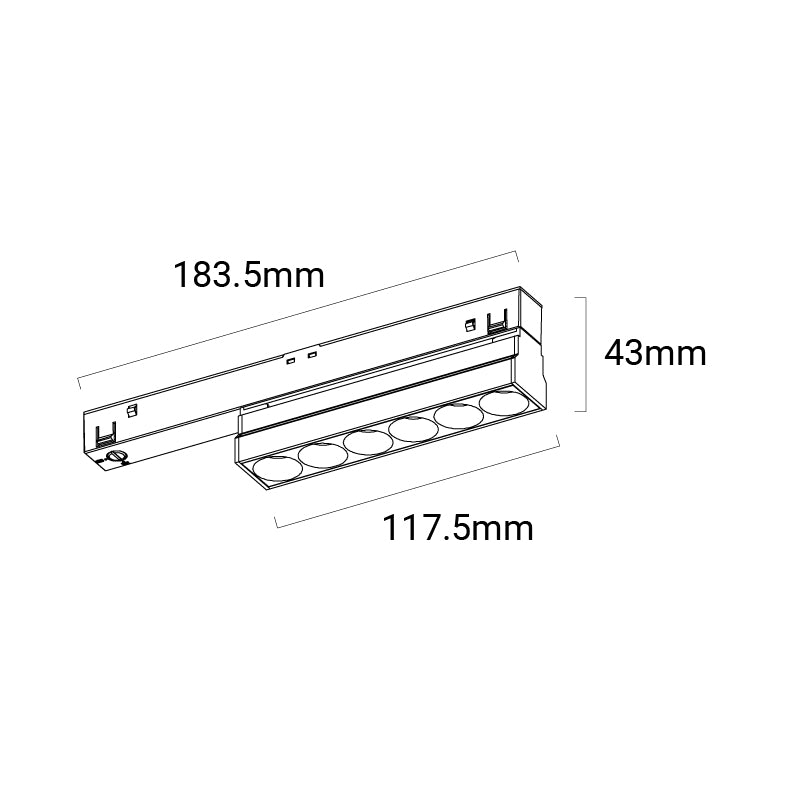

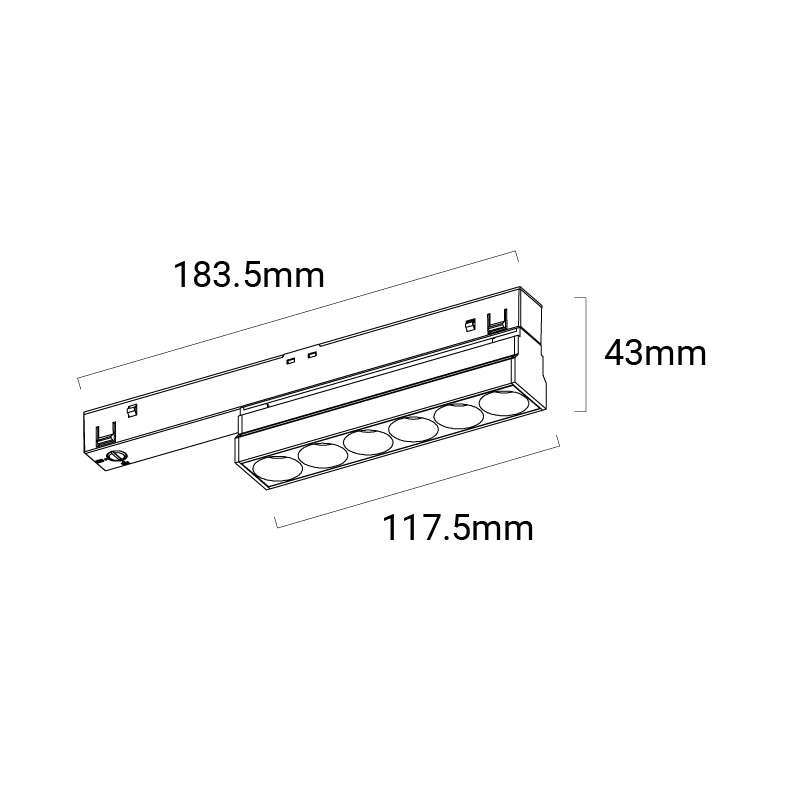

Archilight Grid 117 Black Tracklight Light 20W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Grid 117 Black Tracklight Light 20W datasheetGrid_117.pdf PDF Download

FAQ

What type of applications is the Archilight Grid 117 Black Tracklight Light suited to?

This magnetic track light is designed for interior applications including residential, hospitality, office, and retail spaces. Its flush, low-profile form helps it sit discreetly within the track, which suits projects where a clean ceiling line matters. The low glare rating and high CRI also make it appropriate for spaces that need comfortable, high-quality illumination.

What beam angle options are available across this parent product family?

This family is offered with 23 degree, 36 degree, and 60 degree beam angles. The narrower 23 degree option is better for more focused accent lighting, while 36 degree and 60 degree options provide progressively broader light spread. Beam angle selection is one of the main differences between the variants in this family.

What colour temperature options are available for this Grid 117 family?

Variants in this family are available in 2700K, 3000K, 4000K, and 5000K colour temperatures. This gives buyers a choice from warmer ambient tones through to cooler, cleaner white light depending on the project brief. Colour temperature is a variant-level choice, so the parent family covers all four options.

Does every variant have the same brightness and colour rendering performance?

Based on the variant data provided, each option in this family delivers 1600 lumens and has a CRI of 90. That means the main differences are beam angle and colour temperature rather than output or colour rendering quality. This consistency can simplify specification across a project.

Is a driver included, and is this product dimmable?

The listed product data shows that a driver is not included. It is also marked with no dimming control, so this family should be treated as non-dimmable based on the supplied specification. Buyers should account for that when reviewing project requirements.

What are the main physical and performance specifications of the parent model?

The parent model has dimensions of 183.5 mm long, 117.5 mm wide, and 43 mm high, with a listed weight of 0.5 kg. It uses a 48V power input, has a rated lifetime of 50,000 hours, and is backed by a 5-year warranty. These are core family specifications that support commercial and architectural lighting use.

What track system is this light compatible with?

The product description states that it pairs with Motion series track. That makes Motion series track the stated compatibility reference for this parent family. Compatibility should be assessed at the track-system level rather than by individual colour temperature or beam variants.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid 117 Black Track Light BLE 20W	10W	90	Optional	19	View
Archilight Grid 117 White Tracklight Light 20W	10W	90	Non Dimmable	19	View
