Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

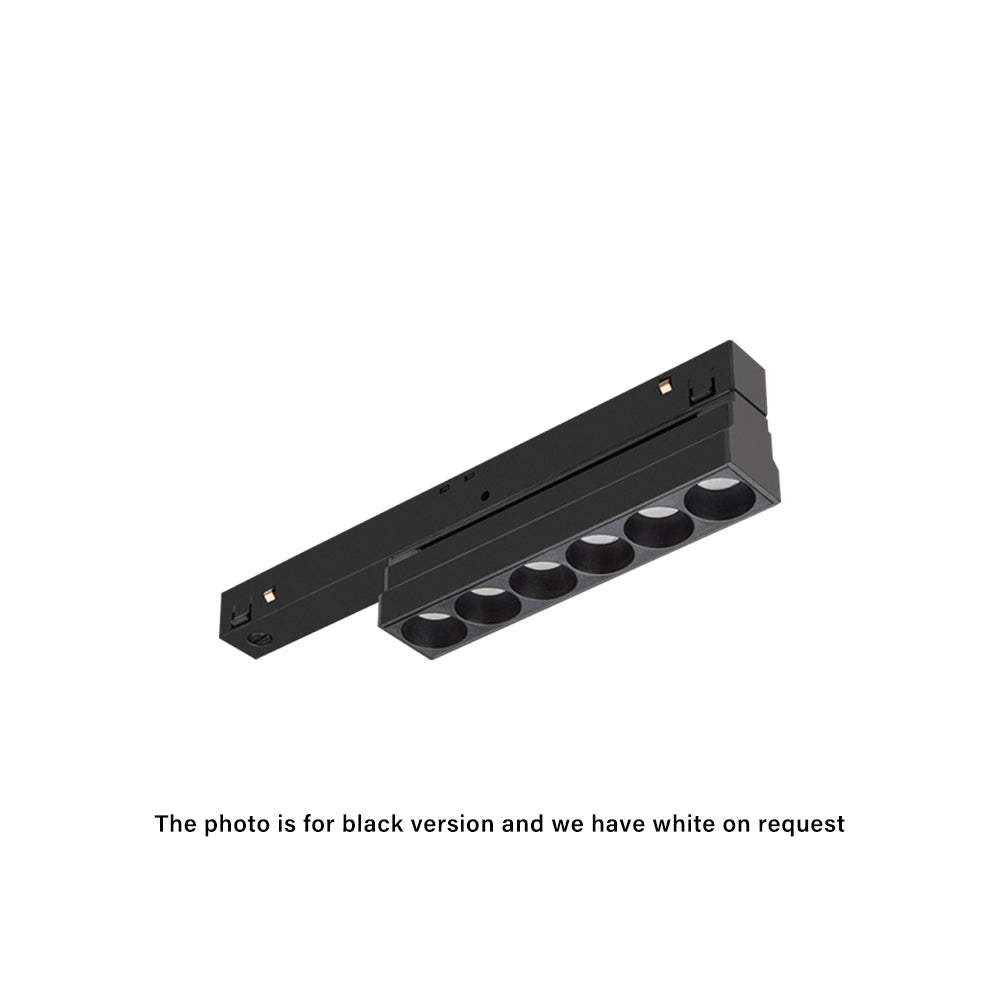

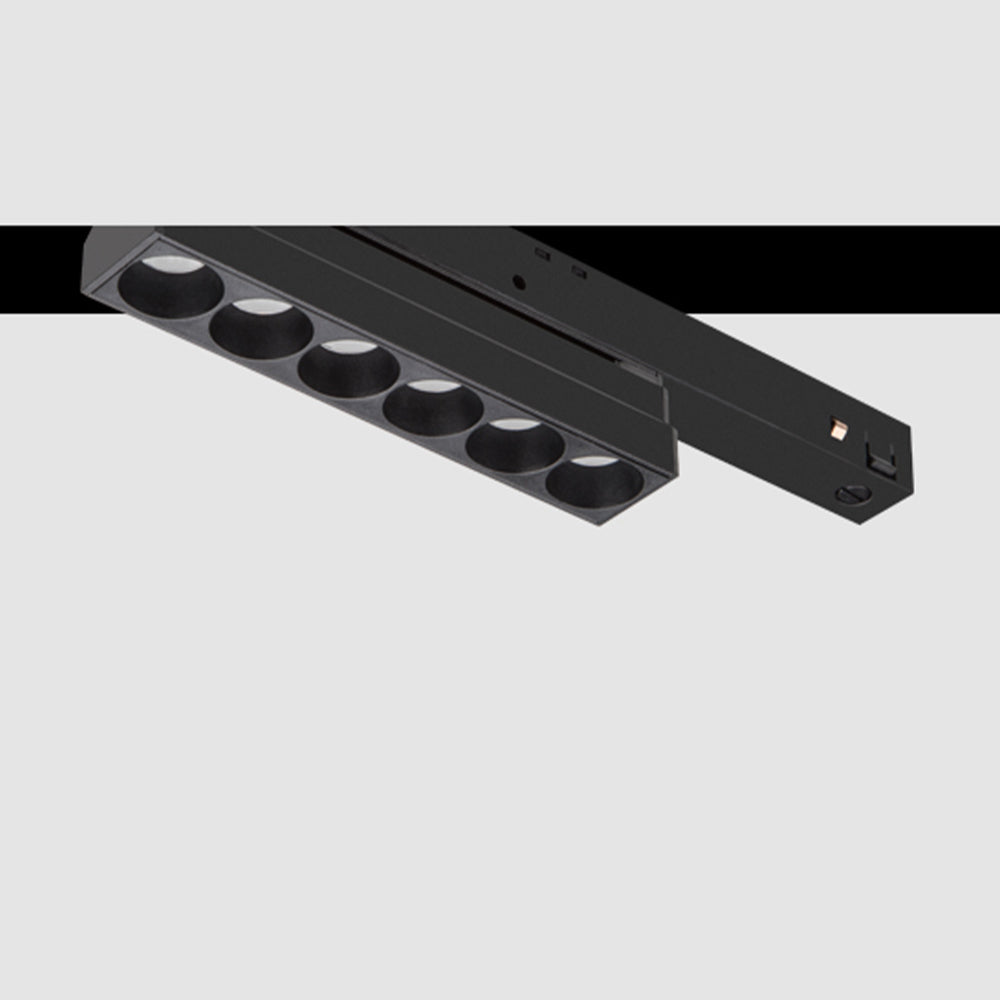

Archilight Grid 117 White Tracklight Light 20W

SKU KC-017021A06-23D-2700K-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017021A06-23D-2700K-W

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Grid 117 White Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017021A06-23D-2700K-W	23°	Warm White 2700K
KC-017021A06-23D-3000K-W	23°	Warm White 3000K
KC-017021A06-23D-4000K-W	23°	Natural White 4000K
KC-017021A06-36D-2700K-W	36°	Warm White 2700K
KC-017021A06-36D-3000K-W	36°	Warm White 3000K
KC-017021A06-36D-4000K-W	36°	Natural White 4000K

Product Specifications

Input: 48V
Power rating: 10W
Brightness: 830 lm
Efficacy: ≥83 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Not Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, Class II

Technical drawings

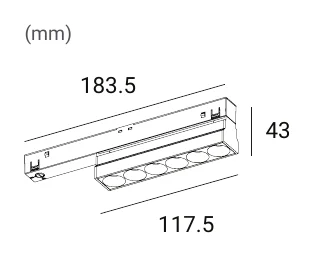

Archilight Grid 117 White Tracklight Light 20W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Grid 117 White Tracklight Light 20W datasheetGrid_117.pdf PDF Download

FAQ

What type of lighting applications is the Archilight Grid 117 White Tracklight Light suited to?

This magnetic track light is designed for interior applications across residential, hospitality, office, and retail spaces. Its flush-fitting rectangular form helps it sit discreetly within the track, making it a good choice where a clean, minimal ceiling appearance is important.

What beam angle options are available in this product family?

The parent family is available in 23 degree, 36 degree, and 60 degree beam angles. That gives buyers the ability to choose a narrower, medium, or wider light spread depending on the space and lighting layout.

What colour temperature options are available for the Grid 117 White family?

This family is offered in 2700K, 3000K, 4000K, and 5000K variants. These options allow the same fitting style to be specified for warmer or cooler lighting outcomes across different commercial and interior environments.

What are the key performance specifications of this magnetic track light?

Across the listed variants, the fitting delivers 1600 lumens with a CRI of 90 and a rated lifetime of 50,000 hours. The low glare rating of UGR below 19 also makes it suitable for spaces where visual comfort matters.

Is the driver included with the Archilight Grid 117 White Tracklight Light?

No, the driver is not included with this product family. The supplied product data also lists the dimming control as none.

Is this product compatible with Archilight Motion track systems?

Yes, the product description states that this Grid series light can be paired with any Motion series track. That makes it part of the broader Archilight magnetic track system range rather than a standalone fitting.

What are the physical dimensions of the parent product model?

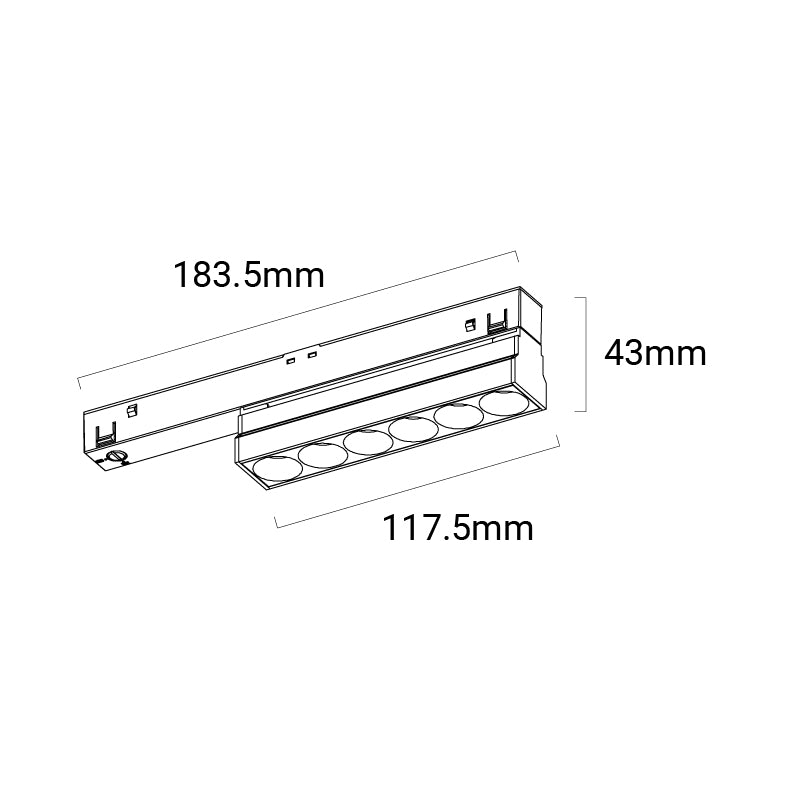

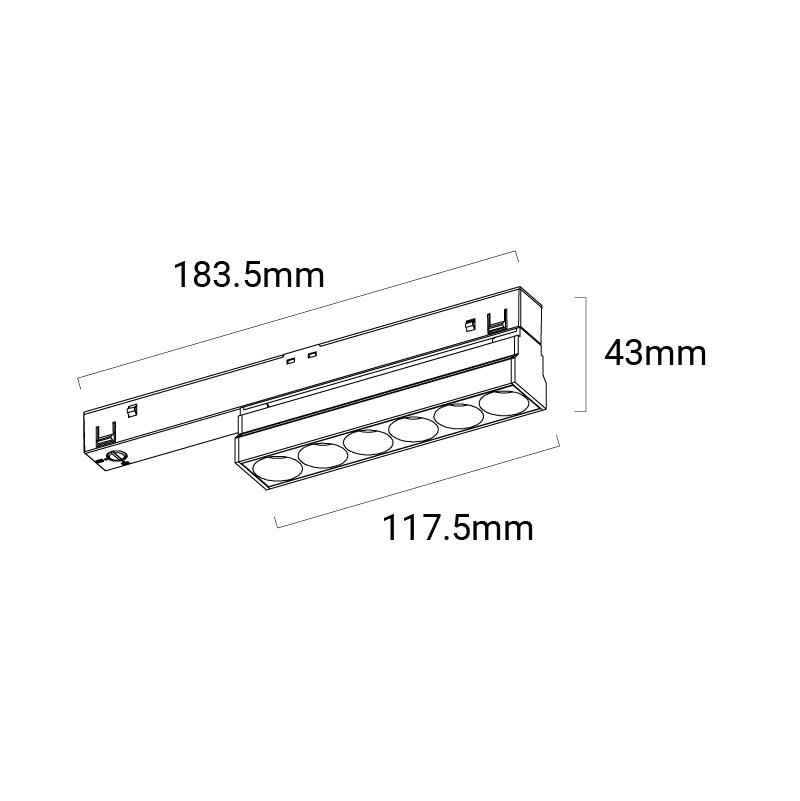

The parent model is listed at 183.5 mm long, 117.5 mm wide, and 43 mm high, with a weight of 0.5 kg. These dimensions help when assessing whether the fitting suits the intended track layout and visual scale of the project.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid 117 Black Track Light BLE 20W	10W	90	Optional	19	View
Archilight Grid 117 Black Tracklight Light 20W	10W	90	Non Dimmable	19	View
