Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

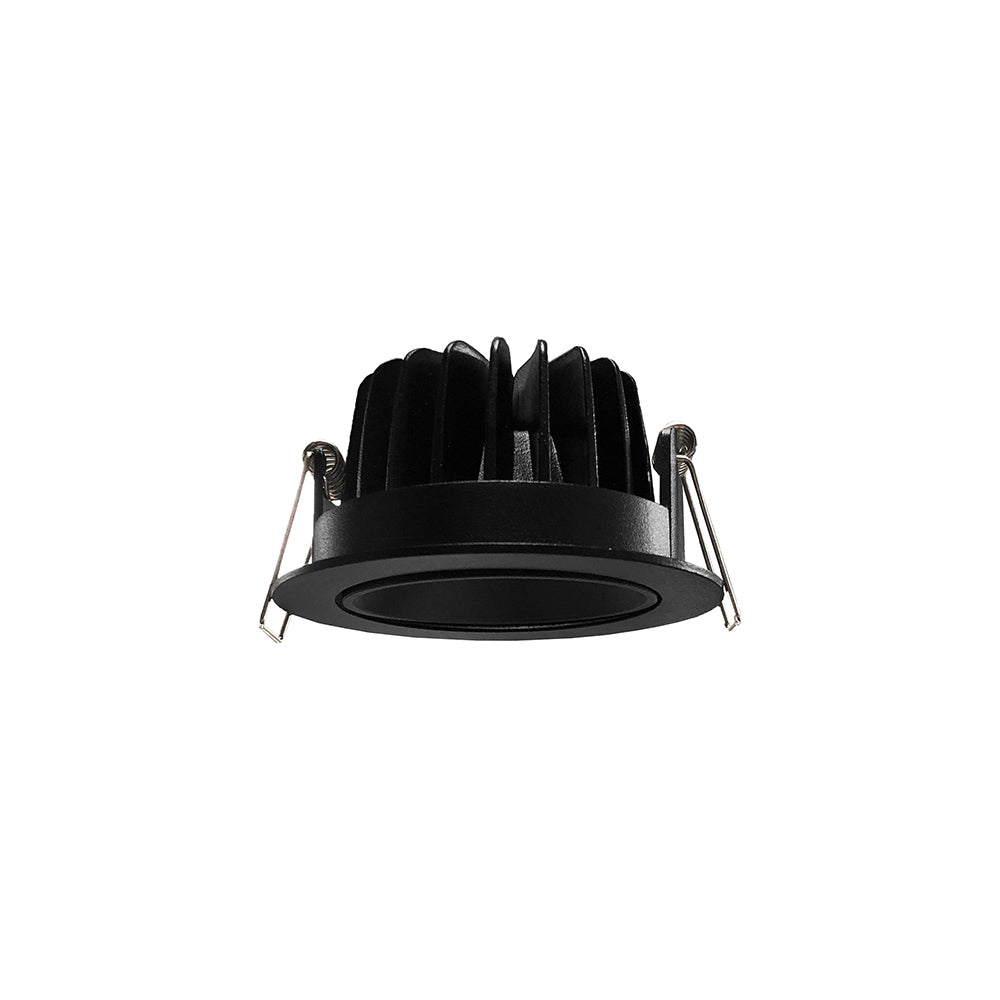

Archilight Halo 10W Tiltable Recessed Downlight

SKU FL-FR1028-3K-36D-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

FL-FR1028-3K-36D-B
LED Colour
Finish Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

Archilight Halo 10W Tiltable Recessed DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED ColourBrightnessFinish Colour
FL-FR1028-3K-36D-B36°Warm White 3000K870 lmBlack
FL-FR1028-3K-36D-W36°Warm White 3000K870 lmWhite
FL-FR1028-3K-60D-B60°Warm White 3000K823 lmBlack
FL-FR1028-3K-60D-W60°Warm White 3000K823 lmWhite
FL-FR1028-4K-60D-B60°Natural White 4000K823 lmBlack
FL-FR1028-4K-60D-W60°Natural White 4000K823 lmWhite

Specifications

Input
230VAC
Power rating
10W
Efficacy
≥85lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-10°C~40°C
Dimming control
AC Phase Cut Dimming
Tiltable
Adjustable
Mounting
Recessed
Driver
Driver Included
Warranty
3 years
Lifetime
50,000hrs
Material
Die-Cast Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

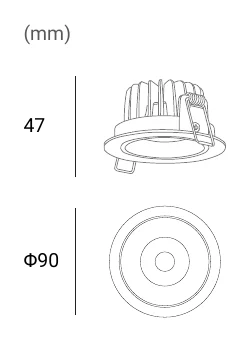

Archilight Halo 10W Tiltable Recessed Downlight Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of spaces is the Archilight Halo 10W Tiltable Recessed Downlight suited for?

This recessed downlight is designed for interior applications where a compact, low-footprint fitting is preferred. Its tiltable design and beam angle options make it suitable for task lighting, accent lighting, and general architectural lighting in commercial or residential settings.

What beam angles are available in this product family?

The Archilight Halo 10W family is available with 24 degree, 36 degree, and 60 degree beam angles. A narrower beam is better for more focused highlighting, while a wider beam is better for broader light distribution.

What color temperature options are offered across the Halo 10W range?

Across the family, variants are available in 2700K, 3000K, 4000K, and 5000K options, depending on the selected SKU. This gives buyers a choice from warmer ambient lighting through to cooler, crisper illumination.

Does this downlight include a driver and support dimming?

Yes, the product family includes a driver and supports AC phase cut dimming. That makes it suitable for projects that require dimmable control using compatible phase cut dimming systems.

What are the main performance specifications of the Archilight Halo 10W downlight?

This downlight has a 10W power rating, CRI 90, and a rated lifetime of 50,000 hours. Depending on the beam angle variant, light output ranges from about 823 to 876 lumens across the family.

What cut-out size should buyers check for this recessed downlight family?

The child variants in this family specify a ceiling cut-out range of 83 mm to 85 mm. Buyers should confirm that their selected variant matches the project opening requirements before ordering.

What finish options are available for the Archilight Halo 10W family?

This family is offered in black and white finish options. That allows the fitting to blend more subtly with different ceiling and interior design schemes.

What warranty is provided for this product family?

The Archilight Halo 10W Tiltable Recessed Downlight family is backed by a 3-year warranty. This applies alongside the stated 50,000-hour lifetime rating for long-term use.
