Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

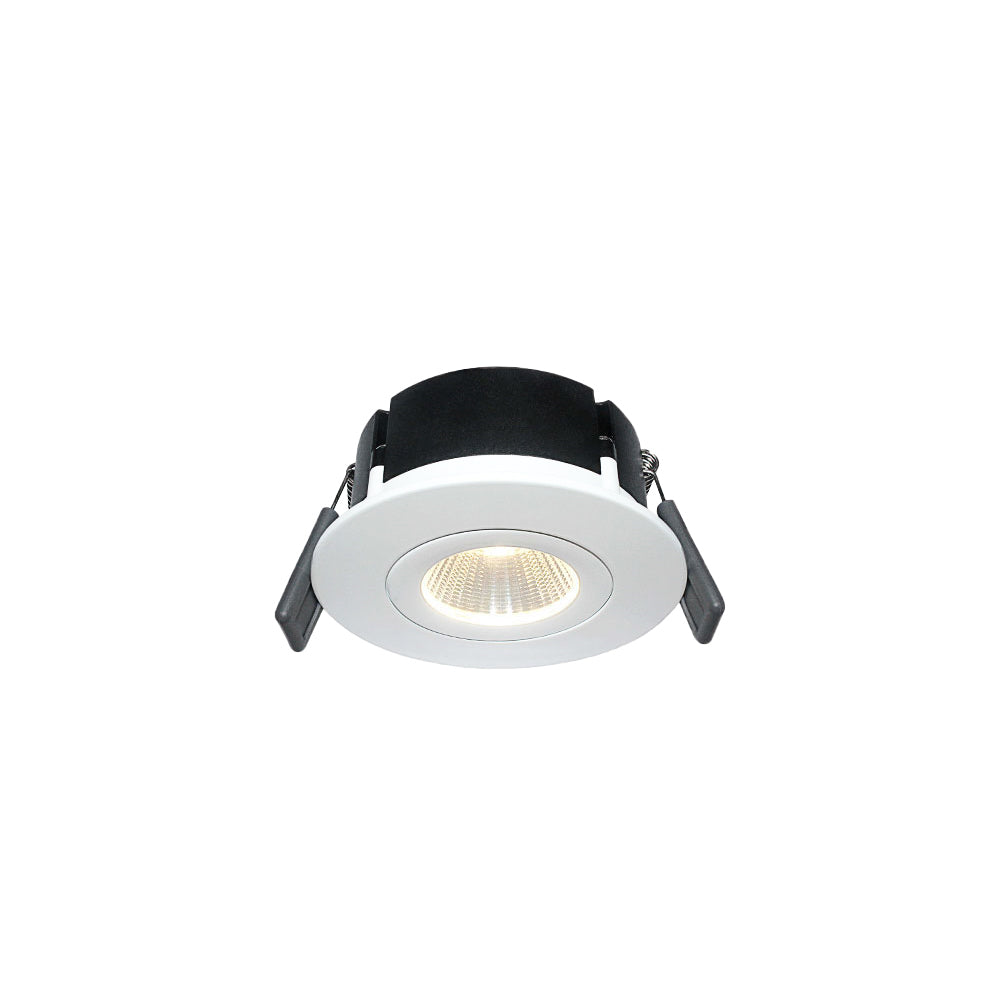

Archilight Halo WF Series 8W Tiltable Recessed Downlight

SKU:

FL-FR1351-3K-15D-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

FL-FR1351-3K-15D-W

LED Colour

Finish Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

Compact light body structure for easy installation and
disassembly.
The vertical 50 degrees and the horizontal 360 degrees
can be adjusted.

Frequently Asked Questions

What are the key specifications of the Archilight Halo WF Series 8W Tiltable Recessed Downlight?

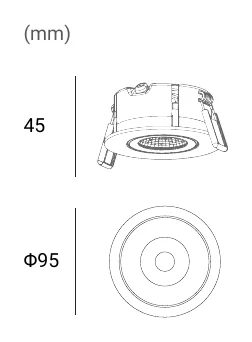

This recessed downlight uses 8W of power, delivers a CRI of 90, and has a rated lifetime of 50,000 hours. It operates on 230V input, includes the driver, and is backed by a 3-year warranty. The fixture body measures 95 x 95 x 45 mm and weighs 0.47 kg.

How much adjustment does the Halo WF Series offer?

The Halo WF Series is designed as a tiltable recessed downlight with vertical adjustment up to 50 degrees and horizontal rotation up to 360 degrees. That makes it suitable for directing light onto displays, feature areas, or architectural details. The adjustable format supports more precise aiming than a fixed downlight.

What beam angle options are available in this product family?

This parent family includes 15 degree, 25 degree, 38 degree, and 60 degree beam angle variants. That range lets buyers choose between narrower accent lighting and broader general illumination. Beam angle availability is one of the main differences across the child variants.

What color temperature options are offered across the Halo WF Series family?

The family is available in 3000K and 4000K variants. This gives buyers the choice between a warmer light appearance and a more neutral white output, depending on the project setting. Both color temperature options are represented across multiple beam angles.

What lumen output can I expect from this downlight family?

Depending on the selected variant, light output in this family ranges from 690 lm to 718 lm. The 25 degree versions are listed at 718 lm, while the 15 degree and 60 degree versions are listed at 700 lm, and the 38 degree versions at 690 lm. Output differences are modest and tied to the specific variant.

What ceiling cut-out size does this recessed downlight require?

Across the listed variants, the cut-out range is 83 mm to 90 mm. This means the family is intended for a relatively compact recessed opening. Buyers specifying multiple variants within the family can work from the same cut-out range shown in the child data.

Is the Archilight Halo WF Series dimmable?

The product family is listed as dimmable optional. That means dimming capability is supported, but the exact dimming setup depends on the selected control approach and project requirements. The driver is included with the fixture.

What finish options are available in this family?

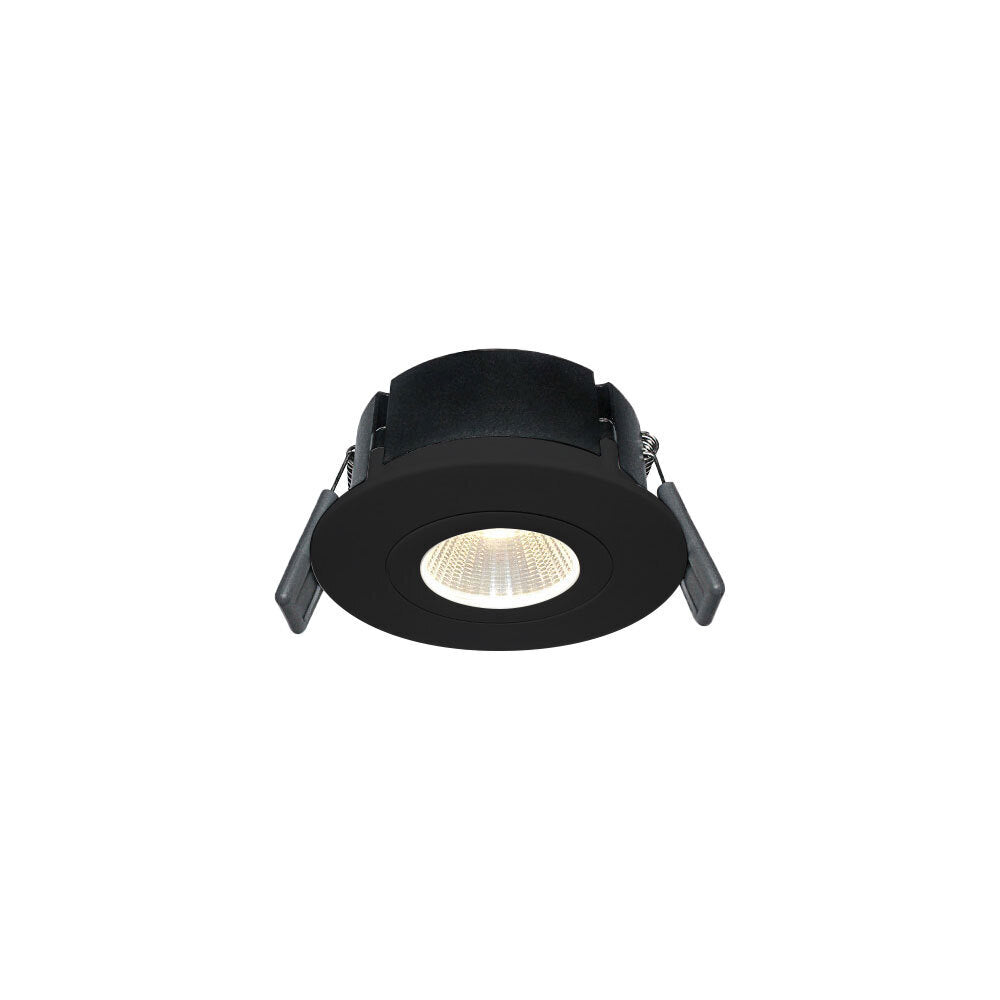

Most variants in this family are offered in white, and there is also a black finish available on a 3000K 60 degree version. Finish choice is therefore more limited than beam angle or color temperature choice. Buyers looking for black should confirm availability against the specific variant required.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Halo 10W Tiltable Recessed Downlight	10W	90	AC Phase Cut Dimming	83 Millimeter	View
