Archilight Omega 35 Downlight 4.5W

Specifications

Archilight Omega 35 Downlight 4.5WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Finish Colour
VM5303617211	White and Gold
VM5303627211	White and Black
VM5303637211	White and Silver
VM5303647211	White and Copper
VM5303717211	Black and Gold
VM5303727211	Black and Black
VM5303747211	Black and Silver
VM5303757211	Black and Copper

Specifications

Input: 350mA
Power rating: 4.5 W
Beam angle: 40°
Brightness: 400 lm
Efficacy: ≥88 lm/W
Colour render index(CRI): ≥82
Colour temperature: 3000K
UGR: <19
IP level: IP20
Temperature range: -25°C~40°C
Dimming control: Dimmable (Dimmer Optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Not Included
Warranty: 7 years
Lifetime: 70,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

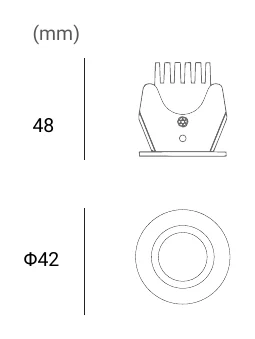

Archilight Omega 35 Downlight 4.5W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Omega 35 Downlight 4.5W datasheetOMEGA__35.pdf PDF Download

FAQ

What is the Archilight Omega 35 Downlight 4.5W best used for?

The Archilight Omega 35 Downlight 4.5W is a recessed LED downlight for interior lighting applications. Its compact 42 mm by 42 mm body and 35 mm cut-out size make it suitable for projects where a small architectural downlight is required.

What light output and color temperature does this downlight provide?

The variants shown for this parent model provide 400 lm of brightness at 3000 K. They use a 40 degree beam angle, giving a defined warm-white downlight effect.

Is the driver included with the Archilight Omega 35 Downlight?

Yes, the product data lists the driver as included across the variants shown. The parent model is specified for 230 V power input.

Is this downlight dimmable?

The dimming control is listed as dimmable optional. That means dimming is a supported option in the product family, but the exact dimming configuration should be selected from the available product options or project requirements.

Which finish options are available in this product family?

The listed variants include white and black outer finishes paired with gold, black, silver, or copper trim finishes. The available combinations shown are white/gold, white/black, white/silver, white/copper, black/gold, black/black, black/silver, and black/copper.

What cut-out size is used across the variants?

The variants shown all list a 35 mm cut-out minimum and 35 mm cut-out maximum. This makes the cut-out specification consistent across the parent product family.

What are the main electrical and performance specifications?

The Archilight Omega 35 Downlight is rated at 4.5 W with a CRI of 82. The listed variants provide 400 lm, use a 40 degree beam angle, and have a stated lifetime of 70,000 hours.

What warranty period is listed for this downlight?

The product data lists a 7 year warranty period for the parent model and the shown variants. The stated lifetime is 70,000 hours.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Omega 50 Downlight 4.5W	4.5W	82	Optional	50 Millimeter	View
Archilight Omega 75 Downlight 7W	7W	82	Optional	75 Millimeter	View
