Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

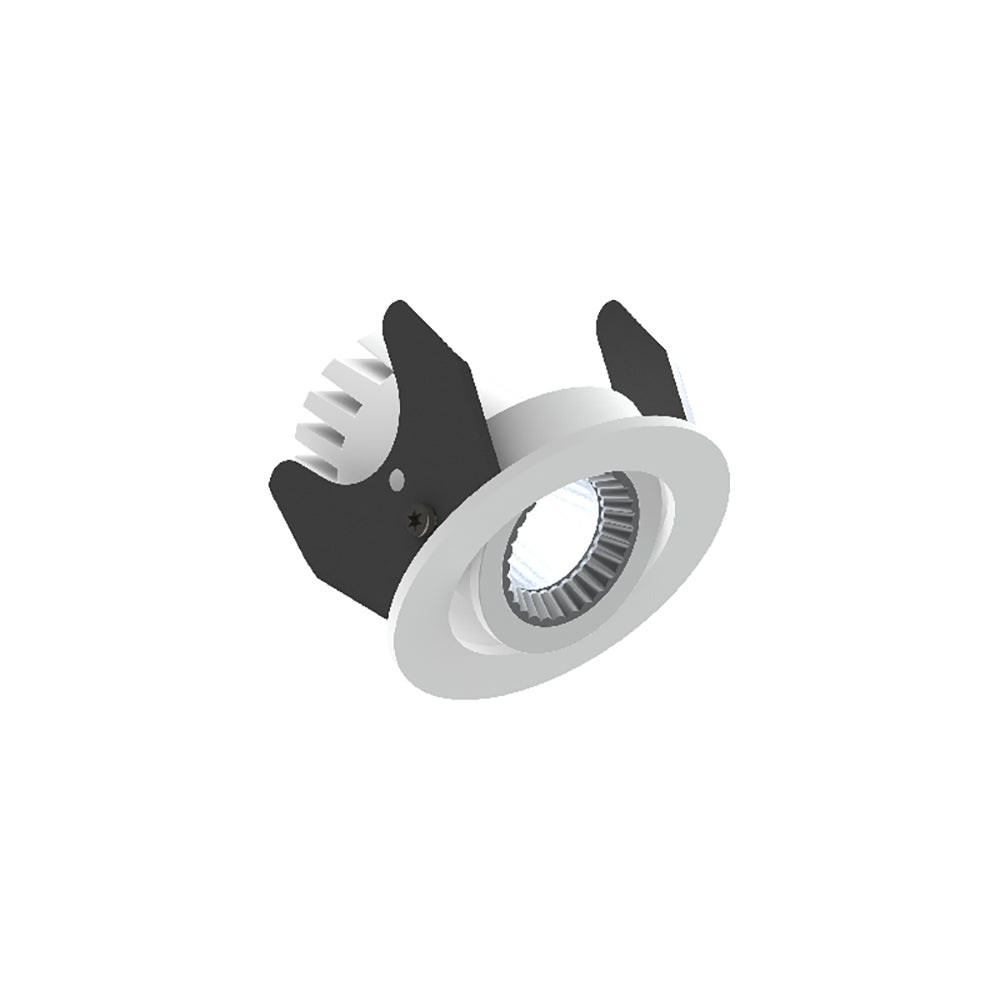

Archilight Omega 50 Downlight 4.5W

SKU VP5303617211

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

VP5303617211

LED Colour

Finish Colour

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Omega 50 Downlight 4.5WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour	Brightness	Finish Colour
VP5303617211	Warm White 3000K	400 lm	White and Gold
VP5303630211	Natural White 4000K	425 lm	White and Silver
VP5303637211	Warm White 3000K	400 lm	White and Silver
VP5303717211	Warm White 3000K	400 lm	Black and Gold
VP5303720211	Natural White 4000K	425 lm	Black and Black
VP5303727211	Warm White 3000K	400 lm	Black and Black

Specifications

Input: 350mA
Power rating: 4.5 W
Beam angle: 40°
Efficacy: ≥88 lm/W
Colour render index(CRI): ≥82
UGR: <19
IP level: IP20
Temperature range: -25°C~40°C
Dimming control: Dimmable (Dimmer Optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Not Included
Warranty: 7 years
Lifetime: 70,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

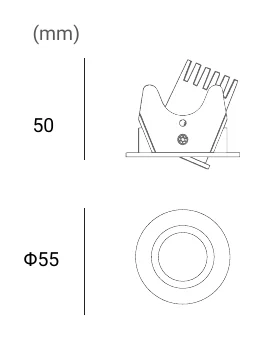

Archilight Omega 50 Downlight 4.5W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Omega 50 Downlight 4.5W datasheetOMEGA__50.pdf PDF Download

FAQ

What is the Archilight Omega 50 Downlight 4.5W used for?

The Archilight Omega 50 Downlight 4.5W is a recessed LED downlight for interior lighting projects. It is suited to B2B lighting specifications where a compact 55 mm diameter luminaire, 4.5 W power rating, and 40 degree beam angle are required.

What colour temperatures are available in the Omega 50 Downlight family?

The Omega 50 Downlight variants shown are available in 3000 K and 4000 K colour temperatures. The 3000 K versions are listed at 400 lm, while the 4000 K versions are listed at 425 lm.

What finishes are available for this parent product?

The child variants include white/gold, white/silver, black/gold, and black/black finish combinations. Availability depends on the selected colour temperature and SKU.

Does the Archilight Omega 50 Downlight include a driver?

No, the product data states that the driver is not included. The parent product is specified with a 350 mA LED light power input, so driver selection should be treated as a separate compatibility requirement.

Is the Omega 50 Downlight dimmable?

The product is listed as dimmable optional. Dimming capability should be confirmed as part of the selected control and driver specification, since the driver is not included with the downlight.

What are the key dimensions and cut-out size?

The parent product dimensions are 55 mm length, 55 mm width, and 50 mm height, with a listed weight of 0.188 kg. The child variant data shows a 50 mm minimum and maximum cut-out size across the family.

What performance and warranty details are specified?

The Omega 50 Downlight is rated at 4.5 W with CRI 82 and a 40 degree beam angle across the listed variants. The stated lifetime is 70,000 hours, and the warranty period is 7 years.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Omega 75 Downlight 7W	7W	82	Optional	75 Millimeter	View
Archilight Omega 35 Downlight 4.5W	4.5W	82	Optional	35 Millimeter	View
