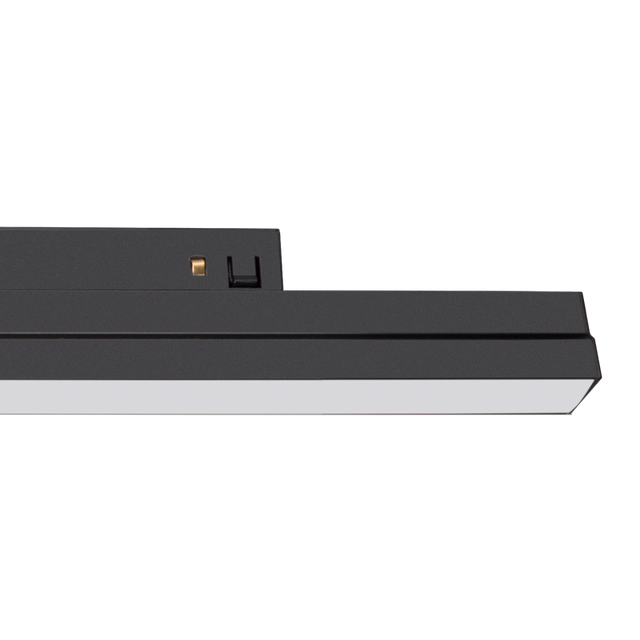

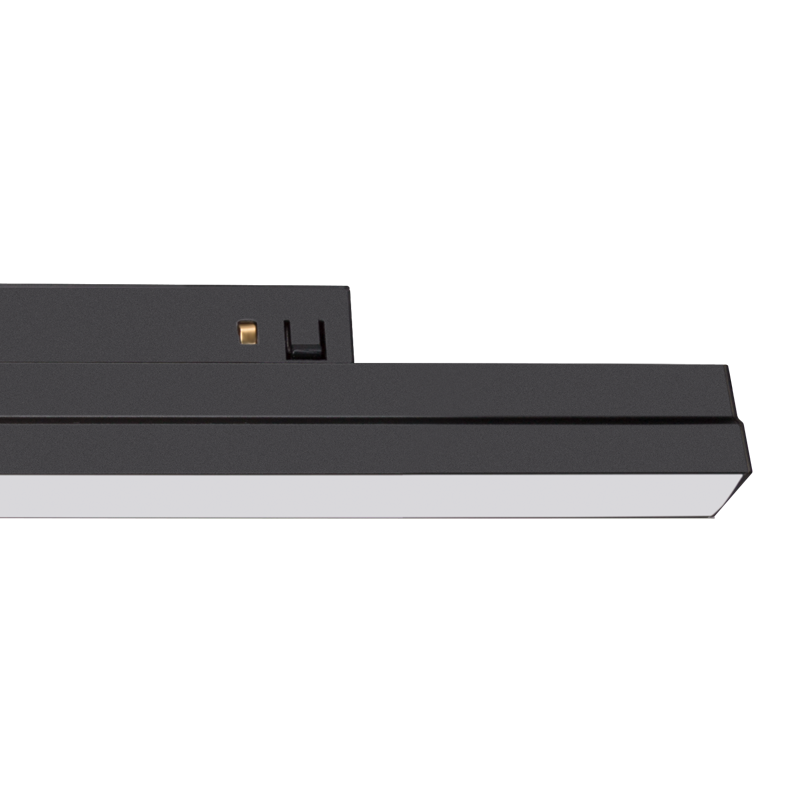

Archilight Strand 303 Black Track Light BLE 10W
Notify me when it's back in stock
Specifications
Specifications
- Order code
- KC-017022A03
- Input
- 48 V
- Power rating
- 10W
- Beam angle
- 112°
- Brightness
- 610 lm
- Efficacy
- ≥61 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 3000K / 4000K / 6000K / 3000K - 6000K
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- Black
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II
Technical drawings
Downloads
Datasheet1
FAQ
What is the Archilight Strand 303 Black Track Light BLE 10W designed for?
This product is a rectangular linear magnetic track light module designed for interior lighting applications. Its flush-fitting form suits residential, hospitality, office, and retail spaces where a clean, architectural track lighting look is needed.
Does this track light support adjustable colour temperature?
Yes. This BLE version allows the colour temperature to be changed through a phone app, making it useful where lighting tone may need to adapt to different settings or times of day. The parent model description specifically identifies Bluetooth-based colour temperature control as a key feature.
What track system is this light compatible with?
The Strand 303 Black Track Light BLE 10W is intended to pair with Motion series track systems. It is part of a magnetic track lighting family, so buyers should confirm the project uses the matching Motion track platform.
What are the main performance specifications of this track light family?
This parent model is rated at 10W and uses a 48V power input. It has a CRI of over 90 for strong colour rendering, a rated lifetime of 50,000 hours, and a 5-year warranty period.
Is the driver included, and is the light dimmable?
The 48V driver is not included. This model features Bluetooth APP Control as the default dimming method, with DALI available as an optional configuration.
What beam angle and brightness does this model offer?
This model offers a 112° beam angle and 610 lm brightness. This makes it suitable for broad, even illumination rather than a narrow accent beam.
